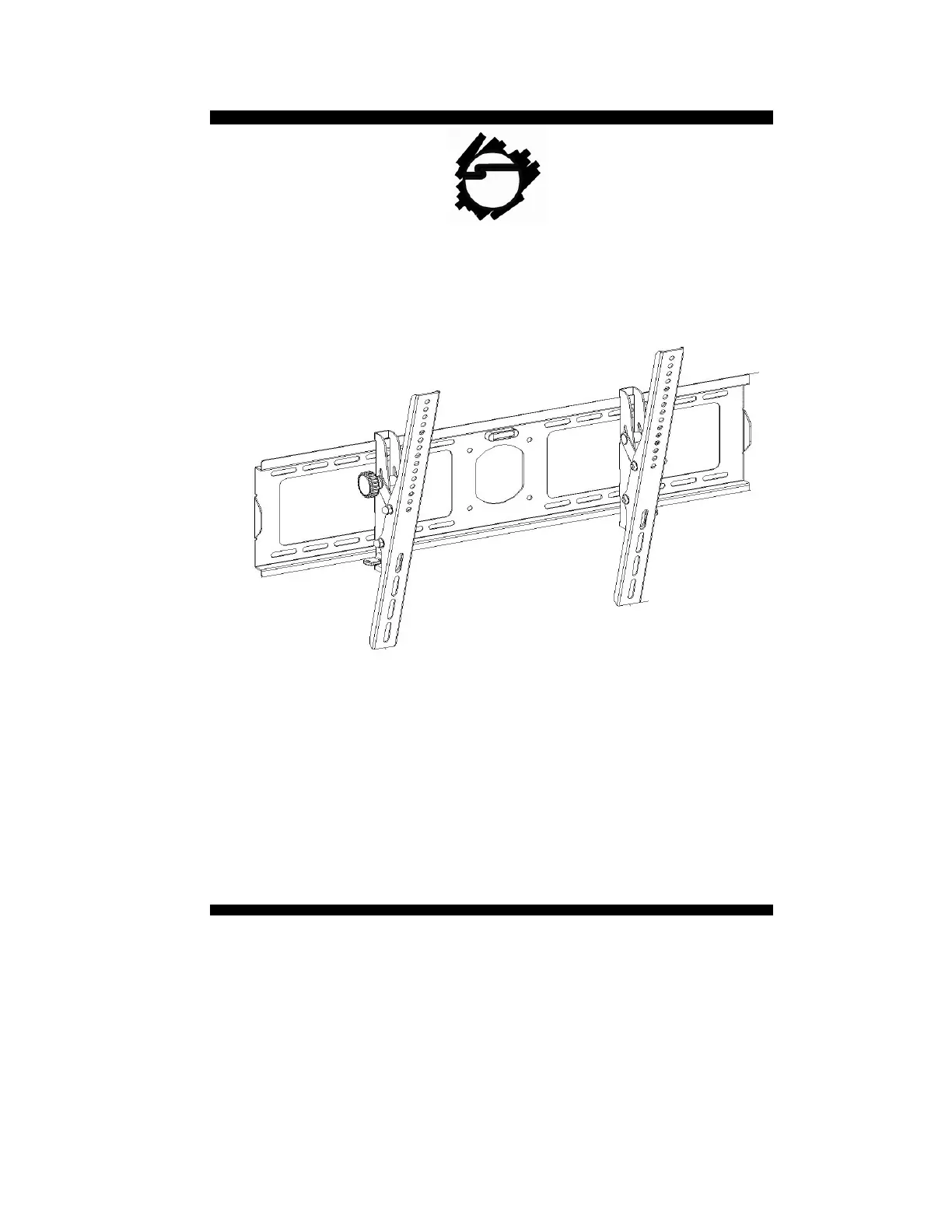

Pagina 1/8
04-0529C
IMPORTANT: If you don't understand the installation instructions, please
consult an installation specialist
Tiltable LCD / TFT TV Wall Mount
Material: 2.0mm Cold Rolled Steel Plate
TV Size: 32" - 60"
Tilt: 0 / +15 degrees
Maximum load capacity: 165 lbs / 75 kgs
Wall distance: 3.3" / 84mm
Bubble level system included
Universal Mounting Pattern
Installation Instructions
Universal Tilting TV Mount - 32" to 60"
1
A-1 G
A-2 (x1) Key H
B I
C J
D K
E L
F M (×4) M8 Spacer
1 Phillips head screw driver
2 Stud finder for drywall installation
3 5/16" Socket and Wrench
4 Electric drill and 5/16"(8mm) masonry bit for concrete/brick installation
(×4) M4×12 screw
Caution
CAUTION: The maximum load capacity is 165 lbs. Use with products heavier than the maximum load capacity
may cause serious injury. See apparatus instructions.
Prior to the installation of this product, the installation instructions should be read and completely understood.
The installation instructions must be read to prevent personal injury and property damage. Keep these
installation instructions in an easily accessible location for future reference.
Recommended mounting surfaces: wood stud and solid-flat concrete. If the mount is to be installed on any
surface other than wood studs, use suitable hardware (not included but commercially available).
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could
result in damage to the display and/or damage to the mounting surface.
Do not install near heater, fireplace, air conditioning, in direct sunlight, or any other heat producing source.
Failure to do so may result in damage to the display and could increase the risk of fire.
The wall structure must be capable of supporting at least the maximum load capacity as indicated. If not, the
wall must be reinforced. Proper installation procedure by yourself or a qualified service technician, as outlined in
the installation instructions, must be adhered to. Failure to do so could result in serious personal injury.
(×4) M5×16 screw
(×4) M8×16 screw
(×4) M8×35 screw
Tools Required:
INSTALLATION AND OPERATING INSTRUCTIONS
(×4) M6×35 screw
(×4) M6×16 screw
Hardware kit:
(×4) M4×16 screw
It is recommended that two people perform the installation. Injury and/or damage can result from dropping or
mishandling the display.
(×4) M8/M6/M5 Washer
(×6) M8x80 Bolt
(×6) M8 Concrete Anchor
When mounting to a wall that contains wood studs, confirm dead center of the wood stud prior to installation, it
is recommended that the wood studs be a minimum of 16" apart.
(×6) M8 Washer
(×4) M4×35 screw
2
Note:
Step 1: Wall plate installation
1
3
4 You should mark four positions total.
5
6
7
8
CAUTION:
CAUTION:
Use a high-quality electronic stud finder (commercially available)
to locate two adjacent studs and mark their locations with a pencil
(1-a).
Pre-drill a 1/4" hole to a depth of 2" in the wall stud at each
marked location.
NOTE: For secure wood stud mounting, the wall plate must be mounted to two studs at least
16" apart.
For each location, insert a lag bolt (J) and washer (L) into the wall.
2
Tighten each bolt with an open ended socket wrench by turning clockwise until tight.
Do not release the wall plate until it is properly mounted and secured to the wall.
Do not over-tighten bolts-doing so many cause unnecessary damage to the wall. Avoid excessive
torque.
Mark the right (upper and lower) and the left (upper and lower)
positions of the small horizontal slots that are in alignment with
the studs.
Position the wall plate against the wall and line up the mounting
slots with the drilled holes. Check the bubble level to verify that
the wall plate is level.
A) Wood Stud Installation
1. Please ensure that the bubble level is properly mounted on the wall
plate prior to mounting the wall plate.
2. Please check the two rails before installing, if without the
knob, please detach the screw and install the knob.
With the help of an assistant, and using the bubble level to
ensure the wall plate is level, position the wall plate against the
wall in the desired mounting location.
3


Product specificaties

Merk: SIIG
Categorie: Wandsteun
Model: CE-MT0712-S1
Kleur van het product: Zwart
Gewicht: 4100 g
Breedte: 494 mm
Diepte: 84 mm
Hoogte: 820 mm
Materiaal behuizing: Metaal
Montagewijze: Muur
Geschikt voor schermmaten: 32 - 60 "
Maximale gewichtscapaciteit: 75 kg
Certificering: UL
Bereik kantelhoek: 0 - 15 °
