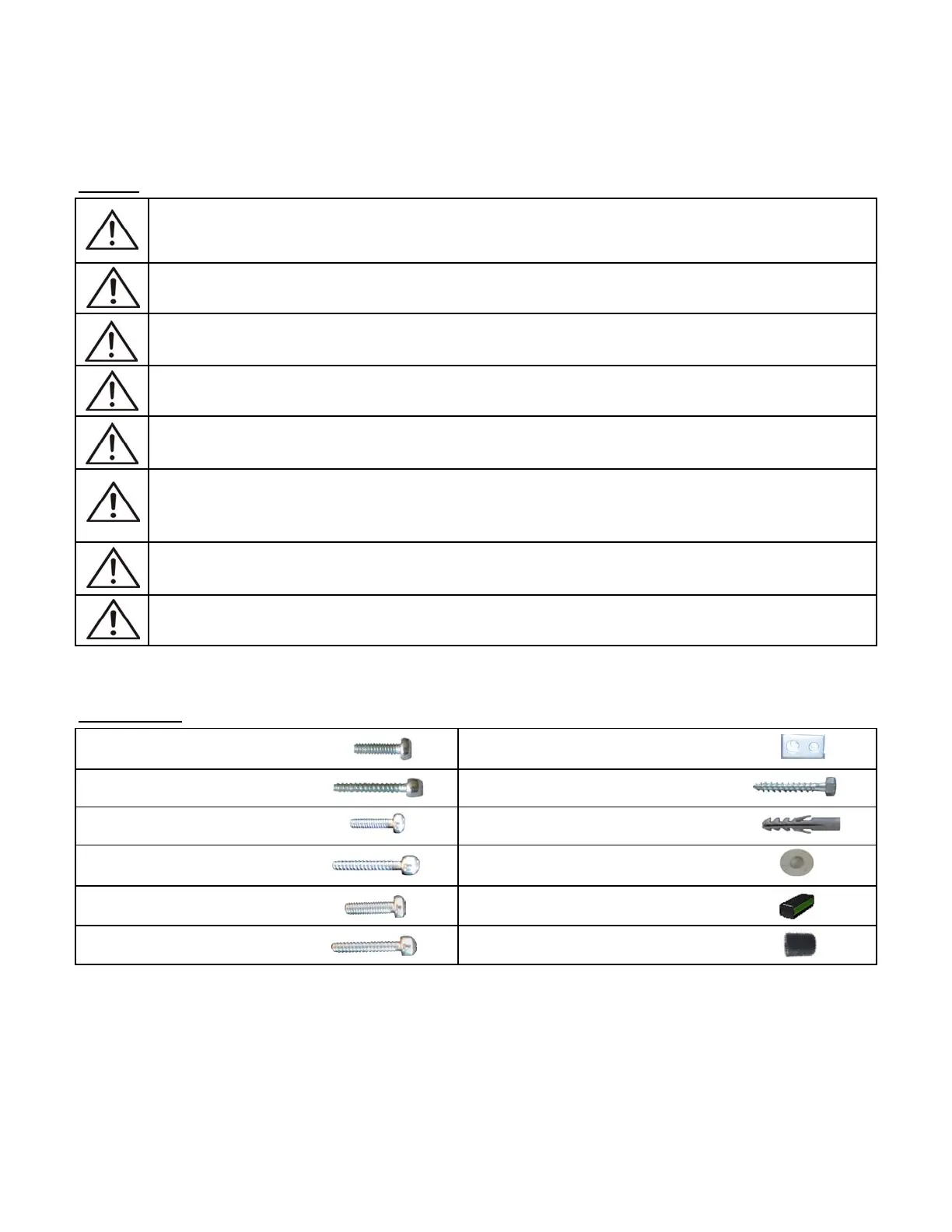

Installation Instructions

Wall distance: 1.38" / 35mm

Bubble level included

Low Profile Universal TV Mount - 42" to 70"

IMPORTANT: If you don't understand the installation instructions, please consult an installation

specialist

Fixed Flat-Panel TV Wall Mount

Universal Mounting Pattern

Material: 2.0mm Cold Rolled Steel Plate

TV Size: 42" - 70"

Max load capacity: 165lbs / 75kgs

A1 D (×4) M8/M6 rectangular washer

A2 E (×6) M8x50 bolt

B1 F (×6) M8 concrete anchor

B2 G1 (x6) M8 washer

C1 G2 External bubble level

C2 H

Do not install near heater, fireplace, air conditioning, in direct sunlight, or any other heat producing source. Failure to do

so may result in damage to the display and could increase the risk of fire.

INSTALLATION AND OPERATING INSTRUCTIONS

CAUTION: The maximum load capacity is 165lbs. Use with products exceeding the maximum load capacity may cause

serious injury. See apparatus instructions.

It is recommended that two people perform the installation. Injury and/or damage can result from dropping or

mishandling the display.

(×4) M6×12 screw

(×4) M8×15 screw

Recommended mounting surfaces: wood stud and solid-flat concrete. If the mount is to be installed on any surface

other than wood studs, use suitable hardware (not included but commercially available).

Prior to the installation of this product, the installation instructions should be read and completely understood. The

installation instructions must be read to prevent personal injury and property damage. Keep these installation

instructions in an easily accessible location for future reference.

When mounting to a wall that contains wood studs, confirm dead center of the wood stud prior to installation, it is

recommended that the wood studs be a minimum of 16" apart.

Caution

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could result in

damage to the display and/or damage to the mounting surface.

The wall structure must be capable of supporting at least the maximum load capacity as indicated. If not, the wall must

be reinforced. Proper installation procedure by yourself or a qualified service technician, as outlined in the installation

instructions, must be adhered to. Failure to do so could result in serious personal injury.

Hardware kit:

(×4) M5×30 screw

(×4) M8×30 screw

(×4) M6×30 screw

(×4) Spacer

(×4) M5×12 screw

A) Wood Stud Installation

Use a high-quality electronic stud finder to locate dead center of two

studs and mark their locations with a pencil (figure 1-a).

NOTE: When mounting to wood studs, the two wood studs must be a minimum of 16" apart.

Step1: Wall Plate Installation

1/2" Socket and Wrench

Electric drill, 3/16" (5mm) drill bit for wood stud installation and 3/8" (10mm) masonry bit for concrete/brick installation

Note: Please ensure that the bubble level (G2) is properly mounted on the wall plate prior to mounting the wall

plate.

Tighten the bolt with a 1/2" socket or open ended wrench by turning clockwise until tight.

CAUTION: Do not release the wall plate until it is properly mounted and secured to the wall.

Attach the bubble level (G2) to the wall plate and with the help of an

assistant ensure the wall plate is level, position the wall plate against

the wall in the desired mounting location.

Mark the right (upper and lower) and the left (upper and lower) positions of the small horizontal slots that are in

alignment with the studs. You should mark four positions total.

Phillips head screw driver

Stud finder for drywall installation

Tools Required:

Next, pre-drill a 3/16" hole to a depth of approximately 2" in the wood stud at each marked location.

Place the wall plate against the wall and line up the mounting slots with the drilled holes. Check the bubble level to

verify that the wall plate is level.

For each location, insert a bolt (E) and washer (G1) into the wall.

CAUTION: Do not over-tighten bolts-doing so many cause unnecessary damage to the wall. Avoid excessive torque.

Product specificaties

Merk:	SIIG
Categorie:	Wandsteun
Model:	CE-MT0J11-S1
Kleur van het product:	Zwart
Gewicht:	3300 g
Breedte:	910 mm
Diepte:	36 mm
Hoogte:	635 mm
Materiaal behuizing:	Metaal
Montagewijze:	Muur
Maximale gewichtscapaciteit:	75 kg
Paneelmontage-interface:	200 x 100,200 x 200,600 x 200,600 x 400,800 x 400 mm
Compatibiliteit:	LCD/Plasma
Montage interface compatibiliteit (min):	200 x 100 mm
Montage interface compatibiliteit (max):	800 x 400 mm
