04-0659A
TV Size: 36" - 65”
Max load capacity: 132lbs / 60kg
Wall distance: 0.43" / 11mm
Bubble level included

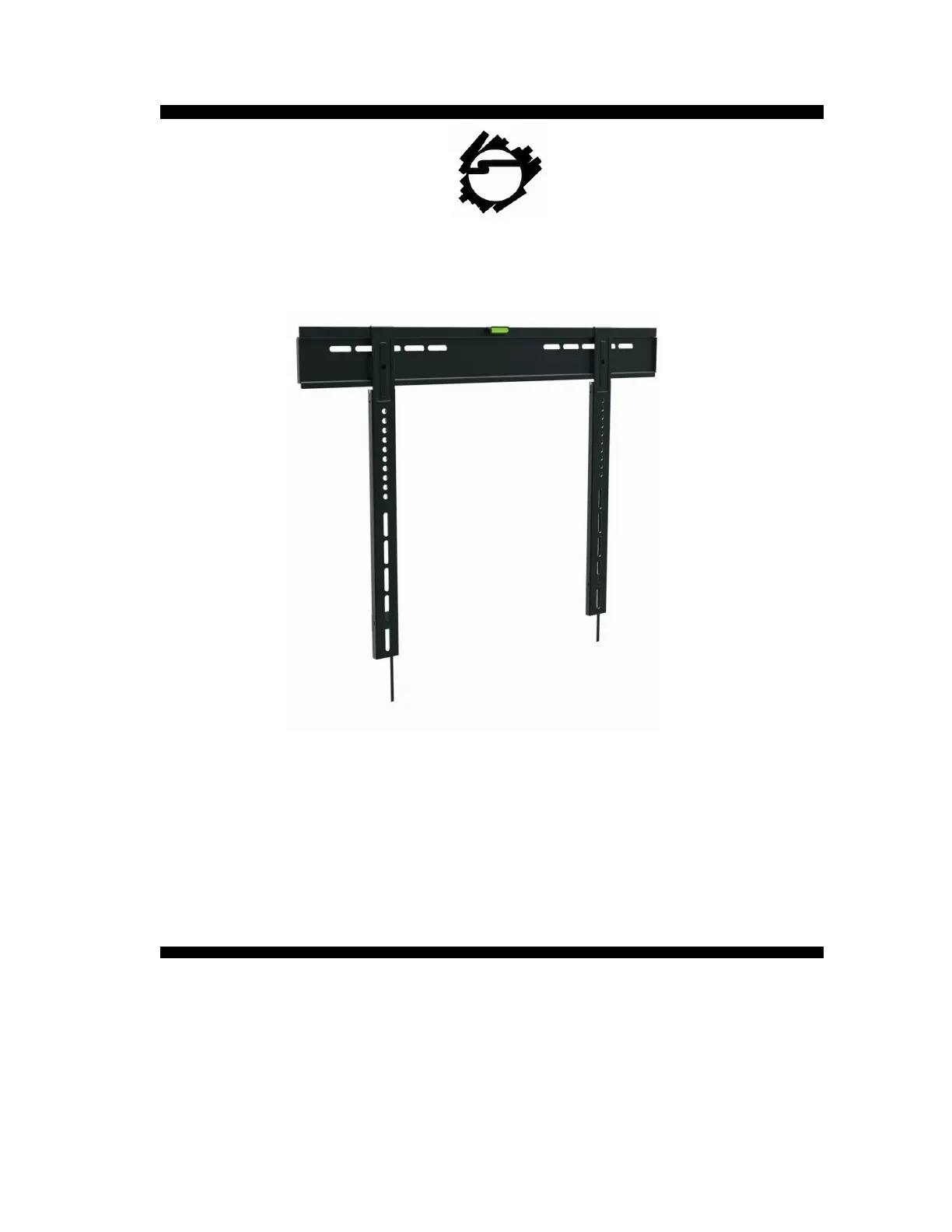

Ultra-Thin LED/LCD TV Mount - 36" to 65"
IMPORTANT: If you don't understand the installation instructions, please consult an installation
specialist
Ultra-Thin LED/LCD TV Wall Mount
Material: 2.0mm Cold Rolled Steel Plate
Installation Instructions
Universal Mounting Pattern
1

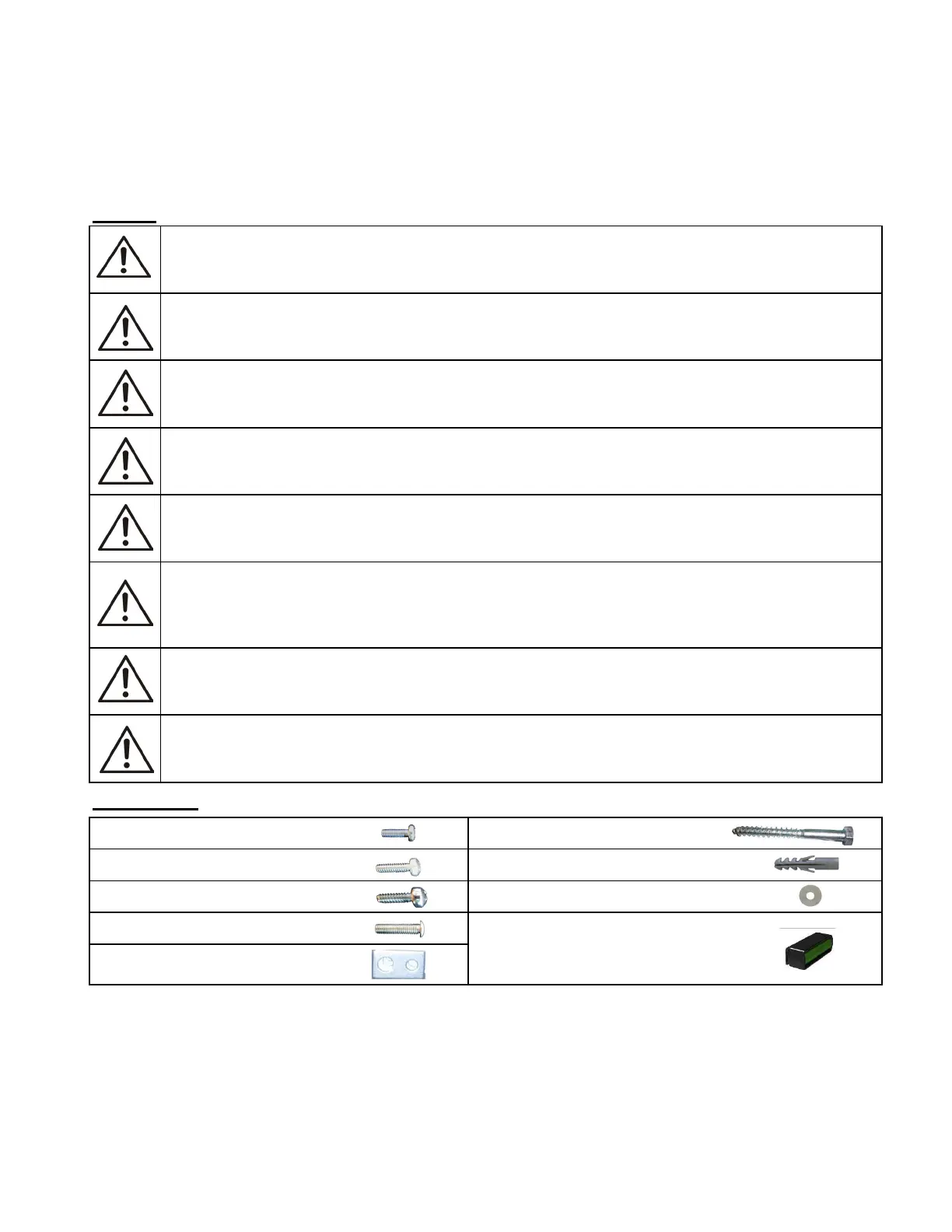

Caution
A F
B G
C H-1 (x4) M6 Washer
D
E
(×4) M6×12 screw
(×4) M5×12 screw
(×4) M8×15 screw
H-2 External bubble level
(×4) M8/M6 rectangular
washer
It is recommended that two people perform the installation. Injury and/or damage can result from dropping or
mishandling the display.
INSTALLATION AND OPERATING INSTRUCTIONS
Do not install near heater, fireplace, air conditioning, in direct sunlight, or any other heat producing source. Failure
to do so may result in damage to the display and could increase the risk of fire.
The wall structure must be capable of supporting at least the maximum load capacity as indicated. If not, the wall
must be reinforced. Proper installation procedure by yourself or a qualified service technician, as outlined in the
installation instructions, must be adhered to. Failure to do so could result in serious personal injury.
Recommended mounting surfaces: wood stud and solid-flat concrete. If the mount is to be installed on any
surface other than wood studs or concrete, use suitable hardware (not included but commercially available).
(×4) M6 x 50 bolt
Prior to the installation of this product, the installation instructions should be read and completely understood. The
installation instructions must be read to prevent personal injury and property damage. Keep these installation
instructions in an easily accessible location for future reference.
CAUTION: The maximum load capacity is 132lbs. Use with products exceeding the maximum load capacity may
cause serious injury. See apparatus instructions.
When mounting to a wall that contains wood studs, confirm dead center of the wood stud prior to installation, it is
recommended that the wood studs be a minimum of 16" apart.
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could result
in damage to the display and/or damage to the mounting surface.
Hardware Kit
(×4) M4×12 screw
(x4) M6 concrete anchor
2
1
2
3
4
5
3
4
5
7
8
a) Wood Stud Installation
You should mark two positions total.
Stud finder for drywall installation
NOTE: When mounting to wood studs, the two wood studs must be a minimum of 16" apart.
Use a high-quality electronic stud finder (commercially available) to locate dead center of two wood studs and
mark their locations with a pencil.
Step 1: Wall Plate Installation
Tools Required
1
Phillips head screw driver
Attach the bubble level (H-2) to the wall plate and with the help of an assistant ensure the wall plate is level,
position the wall plate against the wall in the desired mounting location.
Mark the right and the left positions of the small horizontal slots that are in alignment with the studs.
2
CAUTION: Do not over-tighten bolts - doing so may cause unnecessary damage to the wall.
Tighten the bolts with a 7/16" socket or 7/16" open-end wrench by turning clockwise until tight.
For each location, thread bolt (F) through washer (H-1) and insert into the wall. Do not tighten until all bolts are in
place.
Pre-drill a 1/8" hole to a depth of approximately 2" in the wood stud at each marked location.
Level
7/16" socket & socket wrench and/or 7/16" open-end wrench
Drill, 1/8" (3mm) drill bit for wood stud installation and 5/16" (8mm) masonry drill bit for concrete/brick installation
CAUTION: Do not release the wall plate until it is properly mounted and secured to the wall.
6 Place the wall plate against the wall and line up the mounting slots with the drilled holes. Check the bubble level to
verify that the wall plate is level.
3


Product specificaties

Merk: SIIG
Categorie: Wandsteun
Model: CE-MT0G11-S1
Kleur van het product: Zwart
Breedte: 855 mm
Diepte: 11 mm
Hoogte: 480 mm
Montagewijze: Muur
Geschikt voor schermmaten: 36 - 65 "
Maximale gewichtscapaciteit: 60 kg
Paneelmontage-interface: 200 x 200,600 x 400,800 x 400 mm
Gewicht (imperiaal): 4.5 lbs
Compatibiliteit: LCD & LED flat-panel TV
Montage interface compatibiliteit (min): 200 x 200 mm
Montage interface compatibiliteit (max): 800 x 400 mm
