Pagina 1/8
1

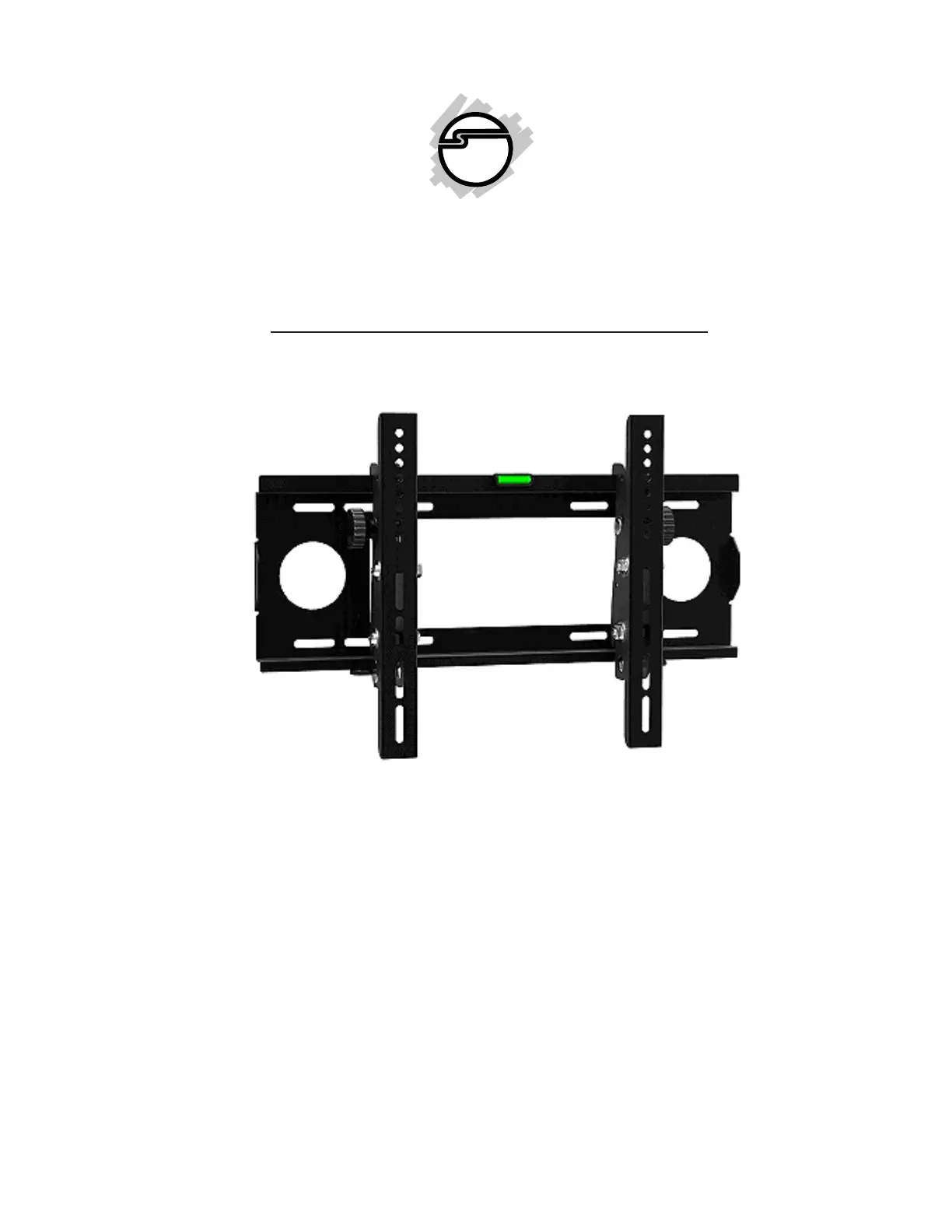

Universal Tilting TV Mount - 23" to 42"
Installation Instructions
04-0676C
Important: If you have difficulty following or understanding these installation instructions,
please consult a qualified installation specialist.
Tilting Flat-Panel TV Wall Mount
Material: 2.0mm Cold Rolled Steel Plate
TV size: 23" - 42"
Tilt: 0 / +15 degrees
Max load capacity: 99lbs / 45kgs
Wall distance: 3.1" / 80mm
Bubble level included
Universal Mounting Pattern
2
Caution
• Prior to installation of this product, the installation instructions should be read and
completely understood. The installation instructions must be read to prevent personal
injury and property damage. Keep these installation instructions in an easily accessible
location for future reference.
• This mount contains small parts which can act as a choking hazard if swallowed.
• CAUTION: The maximum load capacity is 99lbs. Use with products exceeding the
maximum load capacity may cause serious injury. See apparatus instructions.
• The wall structure must be capable of supporting at least five (5) times the maximum load
capacity as indicated. If not, the wall must be reinforced.
• Recommended mounting surfaces: wood stud and solid-flat concrete/brick. If the
mount is to be installed on any surface other than wood studs, solid concrete or brick, use
suitable hardware (not included but commercially available).
• Do not install on a structure that is prone to vibration, movement or chance of impact.
Failure to do so could result in damage to the display and/or damage to the mounting
surface.
• Do not install near heater, fireplace, air conditioning, in direct sunlight or any other heat
producing source. Failure to do so may result in damage to the display and could
increase the risk of fire.
• Make sure no water or natural gas lines are present where the mount is to be installed.
Cutting or drilling into water or natural gas lines could cause personal injury or property
damage.
• Proper installation procedure by yourself or a qualified service technician, as outlined
in the installation instructions, must be adhered to. Failure to do so could result in
serious personal injury.
• When mounting to a wall that contains wood studs, confirm the dead center of the wood
stud prior to installation, it is recommended that the wood studs be a minimum of 16"
apart (if applicable).
• This product is intended for indoor installation/use only. Premature product failure or
serious personal injury could occur if this product is used outdoors.
• It is recommended that two people perform the installation. Injury and/or damage can
result from dropping or mishandling the display.
Tools Required
• Electronic stud finder for drywall installation
• Phillips head screw driver
• 7/16" socket and wrench
• Electric drill, 1/8" (3mm) drill bit for wood stud installation, 5/16" (8mm) masonry drill
bit for concrete/brick wall installation
Important: The Universal Tilting TV Mount - 23" to 42" is shipped with the proper installation
hardware and parts. Make sure that none of the items are missing or damaged before starting
the installation. If there are any missing and/or damaged parts, please stop the installation
and contact your place of purchase.
3
Hardware Kit
ABC D
G
E-1 F
(x4) M6x12
screw
(x4) M5x30
screw
(x4) M5x12
screw (x4) M6x30
screw
(x6) M6
concrete anchor
J
H I
(x6) M6 washer
(x6) M6x50
bolt
(x4) M8/M6/M5
rectangular washer
(x1) Bubble level
K
(x4) Spacer
E-2
(x4) M8x30 screw (x4) M8x15 screw
Note:
1. Please ensure that the Bubble level (E-2) is properly mounted
to the wall plate prior to mounting the wall plate.
2. Please check the two rails before installing, if without the
tension knob, please install it now.
M
L
(x4) M4x30
screw
(x4) M4x12
screw
Product specificaties
Merk: | SIIG |
Categorie: | Wandsteun |
Model: | CE-MT0K11-S1 |
Kleur van het product: | Zwart |
Gewicht: | 3100 g |
Breedte: | 820 mm |
Diepte: | 78 mm |
Hoogte: | 494 mm |
Materiaal behuizing: | Staal |
Montagewijze: | Muur |
Compatibiliteit: | LCD/Plasma |
Montage interface compatibiliteit (min): | 200 x 100 mm |
Montage interface compatibiliteit (max): | 200 x 200 mm |
Bereik kantelhoek: | -15 - 0 ° |
