Pagina 1/2

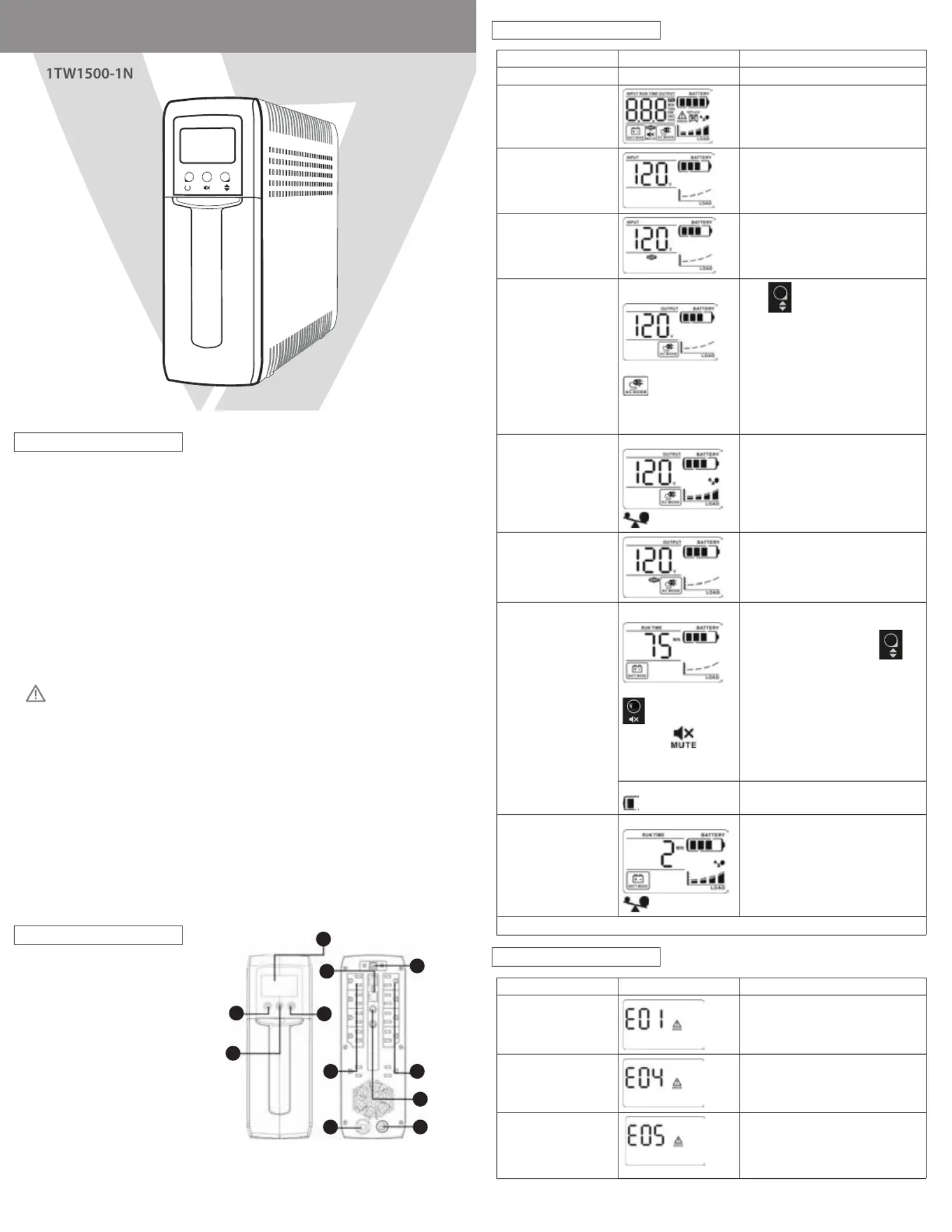

UPS 1500VA TOWER US

Installation & Operation

UPS

Product Overview

Fault Code Table

1. Inspection

The following items are inside the box: UPS Unit, User Manual

•Remove the UPS from its package and inspect it for damage that may have occurred during

shipping. If any damage is discovered, re-pack the unit and return it to the place of purchase.

2. Connect to Utility Power

•Connect AC power cord to utility power. Then, the UPS will start to charge inside battery. For best

result, charge the battery for 6 hours prior to initial use.

3. Plug in Equipment

•Battery back-up Outlets (5)

•Connect computer and monitor to the “Battery Backup” outlets. These outlets provide battery

backup, EMI ltering, line conditioning, and surge protection. Battery power is automatically

provided in case of power failure.

•Surge-Protected Outlets (5)

•Connect a printer, fax machine, or scanner to the “Surge-protected” outlets. These outlets do not

provide power during power failure.

CAUTION: NEVER connect a laser printer or scanner to the battery backup sockets of UPS. The

equipment may draw signicantly power to overload the UPS

4. Turn On/O the UPS

•To turn on the UPS unit, hold the power button until you hear a beep. To turn o the UPS unit,

hold the power button until it beeps. Then, display will shut o.

1. LCD display or LED indicators

(Please check LCD section for

the details)

2. Power Switch

3. Mute Button

4. Up/down button

5. AC Input

6. Circuit Breaker

7. Surge-protected outlets

8. Battery Backup Outlets

9. USB port (option)

10. Modem/phone/network surge

protection (option)

11. Coax surge protection (option)

Fault Condition SolutionsLCD

Output short circuited Disconnect short-circuited loads and

restart the UPS again

Inverter/Output failure Call for service immediately

Overcharge

1. Turn o the unit and wait for cooling.

2. Or remove excessive loads and wait

for cooling.

Note: If fault alarm occurs, please call for service immediately.

LED DISPLAY UPS1DT550-1N only

Operation Display

UPS Mode DescriptionLCD

UPS Power ON When UPS is powered on, all icons will

light up 1 second

Standby Mode

Site wiring fault in

standby mode Low Battery

AC Mode

When AVR is functioning,

icon will ash

every second.

Press button to switch displayed

information.

1. Output voltage

2. Output frequency

3. Input voltage

4. Input frequency

5. Output power in kW

6. Output power in kVA

7. Estimated backup time

Overload in AC mode

icon will ash

When overload occurs, alarm will beep

every 0.5 second.

Site wiring fault in AC

mode

Battery Mode

In battery mode, press

button to mute

alarm and icon will

be on.

Alarm will beep every 10 seconds and

LCD information will be displayed in the

following order when pressing

button.

1. Estimated backup time

2. Output voltage

3. Output frequency

4. Input voltage

5. Input frequency

6. Output power in kW

7. Output power in kVA

When battery level is low,

icon will ash

Alarm will beep every second. This alarm

can not be mute.

Overload in battery mode

icon will ash

When overload occurs, alarm will beep

every 0.5 second.

NOTE: The backlight will be always on when any fault or warning occurs.

5. Install software (Optional for advanced users)

For optimal computer system protection, install UPS monitoring software to fully congure the UPS

system. Please follow steps below to download and install monitoring software.

1. Go to the website http://www.V7-world.com/downloads

2. Select ViewPower software for your operating system to download the software.

3. Follow the on-screen instructions to install the software.

5 6

7 8

Safety Information

TroubleshootingSpecications

Problem Possible Cause Solutions

Nothing is displayed on

the panel

The UPS is not on Press the power switch again to turn on

the UPS

Battery voltage is too low Charge the battery at least 6 hours

Battery fault Replace the battery

The UPS always on

battery mode Power cord is loose Re-plug the power cord

The UPS continuously

beeps or displays battery

“REPLACE” icon

Battery is disconnected

Open the front battery cover by pushing

in then pulling down. Check to make

sure the battery is properly connected

Battery needs to be

replaced Replace the battery

Fault Code Check the fault code table for details

Backup time too short

Battery voltage is too low Charge the battery at least 6 hours

Overload

Remove unnecessary load. Before

reconnecting equipment, pleasee verify

that the load matches the UPS capability

in the specication

Battery defect Replace the battery

* If any abnormal situations occur that are not listed above, please call for service immediately

V1-20170328

• Caution -risk of electric shock. The battery circuit is not isolated from the input voltage. Hazardous

voltages may occur between the battery terminals and the ground. Before touching, please verify that

no voltage is present!.

• Remove the connection from ground if any part of the battery is determined to be grounded.

• When changing batteries, install the same number and same type of batteries..

• Do not attempt to dispose of batteries by burning them. This could cause battery explosion.

• Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It may be

toxic.

• Please replace the fuse or circuit breaker only with the same type and amperage in order to avoid re

hazards.

• Do not dismantle the UPS system,except the specialized technical personnel.

• This unit intended for installation in a controlled environment (temperature controlled, indoor area free

of conductive contaminants). Avoid installing the UPS in locations where there is standing or running

water, or excessive humidity.

• Do not plug the UPS input into its own output.

• Do not attach a power strip or surge suppressor to the UPS.

• Do not attach non-computer-related items, such as medical equipment, life-support equipment, micro-

wave ovens, or vacuum cleaners to UPS.

• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment o and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

• WARNING: Changes or modications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

• Do not dispose of batteries in a re as they may explode.

• Batteries may cause electric shock and have a high short-circuit current. Please take the precautionary

measures specied below and any other measures necessary when working with batteries:

1. Remove wristwatches, rings and other metal objects

2. Use only tools with insulated grips and handles.

3. Wear rubber gloves and boots.

4. Do not lay tools or metal parts on top of batteries.

5. Disconnect charging source and load prior to installing or maintaining the battery.

• Internal battery voltage is 12VDC.Sealed, lead-acid, 6-cell battery.

• Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and

the required precautions. Keep unauthorized personnel away from batteries.

• Do not open or mutilate the battery or batteries. Release electrolyte is harmful to the skin and eyes. It

may be toxic.

• Attention, hazardous through electric shock. Also with dis- connection of this unit from the mains,

hazardous voltage still may be accessible through supply from battery. The battery supply should be

therefore disconnected in the plus and minus pole at the connectors of the battery when mainte-

nance or service work inside the UPS is necessary.

• To reduce the risk of overheating the UPS, do not cover the UPS’ cooling vents and avoid exposing

the unit to direct sunlight or installing the unit near heat emitting appliances such as space heater or

furnaces.

• Unplug the UPS prior to cleaning and do not use liquid or spray detergent.

Model 1500

CAPACITY 1.5KVA/900W

Input Voltage 120 VAC

Input Voltage Range 90-140 VAC

Output Voltage Regulation ± 5 % (Bat. mode)

Transfer Time Typical 6 ms, max. 10 ms

Waveform Simulated Sine Wave

Battery Type & No 12V/9Ah x 2

Charging Time 6-8 hours recover to 90% capacity

Dimension (DxWxH) 16” x 4” x 11”

Net Weight (lbs) 26lbs (11.79 kg)

Humidity 0-90% RH @ 0-40°C non-condensing)

Noise Level Less than 45dB @ 1 meter (3 ft.)

Product specificaties

Merk:	V7
Categorie:	UPS
Model:	UPS1TW1500-1N
Kleur van het product:	Zwart
Gewicht:	11800 g
Breedte:	99 mm
Diepte:	410 mm
Hoogte:	280 mm
Snoerlengte:	1.83 m
Geluidsniveau:	40 dB
Gewicht verpakking:	12700 g
Breedte verpakking:	186 mm
Diepte verpakking:	495 mm
Hoogte verpakking:	369 mm
LED-indicatoren:	Ja
Vormfactor:	Tower
USB-poort:	Ja
Garantiekaart:	Ja
Accu/Batterij voltage:	12 V
Aantal USB 2.0-poorten:	1
Certificering:	FCC, TUV, REACH
Geluidsalarm(en):	Ja
Duurzaamheidscertificaten:	RoHS, ENERGY STAR
Uitgangsvermogen:	900 W
Batterij capaciteit:	9 Ah
Accu/Batterij oplaadtijd:	8 uur
Frequentie:	- Hz
Snelle installatiehandleiding:	Ja
Stekker:	NEMA 5-15
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	0 - 90 procent
Batterijtechnologie:	Sealed Lead Acid (VRLA)
Type beeldscherm:	LCD
Surge energy rating:	316 J
Output power capacity:	1.5 kVA
Ingang operation voltage (min):	- V
Ingang operation voltage (max):	- V
Uitgang operation voltage (min):	- V
Uitgang operation voltage (max):	- V
UPS-topologie:	Line-interactive
Typische backup tijd op halve lading:	11 min
Typische backup tijd op volledige lading:	3 min
Hoorbare alarmstanden:	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Spanningsbeveiliging:	Ja
Golfvorm:	Sinus
Contacttijd (max):	10 ms
Contacttijd (min):	6 ms
