Pagina 1/2

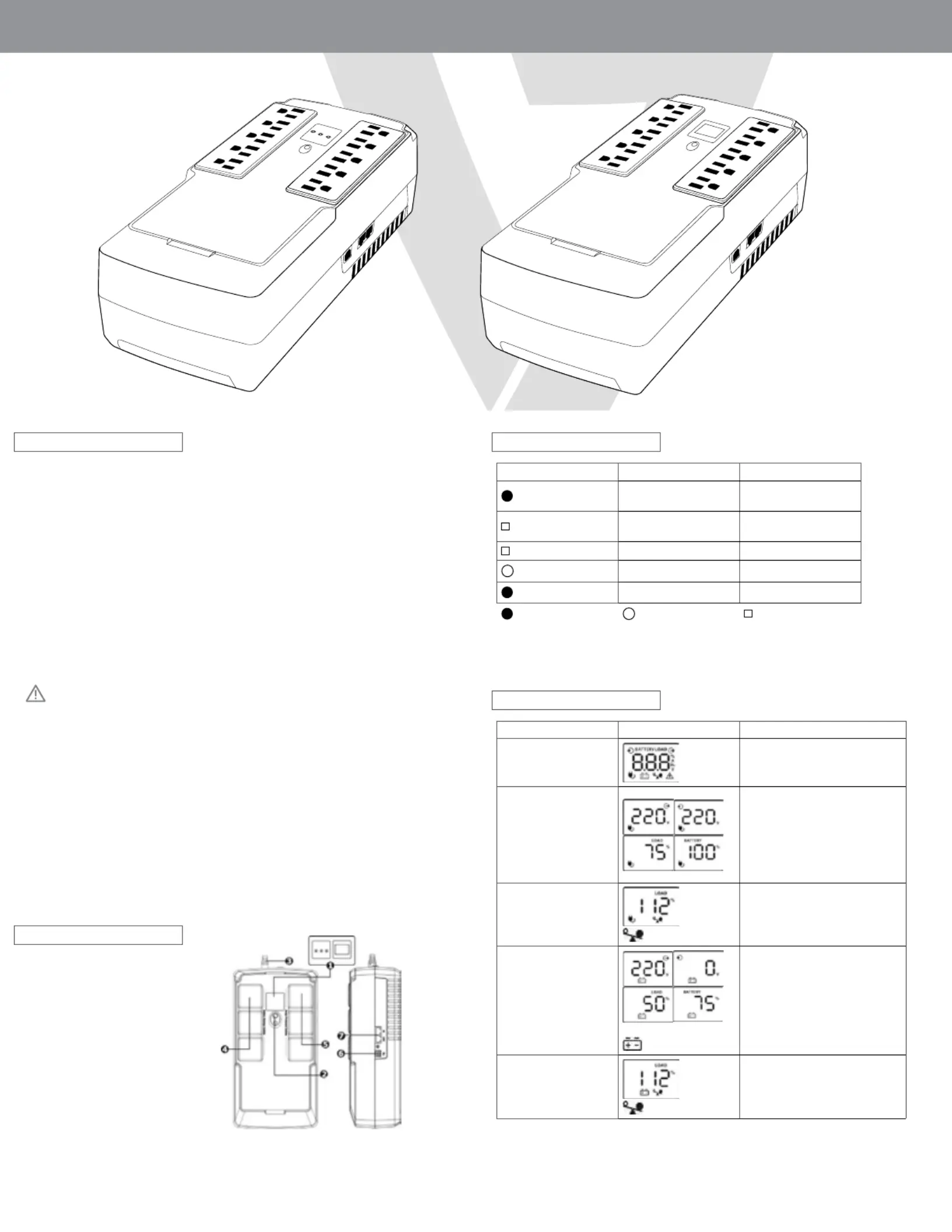

DESKTOP UPS

Installation & Operation

UPS1DT550-1N

UPS1DT750-1N

Product Overview

Operation Display

1. Inspection

The following items are inside the box: UPS Unit, User Manual

•Remove the UPS from its package and inspect it for damage that may have occurred during

shipping. If any damage is discovered, re-pack the unit and return it to the place of purchase.

2. Connect to Utility Power

•Connect AC power cord to utility power. Then, the UPS will start to charge inside battery. For best

result, charge the battery for 6 hours prior to initial use.

3. Plug in Equipment

•Battery back-up Outlets (5)

•Connect computer and monitor to the “Battery Backup” outlets. These outlets provide battery

backup, EMI ltering, line conditioning, and surge protection. Battery power is automatically

provided in case of power failure.

•Surge-Protected Outlets (5)

•Connect a printer, fax machine, or scanner to the “Surge-protected” outlets. These outlets do not

provide power during power failure.

CAUTION: NEVER connect a laser printer or scanner to the battery backup sockets of UPS. The

equipment may draw signicantly power to overload the UPS

4. Turn On/O the UPS

•To turn on the UPS unit, press the power switch lightly. Then, the LED or LCD will light up. To turn

o the UPS unit, press the power switch again. Then, display will shut o.

1. LCD display or LED indicators

(Please check LED or LCD

section for the details)

2. Power Switch

3. AC input

4. Battery backup

5. Surge-protected outlets

6. USB port

7. RJ11/RJ45 in/out

UPS Mode DescriptionLCD

UPS Power ON When UPS is powered on, it will

enter this mode for 4 seconds

AC Mode

LCD information will be displayed

in the following order when LCD is

touched.

1. Output voltage

2. Input voltage

3. Load Level

4. Battery capacity

Overload in AC mode

icon will ash

When overload occurs, alarm will

beep every 0.5 seconds

Battery Mode

When batter level is low.

icon will ash.

Alarm will beep every 10 seconds

and LCD information will be

displayed in the following order

when LCD is touched

1. Output voltage

2. Input voltage

3. Load Level

4. Battery capacity

Overload in battery mode

icon will ash

When overload occurs, alarm will

beep every 0.5 seconds

*NOTE: If backlight shuts o, you may activate it by touching the screen

LED Indicators UPS1DT550-1N only

UPS1DT750-1N only

LED Alarm UPS Status

Green OFF The mains is normal and

UPS is operating normally

Yellow Sounds every 10 seconds Power failure occurs and

UPS is on battery mode

Yellow Sounds every second Low Battery

Green OFF UPS is o

Red Continuously Sounds UPS fault

LED on LED o LED Flashing

5. Install software (Optional for advanced users)

For optimal computer system protection, install UPS monitoring software to fully congure the UPS

system. Please follow steps below to download and install monitoring software.

1. Go to the website http://www.V7-world.com/downloads

2. Select ViewPower software for your operating system to download the software.

3. Follow the on-screen instructions to install the software.

Safety Information

• This UPS utilizes voltage that may be hazardous. Do not attempt to disassemble the unit. The unit

contains no user replaceable parts. Only factory service personnel may perform repairs.

• During the installation of this equipment it should be assured that the sum of the leakage currents of

the UPS and the connected loads does not exceed 3.5mA.

• Connection to any other type of receptacle other than a two-pole, three-wire grounded receptacle

may result in shock hazard as well as violate local electrical codes.

• In the event of an emergency, press the “OFF” button and disconnect the power cord from the AC

power supply to properly disable the UPS.

• Do not allow any liquids or any foreign object to enter the UPS.

• Do not place beverages or any other liquid-containing vessels on or near the unit.

• This unit intended for installation in a controlled environment (temperature controlled, indoor area

free of conductive contaminants). Avoid installing the UPS in locations where there is standing or

running water, or excessive humidity.

• Do not plug the UPS input into its own output.

• Do not attach an extension cord, power strip, or surge protector to the UPS.

• Do not attach non-computer-related items, such as medical equipment, life-support equipment,

microwave ovens, or vacuum cleaners to UPS.

• Do not dispose of batteries in a re as they may explode.

• A battery can present a risk of electrical shock and high short circuit current. The following

precautions should be observed when working on batteries:

1. Remove watches, rings, or other metal objects from the hands.

2. Use tools with insulated handles.

3. Wear rubber gloves and boots.

4. Do not lay tools or metal parts on top of batteries.

5. Disconnect charging source prior to connecting or disconnecting batteries terminal.

• Internal battery voltage is 12VDC Sealed, lead-acid, 6-cell battery.

• Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries

and the required precautions. Keep unauthorized personnel away from batteries.

• When replacing batteries, replace with the same number and type of sealed lead-acid battery.

• Do not open or mutilate the battery or batteries. Release electrolyte is harmful to the skin and eyes.

It may be toxic.

• Attention, hazardous through electric shock. Also with dis- connection of this unit from the mains,

hazardous voltage still may be accessible through supply from battery. The battery supply should be

therefore disconnected in the plus and minus pole at the connectors of the battery when mainte-

nance or service work inside the UPS is necessary.

• To reduce the risk of overheating the UPS, do not cover the UPS’ cooling vents and avoid exposing

the unit to direct sunlight or installing the unit near heat emitting appliances such as space heater

or furnaces.

• Unplug the UPS prior to cleaning and do not use liquid or spray detergent.

Troubleshooting

Problem Possible Cause Solutions

Nothing is displayed on

the panel

The UPS is not on Press the power switch again to turn on

the UPS

Battery voltage is too low Charge the battery at least 6 hours

Battery fault Replace the battery

The UPS always on

battery mode Power cord is loose Re-plug the power cord

The UPS continuously

beeps

Please check the fault

code for the details Check the fault code table for details

Backup time too short

Battery voltage is too low Charge the battery at least 6 hours

Overload

Remove some unnecessary loads. Before

reconnecting equipment, please verify

that the load matches the UPS capability

specied in the specs.

Battery defect Replace the battery

* If any abnormal situations occur that are not listed above, please call for service immediately

Fault Codes

Fault Condition SolutionsLCD

Output short circuited

Disconnect short-

circuited loads and restart

the UPS

Overload fault

Disconnect all output

loads and restart the UPS

again

Overcharge Call for service

immediately

Bad or severely dis-

charged battery Replace battery

High output voltage fault Call for service

immediately

*If fault alarm occurs, please call for service immediately

08/16/2016

Product specificaties

Merk:	V7
Categorie:	UPS
Model:	UPS1DT550-1N
Kleur van het product:	Zwart
Gewicht:	3400 g
Breedte:	158.5 mm
Diepte:	305 mm
Hoogte:	95 mm
Snoerlengte:	1.83 m
Geluidsniveau:	40 dB
Gewicht verpakking:	3700 g
Breedte verpakking:	142 mm
Diepte verpakking:	376 mm
Hoogte verpakking:	237 mm
LED-indicatoren:	Ja
Vormfactor:	Compact
Garantiekaart:	Ja
Accu/Batterij voltage:	12 V
Aantal Ethernet LAN (RJ-45)-poorten:	1
Certificering:	FCC, TUV, REACH
Geluidsalarm(en):	Ja
Duurzaamheidscertificaten:	RoHS, ENERGY STAR
Uitgangsvermogen:	330 W
Batterij capaciteit:	5 Ah
Accu/Batterij oplaadtijd:	6 uur
Frequentie:	- Hz
Snelle installatiehandleiding:	Ja
Modem (RJ-11) poort:	1
Stekker:	NEMA 5-15
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	0 - 90 procent
Batterijtechnologie:	Sealed Lead Acid (VRLA)
Surge energy rating:	632 J
Aantal AC uitgangen:	10 AC-uitgang(en)
Output power capacity:	0.55 kVA
Ingang operation voltage (min):	- V
Ingang operation voltage (max):	- V
Uitgang operation voltage (min):	- V
Uitgang operation voltage (max):	- V
Typische backup tijd op halve lading:	8 min
Typische backup tijd op volledige lading:	2 min
Seriële interface:	Ja
Hoorbare alarmstanden:	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Spanningsbeveiliging:	Ja
Golfvorm:	Sinus
Contacttijd (max):	10 ms
Contacttijd (min):	6 ms
