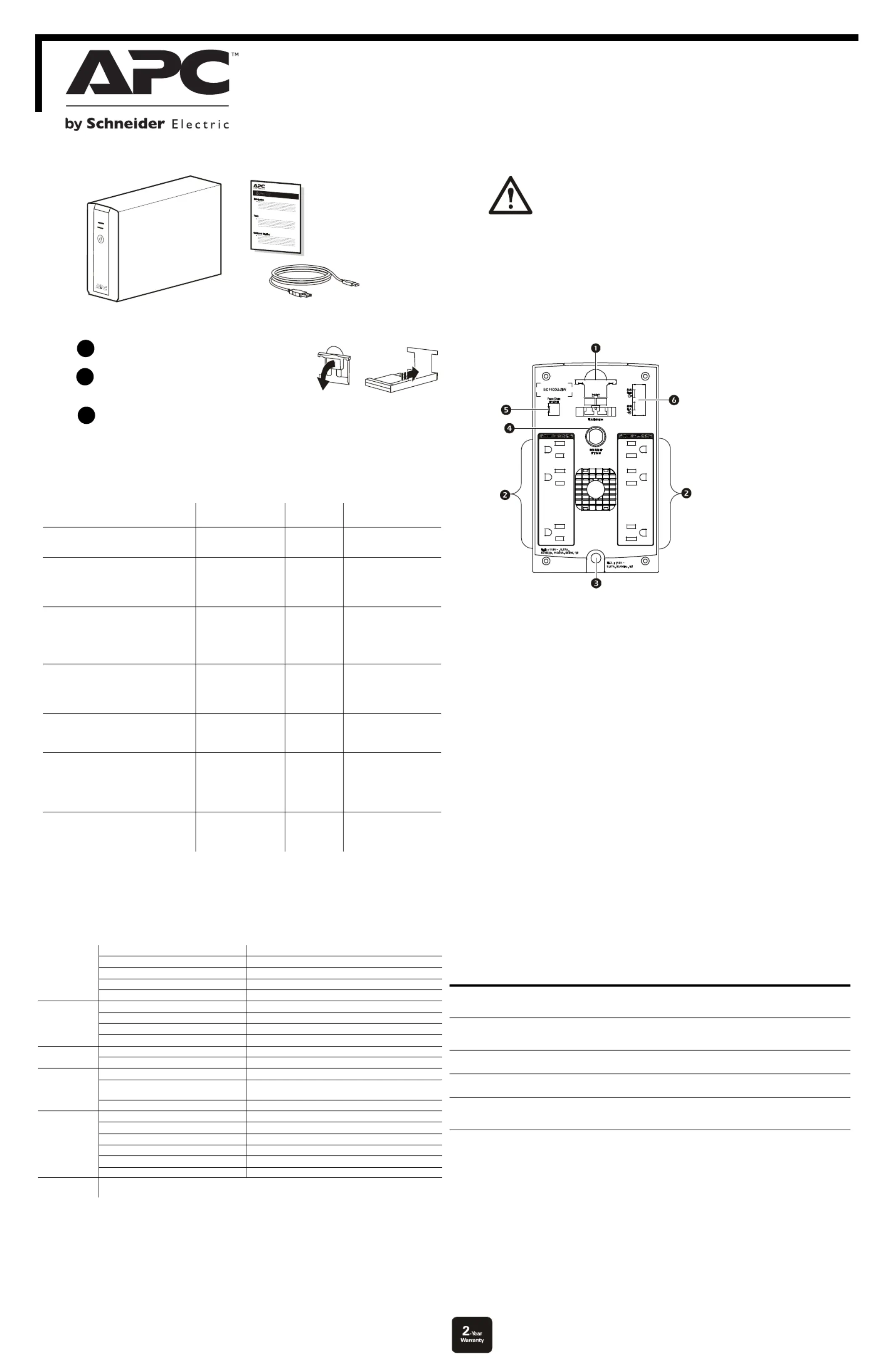

Back-UPS
BC1100U-TW
Safety and General Information
Inspect the package contents upon receipt. Notify the
carrier and dealer if there is any damage.
Read the Safety Guide supplied with this unit before
installing the UPS.
User Guide
4
12
5Status Indicators
• This UPS is intended for indoor use only.
• Do not operate this UPS in direct sunlight, in contact with fluids, or where there is excessive dust or
humidity.
• Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.
• The battery typically lasts for three to five years. Environmental factors impact battery life. Elevated ambient
temperatures, poor quality AC power, and frequent short duration discharges will shorten battery life.
• Connect the UPS power cable directly to a wall outlet. Do not use surge protectors or extension cords.
Battery Replacement
The battery in the Back-UPS BC1100U-TW is not user-replaceable. Contact Schneider Electric IT (SEIT)
Technical Support for a list of authorized service centers near you.
Status LED Indicator
Audible
Indicator On
Audible Indicator
Terminates
Power On
The Back-UPS is supplying AC power
to connected equipment.
The On Line LED
illuminates green.
None N/A
On Battery
The Back-UPS is supplying battery
power to battery backup outlets.
The On Line LED
illuminates green.
The LED is not
illuminated during
the beeps.
Back-UPS
beeps 4
times every
30 seconds.
The beeping stops when
AC power is restored or
the Back-UPS is turned
off.
Low Battery warning
The Back-UPS is supplying battery
power to the battery backup outlets
and the battery is near a total
discharge state.
The On Line LED
flashes green.
The Back-
UPS emits
rapid
beeping.
(once every
second)
The beeping stops when
AC power is restored or
the Back-UPS is turned
off.
Replace Battery
• The battery is disconnected.
• The battery needs to be charged
or replaced.
• The Battery LED
flashes red.
•Battery and On Line
LEDs flash
alternately.
Constant
tone
The Back-UPS is turned
off.
Overload Shutdown
While operating on battery power an
overload condition has occurred in one
or more of the battery backup outlets.
None Constant
tone
The Back-UPS is turned
off.
Sleep Mode
While operating on battery power the
battery is completely discharged.
The Back-UPS will “awaken” once AC
power is restored.
None The Back-
UPS beeps
once every
four
seconds.
• AC power is restored
• AC power is not
restored within 32
seconds
• The Back-UPS is
turned off
Overload Alarm
The equipment connected to the Back-
UPS is drawing more power than the
voltage rating allows.
The Battery LED
illuminates red.
Constant
tone
Alarm stops when
nonessential equipment
is disconnected from the
Battery Backup outlets.
Connect the Battery
PowerChute™ Personal Edition Software
PowerChute Personal Edition Software allows you to use your computer to access additional power protection
and management features of the Back-UPS.
Installation
Connect the Back-UPS to a computer using a USB cable. Plug one end into the USB Port on the rear panel of the
Back-UPS and the other into a USB port on your computer.
To download the software and for detailed operation, go to www.apc.com
™
bu001c
3Connect the battery by pulling the battery connector
handle down, and then pushing it into the unit.
Connect the Back-UPS BC1100U-TW power cable
directly to a wall outlet. Do not use surge protectors or
extension cords.
Press the ON/OFF button to turn on the unit.
The green “Power On” indicator confirms that the Back-UPS is on and ready to provide
protection.
The Back-UPS should charge for at least 10 hours to ensure sufficient runtime. The unit is
being charged whenever it is connected to AC power, whether the unit is turned ON or OFF.
2
1
3
Installation
Transfer Voltage and Sensitivity
Settings
No-load Shutdown
The UPS will shut down to conserve energy if while operating on battery power the UPS detects that connected
equipment is using less than 15 W of energy for more than 15 minutes.
No-load shutdown can be enabled or disabled through Program mode described below.
If the Back-UPS switches to battery power too frequently or too infrequently, adjust the transfer voltage and
sensitivity settings:
1 . Verify that the Back-UPS battery is connected. Connect the Back-UPS to a wall outlet. The
Back-UPS should be turned off.
2 . Press and hold the POWER ON/OFF button for 10 seconds. The LEDs will illuminate green and red
alternately, to indicate that the Back-UPS is in Program mode.
3 . The LEDs will flash either green, red or green and red alternately to indicate the current sensitivity level.
The Back-UPS will beep to indicate that No-load Shutdown is enabled. Refer to the table for an explanation
of the transfer voltage sensitivity levels.
4 . To select LOW sensitivity, press the ON/OFF button until the On Line LED flashes green.
5 . To select MEDIUM sensitivity, press the ON/OFF button until the Battery LED flashes red.
6 . To select HIGH sensitivity, press the ON/OFF button until the On Line and Battery LEDs flash green and
red alternately.
7 . To exit Program mode wait for five seconds and both LEDs will extinguish. Program mode is no longer
active.
APC by Schneider Electric IT Customer
Support Worldwide
For country specific customer support, go to the APC by Schneider Electric Web site, www.apc.com.
Register your product on-line. http://warranty.apc.com
LED
Flashes
Audible
Indicator
Voltage
Sensitivity
Setting
Input
Voltage
Range
No-load
Shutdown Recommended Use
Green None Low 88-142 Disabled Use this setting with equipment that is less
sensitive to fluctuations in voltage or
waveform distortions.
Green 4 beeps per
second
Low 88-142 Enabled Use this setting with equipment that is less
sensitive to fluctuations in voltage or
waveform distortions.
Red None Medium 92-139 Disabled Use this setting for normal operation
conditions.
Red 4 beeps per
second
Medium
(factory default)
92-139 Enabled Use this setting for normal operation
conditions.
Green and
Red
None High 96-136 Disabled Use this setting when connected
equipment is sensitive to voltage
fluctuations or waveform distortions.
Green and
Red
4 beeps per
second
High 96-136 Enabled Use this setting when connected
equipment is sensitive to voltage
fluctuations or waveform distortions.
6
7
Troubleshooting and Service
1. Consult the Troubleshooting from the APC by Schneider Electric Web site, www.apc.com.
2. If the problem persists, contact Schneider Electric IT (SEIT) Customer Support through the Schneider
Electric Web site, www.apc.com.
a. Note the model number and serial number and the date of purchase. The model and serial numbers are
located on the rear panel of the unit and are available through the LCD display on select models.
b. Call SEIT Customer Support and a technician will a over the phone. If this ttempt to solve the problem
is not possible, the technician will issue a Returned Material Authorization Number (RMA#).
c. If the unit is under warranty, the repairs are free.
d. Service procedures and returns may vary internationally. Refer to the Schneider Electric Web site for
country specific instructions.
3. Prepare to troubleshoot the problem over the phone. If this is not successful, and the unit is still under
warranty, the Technical Support Representative will provide all necessary information to return the unit for
replacement
Input
Voltage 115 Vac, nominal
Frequency 50/60 Hz ± 3Hz, auto-sensing
Current 9.57A
Brownout Transfer 92 Vac, typical
Over-voltage Transfer 139 Vac, typical
Output
UPS Capacity (total) / Current 1100VA / 660W / 9.57A
Voltage On Battery 115 Vac (step-approximated sinewave)
Frequency on Battery 50/60 Hz ± 1Hz
Transfer Time 4 ms typical
Protection and
Filtering
AC Surge Protection Full time, 378 Joules
AC Input Resettable circuit breaker
Battery
Type (maintenance free, lead acid) Each battery 12 V 7.2 Ahr
Average Life 3 - 5 years depending on the number of discharge
cycles and environmental temperature
Typical Recharge Time 8 Hours
Physical
Net Weight 12 kg
Dimensions (H x W x D) 21.5 cm x 13 cm x 33.6 cm
Operating Temperature 0
oC to 40 oC (32 oF to 104 oF)
Storage Temperature -15
o C to 45
o C (5 oF to 113 oF)
Operating Relative Humidity 0 to 95% non-condensing
Operating Elevation 0 to 3000 m (0 to 10,000 ft)
EMC
Compliance This device complies with BSMI rules, and its Telephone port has the surge protection function.
Telephone cable connected to this device must not exceed 3 meters in length.
Inventory
e
Battery connector
Battery Backup + Surge
Protection outlets
AC Power Cable
Circuit breaker
USB port
Telephone/Network port
bu385a
Specifications
EN 990-5267A 03/2014
© 2014 APC by Schneider Electric. APC, the APC logo and APC, the APC logo, Back-UPS, and PowerChute
are owned by Schneider Electric Industries S.A.S. or their affiliated companies. All other trademarks are
property of their respective owners.
