Building and Operating Instructions
Notice de montage et de mise en œuvre
Istruzioni di montaggio e d’uso

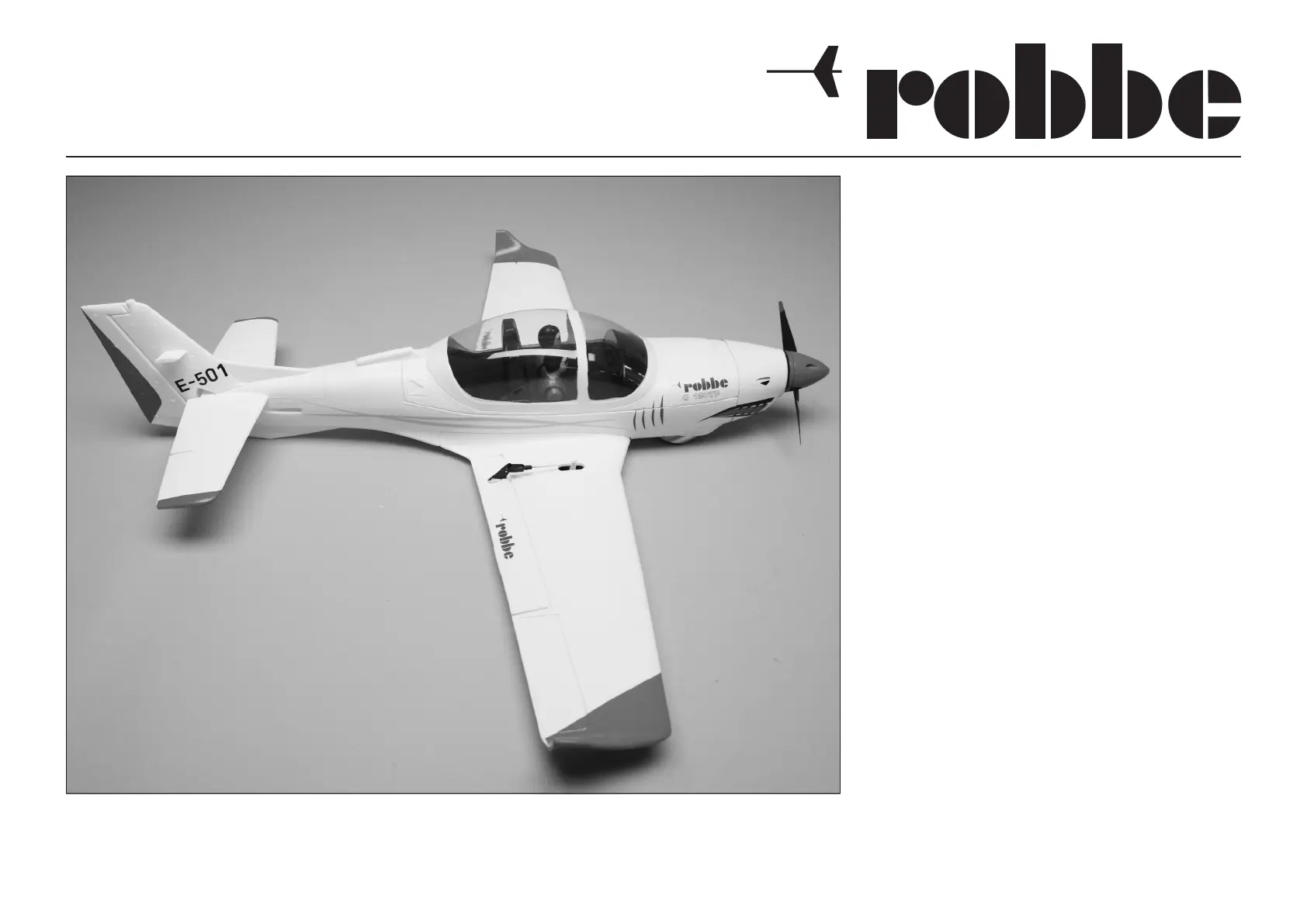

Grob G 120TP
Nano-Racer
No. 2598
2
Building and Operating Instructions - Grob G 120TP Nano-Racer No. 2598
Dear customer,
Congratulations on your choice of a factory-assembled
model aircraft from the robbe Modellsport range. Many
thanks for placing your trust in us.
The model can be ready for the air when you have completed
just a few simple procedures. Please read right through
these instructions and the separate information sheets
before attempting to assemble and fly the model, as this will
make it much easier to complete the tasks required.
Please study the illustrations and the brief instructions to
obtain a clear understanding of the individual stages of
construction. All parts must be trial-fitted “dry” (without glue)
before you reach for the glue. Assign the individual compon-
ents to the various stages of assembly.
The servos are already installed, and connected to the con-
trol surfaces.
The model
Like the full-size machine and our large Grob G120TP 1700
mm ARF model, this nano-model is extremely fast and fully
aerobatic, while its broad speed range is also ideal for realis-
tic flying in the scale style. The model's aerobatic repertoire
can be expanded by installing the optional rudder servo and
linkage. The aeroplane is based on a one-piece painted
foam moulding incorporating fuselage and wings. The wing
features a carbon fibre spar for additional strength, making
it capable of withstanding extreme loads in racing and aero-
batic flying.
We constantly strive to update our products to reflect the
latest developments. You can find details of technical
improvements, updates and revised documentation on
the Internet by calling up the appropriate product
description at our website: www.robbe.com.
Specification:
Total surface area approx.: 9 dm2
All-up weight approx.: 370 g
Wing loading approx.: 43.3 g/dm2
Length approx.: 660 mm
Wingspan approx. 735 mm
Scale: 1:14
RC functions:
Elevator, aileron, throttle, rudder (optional)
Notes regarding the radio control system:
For this model you require a radio control system with at least
four channels.
The receiving system is powered by the speed controller’s
integral BEC system.
Set contents:

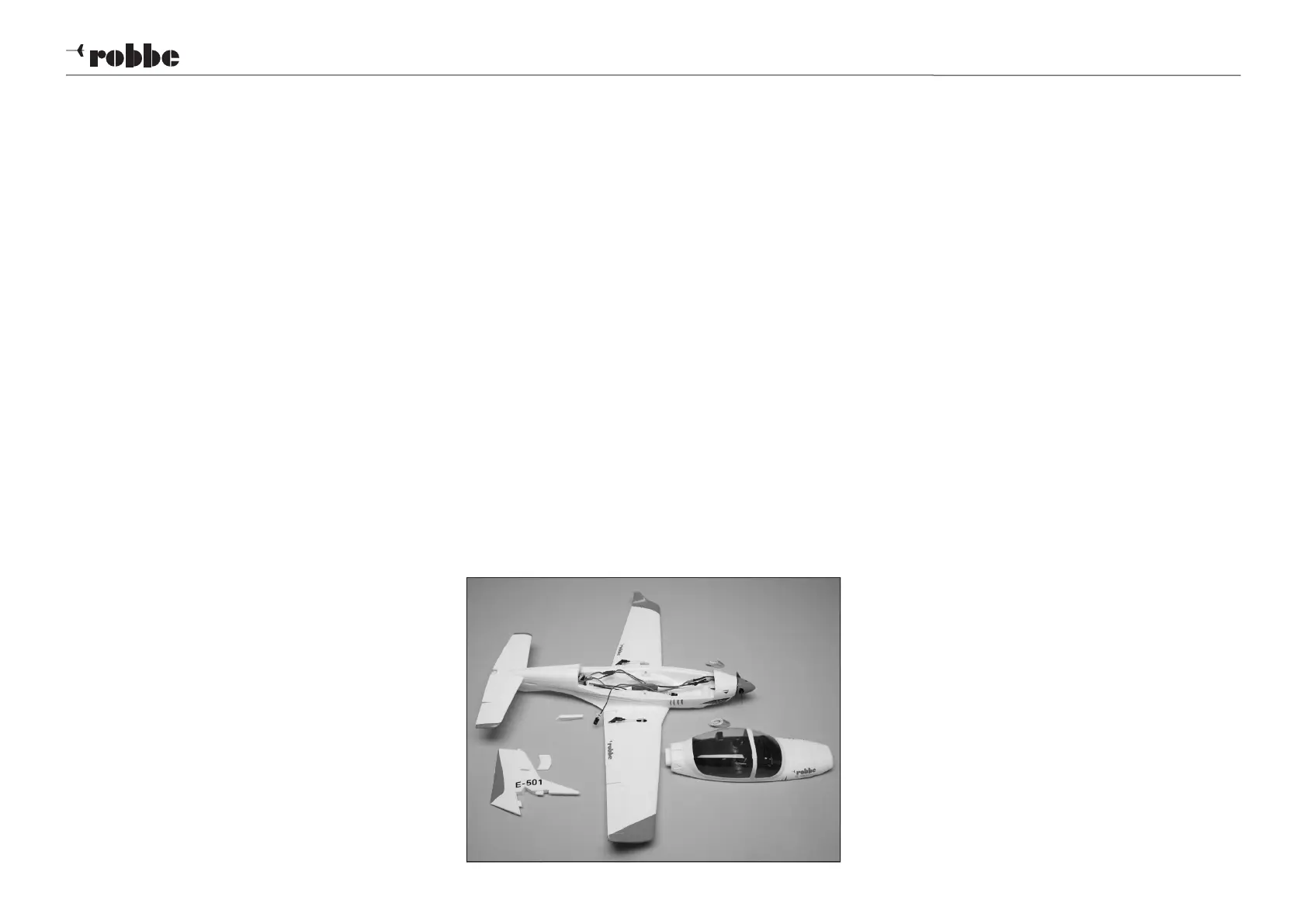

• Set of painted EPO foam components, with decals applied
(fuselage / wing, fin, tailplane, fuselage hatch incl. cockpit)
• Painted plastic cowl
• Factory-fitted brushless motor and speed controller
• 5.5 x 4.5" propeller, spinner and driver
• 3 x servos installed
• Multi-lingual assembly instructions
Essential accessories:
Description Order No.
Adhesive: Robbe Speed Type 2 5063
Optional accessories:
Rudder upgrade kit for Nano-Racer 2600
Please see the robbe main catalogue for details of tools and
accessories.
Servo leads with differing colour codes are used in the model:
Signal: white / orange
Positive wire: red / red
Negative wire: black / brown
Please bear this in mind when connecting or extending the leads.
Before you check the model's working systems, set the con-
trol surfaces to neutral from the transmitter (transmitter sticks
and trims central).
When you wish to fly the model always move the throttle stick
to the “motor stopped” position before switching the trans-
mitter on. Only then connect the battery. To switch off, first
disconnect the flight pack from the speed controller, and only
then switch the transmitter off. When installing or setting up
the receiving system components, including the speed cont-
roller and motor, be sure to read and observe the instructions
supplied with them. You should also read right through the
instructions and safety information supplied with the battery
pack and charger before using these items for the first time.
Preparing the glued joints:
Use 240-grit abrasive paper to sand the paint from all joint
surfaces before applying the glue.
All directions, such as “right-hand”, are as seen from the
tail of the model, looking forward.
Replacement parts:
Order No. Description
25980001 Grob G 120TP Nano-Racer cowl
25980002 Grob G 120TP Nano-Racer linkage set
25980003 Grob G 120TP Nano-Racer spinner
25980004 Grob G 120TP Nano-Racer motor mount set
25980005 Grob G 120TP Nano-Racer canopy
25980006 Grob G 120TP Nano-Racer decals
