Pagina 1/4

Correct Method For Using USB Data Cable

Battery Charging:

Connect The Computer:

Put the Mini-USB terminal of the USB

cable into the Mini-USB interface of the charger and the

USB terminal to the power adapter, optional connect to

the EU Connector.

Please remove the batteries first,

then insert the Mini-USB terminal into the function interface on the

Gimbal and the USB terminal to the USB connector. Afterwards

connect the device with the computer to do firmware updates or

parameter configuration. (Please connect the USB cable to the

computer with the USB connector, otherwise the interface of

the computer will be damaged ).

Further information can be found in the chapter of the

Function Interface Instructions.

Name

Remote

Control

Battery

Extender

Extension

Bar

Realize the heading & pitch angle adjustment,

mode switching, level calibration and heading

follow speed configuration from a distance.

Extend the capacity space for battery to

make the runtime longer.

Spiral design of the extension bar can be

perfect combination with G4 power switch；

Extended length is optional, it will help to

enjoy a different visual easily.

Function Description

Please refer to the method of proper usage

mentioned below. Otherwise the device

itself or other equipments can be damaged

Optional Accessories

Function

Button

Power

Switch

Pitch Axis Roll Axis

Indicator

Heading Axis

The indicator flashes in red light

when in working, it will prompt the

Gimbal at fault.

Please install the suitable camera first before power on the Gimbal.

Attention !

How To Adjust The Pitching Angle:

Double press the function button to enter into“Heading And Pitch Follow Mode”.

Hold the Gimbal at the desired angle, then press the button once to reengage “Heading Follow Mode” in order to lock the

angle of desired pitch.

Smooth And Steady Filming:

Handheld the Gimbal, keep stable for movement, keep light and steady for walking.

Selfie:

Turn the Gimbal 180°so the function interface is facing you. Then, simply adjust the angle of pitch to the desired

angle by utilizing the “Heading And Pitch Follow Mode”which described above and then switch back to “Heading

Follow Mode”. Once complete you can film yourself with ease.

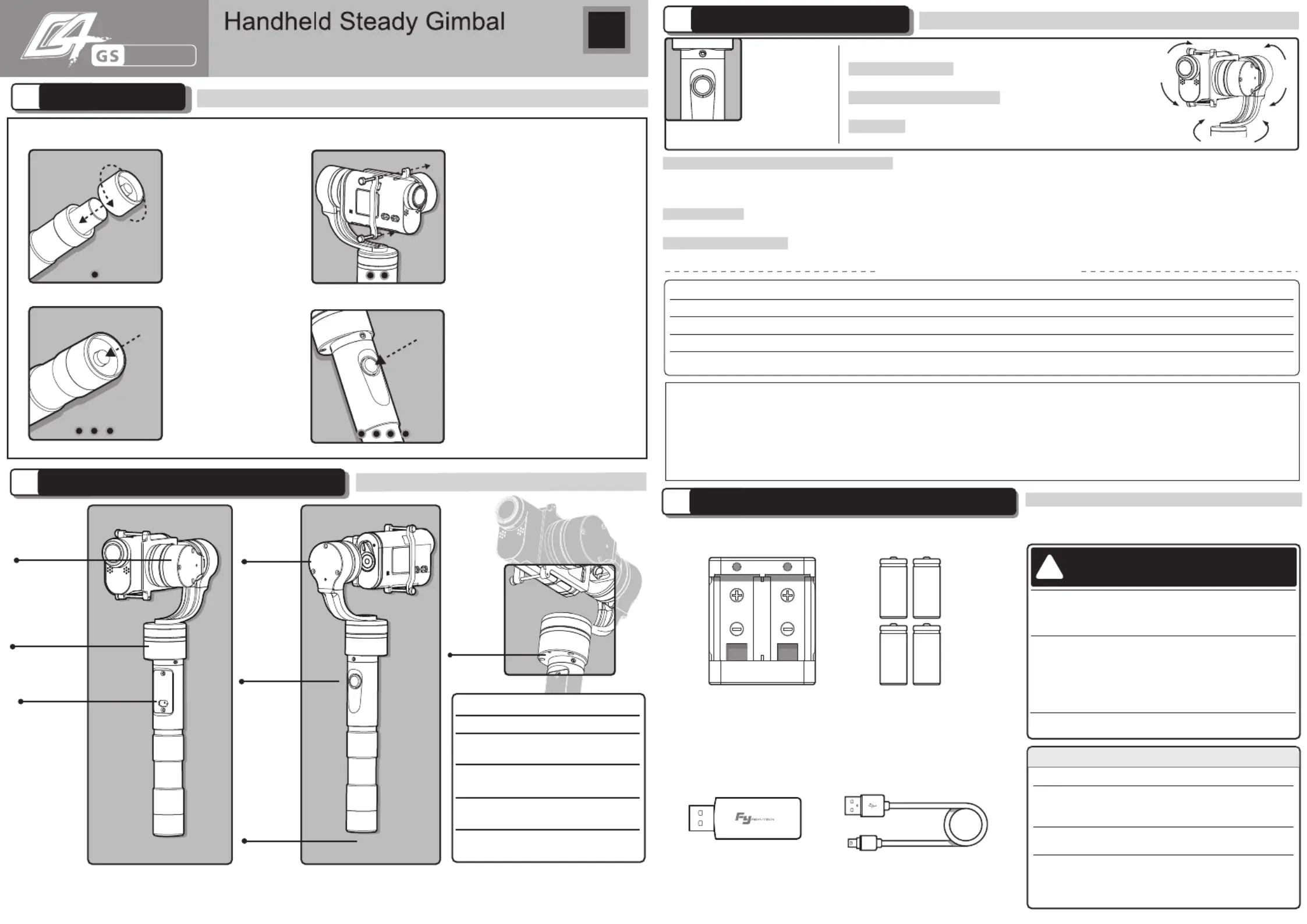

1Beginner Guide

2 Product Appearance Instructions

Indicator Explanation

LED Status Explain

Blue light flashes

three times Full Power

Blue light flashes

twice Enough Power

Blue light flashes

once Low Power

Blue light keeps

flashing No Power

If any comments or suggestions please do not hesitate

to e-mail us directly : service@feiyu-tech.com

Remove the power

switch cap, insert two

18350 batteries into

the handle.

Install the sports camera by the

special Thumb Screw. And make

sure it is fixed well.

Power On

Confirm the camera

is installed well, then

press the power

button to turn on

the Gimbal.

Mode Switching

When the Gimbal is working,

you can press the function

button to switch among the

three working modes and a

special working condition.

( Details of working modes please

refer to the instructions of

working modes )

Insert The Batteries Install The Camera

FEIYU-EN-1

4Standard And Optional Accessories

Operation Instructions

Special Working Condition (Inversion Mode)

When in any working mode, press the function button for three times in succession, the

Gimbal will enter into the inversion mode and switch to the Heading following mode automatically. Invert the Gimbal to capture more excited

scenes easily by switching mode combination. When in inversion working condition press the function button for three times in succession to reset

the Gimbal back to the original state.

Manual Pulling Locking

The pitching can be adjusted 8 seconds after the Gimbal has been started. Within the Heading Follow and Heading

Lock Mode the pitching can be adjusted to the desired angle manually, wait in this position up to 0.5 second until the current angle is adjusted.

Standby Mode

Press the function button for 3 seconds, then the motor will stop working and the LED of the function button will light constantly.

This indicates that the Gimbal is in the standby mode. Single press the function button the Gimbal will be awakened immediately.

Function Button Working Mode Instructions

Operation

Double Press

Single Press

Long Press

For 1 Second

LED Status

Single Flashes

Double Flashes

On Constantly

Function Explanation

Operation Again Function Of Operation Again

Heading Follow Mode

Heading And Pitch Follow Mode

Three Press Three Press again

Other operation is arbitrary

Single Flashes Inversion Mode Exit inversion mode to original state

Lock Mode

Function Button Instructions

Heading, Pitch and Roll are all locked to point at

Use for switch

the working

mode and

realize other

function

The working mode and function

can be identified by the LED status

Heading Follow Mode Camera Pitch and Roll Angles remain

Heading And Pitch Follow Mode Camera Roll Angle remains

Lock Mode

Roll

Pitch

Heading

constant, heading follows the handheld position.

constant. Heading and Pitch follow the handheld position.

one position.

Sports Video Camera

Gimbal For Sony

Suitable for SONY FDR-X1000V and AS series sports cameras

Function

Interface

For SONY Sports Video Camera

Charger

Input: DC 5V

Output: DC 4.2V

USB Cable

USB Connector

Standard Accessories

Type: 18350

Rechargeable

Battery

USB

Mini-USB

8Initialize The Gimbal

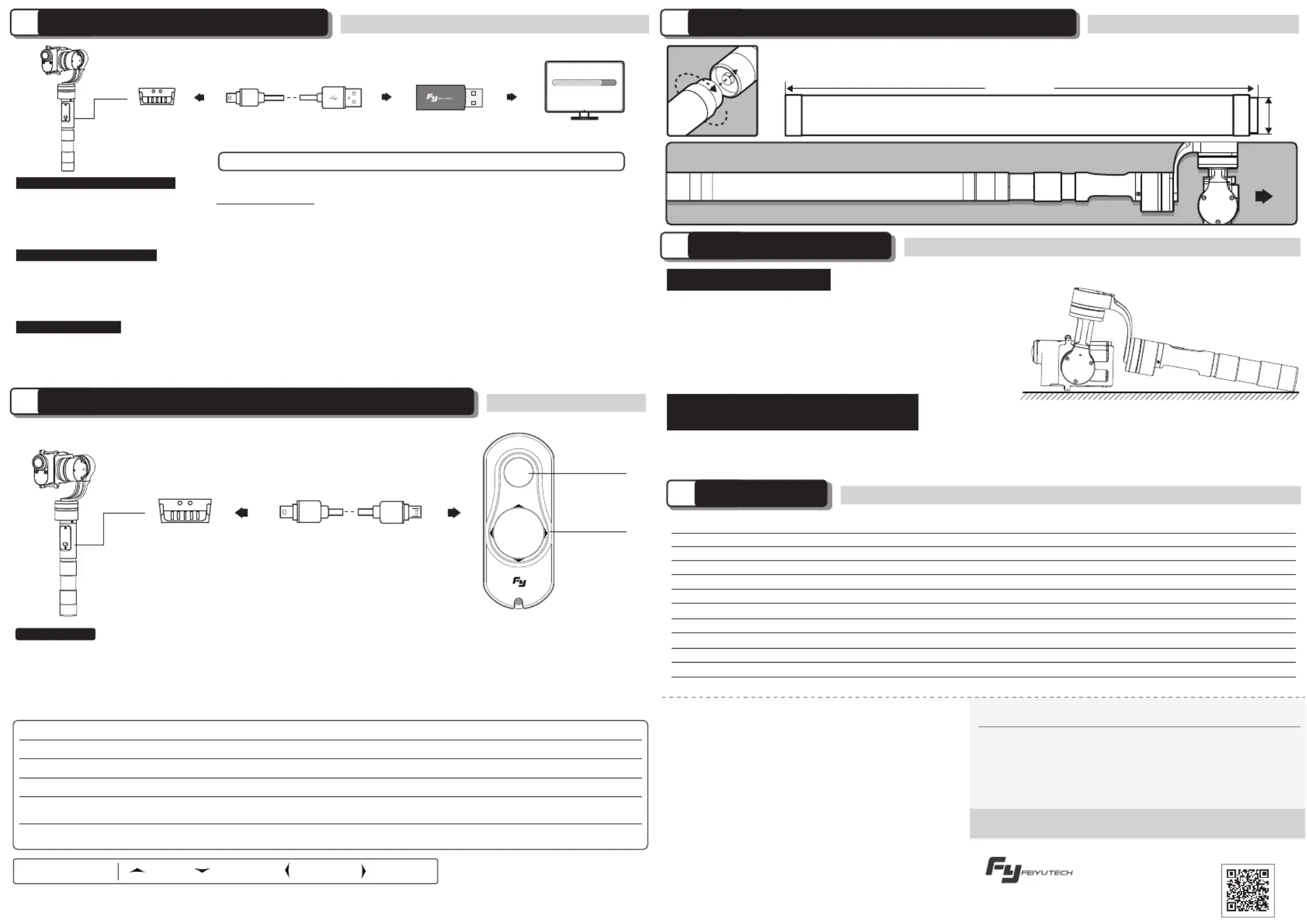

Function Interface Instructions

6G4 Remote Control Instructions (Optional Item)

7Extension Bar Instructions (Optional Item)

9Specification

Please visit the official website of Feiyu Tech: www.feiyu-tech.com to download the USB driver, firmware upgrade software and the latest

firmware then unzip the RAR file.Remove the batteries and refer to the connection diagram to connect the gimbal with the computer.

Please refer to the manual of update operation to upgrade, otherwise the Gimbal can not work normally.

The heading follow speed can be configurated through parameter setting software. Users can adjust to the desired following speed mode

according to the requirements of filming scene. Three modes for optional: “SLOW” mode, “NORMAL” mode , “FAST” mode.

Default setting is “NORMAL” mode.

The Gimbal attitude can be calibrated through parameter setting software. Users can adjust the pitch and roll in a small angle to achieve more

accuracy filming scene. Please insert the batteries then refer to the connection diagram to connect the gimbal with the computer for calibration.

Firmware Upgrade Instruction

Parameters Configuration

Gimbal Calibration

Working Voltage

Static Attitude Tracking Accuracy

Motion Attitude Tracking Accuracy

Overload Current Protection

Pitch Angle

Roll Angle

Heading Angle

Pitch Following Rate

Heading Following Rate

Weight

Gimbal In Static Mode

Motor Overload<2G

Handheld In Horizontal

Handheld In Vertical

Without Batteries & Camera

6.0V

0.01

0.1

-160（）Down

-70

-160（）Left

-50

2°/ Sec

3°/ Sec

270g

8.4V

0.02

0.2

800mA

0（）Horizontal

17.0V

0.05

0.5

+160（）Up

+70

+160

+50

75°/ Sec

150°/ Sec

Motionless Flat Surface

1. Install the camera properly.

2. Place the Gimbal on stationary flat and keep motionless.

3. Power on the Gimbal.

4. The Gimbal is activated and it will be initialized automatically.

Afterward pick up the Gimbal and start working with it.

Initialization Instructions

FY-G4 needs to be initialized whenever the

following situations appear after power on

Function

Interface

With the special designed switch, the extension bar can be added directly. Allows to shoot the distance

images more easily. Special design allows for flexible extension.

Items Min Standard Max Remarks

USB Cable USB Connector

Attention : Please make sure that the connection to the computer is done by the USB connector.

Aenon: Make sure that the connecon to the computer is done by the USB connector

1. After power on, the angle of pitch is not level with the horizon line.

2. After power on, the angle of roll is not parallel with the horizon line.

3. When the gimbal is in heading lock, the angle of heading moves frequently (heading is not stationary).

350mm

Φ23mm

Extension Bar Diagram

Upgrade........

Angle Control Remote Control

Function

Interface USB Data Cable For RC

Within the Heading Follow Mode and Heading Lock Mode, pitch angle can be controlled by the“UP”and “DOWN”

button on the G4 Remote Control.

Within the Heading Lock Mode, Heading angle can be controlled by the“LEFT”and“RIGHT”button .

Function

Button

Direction

Button

Note: The function button on the Gimbal will be disabled after connect the G4 Remote Control

The LED of the function button will fast flashing

if the initialization succeed.

Note:

UP LEFT RIGHTDOWN

Direction Button

Connect the G4 Remote Control

to the function interface

G4 Remote Control Connection Diagram

G4 Remote Control Operation Instructions

Operation

Double Press The Function Button

Single Press The Function Button

Long Press The Function Button

For 1 Second

Function Explanation

Operation Again Function Of Operation Again

Heading Follow Mode

Heading And Pitch Follow Mode

Three Press The Function Button Three Press again

Other operation is arbitrary

Inversion Mode

Exit inversion mode to original status

Heading Lock Mode

Single press again

Exit standby mode ,

and awaken immediately

Long Press The Function Button

For 3 Second

Standby Mode

FY G4 GS 3-Axis Handhled Gimbal is a feature-rich camera stabilizer,

yet lightweight and portable.

DISCLAIMER ATTENTION

Please visit the official website of Feiyu Tech

to get related information: www.feiyu-tech.com

Technical support: service@feiyu-tech.com

Please assemble the gimbal in accordance to the diagram provided .

Please upgrade the firmware and configuration settings with the

provided USB data cable.

Please charge the battery with the provided battery charger.

Please install the camera securely before powering on the gimbal.

When the gimbal is not in use or placed on the table, please

ensure it is powered off.

Prohibit any user for any illegal purpose. Users will be responsible for

all behaviors of purchase and use products.

The Company assumes no liability for any risks related to or resulting

from the debug and use of this product (including the direct, indirect or

third-party losses).

For any unknown sources of using, we will not be at any services.

Feiyu Tech reserves the right to amend this manual and the terms and

conditions of use the gimbal at any time.

Everyone

Can Make a Movie

Product specificaties

Merk:	FeiyuTech
Categorie:	Niet gecategoriseerd
Model:	3 Axis Handheld Gimbal
Kleur van het product:	Zwart
Gewicht:	270 g
Breedte:	56.6 mm
Diepte:	96 mm
Hoogte:	250.3 mm
Soort:	Handheld camera stabilizer
Compatibele producten:	Sony action cameras
Draaien:	Ja
