Specifications

Armytek Optoelectronics Inc. is a Canadian manufacturer that produces powerful and reliable flashlights designed especially for your

needs. The components made in the USA and Japan. .10 years no-hassle warranty

§Superb light of amazing brightness due to powerful electronics.

§Rechargeable flashlight with magnet USB charger.

§Multi-flashlight “10 in 1" is for many activities: car, fishing, hunting, home, work, city, picnic, outdoor, travel.

§Efficient TIR-optics and no “tunnel vision” effect even after continuous use.

§Side switch for comfortable one-hand operation and easy modes switching with advanced operation.

§Multicolor State Indication and ultra low current drain in OFF-state – more than 25 years.

§Comfortable headband for reliable fixation of the flashlight – it won't slip even while you're running.

§Solid body without long wires, weak rubber connectors and unnecessary boxes.

§Magnet in the tailcap, removable clip and possibility of tail-stand for multipurpose use.

§Total protection from water, dirt and dust penetration – flashlight continues to work even at the depth of 10 meters.

Tiara Magnet USB

Thank you for choosing the products of Armytek Optoelectronics Inc., Canada.

Please read this manual carefully before using the flashlight.

USER MANUAL

Model

Tiara Pro Magnet USBС1

LED / Optics

Cree XP-L / TIR

Brightness stabilization type

FULL (constant light)

Light output, LED / OTF lumens*

1050 / 900

Peak beam intensity, candelas

2830

Hotspot / spill

70 ° / 1 0°2

Beam distance*

106 meters

Modes and runtimes (measured

with 18350 Li-Ion 0 mAh until 90

the light output drops to 10% of

the initial value)

Turbo2

90 lm / 30 min0

Turbo1

440 lm / 1h

Main3

220 lm / 2.4h

Main2

90 lm / 6.5h

Main1

34 lm / 15h

Firefly3

6 lm / 2.5d

Firefly2

2.5 lm / 8d

Firefly1

0.4 lm / 60d

Strobe3

1Hz / 90 lm / 90h

Strobe2

1Hz / 900 lm / 3.3h

Strobe1

10Hz / 900 lm / 1.7h

Power source

1x18 50 Li-Ion3

Size and weight (without batteries)

Length 79mm, body diameter 24.5mm, head diameter 29mm, weight 60g

* Light output for flashlights with Warm light are about 7% less, beam distances are about 3% less.

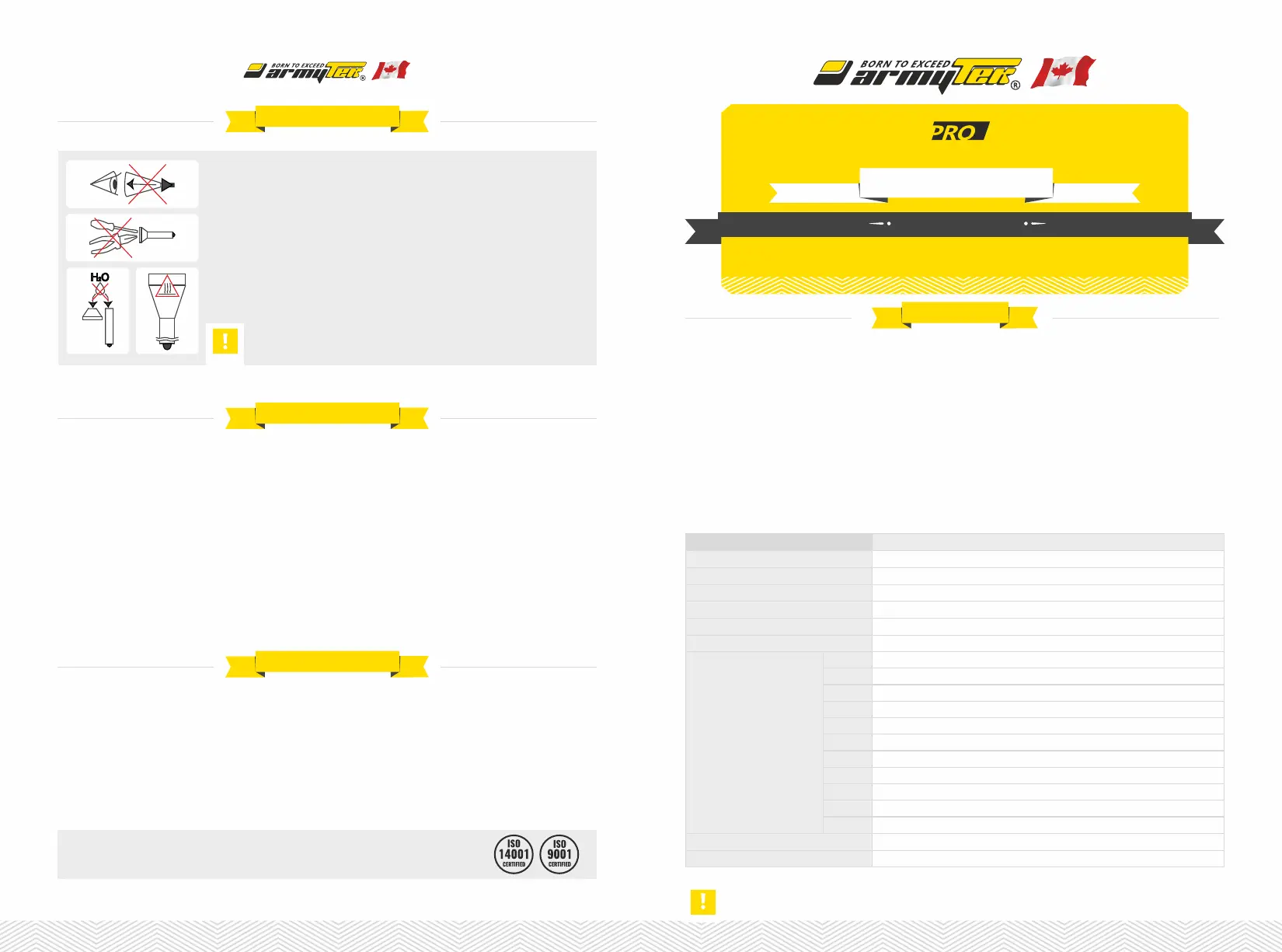

Warnings

Specifications are subject to change without notice.

Care and Storage

1. Always follow the instructions from this manual and recommendations on battery usage.

2. Apply only the recommended power sources.

3. Do not reverse battery polarity.

4. Do not use different power sources together, i.e. old ones with new ones, charged with

discharged. Do not use different types of batteries combined as the element with less

capacity can be damaged.

5. Do not modify or recast the flashlight and its components as it will deprive you of the

warranty.

6. Do not allow water or any other liquid to leak into the flashlight.

7. Do not aim a switched-on flashlight at people's or animals' eyes – it can cause temporary

blindness.

8. Do not allow children to use the flashlight without your assistance.

The producer will not be liable for any harm done to the user if it was caused by

improper use of the product.

It is recommended to clean the threads and O-ring off dirt and old greases once or twice per year. Remember that reliable protection

from water and dust cannot be provided by worn out sealing. The fouling as well as lack of lubricant cause fast wear-out of threads and

sealing rings.

To clean the threads do the following:

1. Unscrew the tailcap and remove the sealing ring carefully with a toothpick (do not use sharp metal things as they can damage the ring).

2. Wipe the sealing ring thoroughly with a soft cloth (or tissue). Do not use solvents. If the sealing ring is worn out or damaged

replace it by a new one.

3. Clean the metal threads with a brush using ethanol. Be careful not to allow the applied liquid to get inside the flashlight or tailcap as

it can cause fails in functionality of the flashlight.

After cleaning lubricate the thread and the sealing ring with polyalphaolefin-based silica grease, e.g. Nyogel 760G.The application of

automotive and other improper grease can cause swelling and damage of the sealing rings.

In case of active operation and exploitation in dusty environments, it is recommended to perform cleaning and lubricating of the parts

as often as required.

Remember that old or low-quality disposal batteries can be damaged under heavy load and explode.

THE MOST TECHNICALLY ADVANCED

Service and Warranty

Armytek provides free warranty repair for 10 years (excluding batteries, chargers, switches and connectors which have 2 years

warranty) from the date of buy with the document confirming the purchase.

Guarantee does not extend to damage during:

1. Improper usage.

2. Attempts to modify or repair the flashlight by nonqualified specialists.

3. Longtime application in chlorinated or polluted water, or other liquids (other than water).

4. High temperatures and chemicals' exposure (including the exposure of liquid from defected batteries).

5. Usage of low-quality batteries.

Armytek Optoelectronics Inc.

13-85 West Wilmot St, Richmond Hill, Ontario, L4B 1K7, Canada

+1 (206) 785-9574 | | service@armytek.comwww.armytek.com

Items included in the package:

1 - Flashlight

2 - Headband

3 - Plastic holder

4 - Clip

5 - 2 spare O-rings

6 - 18350 Li-Ion battery

7 - Magnet USB charger

8 - User manual

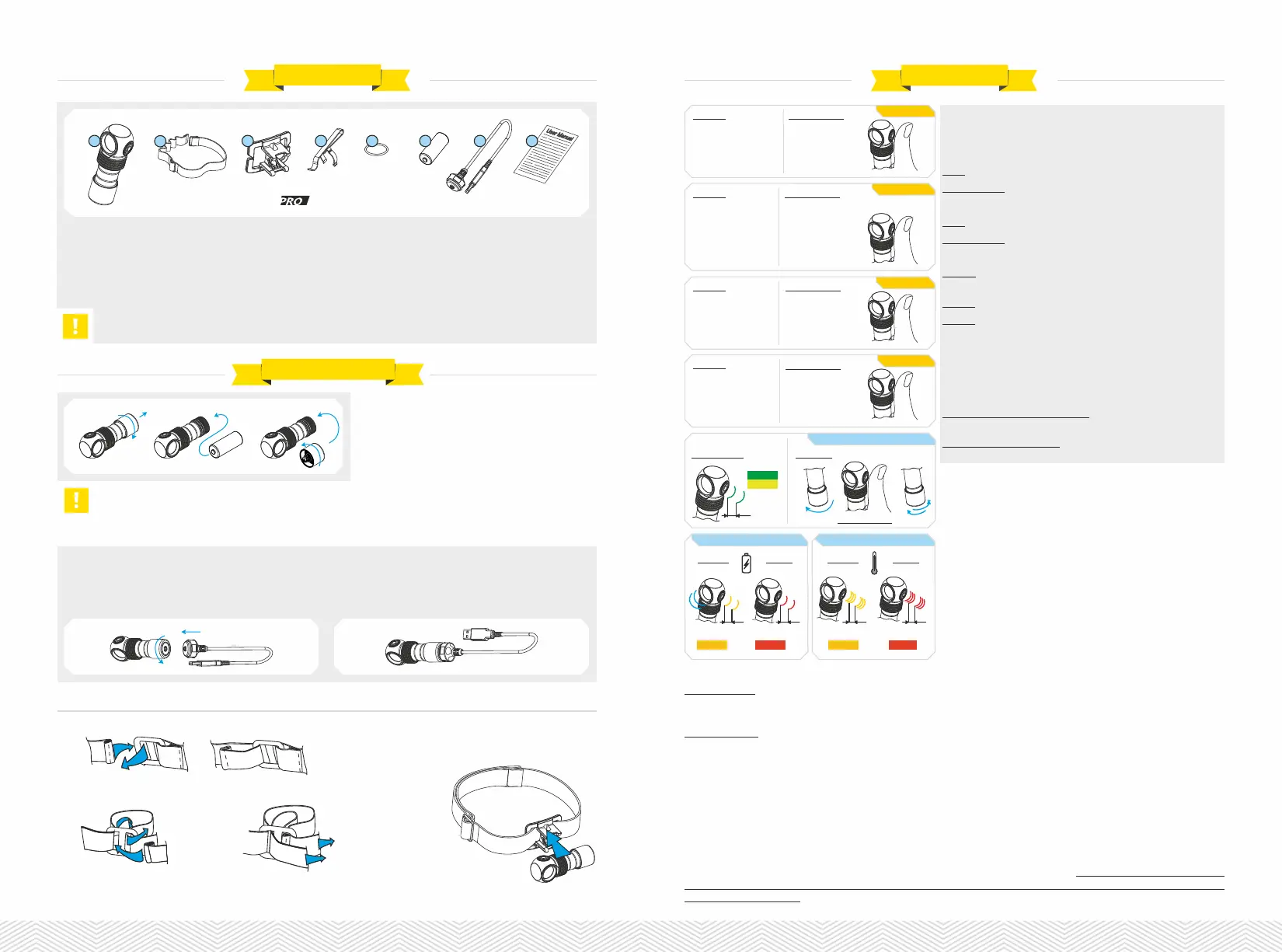

4x2

5 876

Tiara Magnet USB

Set description

1 32

Initial Service

1. 2. 3.

We DO NOT RECOMMEND to leave power sources inside the flashlight for a long storage period, as batteries (especially, non-rechargeable) can

leak for various reasons and damage the inner parts of the flashlight. If you want to keep your flashlight in a stand-by state with batteries in then

use new and high-quality batteries store the flashlight in acceptable for batteries operational temperature and revise the batteries' state at and

least once a month. If you have noticed any signs of batteries' defects then withdraw them from the flashlight and utilize. It is also recommended

to replace discharged batteries with new ones before the storage as the chance of leakage is higher with discharged batteries.

ьYour flashlight can inconsiderably differ from the pictures in the manual.

ьThe producer reserves the right to change the package at his own discretion without modifying this manual.

To set/replace batteries:

1. Unscrew the tailcap.

2. Place the batteries with the positive contact (+) facing the

head of the flashlight.

3. Adjust the tailcap and tighten it as far as it can go.

The flashlight is ready for operation.

How to turn on a magnet charger:

Unscrew the tailcap for 1/4 of a circle and turn on a magnet

charger device to the tailcap.

Approximate time for charging a fully discharged battery is 6-8

hours. We recommend using adapters with 1A and higher.

Charger device battery indication:

1. Red color – the charging is going on.

2. Green color – the charging is finished.

3. Red color blinking – unscrew the tailcap for 1/4 for

charging.

1/4

Put in the band in the first clasp. Put in the band through the slots in the plastic holder

and fix the flashlight. Adjust elastic band to the size

of your head.

1.3.

Pass the end of the band through the second clasp and fix it.

To use the headmount with the flashlight:

Operation

Main

Press & HoldClick x2

Main Fireflyв

Any Mode Main

Click x2 Press & Hold Firefly

Firefly

гд

Main

Turbo1

гд

Turbo2

OFF Firefly1в

Firefly1 Firefly2в

е з

Firefly3

Press & Hold Turbo

Click x3

вTurbo

Any Mode

Strobe

Press & HoldClick x4

вStrobe

Press & Hold

11 2

22 +

5sec

< 100%

< 5%7

Battery level

Switching State Indication

ON / OFF

Strobe1 Strobe2в

е з

Strobe3

Main1 Main2в

е з

Main3

Low Battery Indication

Warning Critical

< %25 < %10

The flashlight has 4 Sections of modes:

[Section 1] – Firefly modes [Section 3] – Turbo modes

[Section 2] – Main modes [Section 4] – Special modes

In OFF state:

Click: To turn on the last used mode.

Press and hold: To turn on Firefly1 mode in [Section 1].

In ON state:

Click: To turn off the flashlight.

Press and hold: To start cycling through the modes of actual Section.

The same in OFF & ON states:

2 clicks: To turn on the Main mode [Section 2]. Then double clicks will

switch modes between chosen modes in [Section 1] and [Section 2].

3 clicks: To turn on Turbo mode [Section 3].

4 clicks: To turn on Strobe mode [Section 4].

Flashlight has 2 types of operation:

1. General. The flashlight is switched on/off by 1 click.

2. Tactical. The flashlight will switch on in the last used mode only for

the time the button is being pressed. This type of operation is useful

for short-time lighting and setting signals.

To access the Tactical operation type, unscrew the tailcap to 1/4, press

the button and tighten the tailcap again keeping the button pressed.

To return to the General type – press the button and while keeping it

pressed – unscrew the tailcap to 1/4.

Automemorizing. After switching off the last used Mode is memorized

for quick 1-click access at next switching on.

Lock-out function. Unscrew the tailcap to 1/4 for the protection from

accidental switching on. State Indication will be turned off.

Multicolor State Indication. Shows the battery level by short flashes

every 5 seconds.

Switching Multicolor State Indication ON/OFF. It is switched off by

default in OFF-state and Firefly modes. To turn on and off: unscrew the

tailcap to 1/4, press the button and holding the button pressed –

tighten the tailcap and then unscrew it again. The settings will be

memorized even when battery is changed. Ultra-low current

consumption allows color indication to work for more than 25 years.

Warning indication shows the battery level and the temperature inside the flashlight.

Low battery level. When it is < 25%, the color LED will show the warning level – flashing in orange color once in 2 second. With a further

voltage reducing brightness will start to decrease in steps for safety of the battery and user. If brightness will be <25% from nominal

value, the main LED will flash 2 times. Critical battery level <10% is red indicated once a second.

High temperature. When it increases to the warning level – the color LED flashes by orange 3 times once in 2 seconds. At critical level –

it flashes by red 3 times once in 1 second, brightness starts to reduce. After cooling down the brightness increases to usual level.

Constant light. Powerful electronics provide constant brightness even in the Turbo1 mode, using all energy of the battery. And the

Turbo2 mode gives the maximum brightness as the Overboost technology in cars, but until temperature of a flashlight and a discharge

current of the battery don't exceed critical values.

Digital Light Stabilization Safe Soft-Start System & monitors battery voltage, starts the flashlight at or an admissible brightness

decreases it by steps when the voltage dramatically fall down. These actions increase runtime, use all available energy, get longer

lifetime of rechargeable battery and protect it from overdischarge or overheating.

Active temperature control. The flashlight can heat up in Turbo quickly. W mode hen the temperature become +60 C – °the brightness

decreases by small steps. After cooling-down (provided that battery voltage is sufficient the brightness increases to the ) Turbo mode

again. This stepping goes cyclically to maintain the user's safety and the flashlight's functionality. In conditions of good air-cooling the

flashlight delivers light even in without stepping down Turbo time mode. There are no preset timers for stepping, but real- active

temperature measurements.

High Temperature Indication

Warning Critical

WARM HOT

1sec2sec 2sec 1sec
