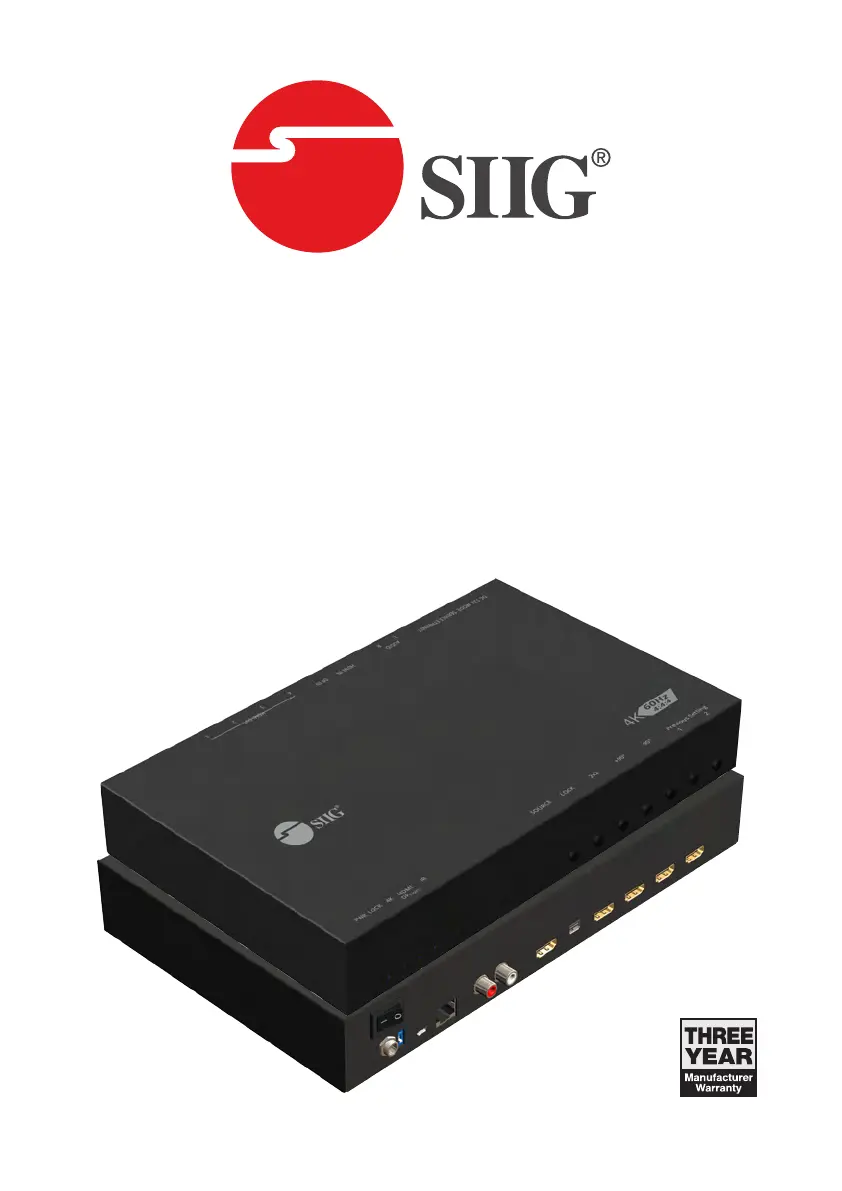

HDMI 2.0 4-Display

Video Wall Processor

User Manual

04-1141A P/N: CE-H23J11-S1

Safety and Notice

The HDMI 2.0 4-Display Video Wall Processor has been tested for

conformance to safety regulations and requirements, and has been

certified for international use. However, like all electronic equipment,

the HDMI 2.0 4-Display Video Wall Processor should be used with

care. Please read and follow the safety instructions to protect yourself

from possible injury and to minimize the risk of damage to the unit.

• Follow all instructions and warnings marked on this unit.

• Do not attempt to service this unit yourself, except where

explained in this manual.

• Provide proper ventilation and air circulation and do not use near

water.

• Keep objects that might damage the device and assure that the

placement of this unit is on a stable surface.

• Use only the power adapter and power cords and connection

cables designed for this unit.

• Do not use liquid or aerosol cleaners to clean this unit.

• Always unplug the power to the device before cleaning.

Thank You

for your purchase!

Features

• DisplayPort 1.2a & HDMI 2.0a compliant

• HDCP compliant

• Four HDMI outputs from 640x480 to 1920x1200

• Supports HDMI and DisplayPort input from 640x480 to 4K2K@60

(YUV 4:4:4), interlaced or progressive

• Image parameters and layouts are automatically saved in ash

memory of the device and can be recalled for later use

• Several image parameters and layouts can be saved in computers

and can be loaded for later use

• Firmware upgradable for new features and technology

enhancements

• The video wall processor can control by USB, push button,Ethernet,

IR remote control and cloud control

• Cloud support is thru an encrypted communication to provide the

best private protection when using device

• Resize, position, zoom for each HDMI output video

• User-selectable output settings, up to 1920x1200

• Supports remote control to switch 1x1, 2x2, 1x3 rotate, and 1x4

rotate mode

• Supports independent input rotation at the resolution up to 1080p

• 4K2K60 (YUV 4:4:4) can be divided and displayed onto four 1080p60

TV (2x2 layout only)

• Supports individual propagation delay on each display to have the

best visual perception

Package contents

• HDMI 2.0 4-Display Video Wall Processor

• Power adapter DC 12V / 1A

• IR Remote control

• Rack-mounting ear set

• User Manual

Product specificaties

Merk:	SIIG
Categorie:	Controller
Model:	CE-H23J11-S1
Kleur van het product:	Zwart
Gebruikershandleiding:	Ja
Materiaal behuizing:	Metaal
Montage gereedschap:	Ja
Vermogensverbruik (max):	12 W
HDCP:	Ja
HDMI versie:	2.0a
Aantal HDMI-invoerpoorten:	1
Ingangsspanning:	100 - 240 V
Frequentie:	50/60 Hz
Luchtvochtigheid bij opslag:	20 - 90 procent
Rack-montage:	Ja
RJ-45 ports hoeveelheid:	1
HDCP versie:	1.4/2.2
Aantal HDMI-uitvoerpoorten:	4
Afstandsbediening inbegrepen:	Ja
Relatieve vochtigheid in bedrijf (V-V):	20 - 90 procent
