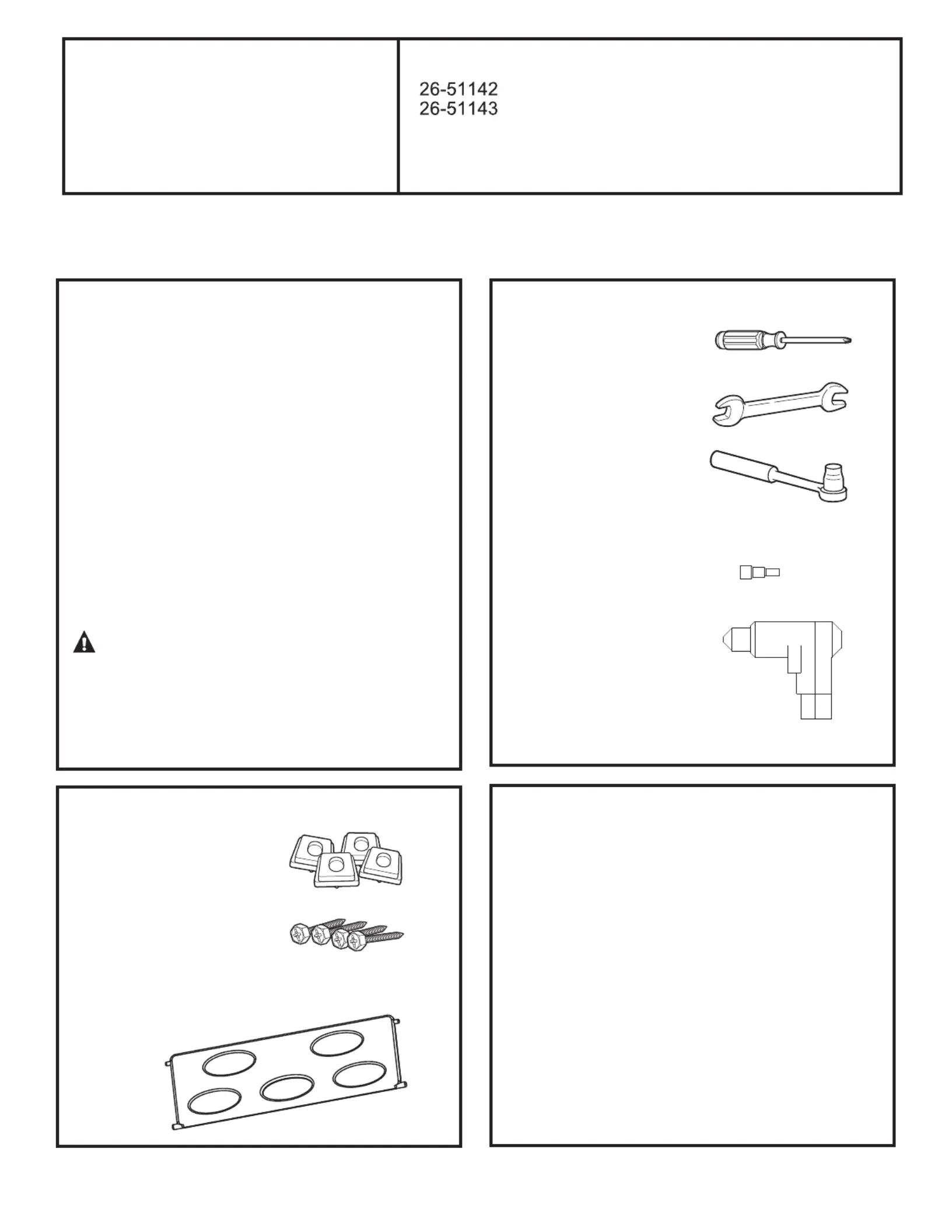

Installation
Instructions
PEDESTAL KIT
4 Support Pads
4 Mounting Screws
Pedestal Organizer
1
TOOLS YOU WILL NEED
Phillips Head
Screwdriver
17mm Open End Wrench
or Adjustable Wrench
8 mm Socket Wrench
INSTALLATION PREPARATION
Remove the packaging.
The pedestal organizer is taped at the top of the
shipping carton. Remove the organizer and set
aside for final installation.
Flatten the product carton to use as a pad
to lay the washer or dryer down on its side.
Continue using the carton to protect the finished
floor
in front of the installation location.
Instructions en fran ais : . . . . . . . . . . . . . . . . ç 5
Instrucciones en espa ol: . . . . . . . . . . . . . . . . ñ 9
Pedestal
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
•IMPORTANT
— Save these instructions
for local inspector’s use.
•IMPORTANT
— Observe all governing
codes and ordinances.
• cNote to onsumer – Keep these instructions
with your Owner’s Manual for future reference.
• 2Completion time – 1 to hours.
•Proper installation is the responsibility
of the installer.
•Product failure due to improper installation is not
covered under the Warranty.
CAUTION — Due to the size and weight
of these products, and to reduce the risk of
personal injury or damage to the product, TWO
PEOPLE ARE REQUIRED FOR PROPER INSTALLATION.
•See washer and dryer installation instructions for
additional installation requirements and guidelines.
OR
8 mm Socket
Electric Screw Driver
NOTE Use Electric Screw Driver matching with 8 mm Socket: .
2
Installation Instructions

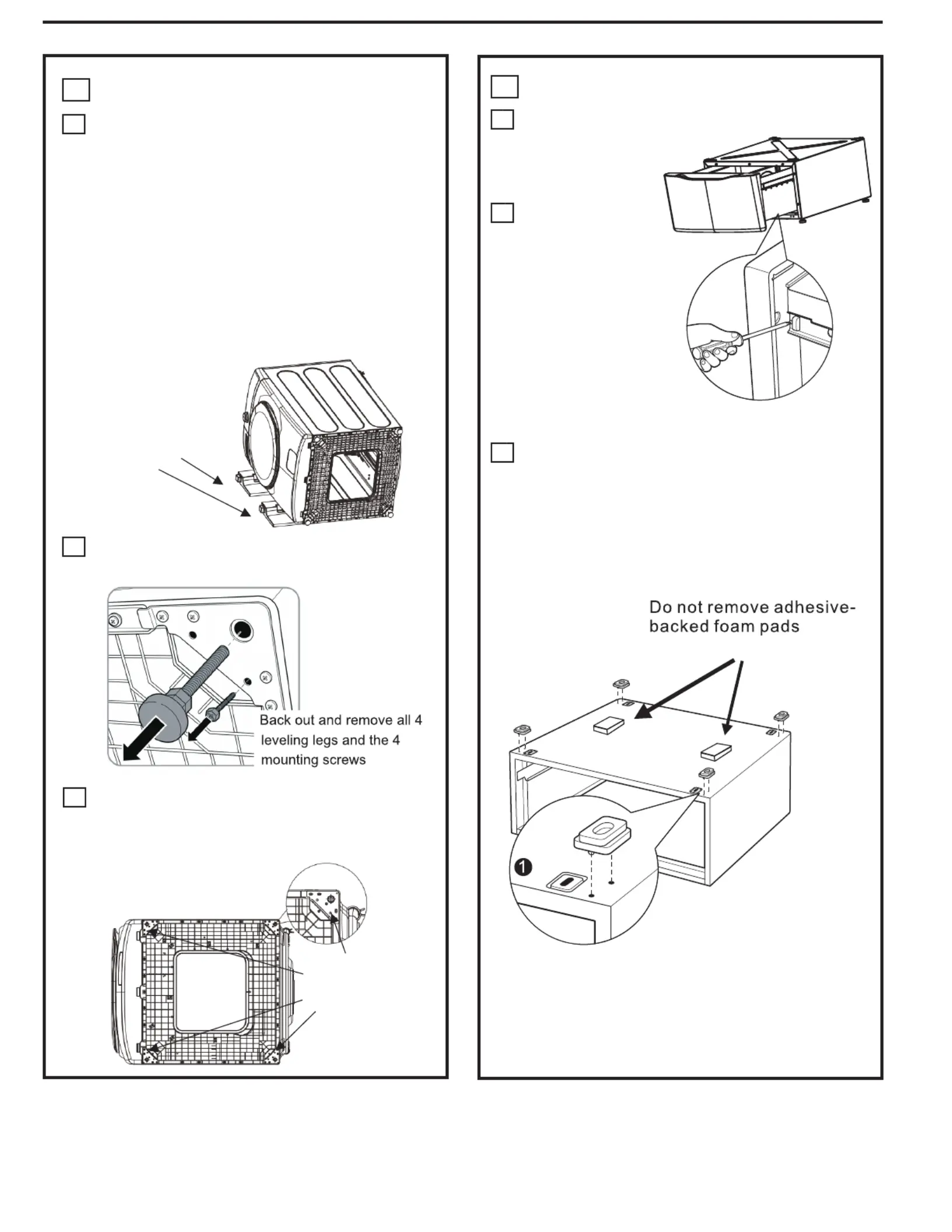

PREPARE THE PEDESTAL
Pull the
drawer out
as far as it
will go.
Remove screws
from drawer
slides. Slide
drawer out of
the base and
set aside.
1.Locate the 4 support pads from the parts
package. Each pad has 2 protrusions that fit
into the holes on top of the pedestal. Press
the rubber pads into each set of corner holes
on the top of the pedestal as shown.
C
B
A
2
REMOVE THE LEVELING LEGS
Carefully lay the washer or dryer on its side
to access the leveling legs on the bottom
of the appliance.
IMPORTANT: Do not lay the washer or dryer
on its back! Do not remove the shipping bolts
on the back side of the washer. The bolts must
remain in place until the washer is returned
to an upright position.
Use an open-end wrench to remove the
washer or dryer leveling legs.
B
A
1
NOTE When laying the washing machine on its:
side,two packaging side foam must be placed on
the side to protect the washing machine.
packaging
side foam
Remove all 4 pedestal mounting screws
prior to putting the pedestal in place . Use
C
The hole is to be
used for pedestal
mounting.
to remove screws.
an 8mm socket wrench or electric driver
3
Installation Instructions

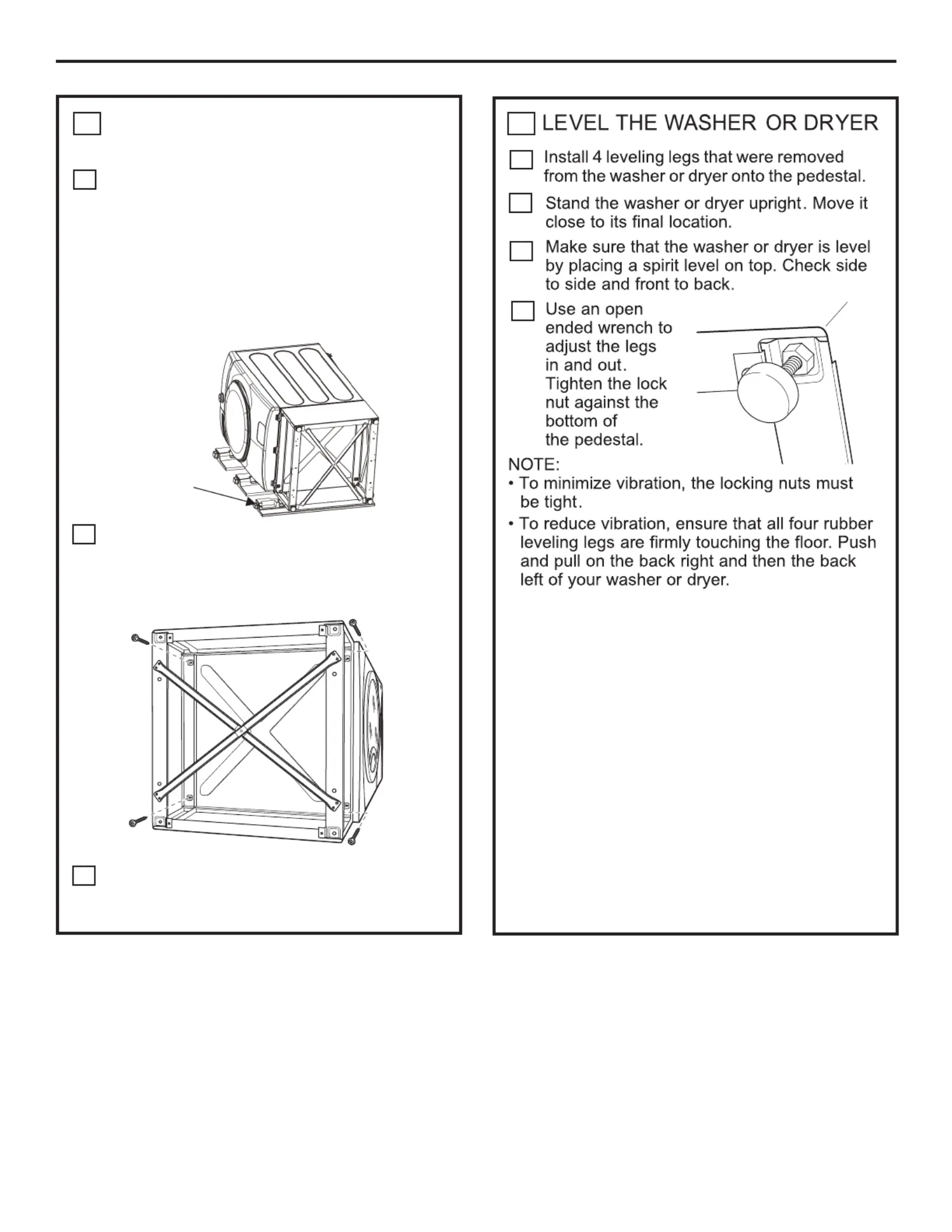

INSTALL THE PEDESTAL
TO THE WASHER OR DRYER
Place the pedestal against the bottom
of the unit. Check to be sure the drawer front
is at the front of the unit.
Align the holes in the pedestal with the
holes in the bottom of the unit. Use a Phillips
screwdriver to install the 4 screws through the
pedestal and into the unit—do not tighten.
Slide the pedestal toward the unit, until it is
aligned front to back. Use an 8 mm socket
wrench to securely tighten the screws.
C
B
A
3
NOTE For easier alignment of screw holes: ,
one packaging side foam should be placed
under the pedestal .
Make sure that the front and back of the
Cabinet and pedestal are aligned, and that
the screw holes are aligned.
packaging side foam
C
B
4
A
D
