Installation and mounting manual for EK- 780 GTX Jetstream Backplate FC

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

STEP 1: GENERAL INFORMATION. Sample picture of nVidia GeForce 780 GTX Jetstream graphics card.

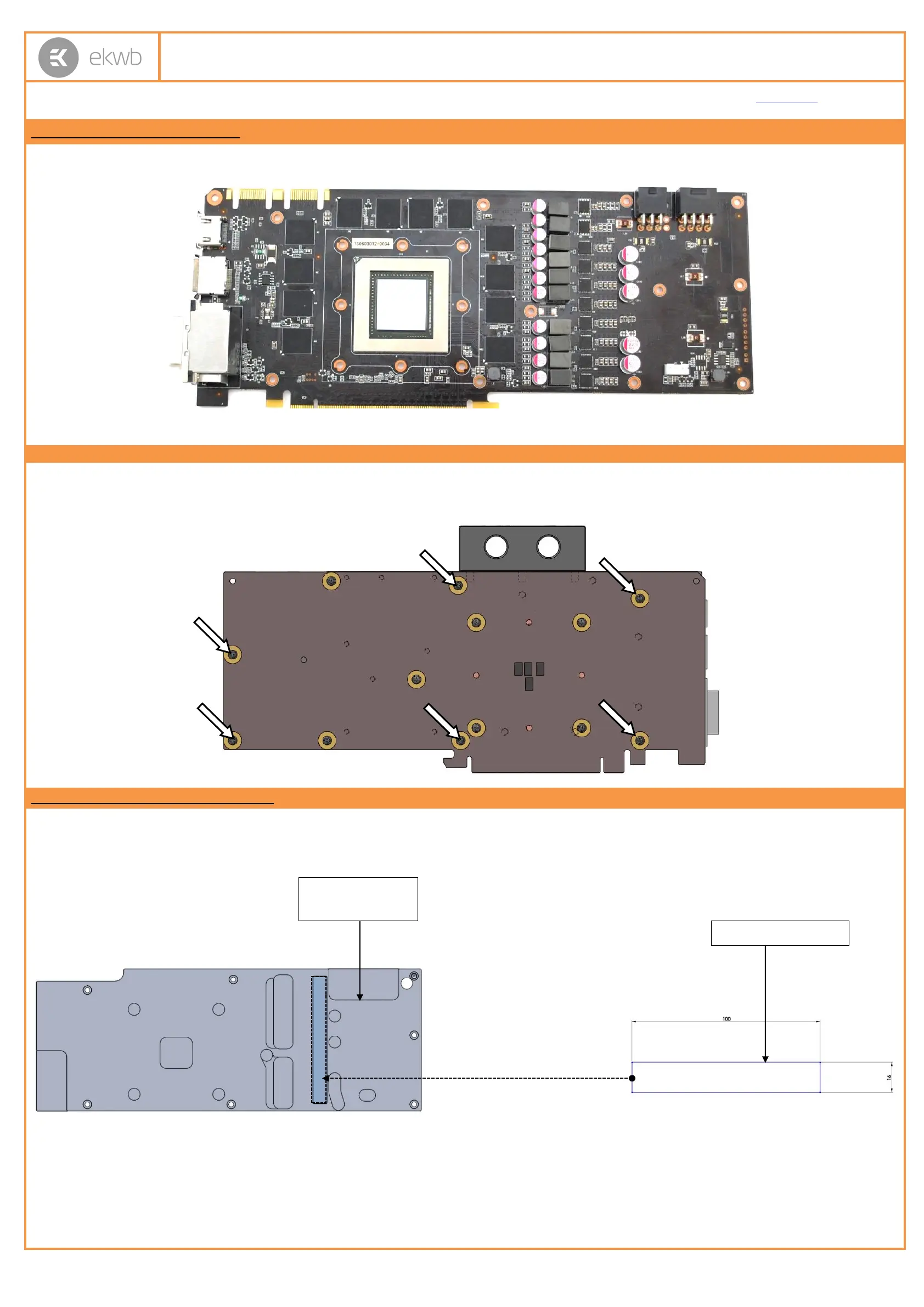

STEP 2: PREPARING YOUR GRAPHICS CARD

EK FC- 780 GTX Jetstream Backplate is very easy to install. First install EK-FC780 GTX Jetstream series water block according to its installation

manual. If you have it already installed lease check the picture below to see which mounting screws are to be left in their position and which are , p

to be removed. Please remove the six (6) M3x4 DIN7985 screws and their washers (marked with arrow).

STEP 3: APPLYING THE THERMAL PADS

EK-FC780 GTX Jetstream Backplate features passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the

enclosed thermal pad. Please install enclosed 1mm thick thermal pad (Thermal Pad A 1mm (100x16) as shown on the picture below. You may –)

need to trim the excess thermal pad.

Thermal PAD A 1mm

EK-FC780 GTX

Jetstream Backplate

All disclosures, noces and warranty condions are being wrien on the back of the box. Revision 1.0. Released on 12 th of August, 2013.

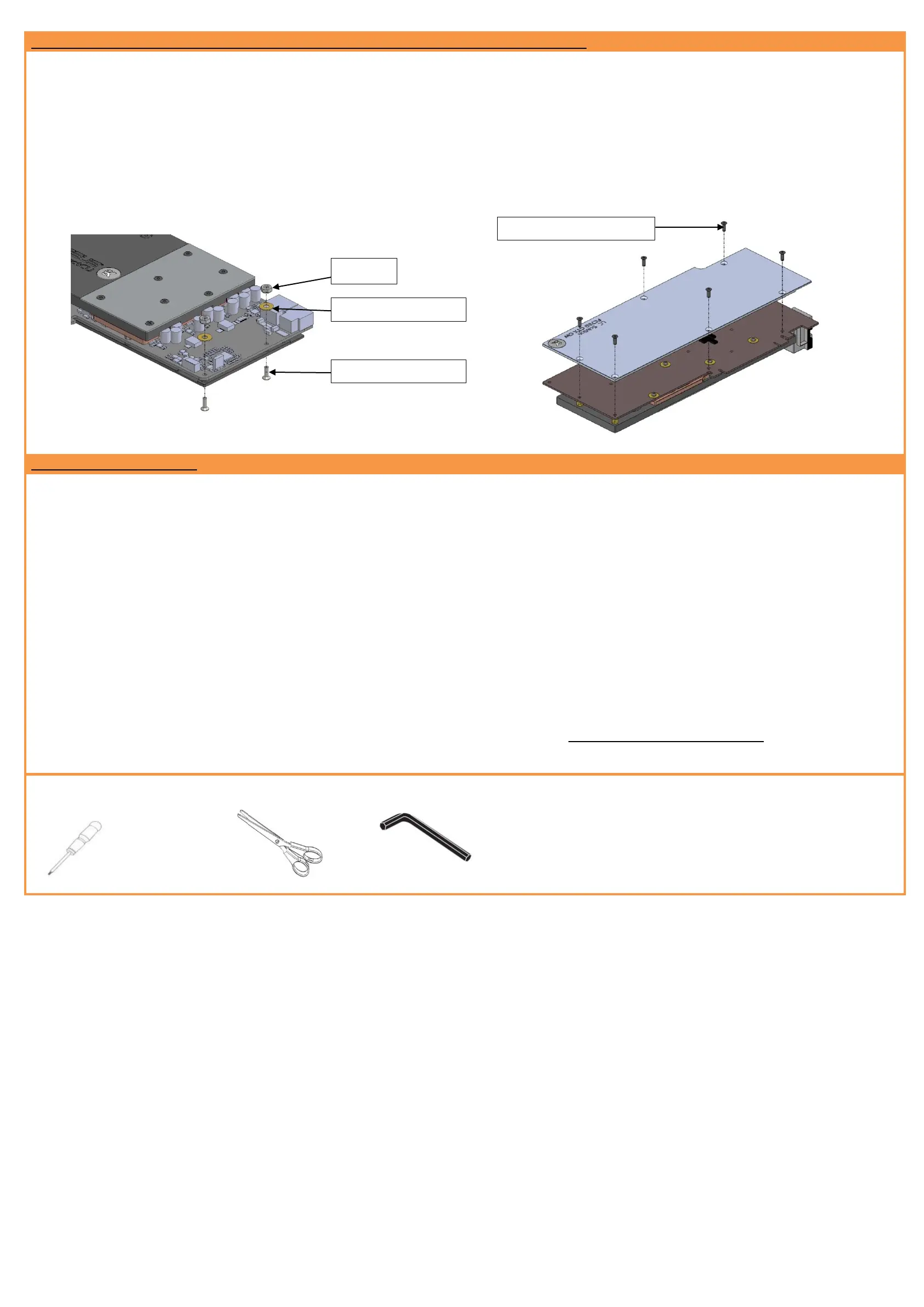

STEP 4 ATTACHING EK-FC780 GTX Jetstream BACKPLATE TO THE GRAPHICS CARD:

Take enclosed mounting screws and install them as shown on picture below. EKWB recommends users to start with six(6) M3x8 DIN 7991 for the

CSQ and ACETAL TOP’s or. four(4) M3x8 DIN 7991 and two(2) M3x10 DIN 7991 screws for the SHORT top, (HINT: do not tighten screws until they

are all positioned in their mounting holes) in the middle of the card and then continue outwards. The backplate has milled in standoffs, so there is

no fear of over tightening of the screws. Nevertheless do not exaggerate with screwing force as there is no need for it.

(By all means users must also consider that this product is intended to be used only with EK-FC780 GTX Jetstream series water blocks. No other 3 rd

party heat sinks or coolers are supported!)

EKWB short top versions ACETAL, CSQ TOP-s::

IMPORTANT DISCLOSURES

VERY IMPORTANT NOTICE: Once the installation is completed, it is a recommended practice to test the cooling circuit for leaks prior to powering up the

computer. We recommend a 24 hour leak test prior to powering up the computer. Do not test the water block using city water pressure. This will rupture the top

of the housing and render the block unusable (and will void your warranty).While all efforts have been made to provide the most comprehensive tutorial possible,

EK Water Blocks assumes no liability expressed or implied for any consequential damage(s) occurring to your equipment as a result of using EK Water Blocks

cooling products, either due to errors or omissions on our part in the above instructions, or due to failure or defect in the EK Water Blocks cooling products.

WARRANTY:

Our products are warranted against defects in materials or workmanship for a period of 24 months beginning from the date of delivery to the final user. During

this period, products will be repaired or have parts replaced at our discretion provided that: (I) the product is returned to the agent from whom it was

purchased; (II) the product has been purchased by an end user and has not used for commercial purposes; (III) the product has not been misused, handled

carelessly, or used in a manner other than in accordance with the instructions provided describing its installation and proper use. This warranty does not confer

rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This warranty is offered as an extra benefit and

does not affect your statutory rights as a consumer. This warranty is voided if the product comes in contact with aggressive UV additives or other improper

liquids.

EK blocks are sealed with warranty void circular label, which proves that the block has withstood a pressure leak test. Removing it will void leak-free guarantee

and not the guarantee on the product itself. Any other RMA issues can be reported to EK Support at http://www.ekwb.com/support for further analysis.

REQUIRED TOOLS AND MOUNTING SCREWS:

Philips head screwdriver scissors 2mm allen key

M3X8 DIN 7991 screw

M3x10 DIN 7991 screw

PVC WASHER

M3 NUT
