Revision 1.0. Released on 6

th of May, 2014

Installation and mounting manual for -Dual DDC X-Top CSQ EK

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

The barb hose fittings require only a small amount of force to screw them in; otherwise the high flow fittings might break. These fittings do not need to be tightened with much force because the

liquid seal is made using O-rings. The use of an algaecide and corrosion inhibitors is always recommended for any liquid cooling system.

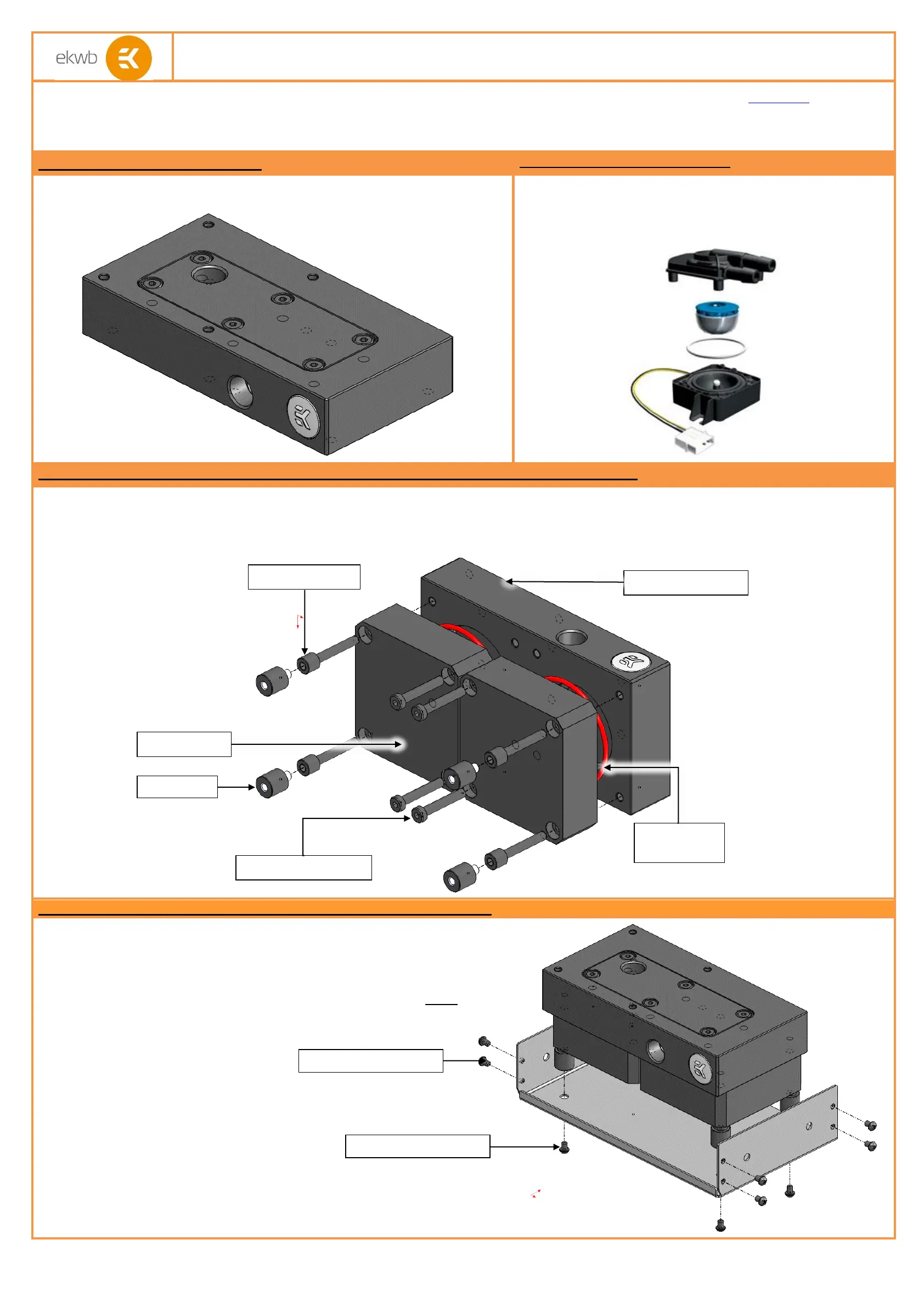

STEP 1: GENERAL INFORMATION

STEP 2: PREPARING THE PUMP

Sample picture of the -Dual DDC X-Top CSQ without pumps. EK

Take your Laing DDC pump. Unscrew the screws that connect stock

top (usually you will need a Torx T20 head screwdriver) at the bottom

and put the top away as you don’t need it any more. Keep it for a

warranty reason if the pump stops working.

STEP 3: ASSEMBLING THE “EK-Dual DDC X- TWO PUMPS (if disassembled) Top CSQ” WITH

Take motor with impeller of your Laing DDC pump. Place it according to the picture. Do not forget to place back the stock O-rings into the pumps groove. Use

enclosed Allen key to secure the pumps with Four (4 DIN 7984 and Four (4) Dumper DDC screws.) M4×25

STEP 4: INSERTING THE RESERVOIR TO YOUR COMPUTER CHASSIS

EK-Dual X-Top CSQDDC

can be mounted directly on computer chassis or into

5,25” bay drive and

occupies three (3) 5.25" drive bay expansion slots in

your computer chassis.

If you decided to mount into Bay Drive slots free three slots in case they

are already occupied with other computer components such as optical or

hard disk drives. Place the reservoir in your

5.25" drive bay

After

completing

STEP 5

in this manual, secure the reservoir to the drive bay

cage using the enclosed M3x4 DIN 7985 screws with Philips head

screwdriver.

M4 Dumper

Place the stock

O-rings.

M4×25 DIN 7984 screw

Dumper DDC screw

2 × DDC pump

EK-Dual DDC X-Top

M4x4 DIN 7984 screw

M3x4 DIN 7985 screw

Revision 1.0. Released on 6

th of May, 2014

STEP 5: CONNECTING YOUR RESERVOIR

It is mandatory to use the correct INLET and OUTLET port.

an inlet and outlet port you

need to

use exactly those ports that are

shown in the figure right EK recommends using EK-CSQ compression .

fittings for best water cooling experience.

STEP 6 (Option): MOUNTING RESERVOIR ON -Dual DDC X- “EK Top CSQ”

At first you need buy optional parts for

EK-Dual DDC X-

Top CSQ. Theas optional parts are sold separately in our

web shop. You need to purchase:

- EK-PLUG G1/4(only if you purchase EK-RES X3 TOP)

- EK-RES X3 TOP –or -RES X3 - Multiport TOP EK

- (different length available) EK-RES X3 - TUBE 110

- -Dual DDC X-Res Link CSQ - Add- EK On

It is mandatory to use the correct INLET and

OUTLET port.

As an inlet and outlet port you

need to

use exactly those ports that are shown in the figure right.

STEP 7: OTHER INSTRUCTIONS

VERY IMPORTANT NOTICE: Once the installation is completed, it is a recommended practice to test the cooling circuit for leaks prior to powering up the computer. We recommend a 24 hour leak test prior to powering

up the computer. Do not test the water block using tap water pressure. This will rupture the top of the housing and render the block unusable (and will void your warranty).While all efforts have been made to provide the

most comprehensive tutorial possible, EK Water Blocks assumes no liability expressed or implied for any consequential damage(s) occurring to your equipment as a result of using EK Water Blocks cooling products, either

due to errors or omissions on our part in the above instructions, or due to failure or defect in the EK Water Blocks cooling products.

WARRANTY: Our products are warranted against defects in materials or workmanship for a period of 24 months beginning from the date of delivery to the final user. During this period, products will be repaired or have

parts replaced at our discretion provided that: (I) the product is returned to the agent from whom it was purchased; (II) the product has been purchased by an end user and has not used for commercial purposes; (III)

the product has not been misused, handled carelessly, or used in a manner other than in accordance with the instructions provided describing its installation and proper use. This warranty does not confer rights other

than those expressly set out above and does not cover any claims for consequential loss or damage. This warranty is offered as an extra benefit and does not affect your statutory rights as a consumer. This warranty is

voided if the product comes in contact with aggressive UV additives or other improper liquids.

REQUIRED TOOLS:
