TO FACTORY
HARNESS
F-OPTIC
(male plug)
F-OPTIC
(male plug)
INTERFACE
F-OPTIC
(female plug)
BLUE/ VIDEO DEACTIVATION
BLACK/ GROUND
RED/ 12V CONSTANT
3-PIN
(male plug)
SAFETY WARNING:
THIS INTERFACE IS DESIGNED TO ACTIVATE
VIDEO IN-MOTION TO ALLOW THE PASSENER
ACCESS TO THE ADDRESS INPUT WHILE THE
VEHICLE IS IN-MOTION. THIS INTERFACE MAY
CAUSE AN ERROR WHEN SERVICED AT THE OEM
DEALER. BE AWARE THAT MOST DEALERS
WILL ATTEMPT TO VOID THE MANUFACTURERS
WARANTY WHEN INSTALLING ANY AFTERMARKET
EQUIPMENT. IMPROPER USE OF THIS INTERFACE
BY THE DRIVER MAY RESULT IN CITATION. DRIVER
MUST KEEP FULL ATTENTION ON THE ROAD AND
RESPOSIBILITY ON THE SAFETY OF HIS
PASSENGERS.
INTERFACING SOLUTIONS
VIDEO IN-MOTION ACTIVATION FOR BMW CIC2 F-SERIES PROFESSIONAL NAV SYSTEM
BMW
2010 - 2012 5 Series
2011 - 2013 6 Series
2009 - 2012 7 Series
2009 - 2012 GT5
2010 - 2013 X3
ONLY COMPATIBLE WITH:
- CIC2 PROFESSIONAL NAV
SYSTEM
VIMBM-87 We recommend reading this installation guide rst before starting any
work. Following these instructions from “Start” to” Finish” will ensure
a smooth and hassle free installation. We oer telephone support M-F
9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.
PARTS INCLUDED:
(1) BM-87 Interface
(1) BM-87 Fiber Optic Harness
(1) Instruction
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
durring the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
- Do not disconnect the airbag connection behind the radio panel.
PRELIMINARY:
Please read the entire mannual before installing this interface.
Vehicle must be equipped with factory DVD changer.
This interface does not activate DVD reader.
IMPORTANT:
ONLY COMPATIBLE WITH:
CIC2 PROFESSIONAL NAV SYSTEMS
INSTALLING THE INTERFACE:
1. Remove the factory radio to access to the factory ber optic cables.
2. Remove the ber-optic cable from the factory connector.
3. Connect the RED wire to 12v and BLACK to ground on the 8-pin
connector from the interface.
4. Make the T-Harness connections behind the factory radio.
(if the connectors do not match please contact tech support)
5. Test and make sure the Reverse gear triggers the interface and
also test the video in-motion while the car is rolling.
(Navigation address input should be active while rolling)
6. Make all other connections before re-installing the factory
radio.
NOTE: To deactivate the Video In-Motion, please connect the BLUE
wire to 12v.

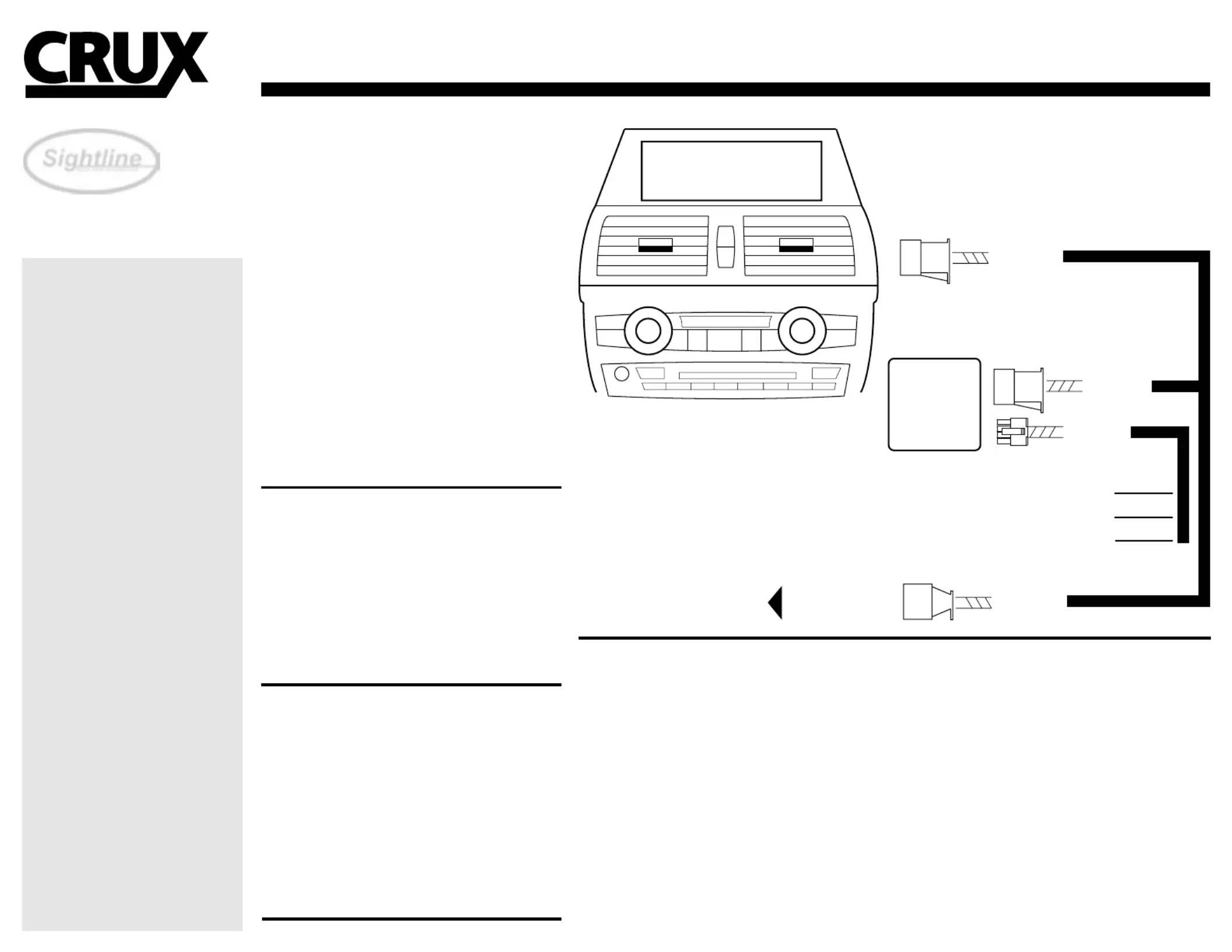

INSTALLATION OVERVIEW
