Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
ACPMB-50W
Smart-Play Integ tion with Multi Camera Inputsra
for Select Mercedes Benz Vehicles with NTG5 System
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
rev.051222
1 of 11
-
infotainment system.
- Integrates wired/ wireless Android Auto and carplay
- Includes a USB-3.5MM auxiliary audio adapter.
ACPMB-50W Module Vehicle Harnesses Smart-Play Interface Module
Video Harness LVDS Cable USB to Aux Adapter
4K HDMI Cable Microphone
Optional USB Cable
(Sold Seperately)
OSD Controller
3.5mm Aux Cable Smart-Play Module Power Harness
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0512222 of 11

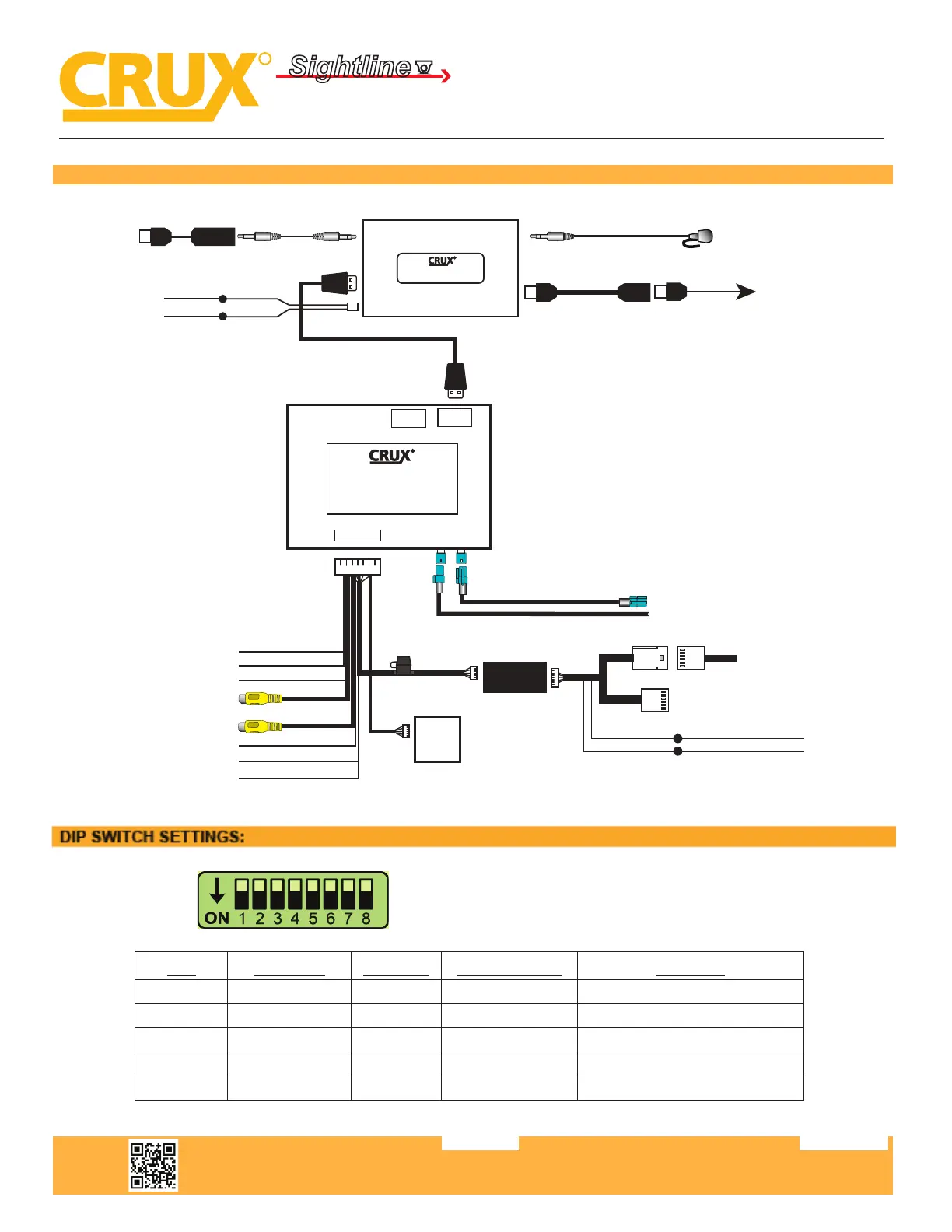

WIRING DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
MAIN
ACPMB-50
Smart-Play / Android Auto Inte ationgr
for Mercedes Benz with NTG5 System
INTERFACIN G SOLUTIONS
REAR CAMERA
FRONT CAMERA
Front Camera Manual Trigger
Front Camera
12V Power & Ground
Rear Camera
12V Power & Ground
Rear Camera Manual Trigger
OSD
CONTROL
PAD
OSD Control Pad is used to
adjust the settings. Must be
unplugged and stored after use.
5A Fuse
Red
Red
Black
Black
Multi/IO
HDMI
Smart-Play Module
INTERFACING SOLUTIONS
HDMI
Power Port
+12V ACC (Red)
GND (Black)
Aux Cable
To factory
USB port Microphone
OEM Smartphone
Cable
To Smartphone
USB Extension
Cable
To Cigarette
Lighter Wires
Blue
Green
To Radio
From Radio
CAN Extension
Board
LVDS Cable
To the 12 pin insert on
Quadlock connector
From the 12 pin insert on
Quadlock connector
HDMI
Not Used
Red Wire (+12V)
Black Wire (ground)
Red Wire (+12V Battery)
Brown Wire (ground)
From factory
Quadlock
Connector
Red (ACC)
Brown (Ground)
USB-3.5MM
Audio Adapter
ACPMB-50W
Smart-Play Integ tion with Multi Camera Inputsra
for Select Mercedes Benz Vehicles with NTG5 System
Note: ON is down and OFF is up
DIP SETTING SYSTEM SCREEN SIZE VEHICLE
1 to 8 ALL OFF NTG5.1 8” A, B, CLA, CLS, GLA, GLE, GLS
1 to 8 ALL OFF NTG5.1 7” A, B, CLA, CLS, GLA, GLE, GLS
4 ON NTG5.2 8.4” C, GLC
4 & 7 ON NTG5.2 7” C, V, GLC
3 ON NTG5.5 12.3” S Class
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051222
3 of 11
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
Smart-Play Integ tion with Multi Camera Inputsra
for Select Mercedes Benz Vehicles with NTG5 System
2. Remove the 2 T20 torx screws. 3. Carefully pull out up the whole
ce er panel.nt
4. Remove the 2 screws holding the
radio.
5. Pull out the radio. 6. Unplug the Quadlock connector.
7.Remove the 12-pin connector
(black) from the Quadlock
connector.
8. Remove the insert from the 12-
pin connector.
9. Install the 12-pin insert from the
ACPMB-50W harness to the 12-pin
connector.
10. Plug the 12-pin connector back
to the Quadlock connector.
11. Plug in the factory 12-pin insert
to the ACPMB-50W harness mate.
12. Plug the Quadlock connector
back to the radio.
