Pagina 1/13
Microphone
ACPBM-77X
Smart-Play Integration with Rear-View Camera Input for
E Series BMW with CCC Systems (6.5” or 8.8” Monitor) and 10-Pin LVDS Connector
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0724191 of 12
- Smart-Play Integraon system allows connecon of Android and other devices to the iDrive infotainment system.
- Control Apps using smartphone’s voice control feature or the factory iDrive Knob.
- Adds aermarket rear view camera input.
- Picture-in-picture mode combining aer-market rear-view picture with factory parking sensor graphics.
- Built-in on-screen display and setup.
- 1 trigger output (+12V max. 1A) for the camera power.
NOTE
- Android Phones must have a rmware version of 8 and above.
- For 2007 & up vehicles without a factory AUX input, add on the CRUX AUX-BM4 for audio.
- For 2007 & below vehicles without a factory AUX input, add on the CRUX AUX-BM5 for audio.
- Must insert factory LVDS cable to module and replace with our aermarket LVDS-10pin connector.
PRODUCT FEATURES:
PARTS INCLUDED:
ACPBM-77X Module Power/CAN Harness ACPBM-77X Vehicle Harness
LVDS10 Cable 3.5mm to RCA Adapter Smart-Play Interface Module
1. DO NOT connect the Quadlock Connector to Factory Radio CD Headunit UNLESS the 10 Pin LVDS Cable has
been properly and completely connected to factory display and all the other 10 Pin LVDS cable connections have
been made according to the wiring diagram above or the factory display will be damaged;
2. DO NOT connect the 10 Pin LVDS Cable when the Radio is Powering ON or the factory display will be damaged;
3. When the Radio CD Headunit is active (powered ON ), DO NOT disconnect any of the 10 pin LVDS Connections
or the factory display will be damaged.
WARNING
PRODUCT WILL NOT WORK WITH ALPINE SCREENS
After each change of the DIP switch settings you have to execute a power reset of the interface box!
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072419
2 of 12

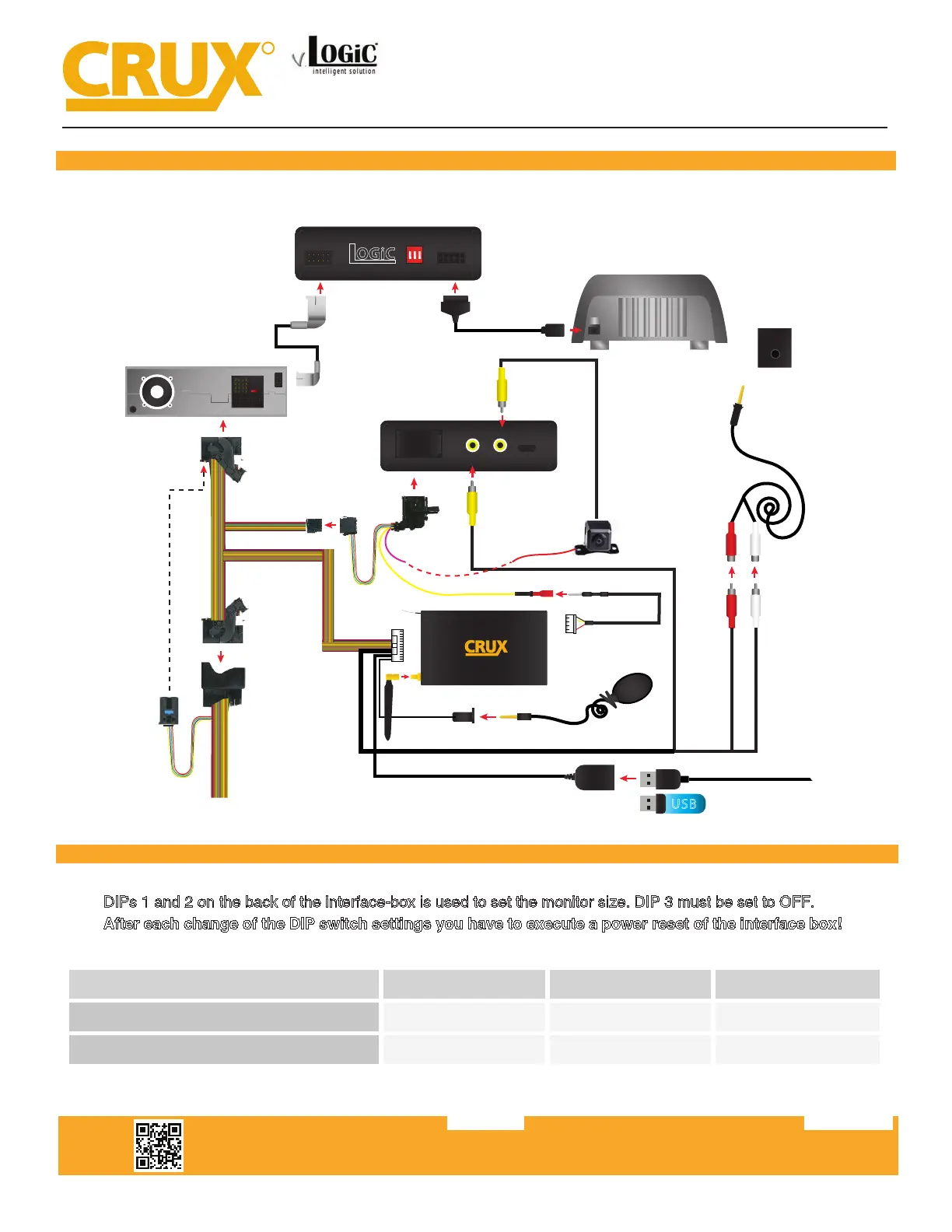

INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
ACPBM-77X
DIP SWITCH SETTINGS:
Back-Side of Factory
LCD Screen
LVDS
IN
LVDS
OUT
ACPBM-77X Module
POWER / CAN
FRON T
CAM REAR
CAM FW
UPDATE
UART
POWER/VIDEO
Back of Headunit
ACPBM-77X
Vehicle Harness
Factory Harness
Fiber -Optic
Cable
+12V Switching
Output 1 (Pink Wire)
Power/CAN
Harness
Vehicle Auxiliary
Input (AUX input)
Female RCA to
3.5mm jack
Male L & R RCA
Outputs (Audio)
AUX
iDrive Knob
Retention Cable
Smartph one Cabl e
Wireless Adapter
Smartlin k Cabl e
OR
USB Input
Microphone
Smart-Play Module
10-pin factory
LVDS Cable
LVDS
IN LVDS
OUT
v.
LVDS10 Cable
Vehicle / N avigation
Di 1 p
Dip 2
Di 3 p
M-ASK
OFF
No c fun 
No c fun 
CCC
ON
No c fun 
No c fun 
Smart-Play Integration with Rear-View Camera Input for
E Series BMW with CCC Systems (6.5” or 8.8” Monitor) and 10-Pin LVDS Connector
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072419
3 of 12
R
INTERFACING SOLUTIONS
ACPBM-77X
INSTALLATION INSTRUCTIONS:
1. Installaon is done behind the front
panel.
2. Carefully remove the dashboard
front panel using a trim removal tool.
3. Pull out the front panel.
4. Remove the 2 torq screws (T-10)
under the LCD panel’s hood.
5. Remove the two screws bracing the
A/C control panel.
6. Remove the A/C control panel.
7. Remove the LCD screen panel. 8. Unplug the gray LVDS connector
from the back side of the LCD monitor.
9. Plug in the LVDS10 cable in place of
the factory gray LVDS connector.
Smart-Play Integration with Rear-View Camera Input for
E Series BMW with CCC Systems (6.5” or 8.8” Monitor) and 10-Pin LVDS Connector
