Pagina 1/12

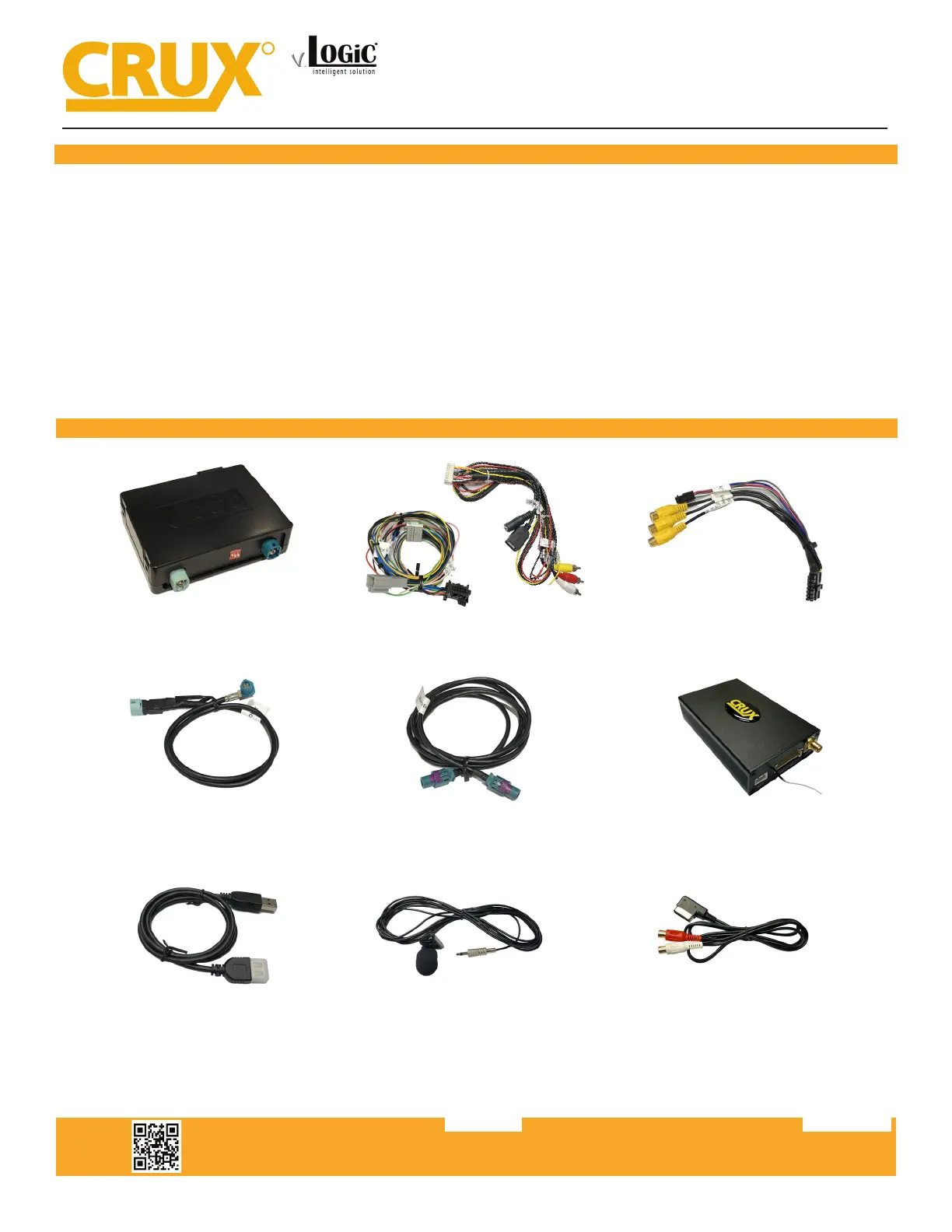

ACPAD-81Y Module Power Harnesses Video Harness
LVDS1 Cable (to Vehicle) LVDS2 Cable (to Headunit) Smartphone Interface Module
USB Extension Cable Mic AMI Audio Adapter Cable
ACPAD-81Y
Smart-Play Integration with Multi Camera Inputs & USB Player
for AUDI Vehicles with MMI MIB/MIB2 Systems
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0819191 of 12
- Smart-Play Integraon system allows connecon of Android and other devices to the Audi infotainment system.
- Control Apps using smartphone’s voice control feature or the factory MMI knob.
- Adds a USB port to play music and videos. USB port can also charge the smartphone.
- Adds front and rear-view camera inputs.
- Picture-in-picture mode combining aer-market rear-view and front camera picture(s) with factory parking sensor
graphics.
- Interacve parking guide lines with calibraon funcon.
- Simultaneous use of picture-in-picture factory parking sensor graphics and interacve parking guide lines.
- Built-in on-screen display and setup.
- Includes a AMI to RCA adapter cable to input audio into the factory Audi audio system.
- Provides a trigger output (+12V max. 1A) for the camera power.
PRODUCT FEATURES:
PARTS INCLUDED:
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0819192 of 12

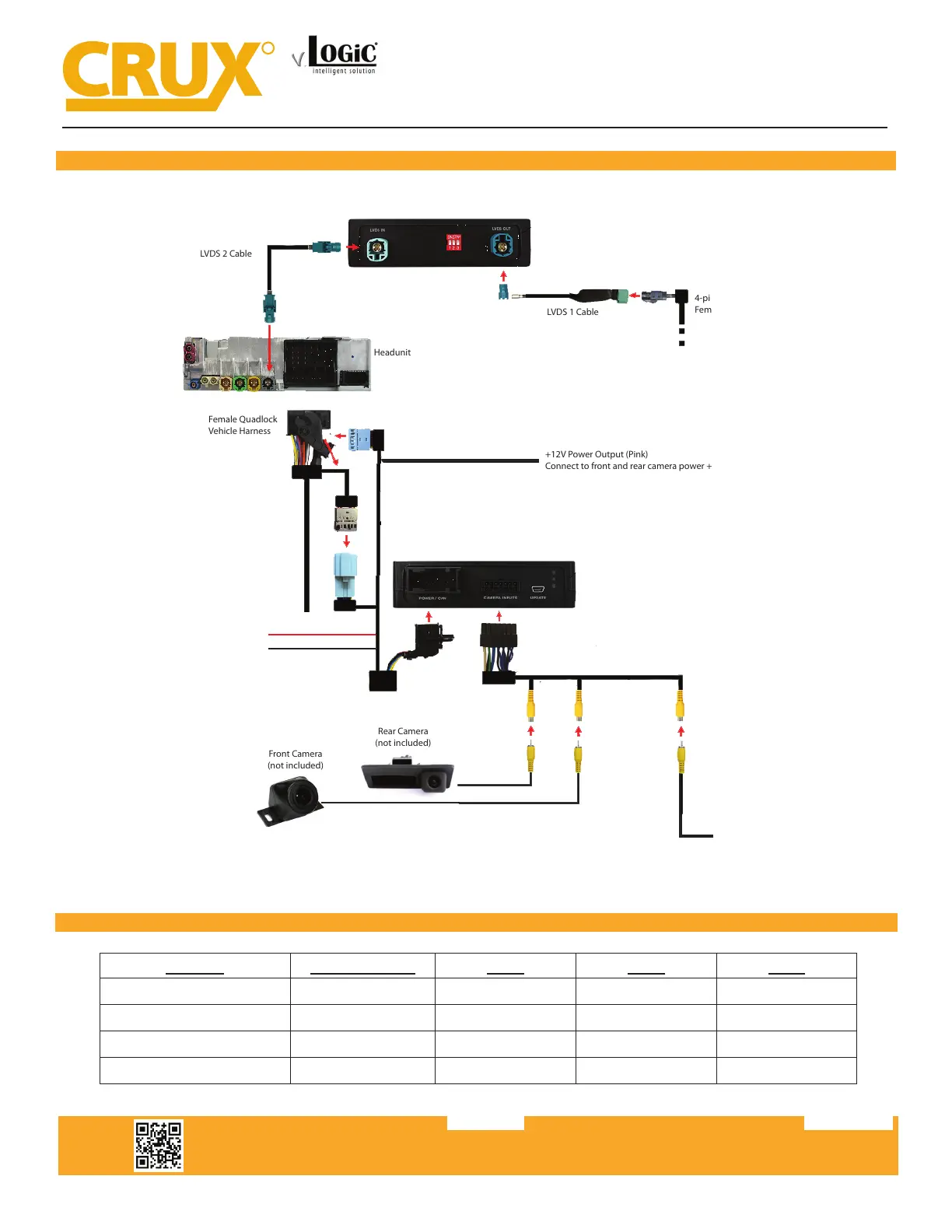

INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
ACPAD-81Y
Smart-Play Integration with Multi Camera Inputs & USB Player
for AUDI Vehicles with MMI MIB/MIB2 Systems
DIP SWITCH SETTINGS:
n HSD
ale LVDS Vehicle Harness
12V
To Smart-Play
Interface Module
(see next page)
Rear
Camera
Front
Camera
Video
Input
+12V Constant (Red)
Ground
See step 12 on
page 5 for power
and ground connections
VEHICLE MONITOR SIZE DIP 1 DIP 2 DIP 3
Audi A3 (8V) 7” ON OFF OFF
Audi A4 (8W) 8.3” ON ON ON
Audi Q7 (4M) 8.3” ON OFF ON
Audi Q7 (4M) 7” ON OFF OFF
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0819193 of 12
R
INTERFACING SOLUTIONS
ACPAD-81Y
Smart-Play Integration with Multi Camera Inputs & USB Player
for AUDI Vehicles with MMI MIB/MIB2 Systems
Video
Input
Smartphone
Cable
USB Cable
MICROPHONE
To Smartphone
To AMI
Port
UART
Smart-Play
Interface
+12V ACC (Red) (to Power Out 2 Green wire)
Ground
+12V Constant (Yellow)
Smart-Play Interface Wiring Diagram
1. Clip the microphone to the desired locaon. We recommend clipping it on the A pillar. Run the cable towards
the Smart-Play Interface and plug in to female 3.5mm jack.
3. Locate the AMI port on the vehicle. Two possible locaons are in the center armrest or in the glove box. Plug
the AMI to RCA adapter cable to the AMI port and run the cable towards the Smart-Play interface. Plug the
RCAs to the audio RCAs on the ACPAD-81Y harness.
4. Plug in the USB extension cable provided in the kit and run the female end to an easily accessible locaon.
Note that the Smart-Play interface requires the use of the original smartphone charging/data cable. The USB
port can also be used to play music and videos on a USB thumb drive.
5. Plug in the male RCA plug of the Smart-Play interface harness to the ACPAD-81Y Video In RCA.
6. Connect the Red wire of the Smart-Play harness to the Green Power Out 2 wire of the ACPAD-81Y harness.
Connect the Black wire to ground and the Yellow wire to +12V Constant. See step 12 on page 5 to see where
to tap +12V constant and ground from the vehicle harness.
AMI Port in glove box
