CRYSTAL-V Wireless Video System
Thank you for purchasing the CAME-TV Crystal-V wireless video Transmission system. This
product adopts the latest image encoding and decoding technology and 5G transmission
technology to achieve ultra-low delay effect. It supports both HDMI and SDI input and output,
and outdoor distances up to 500 meters (1,640 feet).
Product Features:
1. The transmitter supports SDI loop out, which is convenient for the camera operator to install
the screen for monitoring.
2. V-mount battery can be used. It can be mounted to a V-mount plate, providing power for both
transmitter and camera.
3. The receiver supports HDMI and SDI output screen switching, or display simultaneously.
Mobile phones and tablets can monitor video images with apps (both for Apple and Android
devices).
Product List
Specification:
Produc
Produc
Produc
ProducProduct
t
t
tt
Transm
Transm
Transm
TransmTransmitter
itter
itter
itteritter
Receiv
Receiv
Receiv
ReceivReceiver
er
er
erer
Frequency
5.180GHz-5.805GHz
Antenna
4DB knife-like dual antenna
Package Contents
Transmitter
Receiver
Antenna
1/4screw
NP battery plate
Network
Bandwidth
10M
Power
Interface
DC2.1,7-24V
USB Port
Output DC voltage 5V-2A
/
SDI/HDMI
Channel
Switch
/
Short press ‘Channel’
button about 1S to switch
HDMI、SDI、HDMI&SDI,3
different Channels
Input
Branch(Max)
SDI&HDMI input
simultaneously
SDI&HDMI output
simultaneously
Battery
Support V-mount battery
(Support NP battery with
adapter plate)
Support NP battery
Working
Current
12V 510mA@6.12W
12V 550mA@6.6W
Power Led
Red
Network Led
Yellow
Video Led
Blue
Working
Temperature
-10℃~65℃(14℉~140℉)
The
The
The
TheThe Resolut
Resolut
Resolut
ResolutResolution
ion
ion
ionion Supported
Supported
Supported
SupportedSupported by
by
by
byby th
th
th
ththe
e
e
ee Receiver
Receiver
Receiver
ReceiverReceiver
Resolution
Frame
Description
1080P
60
If the resolution exceeds 1080P60, the unified
decoding is 1080p@60. Other 1080 resolutions
are converted to similar resolutions, such as
59.94 to 60 and 24 to 25
1080I
60
1080P
50
1080I
50
1080P
30
1080P
25
720P
60
Other frames of 720P are decoded into 720P@60
720P
50
576P
50
480P
60

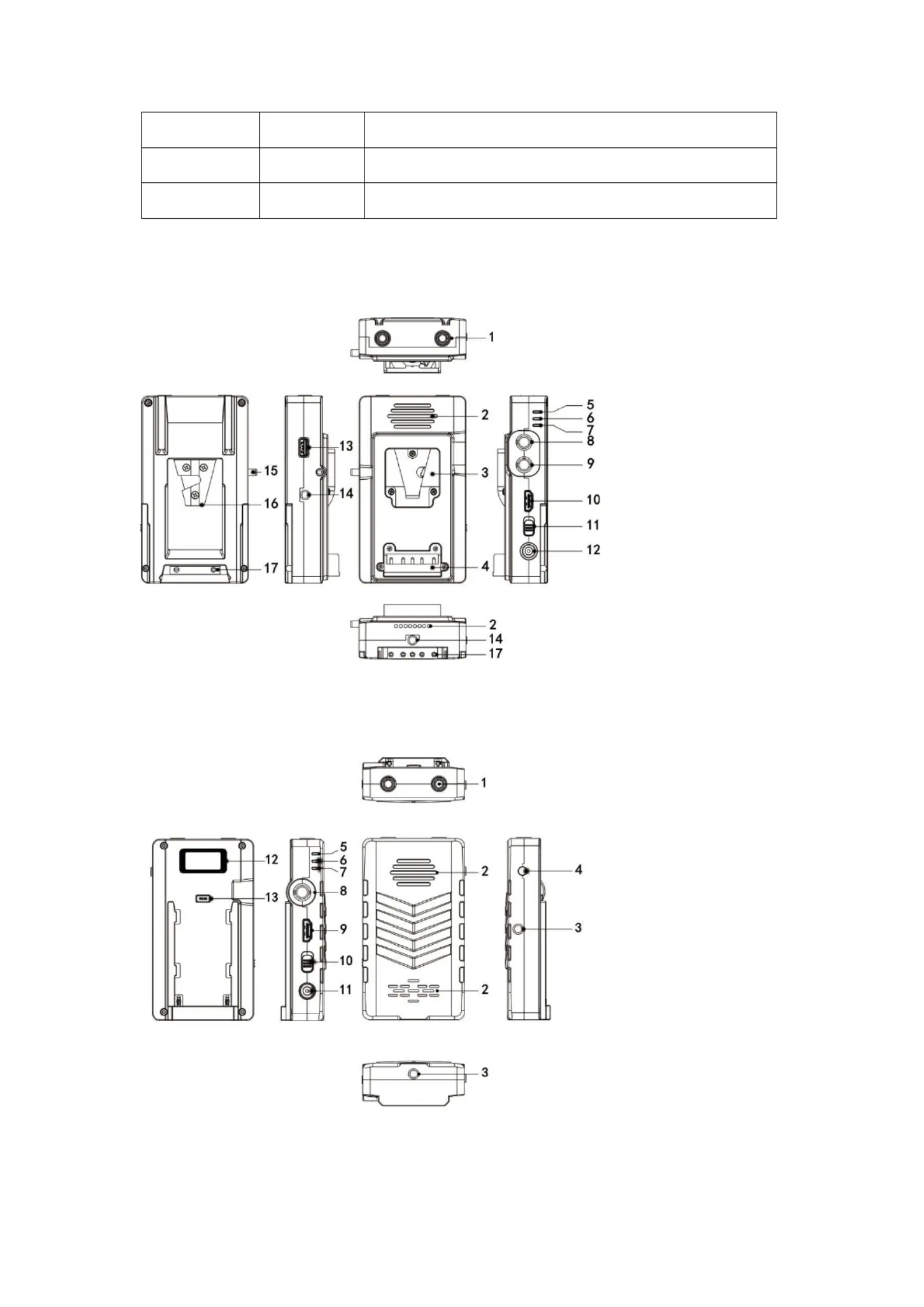

Product Instruction:
Transmitter
1. Antenna port
2. Heat emission hole
3. V-mount battery Locking
4. Battery electrode(male)
5. Network Led
6. Video Led
7. Power Led
8. SDI output
9. SDI input
10.HDMI input
11.Power Switch
12.DC input
13.USB
14.1/4 screw hole
15.V-mount battery lever
16.V-mount battery plate
17.Battery electrode(female)
Receiver
1. Antenna port
2. Heat emission hole
3. 1/4 screw hole
4. Select Channel Button
5.Network Led
6.Video Led
7. Power Led
8. SDI Output
9. HDMI Output
10.Power Switch
11.DC input
12.OLED Screen
13.Battery press Clasp
