CAME-ASTRAL
Wireless Follow Focus
System
V1.4
3
5
15
10
4
6
7
8
9
A
B
ok
1
1
C D
1

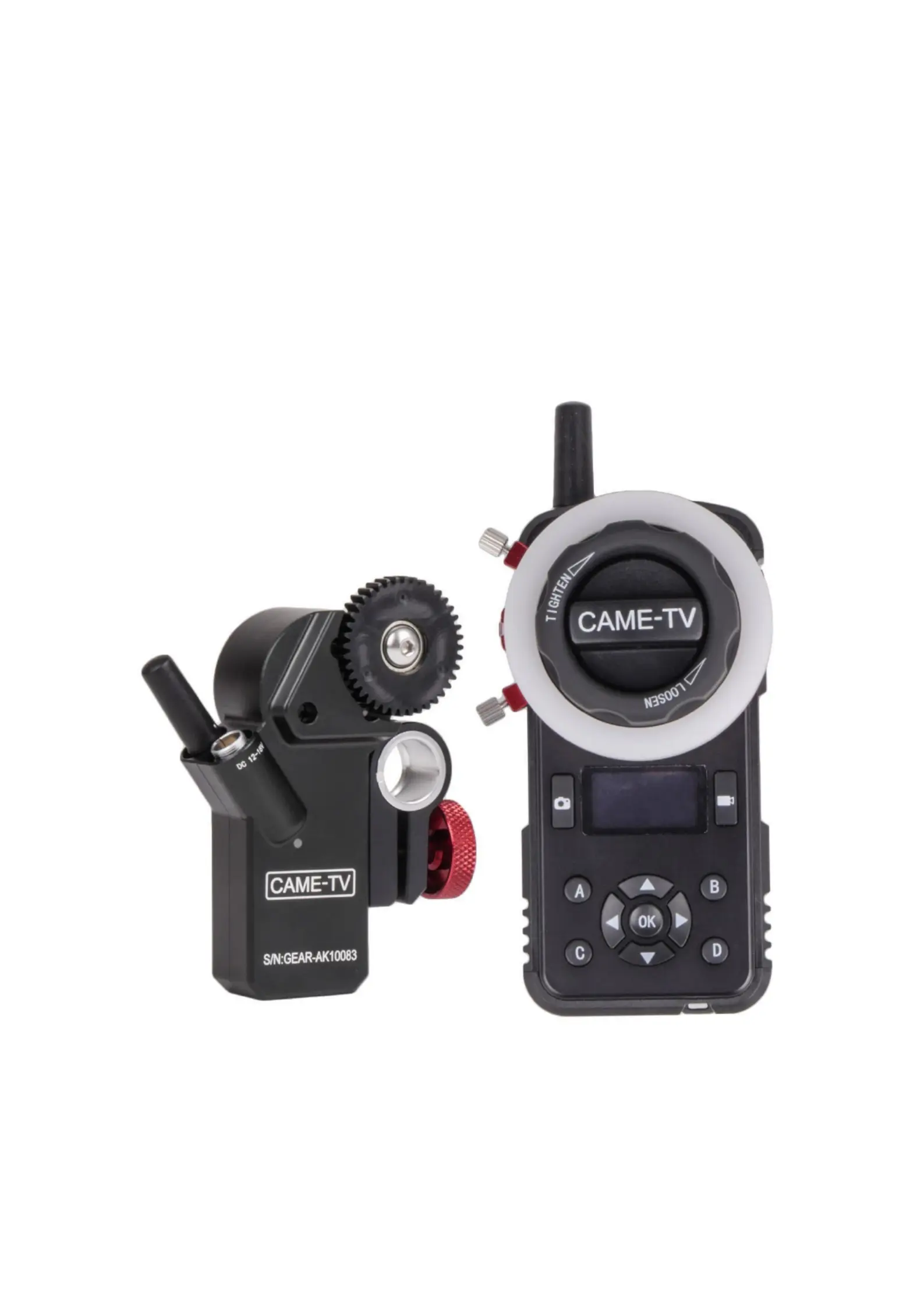

One: Brief Introduction:
The CAME-TV Came-Astral is a wireless professional follow focus system designed for industry professionals. It
features a reliable control of focus, iris, zoom, and comes with a remote controller & motor. The controller
features a control knob and a quick focus button to configure the OLED display. The maximum output speed of
the motor is 250rpm. Torque is high up to 0.50Nm and motor noise is low at 25db (with rotation speed at 100
rpm). With 2.4GHz wireless communication, the controller and the focus motor will be automatically paired
after being turned on. The maximum transmission range is 100 meters (328 feet). The controller has a built-in
3.7V/1000mAh lithium-ion battery. The OLED display on the controller indicates the battery level in real time.
When the battery is low, it can be charged through the Micro USB interface. The working time in the fully
charged state is approximately 8 hours.
1. Power Button
2. USB Interface
3. Antenna
4. Torque Button
5. Limitation Pins
6. Marking Disk
7. Focus Knob
8. OLED Display
9. Rec Button
10. Photo Button
11. A/B/C/D Point Button
12. Function Button
14 13.Lanyard Attachment
14.1/4’’ Thread
15.Marking Disk Indicator
1. : Perform long press for 3 seconds to turn on/off.Power Button
2. Micro USB Port: For Charging and upgrading firmware. Charging input is5V/1A.
3. Antenna: 2.4GHz/2dbi.
4. Torque Button: To adjust the torque. Rotate counterclockwise for lighter and clockwise for harder torque.
5. Limitation Pins: To adjust the rotation angle of the hand-wheel.
6. Marking Disk: To mark focus in the disk.
7. Focus Knob: Adjust the rotation angle of the hand-wheel to control the focus, iris, and zoom of the camera
lens with the motor. The rotation angle sensor has a resolution of12bit.
8. OLED Display: Display battery level, connection status, calibration status, travel, memory point, function
menu, etc.
9. Rec Button: Tap once to start recording, twice to stop recording.
10. Photo Button: Used to focus and take photos. This button is a two-segment button by pressing down.
Press the first segment to focus camera, then press the second segment to take photos.
11. A/B/C/D Point Button: First adjust the focus position by adjusting the Focus Knob. Then long press one
of these buttons for 3 seconds to mark the current focus with a result of the corresponding letter will be
displayed on the OLED screen displays. Perform a second long press to cancel the memory focus. The
corresponding letter on the screen will then disappear. The four buttons A/B/C/D can set 4 focus memory
positions. When the memory point is set, tap the button once to quickly switch to the memory focus
position or exit the memory point position.
12. Function Button: Consists of 4 direction buttons and OK button. Press the OK button in the main interface
to enter the function main menu. After the function setting is completed, each time you tap the right
button, you can return to the previous interface and repeat the operation to return to the main interface.
Tap the up button once in the main interface to turn on/off the diskindicator.
13. Lanyard attachment: To attach the unit to the
lanyard.
14.1/4 Thread: to mount the unit onto other
accessories.
15.Marking Disk Indicator: To indicate the marking disk or use as lighting. Tap the UP button once in the
main interface to turn on/off the disk indicator.
Three: Controller Manual
OLED Manual Display:
54
1.Battery Level
2.Focusing Knob Stroke Percentage
3 Focusing Knob Stroke Progress
Bar
4 OK for Calibration complete while TX not
5 Signal Intensity. TX means not connected.
6 Memory point: A B C D
1
2
3
6
