The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. Revised 4/10/19 Printed in U.S.A.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2019 by Bobrick Washroom Equipment, Inc.

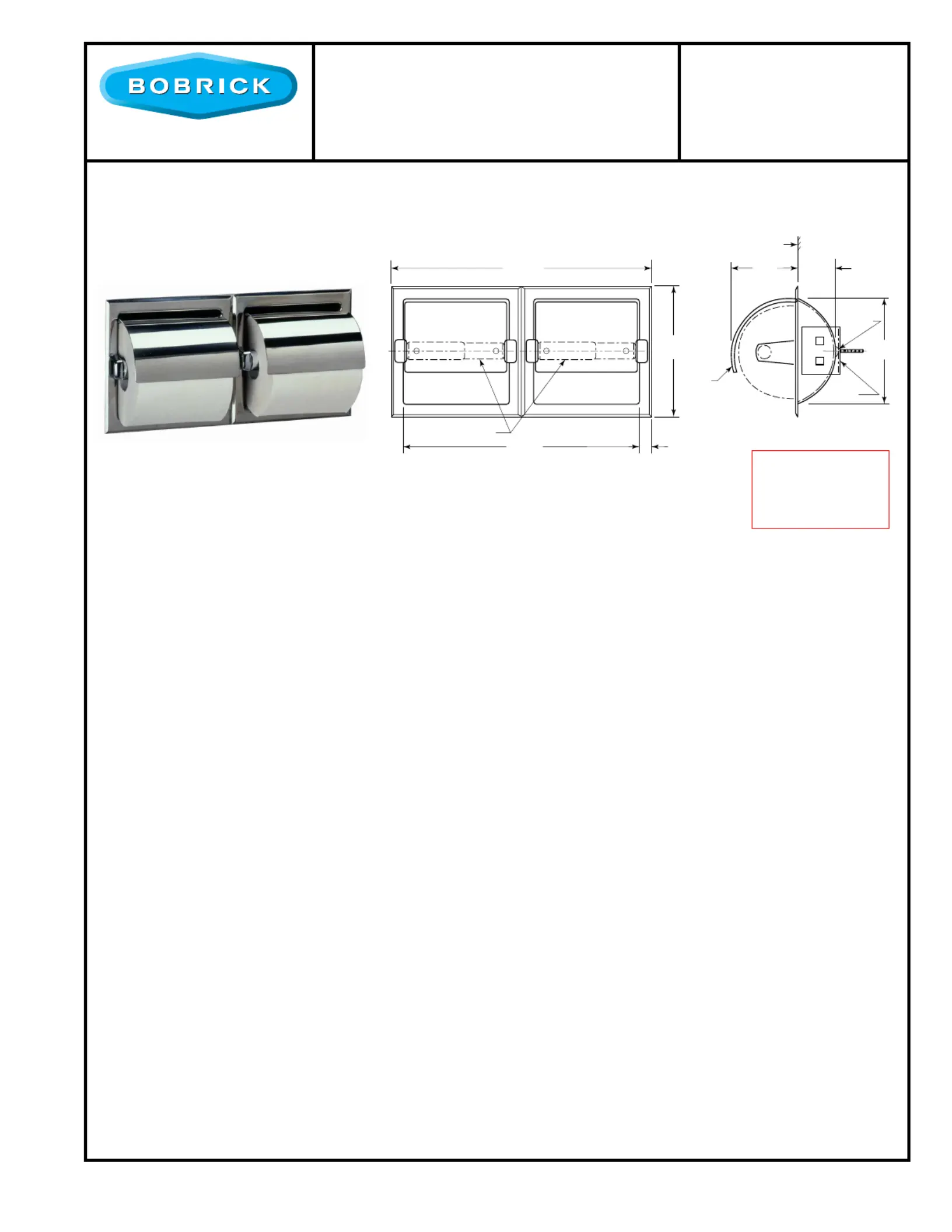

Technical Data
12-5/16''
315mm
11-3/16''
285mm
6-3/16''
155mm
Spindles
S
Finish Face of Wall
2-3/4''
70mm
5''
125mm
Hoods
(2)
9/16''
15mm
Typ.
1-7/8''
50mm
Countersunk
Mounting
Holes (4)
Mounting
Clamp
Specify Model Required: Model B-699 Bright polished stainless steel
  Model B-6997 Satin-finish stainless steel
MATERIALS:
Shell and Flange — 18-8, Type-304, 22-gauge (0.8mm) stainless steel. Drawn and beveled, one-piece, seamless construction
with four countersunk mounting holes.
Support Posts (4) — Heavy-duty cast zamac with chrome-plated finish.
Hoods (2) — 18-8, Type-304, 18-gauge (1.2mm) stainless steel. Hoods hinged to shell.
Mounting Bracket — Plated-steel mounting clamp attaches to back of unit with two sheet-metal screws for installation in stud
walls or countertop aprons.
Spindles (2) — Chrome-plated plastic. Equipped with heavy-duty internal springs.
Designer's Note: Theft-resistant toilet tissue spindles, which are removable only with special key provided, are available as an
optional accessory - part no. 283-604.
INSTALLATION:
Provide framed rough opening 11-3/4" wide x 5-1/4" high (300 x 135mm). Minimum recessed depth required from finish face
of wall or apron is 3-3/8" (86mm).
For installation in stud walls or countertop aprons without backing, loosely attach mounting clamp to back of unit with
mounting screws. Insert into rough opening. Adjust mounting clamp so it grips surface inside rough opening. Secure in place
by tightening four mounting screws.
For installation in stud walls or countertop aprons with backing, discard mounting clamp furnished with unit. Insert unit only
into rough opening and secure with sheet-metal screws furnished. Backing must comply with local building codes.
SPECIFICATION:
Recessed dual-roll toilet tissue dispenser shall be Type-304 stainless steel with __________ (insert one: bright polished or satin)
finish. Shell and flange shall be drawn and beveled, one-piece, seamless construction. Unit shall be equipped with 18-gauge
(1.2mm) hoods hinged to shell and furnished with plated-steel mounting clamp for installation in stud walls or countertop
aprons. *Spindles shall be chrome-plated plastic with heavy-duty internal springs.
*To specify theft-resistant spindles as an optional accessory, add to specification: Theft-resistant toilet tissue spindles shall be
removable only with special key provided.
Recessed Dual-Roll Toilet Tissue Dispenser With Hoods shall be Model __________ (insert model number) of Bobrick
Washroom Equipment, Inc., Clifton Park, New York; Jackson, Tennessee; Los Angeles, California; and Bobrick
Washroom Equipment Company, Scarborough, Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and
Bobrick Washroom Equipment Limited, United Kingdom.
Rough Opening
11-3/4" (300mm) wide
5-1/4" (135mm) high
3-3/8" (86mm) minimum
recessed depth
RECESSED DUAL-ROLL
TOILET TISSUE DISPENSER
WITH HOODS
(FOR STUD WALLS OR COUNTERTOP APRONS)
B-699
B-6997
