Ampeg SVT-810E Handleiding
Lees hieronder de 📖 handleiding in het Nederlandse voor Ampeg SVT-810E (4 pagina's) in de categorie Receiver. Deze handleiding was nuttig voor 44 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld
Pagina 1/4

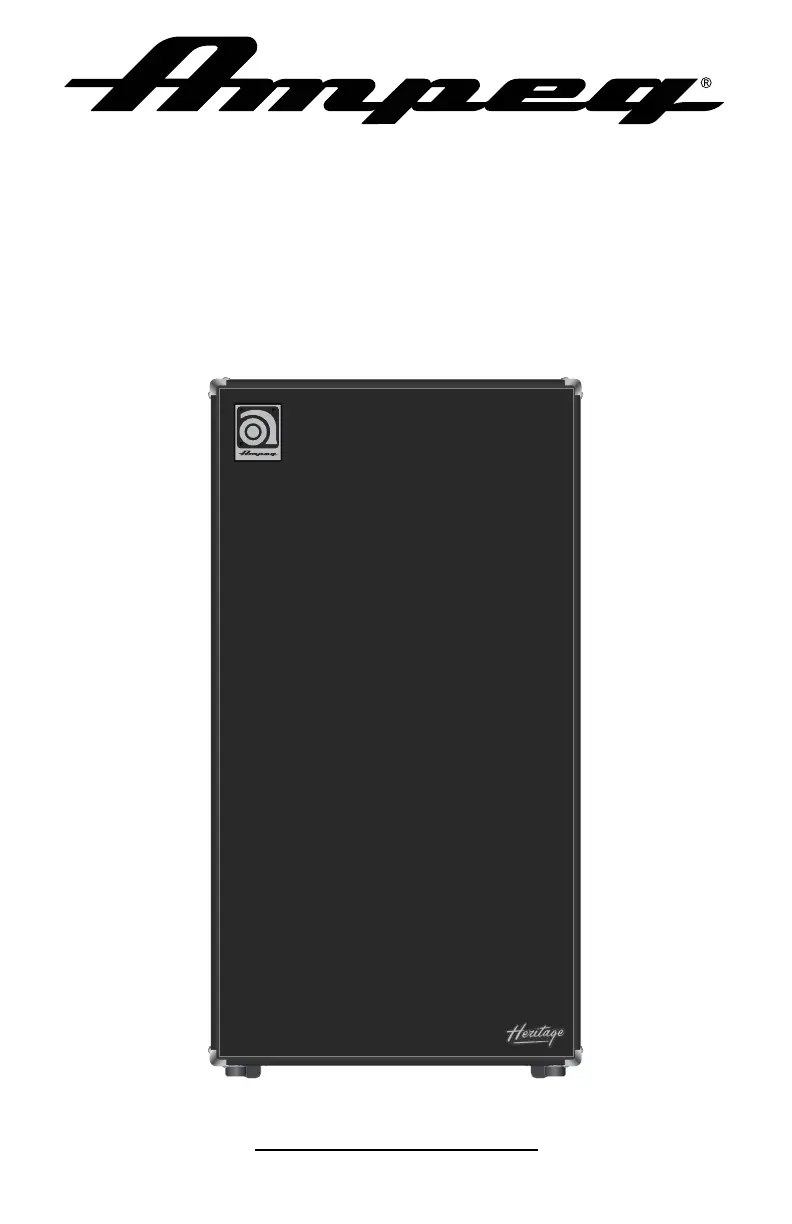

SVT810E/AV
Dual 4x10/8x10
Bass Cabinet
SVT-810E/AV
Dual Bass Cabinet
Your Ampeg SVT-810E/AV Dual Bass Cabinet is a high
quality speaker cabinet suitable for all sizes of venues. The
SVT-810E/AV can be “split” into two isolated 8 ohm, 4x10
cabinets via the jackplate connections. This allows each cabi-
net to be driven by a separate amplifier. Of course it may also
be connected in the Mono Mode to create a single 4 ohm,
8x10 cabinet that may be powered by a single amplifier.
The cabinet features an industrial strength grip bar and
heavy duty recessed wheels. Skid rails are placed on the back
of the enclosure to protect it while loading in and out of ven-
ues and vehicles. (Place a foot against one of the rails to tilt
the cabinet back.)
The Speakon®and 1/4” jacks are wired in parallel, allow-
ing easy daisy chaining from one speaker to another. Each of
the jacks may be used as an input or a through connection.
Speakon®connectors are recognized as the standard for
professional installations, assuring a secure, permanent con-
nection that won’t corrode, vibrate loose or be easily tam-
pered with. The 1/4” jacks are convenient. However, the
Speakon®jacks are recommended when using power ampli-
fiers over 150 watts, for permanent installations, or for the
“first” speaker among a number of daisy chained speakers.
Speakon®to 1/4” Wiring Diagram:
SVT-810E/AV
Dual Bass Cabinet
1: 1/4” Upper 4X10 Dual Mode
Input Jack
2: 1/4” Lower 4X10 Dual Mode or
Mono Mode Input / Output Jacks
3: Speakon®Lower 4X10 Dual
Mode or Mono Mode Input /
Output Jacks
The SVT-810E/AV Jackplate:
Suggested Hookup Diagrams:
The cabinet operates in the Dual Mode whenever a connector is inserted
into the 1/4” Upper 4X10 Dual Mode input jack (#1). Otherwise, the cabi -
net operates in the single 8X10 Mono Mode.
Product specificaties
| Merk: | Ampeg |
| Categorie: | Receiver |
| Model: | SVT-810E |
| Kleur van het product: | Zwart |
| Gewicht: | 63500 g |
| Breedte: | 660.4 mm |
| Diepte: | 406.4 mm |
| Hoogte: | 1219 mm |
| Gewicht verpakking: | 74800 g |
| Connectiviteitstechnologie: | Bedraad |
| Audio-uitgangskanalen: | - kanalen |
| Frequentiebereik: | 58 - 5000 Hz |
| Signaal/ruis-verhouding: | - dB |
| Totale harmonische vervorming (THD): | - procent |
| Piekvermogen per kanaal: | 800 W |
