Lees hieronder de 📖 handleiding in het Nederlandse voor Zeiss Terra ED 24205-9901 (2 pagina's) in de categorie Verrekijker. Deze handleiding was nuttig voor 48 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld
Pagina 1/2

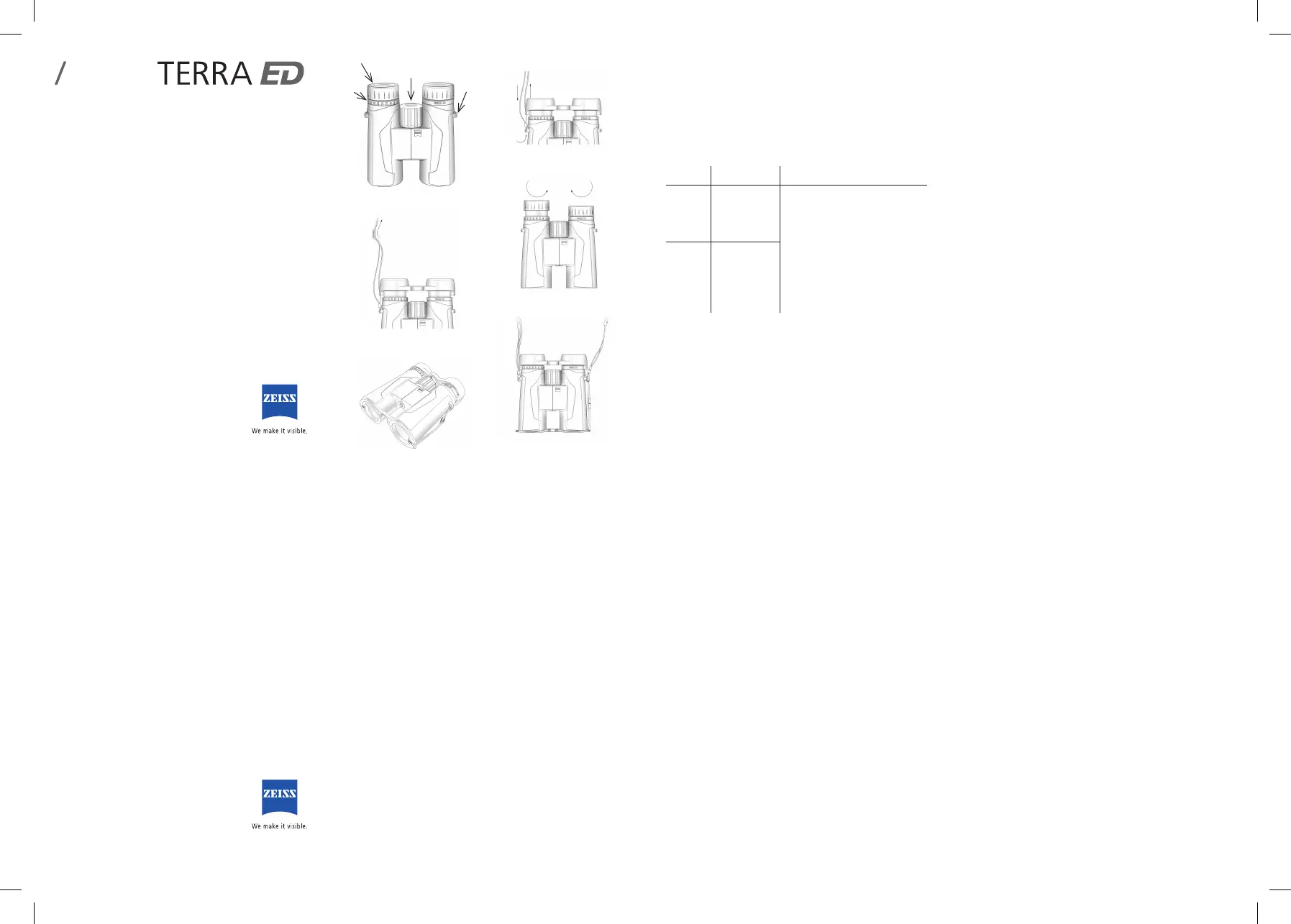

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5 Fig. 6
User Instructions
Description of the components
1 Diopter compensation
2 Eyecups
3 Focusing knob
4 Carrying strap eyelets
Contents
ZEISS TERRA ED binoculars
1
2
3
4
BA
Mounting the carrying strap and the protective covers
The carrying strap is supplied with the binoculars.
Attach the carrying strap to the eyelets provided on the binoculars, and
mount the eyepiece cap on the strap as shown in .Figs. 2, 3 and 5
The strap for the protective lens cap is attached directly (either right or
left) to the protective lens cap. To fasten on the device, use either the
carrying strap or one of the two carrying strap eyelets.
Note: Simply pass the carrying strap through the eyelets on the eyepiece
cap. Before attaching the carrying strap, as shown in Fig. 3, the strap
length should be set at the desired length by shortening or lengthening
the strap.
Follow the same sequence for the opposite side. Some prefer to thread
through the cap on both sides, and some on only one.
Use of the eyepiece cap
The eyepiece cap is kept in the objective aperture. Remove the eyepiece
cap with your index fingers before using the binoculars.
Use of the protective lens cap
The protective lens cap is kept on the eyecups. Remove the protective
lens cap with your index fingers before using the binoculars.
This product may be covered by one
or more of the following United States
patents: US6542302, US6816310,
US6906862
000000-2113-041 / 06.2014
INSTRUCTION FOR USE
Congratulations on purchasing your new ZEISS TERRA® ED binoculars.
Enjoy the sharp, bright, high resolution view offered by these
outstanding optics. ZEISS products are known for superb optical
performance, precision engineering, and durability. Follow the
instructions for use and your product will be a reliable companion for
many years to come.
Information for your safety
Environmental Hazards
� Do not under any circumstances look through the binoculars at the
sun or laser light sources! Serious eye injury may result.
� Never leave the binoculars in the sun for extended periods of time
without the protective lens cap. Extreme exposure to direct sunlight
through the objective lens and eyepiece can function as a burning
glass and damage the interior components.
Danger of swallowing
Never leave the removable outer parts in reach of children (danger of
swallowing).
Viewing with and without glasses
When viewing without glasses, fully extend both eyecups. To do this, turn
the eyecup to the left (counter clockwise) and upwards to the top (Fig. 4)
click stop position (Illustration A).
The eyecups can be locked in four positions – at the bottom and top and
in two middle positions. These adjustment options allow the distance of
the eye from the exit pupil to be adjusted according to the specific need
of each user.
When viewing with glasses, turn the eyecup down to the right
(clockwise) until it locks in the bottom click stop position (Illustration B).
Adjusting the interpupillary distance
Adjust the two barrels by pivoting them around the center hinge until
you see one circular field of vision when viewing with both eyes.
Focusing
The binoculars have a focusing knob and a diopter adjustment (Fig. 1/3)
wheel .(Fig. 1/1)
To adjust, block the right barrel and focus the image in the left barrel
using the center focusing knob . Then block the left barrel (Fig. 1/3)
and, if necessary, adjust the focus in the right barrel using the diopter
adjustment wheel ).(Fig. 1/1
The diopter adjustment has a“+” and “–” scale and an index point as a
reference when setting the diopter adjustment for different users.
Note: Always use the same object to focus both barrel images.
Once adjusted, use only the focusing knob for maximum image quality
and sharpness. .(Fig. 1/3)
Mounting on a tripod
Binoculars from the ZEISS TERRA ED series can be mounted on any
commercial camera tripod using the ZEISS universal tripod adapter for
binoculars.
Care and maintenance
The binocular lenses come standard with ZEISS MC coating. This
protective coating noticeably reduces contamination (such as water, dirt
and debris) of the lenses with a special smooth surface beading effect.
Contaminants adhere less and can be quickly and easily removed, smear-
free. The ZEISS MC coating is also durable and abrasion resistant.
We recommend using the ZEISS lens cleaning cloth (included) to clean
the surface of the lenses. Even grease, fingerprints and dirt can be
removed with little effort and without smears.
Do not wipe coarse dirt particles (e.g. sand) from the lenses; instead
blow off or remove with a fine brush. Other textiles, such as clothing,
paper towels or handkerchiefs can scratch the lenses and statically
charge them.
We recommend routine cleaning of the lens surfaces. Contamination,
especially grease or fingerprints, can damage the lens surfaces after a
while. Dry storage and keeping the outer lens surfaces well ventilated,
especially in humidity, helps to prevent a possible mold film forming on
the optics.
Product Order number Scope of supply
8 x 32
8 x 42
523205
524205
Binocular
Eyepiece cap
Protective lens cap
Strap for fastening protective lens cap
Carrying strap
Bag
Lens cleaning cloth
User instructions
Warranty
10 x 32
10 x 42
523206
524206
ZEISS
2142326_Zeiss_GBH_TERRA_ED_US.indd 1 28.08.14 06:17
Technical Data
8 x 32 10 x 32 8 x 42 10 x 42
Magnification 8 10 8 10
Objective lens diameter (mm) 32 32 42 42
Exit pupil diameter (mm) 4.0 3.2 5.3 4.2
Twilight Factor 16.0 17.9 18.3 20.5
Field of view (ft/1000 yds)
(m/1000 m)
442
135
367
112
375
125
330
110
Subjective angle of view (°) 60 63 56 60
Close-up setting limit (ft / m) 4.9 / 1.5 5.25 / 1.6
Diopter Adjustment Range (dpt) +/– 4
Exit pupil distance (mm) 16.5 18 14
Pupil Distance (mm) 56 - 74 57.5 - 76
Lens type ED
Prism system Schmidt-Pechan
Coating Hydrophobic Zeiss MC
Nitrogen Filled Yes
Waterproof (mbar) 100
Operation Temperature (°F / C°) –5° / +140° –15° / +60°
Length (in / mm) 4.9 / 125 5.5 / 142
Width with an eye spacing of 65 mm (in / mm) 4.37 / 111 4.7 / 120
Weight (oz / g) 17.98 / 510 24.5 / 695
Subject to changes in design and scope of supply due to technical
improvements.
Replacement parts for TERRA EDZEISS
If you need any replacement parts for your binoculars, e.g. protective lens
caps, please contact your local dealer, your country’s distributor or our
customer department.
Service address for U.S.
Carl Zeiss Sports Optics
Attn. Service Department
711 Moorefield Park Drive, Bldg. E
N. Chesterfield, VA 23236
USA
Service address for Canada
Gentec International
Attn. Service Department
90, Royal Crest Court
Markham, Ontario L3R 9X6
Canada
WARRANTY (U.S. and Canada)
� The ZEISS Limited Lifetime Transferable Warranty (“Limited
Warranty”)
Subject to limitations on electronic components, camera electronics
and accessories described below, your ZEISS sports optics product
(“product”) is warranted against defects in workmanship or materials
for the life of the product. If a defect that is covered by this Warranty
is found, ZEISS will, at its option and without charge, either repair your
product or replace it with a ZEISS product of comparable specifications
and value. This Warranty is transferable.
ZEISS Victory PhotoScope and ZEISS Victory PRF products
are not covered under a limited lifetime warranty, but are
warranted against defects in workmanship or materials for a
period of 2 years from the date of purchase.
� Limited Warranty Conditions for Electronic Components,
Camera Electronics and Accessories
Electronic components are warranted against defects in workmanship
or materials for a period of 5 years from the original date of purchase.
Camera electronics are warranted against defects in workmanship or
materials for a period of 2 years from the original date of purchase.
Carrying straps, lens caps, rubber armoring, plastic parts and similar
accessories are warranted against defects in workmanship or materials
for a period of 1 year from the date of purchase.
� Warranty Disclaimers and Exclusions
This is the exclusive Warranty for the products.
All other warranties, expressed or implied, statutory
or otherwise, including, without restriction, those of
merchantability or of fitness for use, are excluded.
Only products imported by Carl Zeiss Sports Optics, LLC and
purchased in the United States or Canada from authorized
Carl Zeiss Sports Optics, LLC dealers carry this Limited Lifetime
Transferable Warranty. Carl Zeiss Sports Optics, LLC will
not provide warranty service for products purchased through
unauthorized dealers.
� This Warranty excludes claims for any special, punitive,
incidental or consequential damages and does not cover
damages due to the misuse, neglect, accidental damage,
mishandling or alteration of the Product. Some states do not
allow the exclusion or limitation of incidental or consequential
damages. In such cases, the above limitations or exclusions
may not apply to you.
This Warranty is void, if damage is caused by the use of accessories not
sold or authorized by Carl Zeiss Sports Optics, LLC, or from service by
persons not authorized by Carl Zeiss Sports Optics, LLC.
This Warranty does not cover claims resulting from natural disasters
(e. g. floods, storms, fire), acts of war or terrorism and will not apply
to damage arising from combat conditions, including but not limited
to, damage due to firearms, explosives, nuclear, chemical, or biological
weapons. It will be at ZEISS’s sole discretion to extend service
under this Warranty for damage arising from the above-mentioned
conditions. ZEISS’s obligation under this Warranty is limited to repair or
replacement by equivalent product in working condition.
� Resale of Product and Export Restrictions
Resale of this product to anyone outside the United States of America is
subject to export compliance and is not authorized by Carl Zeiss Sports
Optics, LLC.
� Register Your Product Today
Registering your new ZEISS product is quick and simple and creates
a record that can be used if your product needs service or is lost or
stolen. Registration for ZEISS optics is voluntary; failure to register will
not diminish your limited lifetime transferable warranty rights.
To register your product visit www.zeiss.com/us/sports-optics/register.
If you can’t register your product online, your address has changed,
or if you would like to transfer your warranty rights to somebody else,
please contact Customer Service at 1-800-441-3005.
� Obtain Service For Your Product in North America
To request repair or warranty service, please go to www.zeiss.com/
us/sports-optics/service, call 1-800-441-3005 or email
sportsoptics@zeiss.com for service information and specific return
instructions. Please return your product prepaid and insured.
Service address for U.S. Service address for Canada
Carl Zeiss Sports Optics Gentec International
Attn. Service Department Attn. Service Department
711 Moorefield Park Drive, Bldg. E 90, Royal Crest Court
N. Chesterfield, VA 23236 Markham, Ontario L3R 9X6
USA Canada
You will be notified in advance of any repair charges for the service being
performed that are not covered under warranty.
Any product exported or sold outside the United States and Canada must
be returned to the original point of purchase, with a copy of the invoice
or your product registration information.
DO NOT return exported items directly to Carl Zeiss Sports Optics, LLC
from outside the United States. DO NOT return exported items directly to
Gentec International from outside Canada. Carl Zeiss Sports Optics, LLC
and Gentec International cannot accept products from, or ship products
to, locations outside the United States and Canada.
Carl Zeiss Sports Optics
711 Moorefield Park Drive, Bldg. E
N. Chesterfield, VA 23236
USA
www.zeiss.com/us/sports-optics
2142326_Zeiss_GBH_TERRA_ED_US.indd 2 28.08.14 06:17
Product specificaties
| Merk: | Zeiss |
| Categorie: | Verrekijker |
| Model: | Terra ED 24205-9901 |
Heb je hulp nodig?
Als je hulp nodig hebt met Zeiss Terra ED 24205-9901 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Verrekijker Zeiss
9 Juli 2023
8 Juli 2023
8 Juli 2023
7 Juli 2023
5 Juli 2023
5 Juli 2023
5 Juli 2023
3 Juli 2023
2 Juli 2023
2 Juli 2023
Handleiding Verrekijker
- Verrekijker Braun
- Verrekijker Nikon
- Verrekijker Canon
- Verrekijker Olympus
- Verrekijker Apeman
- Verrekijker Asaklitt
- Verrekijker ATN
- Verrekijker Auriol
- Verrekijker Bresser
- Verrekijker Bushnell
- Verrekijker Bynolyt
- Verrekijker Dorr
- Verrekijker Focus
- Verrekijker Hama
- Verrekijker Kodak
- Verrekijker Leica
- Verrekijker Maginon
- Verrekijker Meade
- Verrekijker Minox
- Verrekijker National Geographic
- Verrekijker Nedis
- Verrekijker NEWTON
- Verrekijker Pentax
- Verrekijker Praktica
- Verrekijker Pulsar
- Verrekijker Rocktrail
- Verrekijker Rollei
- Verrekijker Sharper Image
- Verrekijker Technaxx
- Verrekijker Tevion
- Verrekijker Traveler
- Verrekijker Trust
- Verrekijker Vanguard
- Verrekijker Vivitar
- Verrekijker Vortex
- Verrekijker Yukon
- Verrekijker Crivit
- Verrekijker Barska
- Verrekijker Kayoba
- Verrekijker Celestron
- Verrekijker Levenhuk
- Verrekijker Cresta
- Verrekijker Armasight
- Verrekijker Leupold
- Verrekijker Steiner
- Verrekijker Swarovski
- Verrekijker Carson
- Verrekijker Swarovski Optik
- Verrekijker AGM
- Verrekijker Blaser
- Verrekijker SIG Sauer
- Verrekijker Umarex
- Verrekijker Eagle Optics
- Verrekijker Berger & Schröter
- Verrekijker Snypex
- Verrekijker InfiRay
- Verrekijker Goview
- Verrekijker Eschenbach
- Verrekijker Explore Scientific
- Verrekijker Liemke
- Verrekijker Night Owl
- Verrekijker SVBONY
- Verrekijker IGEN
- Verrekijker Rexing
- Verrekijker Opticron
- Verrekijker Alpen Optics
- Verrekijker Kite Optics
- Verrekijker Meopta
- Verrekijker Hawke
- Verrekijker PARD
- Verrekijker RIX
Nieuwste handleidingen voor Verrekijker
20 December 2024
18 December 2024
18 December 2024
16 December 2024
16 December 2024
10 December 2024
8 December 2024
8 December 2024
7 December 2024
25 November 2024
