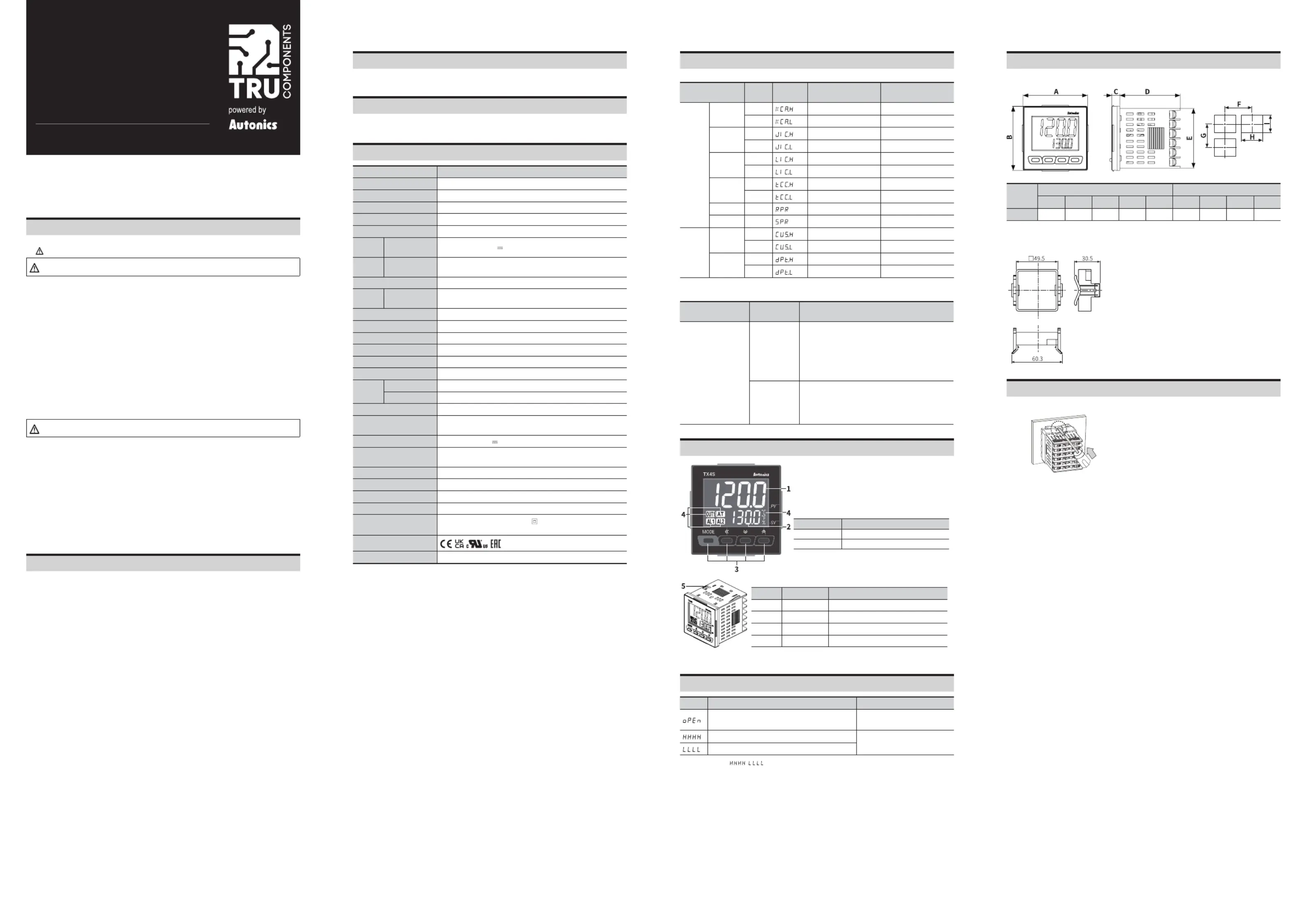

Read and understand the instruction manual before using the product.

For your safety, read and follow the below safety considerations before using. For your safety,

read and follow the considerations written in the instruction manual.

Keep this instruction manual in a place where you can find easily.

The specifications, dimensions, etc are subject to change without notice for product improvement.

Safety Considerations

• Observe all ‘Safety Considerations’ for safe and proper operation to avoid hazards.

• symbol indicates caution due to special circumstances in which hazards may occur.

Warning Failure to follow instructions may result in serious injury or death

01. Fail-safe device must be installed when using the unit with machinery that may cause

serious injury or substantial economic loss.(e.g. nuclear power control, medical equipment,

ships, vehicles, railways, aircraft, combustion apparatus, safety equipment, crime/disaster

prevention devices, etc.)

Failure to follow this instruction may result in personal injury, economic loss or fire.

02. Do not use the unit in the place where flammable/explosive/corrosive gas, high humidity,

direct sunlight, radiant heat, vibration, impact or salinity may be present.

Failure to follow this instruction may result in explosion or fire.

03. Install on a device panel to use.

Failure to follow this instruction may result in fire or electric shock.

04. Do not connect, repair, or inspect the unit while connected to a power source.

Failure to follow this instruction may result in fire or electric shock.

05. Check ‘Connections’ before wiring.

Failure to follow this instruction may result in fire.

06. Do not disassemble or modify the unit.

Failure to follow this instruction may result in fire or electric shock.

Caution Failure to follow instructions may result in injury or product damage

01. When connecting the power input and relay output, use AWG 20 (0.50 mm 2) cable or over, and

tighten the terminal screw with a tightening torque of 0.74 to 0.90 N m.

When connecting the sensor input and communication cable without dedicated cable, use

AWG 28 to 16 cable and tighten the terminal screw with a tightening torque of 0.74 to 0.90 N

Failure to follow this instruction may result in fire or malfunction due to contact failure.

02. Use the unit within the rated specifications.

Failure to follow this instruction may result in fire or product damage

03. Use a dry cloth to clean the unit, and do not use water or organic solvent.

Failure to follow this instruction may result in fire or electric shock.

04. Keep the product away from metal chip, dust, and wire residue which flow into the unit.

Failure to follow this instruction may result in fire or product damage.

Cautions during Use

• Follow instructions in ‘Cautions during Use’. Otherwise, it may cause unexpected accidents.

• Check the polarity of the terminals before wiring the temperature sensor. For RTD temperature sensor,

wire it as 3-wire type, using cables in same thickness and length.

For thermocouple (TC) temperature sensor, use the designated compensation wire for extending wire.

• Keep away from high voltage lines or power lines to prevent inductive noise. In case installing power

line and input signal line closely, use line filter or varistor at power line and shielded wire at input

signal line. Do not use near the equipment which generates strong magnetic force or high frequency

noise.

• Do not apply excessive power when connecting or disconnecting the connectors of the product.

• Install a power switch or circuit breaker in the easily accessible place for supplying or disconnecting

the power.

• Do not use the unit for other purpose (e.g. voltmeter, ammeter), but temperature controller.

• When changing the input sensor, turn off the power first before changing. After changing the input

sensor, modify the value of the corresponding parameter.

• Do not overlapping communication line and power line. Use twisted pair wire for communication line

and connect ferrite bead at each end of line to reduce the effect of external noise.

• Make a required space around the unit for radiation of heat. For accurate temperature measurement,

warm up the unit over 20 min after turning on the power.

• Make sure that power supply voltage reaches to the rated voltage within 2 sec after supplying power.

• Do not wire to terminals which are not used.

• This unit may be used in the following environments.

-Indoors (in the environment condition rated in ‘Specifications’)

-Altitude Max. 2,000 m

-Pollution degree 2

-Installation category II

Product Components

• Product (+ bracket) • Instruction manual

Manual

For proper use of the product, refer to the manuals and be sure to follow the safety considerations in the

manuals.

Specifications

Series TX Series

Power supply 100 - 240 VAC~ 50/60 Hz

Permissible voltage range 90 to 110 % of rated voltage

Power consumption ≤ 8 VA

Sampling period 50 ms

Input specification Refer to 'Input Type and Using Range'.

Control

output Relay 250 VAC~ 3 A, 30 VDC 3 A, 1a

Alarm

output Relay AL1/2: 250 VAC~ 3 A 1a

Display type 11 Segment (White, Green, Yellow), LCD type

Control

type Heating, Cooling ON/OFF, P, PI, PD, PID Control

Hysteresis 1 to 100 (0.1 to 50.0) °C/°F

Proportional band (P) 0.1 to 999.9 °C/°F

Integral time (I) 0 to 9,999 sec

Derivative time (D) 0 to 9,999 sec

Control cycle (T) 0.5 to 120.0 sec

Manual reset 0.0 to 100.0%

Relay life

cycle

Mechanical ≥ 5,000,000 operations

Electrical ≥ 200,000 operations (resistance load: 250 VAC~ 3 A)

Dielectric strength Between the charging part and the case: 3,000 VAC~ 50/60 Hz for 1 min

Vibration 0.75 mm amplitude at frequency 5 to 55Hz in each X, Y, Z direction for 2

hours

Insulation resistance ≥ 100 MΩ (500 VDC megger)

Noise immunity ±2 kV square shaped noise (pulse width 1 µs) by noise simulator R-phase,

S-phase

Memory retention ≈ 10 years (non-volatile semiconductor memory type)

Ambient temperature -10 to 50 °C, storage: -20 to 60 °C (no freezing or condensation)

Ambient humidity 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation)

Protection structure IP50 (Front panel, IEC standards)

Insulation type Double or reinforced insulation (mark: , dielectric strength

between primary circuit and secondary circuit: 3 kV)

Certification

Unit weight (packaged) TX4S: ≈ 87 g (≈ 146 g)

01) When using the unit at low temperature (below 0 ), display cycle is slow.°C

Input Type and Using Range

The setting range of some parameters is limited when using the decimal point display.

Input type Decimal

point Display Using range (°C) Using range (°F)

Thermo

-couple

K (CA) 1 -50 to 1,200 to 2,192-58

0.1 -50.0 to 999.9 to 999.9-58.0

J (IC)

1 -30 to -22 to 1,472800

0.1 -30.0 to -22.0 to 999.9800.0

L (IC) 1 -40 to -40 to 1,472800

0.1 -40.0 to -40.0 to 999.9800.0

T (CC) 1 -50 to 400 to 752-58

0.1 -50.0 to 400.0 to 752.0-58.0

R (PR) 1 0 to 1,700 32 to 3,092

S (PR) 1 0 to 1,700 32 to 3,092

RTD

Cu50 Ω

1 -50 to 200 to 392-58

0.1 -50.0 to 200.0 to 392.0-58.0

DPt100 Ω 1 -100 to 400 to 752-148

0.1 -100.0 to 400.0 to 752.0-148.0

■Display accuracy

Input type Using

temperature Display accuracy

Thermocouple RTD

At room

temperature

(23°C ±5 °C)

(PV ±0.3% or ±1 °C higher one) ±1-digit

• Thermocouple R, S below 200 °C:

(PV ±0.5% or ±3 °C higher one) ±1-digit

Over 200 °C:

(PV ±0.5% or ±2 °C higher one) ±1digit

• Thermocouple L, RTD Cu50 Ω:

(PV ±0.5% or ±2 °C higher one) ±1-digit

Out of room

temperature

range

(PV ±0.5% or ±2 °C higher one) ±1-digit

• Thermocouple R, S:

(PV ±1.0% or ±5 °C higher one) ±1digit

• Thermocouple L, RTD Cu50 Ω:

(PV ±0.5% or ±3 °C higher one) ±1digit

Unit Descriptions

1. PV display part (White)

• Run mode: displays PV (Present value)

• Setting mode: displays parameter name

2. SV display part (Green)

• Run mode: displays SV (Setting value)

• Setting mode: displays parameter setting value

3. Input key

Display Name

[MODE] Mode key

[◄], [▼], [ ]▲Setting value control key

4. Indicator

Display Name Description

°C, %, °F Unit Displays selected unit (parameter)

AT Auto tuning Flashes during auto tuning every 1 sec

OUT1 Control output Turns ON when control output 1 is ON

AL1 Alarm output Turns ON when each alarm output is ON

5. PC loader port: For connecting communication converter (sold

separately).

Errors

Display Description Troubleshooting

Flashes when input sensor is disconnected or sensor

is not connected. Check input sensor status.

Flashes when PV is higher than input range. 01) When input is within the rated input

range, this display disappears.

Flashes when PV is lower than input range. 01)

01) Be careful that when / error occurs, the control output may occur by recognizing the maximum or minimum input

depending on the control type.

Dimensions

• Unit: mm

■Panel cut-out

Body Panel cut-out

A B C D E F G H I

TX4S 48 48 44.8 ≥ 65 ≥ 656 45 45 +0.6

045 +0.6

■Bracket

TX4S

Installation Method

■TX4S

Flathead screwdriver

After mounting the product to panel with bracket, insert the unit into a panel, fasten the bracket by

pushing with tools with a flathead screwdriver.

LCD PID Temperature Controllers

TX4S-14R

Item no.: 3016145

INSTRUCTION MANUAL

TCD230032AA

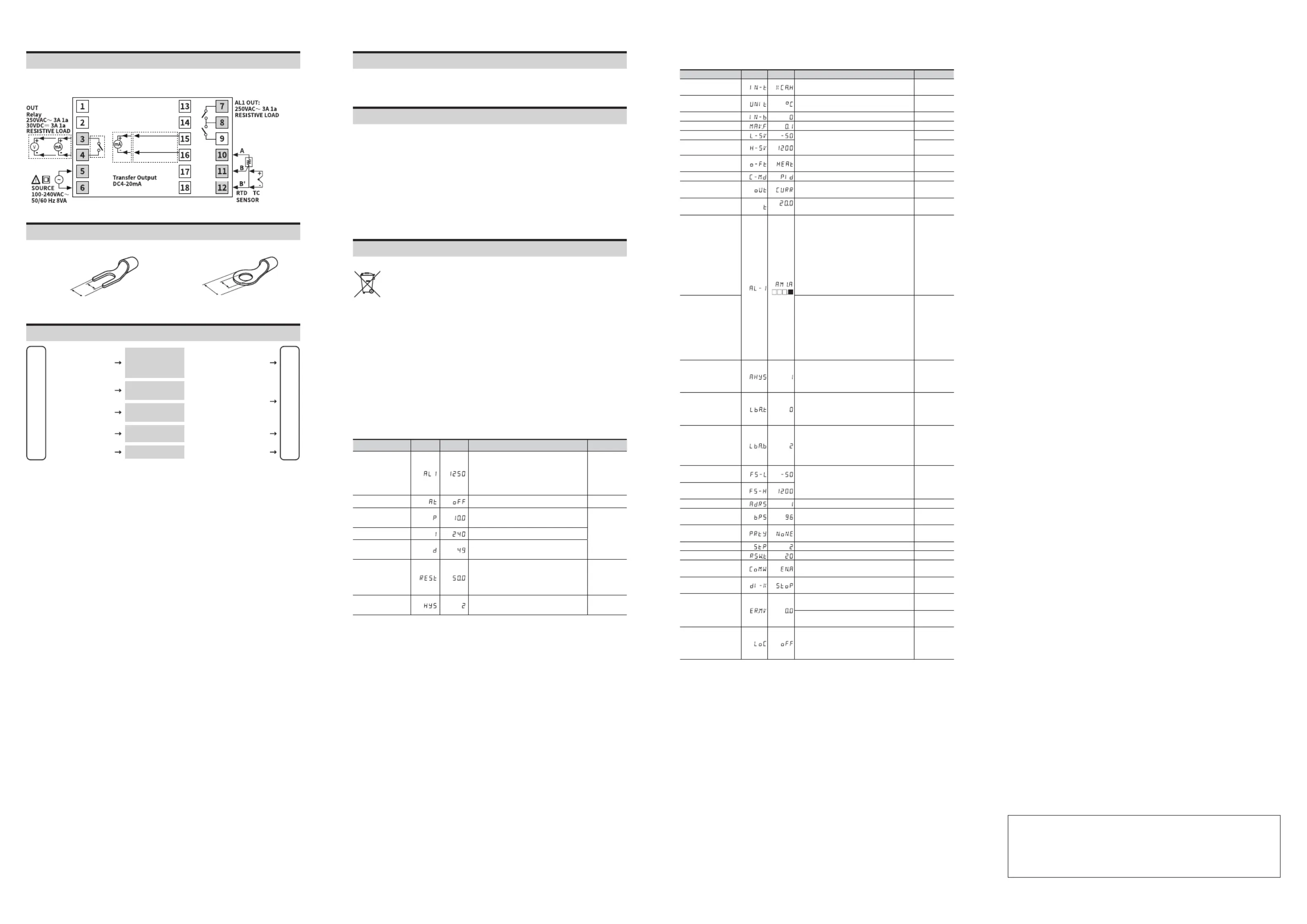

Connections

• Shaded terminals are standard model.

■TX4S

Crimp Terminal Specifications

• Unit: mm, use the crimp terminal of the following shape.

≥3.0

≤5.8

≥3.0

≤5.8

Fork crimp terminal Round crimp terminal

Mode Setting

[MODE], [◄], [▲ ▼], [ ]

Move digits: [◄]

Change value: [ ], [ ]▲ ▼

Save: [MODE] or no key input

over 3 sec

[MODE] 2 sec [MODE] over 3 sec

[MODE] over 3 sec

Refer to ‘Parameter Reset’

Auto

[MODE] 4 sec

[◄] + [▲ ▼] + [ ] over 5 sec

[ ] + [ ] over 3 sec▲ ▼

SV setting

Parameter 1 group

Parameter 2 group

Parameter reset

Digital input key

RUN RUN

Parameter Reset

01. Press the [ ] + [ ] + [ ] keys for over 5 sec. in run mode, INIT turns ON.◄▲ ▼

02. Change the setting value as YES by pressing the [ ] , [ ] keys.▲ ▼

03. Press the [MODE] key to reset all parameter values as default and to return to run mode.

Parameter Setting

• Some parameters are activated/deactivated depending on the model or setting of other parameters.

Refer to the descriptions of each item.

• [MODE] key: Move to next item after saving / Return to RUN mode after saving (≥ 3 sec) / Return to

previous parameter after saving (within 1 sec returning to RUN mode)

[◄] key: Select parameter / Move digits / Return to the upper level without saving (≥ 2 sec) / Return

to RUN mode without saving (≥ 3 sec)

[ ], [ ] key: Select parameter / Change setting value▲ ▼

• Return to the upper level without saving when there is no key input for more than 30 seconds.

• The range in parentheses '( )' is the setting range when the set value of the 'input specification'

parameter is used with one decimal point.

• Recommended parameter setting sequence: Parameter 2 group → Parameter 1 group → SV setting

mode

Disposal

This symbol must appear on any electrical and electronic equipment placed on the EU

market. This symbol indicates that this device should not be disposed of as unsorted

municipal waste at the end of its service life.

Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose of it

separately from unsorted municipal waste. Spent batteries and accumulators, which are not

enclosed by the WEEE, as well as lamps that can be removed from the WEEE in a non-

destructive manner, must be removed by end users from the WEEE in a non-destructive

manner before it is handed over to a collection point.

Distributors of electrical and electronic equipment are legally obliged to provide free take-back of waste.

Conrad provides the following return options free of charge (more details on our website):

• in our Conrad offices

• at the Conrad collection points

• at the collection points of public waste management authorities or the collection points set up by

manufacturers or distributors within the meaning of the ElektroG

End users are responsible for deleting personal data from the WEEE to be disposed of.

It should be noted that different obligations about the return or recycling of WEEE may apply in countries

outside of Germany.

■Parameter 1 group

Parameter Display Default Setting range Condition

1-1 AL1 alarm

temperature

Deviation alarm: -F.S. to F.S. °C/°F

Absolute value alarm: Within input range

2-16/19

AL1 alarm

Operation:

AM1 to AM6,

HBA

1-3 Auto tuning OFF: Stop, ON: Execution -

1-4 Proportional

band 0.1 to 999.9 °C/°F

2-8 Control

type: PID

1-5 Integral time 0 (OFF) to 9,999 sec

1-6 Derivative

time 0 (OFF) to 9,999 sec

1-7 Manual reset 0.0 to 100.0%

2-8 Control

type: PID &

1-5 Integral

time: 0

1-8 Hysteresis 1 to 100 (0.1 to 50.0) °C/°F 2-8 Control

type: ONOF

■Parameter 2 group

Parameter Display Default Setting range Condition

2-1 Input

specification

01) Refer to 'Input Type and Using Range' -

2-2 Temperature

unit01) °C, °F -

2-3 Input correction -999 to 999 (-199.9 to 999.9) °C/°F -

2-4 Input digital filter 0.1 to 120.0 sec -

2-5 SV low limit

02) Within '2-1 Input specification: using range'

L-SV ≤ H-SV - 1-digit °C/°F

H-SV ≥ L-SV + 1-digit °C/°F

2-6 SV high limit

02) -

2-7 Control output

mode HEAT: Heating, COOL: Cooling -

2-8 Control type03) PID, ONOF: ON/OFF -

2-9 Control output [Selectable current or SSR drive output model]

CURR: Current, SSR -

2-12 Control cycle (Relay) 0.5 to 120.0 sec 2-8 Control

type: PID

2-13 AL1 alarm

operation

□□□

AM0: Off

AM1: Deviation high limit alarm

AM2: Deviation low limit alarm

AM3: Deviation high, low limit alarm

AM4: Deviation high, low reverse alarm

AM5: Absolute value high limit alarm

AM6: Absolute value low limit alarm

SBA: Sensor break alarm

LBA: Loop break alarm (LBA)

2-14 AL1 alarm option

■

A: Standard alarm

C: Standby

sequence 1

E: Standby

sequence 2

B: Alarm latch

D: Alarm latch and

standby sequence 1

F: Alarm latch and

standby sequence 2

• Enter to option setting: Press [◄] key in

2-13 AL-1 alarm operation.

2-17 Alarm output

hysteresis 1 to 100 (0.1 to 50.0) °C/°F

2-13/14

AL1 alarm

operation: AM1

to 6

2-18 LBA time 0 (OFF) to 9,999 sec or auto

04)

2-13/14

AL1 alarm

operation:

LBA

2-19 LBA band 0 (OFF) to 999 (0.0 to 999.9) °C/°F or auto

05)

2-13/14

AL1 alarm

operation:

LBA & 2-18

LBA time: > 0

2-20 Transmission

output low limit [PV transmission output model] Refer to 'Input

Type and Using Range' -

2-21 Transmission

output high limit

2-22 Comm. address [Communication output model] 1 to 127 -

2-23 Comm. speed [Communication output model] 24, 48, 96, 192,

384 (×100) bps -

2-24 Comm. parity bit [Communication output model] NONE, EVEN,

ODD -

2-25 Comm. stop bit [Communication output model] 1, 2 bit -

2-26 Response time [Communication output model] 5 to 99 ms -

2-27 Comm. write [Communication output model] EN.A: Enable,

DIS.A: Disable -

2-28 Digital input key STOP: Stop control output, AL.RE: Alarm reset,

AT*: Execute auto tuning, OFF

*2-8 Control

type: PID

2-29 Sensor error, MV

0.0: OFF, 100.0: ON 2-8 Control

type: ONOF

0.0 to 100.0% 2-8 Control

type: PID

2-30 Lock

OFF

LOC1: Lock parameter 2 group

LOC2: Lock parameter 1/2 group

LOC3: Lock parameter 1/2 group, SV setting

01) Below parameters are initialized when the setting value is changed.

- Parameter 1 group: AL1 alarm temperature,

- Parameter 2 group: Input correction, SV high/low limit, LBA band, Alarm output Hysteresis

02) If SV is lower/higher than low/high limit when the value is changed, SV is changed to the low/high limit value.

03) When changing the value from PID to ONOF, each value of following parameter is changed.

2-28 Digital input key: OFF, 2-29 Sensor error, MV: 0.0 (Setting value is lower than 100.0)

04) After auto tuning, the range is set as twice of the integral time automatically. If the previous setting value is outside of the range

automatically set, it is set to the nearest Max. or Min. value of the range.

05) After auto tuning, the range is set as 10% of the proportion band automatically. If the previous setting value is outside of the range

automatically set, it is set to the nearest Max. or Min value of the range.

This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).

All rights including translation reserved. Reproduction by any method, e.g. photocopy, microlming, or the

capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also

in part, is prohibited. This publication represents the technical status at the time of printing.

*BN3016145 TX_EN_TCD230032AA_20240417_INST_W

Product specificaties

Merk:	Tru Components
Categorie:	Thermostaat
Model:	TX4S-14R

Heb je hulp nodig?

Als je hulp nodig hebt met Tru Components TX4S-14R stel dan hieronder een vraag en andere gebruikers zullen je antwoorden

Uw naam*

Jouw email*

Schrijf hier uw vraag

Handleiding Thermostaat Tru Components

Tru Components TCN4S-24R Handleiding

18 December 2024

Tru Components TK4S-14RC Handleiding

18 December 2024

Tru Components TX4S-14R Handleiding

17 December 2024

Tru Components TC-7T.81-240NC Handleiding

12 December 2023

Tru Components TC-7T.81-230NO Handleiding

12 December 2023

Tru Components TC-FKS011NO Handleiding

12 December 2023

Tru Components TC-ZR011 Handleiding

12 December 2023

Tru Components TC-FKO011NC Handleiding

12 December 2023

Handleiding Thermostaat

Nieuwste handleidingen voor Thermostaat

Warmup 5iE Handleiding

16 December 2024

Warmup +Kit Handleiding

16 December 2024

Nobo Connect SWT-IZW Handleiding

15 December 2024

Nobo Connect SWT-IZB Handleiding

11 December 2024

Hive Thermostat Handleiding

10 December 2024

GENERAL Life HT15S Handleiding

9 December 2024

GENERAL Life HT15 Handleiding

9 December 2024

GENERAL Life HT380S Handleiding

9 December 2024

GENERAL Life FH11S Handleiding

9 December 2024

GENERAL Life HT430S Handleiding

9 December 2024
