Pagina 1/11

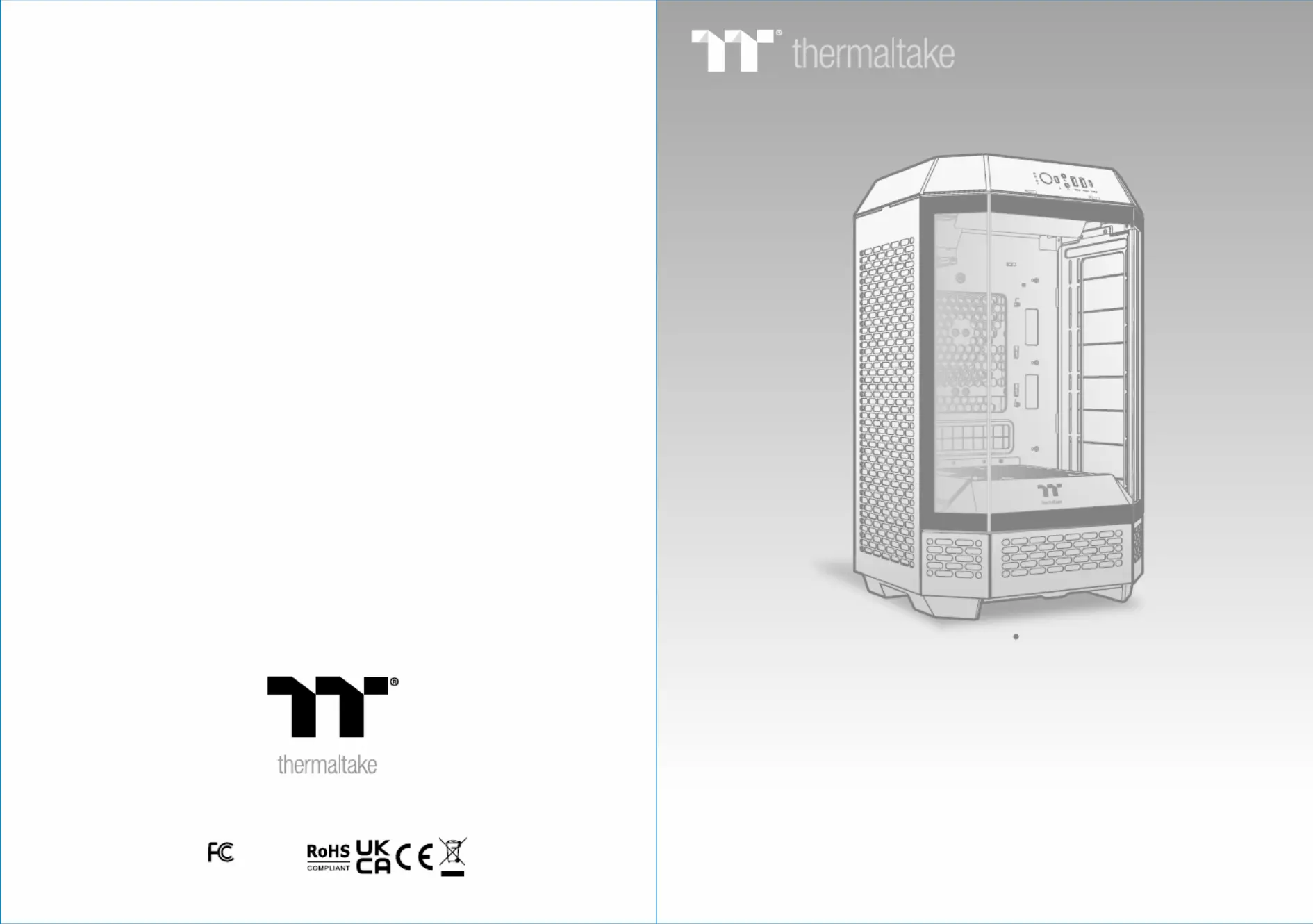

Picture is for ref eren ce only
The Tower 250
User's Manual 󶛙󶻃󶽁明書
Benutzerhandbuch 用戶手冊ユーザーズマニュアル
Mode d’emploi Руководство пользователя
©2024 Thermaltake Technology Co., Ltd. All Rights Reserved. 2024.09
All other registered trademarks belong to their respective companies. www.thermaltake.com Manual del usuario kullan c elkitabı ı ı
Manual e dell’utente (EEE Yönetmeli ine Uygundur)ğ
Tested To Com ply
With FCC Standards Manual do Utilizador คู่มือการใช้
FOR HOME OR OFFICE USE
Join Tt Community To Receive Benefits
Tt LCS-Liquid Cooling Support Certification
TT Premium
Dear Valued Customer,
Thank you for choosing Thermaltake.
As a new user we value your thoughts and opinions and
your feedback is important to us. We at Thermaltake
would like to use this opportunity to invite you to join our
Community Forums. Register today to start enjoying the
full benefits of our community.
Benefits of being a member:
Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways
Tt LCS Certified is a Thermaltake exclusive certification
applied to only products that pass the design and
hardcore enthusiasts standards that a true LCS chassis
should be held to. The Tt LCS certification was created
so that we at Thermaltake can designate to all power
users which chassis have been tested to be best
compatible with extreme liquid cooling configurations to
ensure you get the best performance from the best
features and fitment.
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
TT Premium
To continue achieving the corporate mission of delivering the
perfect user experience, Thermaltake developed “TT Premium”
with the essence of combining supreme quality products with a
new logo design. TT Premium is far more than just a guarantee
of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltake’s desire to be the most innovative
brand in the PC hardware market. To satisfy the demand of the
high-end PC users, TT Premium follows its core values of
Excellent Quality, Unique Design, Diverse Combinations and
Boundless Creativity to provide a high performance PC product
for every enthusiast. http://ttpremium.com
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
Chapter 1. Product Introduction
Specification
Accessory
Warn ing an d Not ice
1.0
1.1
1.2
01
02
03
Contents
Chapter 2. Installation Guide
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
Rem ove Pan els
Power Su pply U nit (PSU) Install a tion
Motherboard Insta llation
3.5" & 2.5" H D D In stallation
VGA Card Inst allati on
Air Cooling Installat ion
AIO Liquid Cool ing Ins tallation
I/O Conne ction
Rem ove Filters
06
07
09
10
12
13
14
15
16
The Tower 250 Specification Accessory The Tower 250
Case Type Mini Tower Figure Part Name Q’ty Used For
Dimension (H*W*D) 506 x 300 x 281 mm (19.9 x 11.8 x 11.5 inch)
Side Panel Tempered Glass x 3 Screw x mm #6-32 6 4 Power Supp ly
Material SPCC Screw x mm #6-32 6 14 Motherboard / 3 .5” HDD
Cooling System Top (exhaust):
120 x 120 x 25 mm CT120 fan (2000 rpm, 25.8 dBA) x 2 Screw M x mm 3 5 8 2.5” SSD / HDD
Drive Bays 1 x 3.5” or 2 x 2.5” Screw x 29 mm #6-32 4 Case Fa n on the Power Cover
Expansion Slots 3
Motherboards 6.7” x 6.7” (Mini ITX) Screw T5 x 10 mm 8 Case Fa n
I/O Port USB 3.2 Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 (
Stand-off #6-32 x 6.5 mm 3 Mothe rboard
PSU Standard SFX or ATX PSU (optional)
Top 2 x 120 mm, 1 x 120 mm Nut setter 1 Mothe rboard S tand-off
Fan Support Right Side
Rear
3 x 120 mm, 2 x 120 mm, 1 x 120 mm
2 x 120 mm, 1 x 120 mm
2 x 140 mm, 1 x 140 mm
2 x 140 mm, 1 x 140 mm Zip Tie s 10 Cable Mana gement
Power Cover 1 x 120 mm 1 x 140 mm
Radiator Support Right Side (AIO) 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 280 mm,1 x 140 mm Buzze r 1 Motherboard Alarm
CPU cooler height
limitation 210 mm Side Plate Clip 6 Side Panel
Clearance VGA length limitation 245 mm (With power cover)
360 mm (Without power cover)
PSU length limitation 200 mm Botto m Fron t Panel 1 LCD Dis play
ATX PSU Bracket 1 ATX PSU
Velcro-1 me ter 1 Cable Ma na gemen t
01 02
