Thermaltake Pacific V-RTX 4090 Plus Handleiding
Thermaltake
Hardwarekoeling
Pacific V-RTX 4090 Plus
Lees hieronder de 📖 handleiding in het Nederlandse voor Thermaltake Pacific V-RTX 4090 Plus (2 pagina's) in de categorie Hardwarekoeling. Deze handleiding was nuttig voor 3 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld
Pagina 1/2

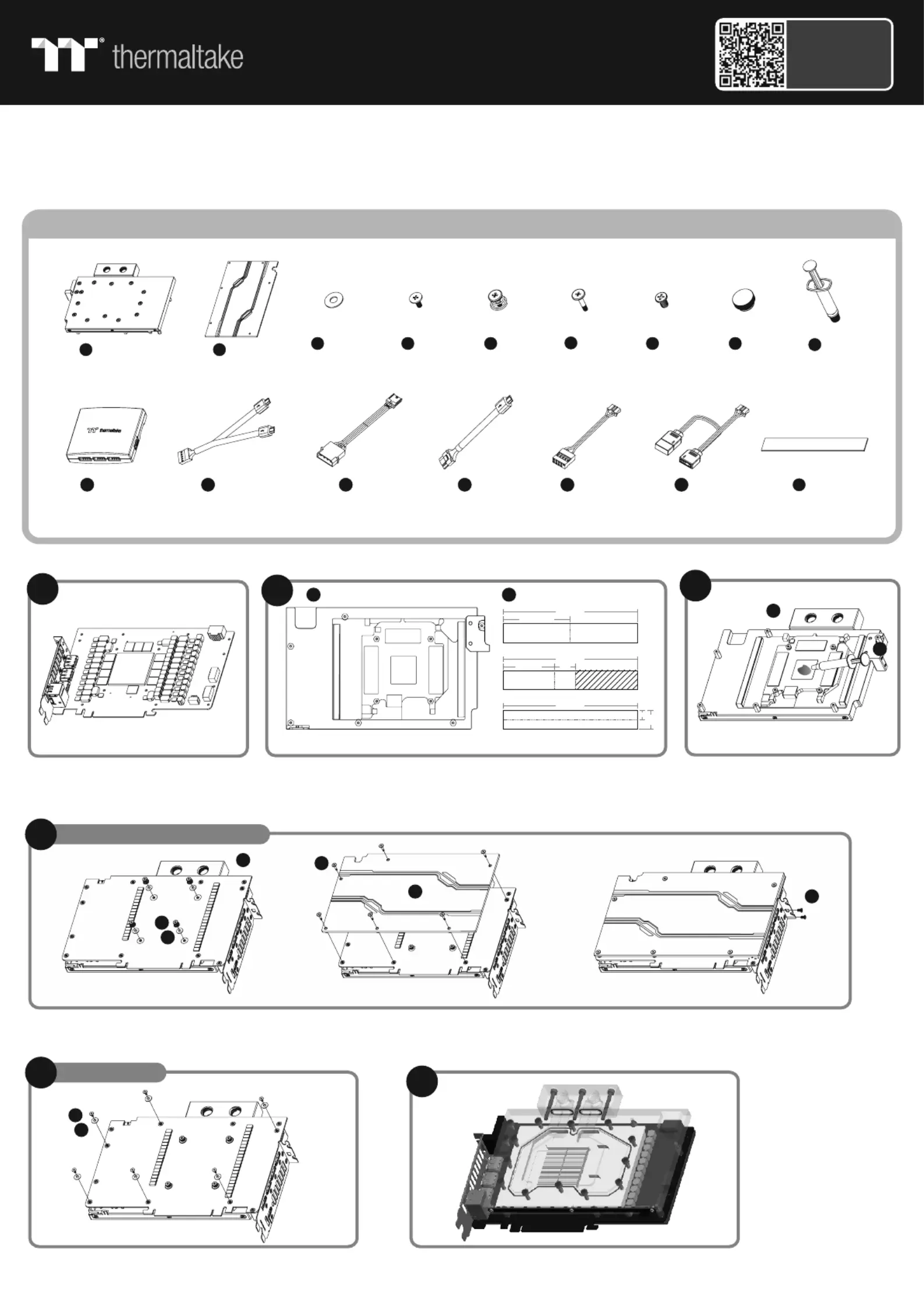

A x 1 B x 1 C D E F H x 10 x 6 x4 x 6 x 2 I x 1
Q x 10
G x 2
2
Cut the thermal pads to the dimensions listed and place them
on the spots shown on the diagram.
Disassemble the thermal module (cooler)
of the graphics card and clean the thermal
paste from the GPU
When installing the water block, carefully position the water block with the preinstalled standoffs on the graphics card.
Parts List
Apply thermal compound
Caution: Please remove the backplate if the ITX MB interferes with
the product during the installation process
Finish
1
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment.
Before you start using this product please follow these basic guidelines:
1. Please carefully read through the instruction manual before beginning the installation process.
2. Please remove your graphics card from your motherboard to insure the safest process and in order to prevent any possible damages to your CPU and motherboard.
3. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000.
Q
I
3
A
A A
A
B
B C
C
D D
50
38 16
100
100
100
14
7
unit : mm
5
G
F
B
A
A
A
D
D
Scan Here
Installation Guide
GPU Water Block
Pacific V-RTX 4090 Plus
J K L M N O
x 1 x 1 x 1 x 1 x 1 x 1
Controller Power CableController Cable Bridge Cable LED Cable MB SYNC Cable
E
D
C
C
For E-ATX / ATX / M-ATX MB
For ITX MB
4-1
4-2
Controller Installation Guide
6
8
9
10 11
7
NO.1
ON
1 2 3 4
NO.3
ON
1234
NO.2
ON
1 2 3 4
NO.4
ON
1 2 3 4
NO.9
ON
1 2 3 4
NO.11
ON
1234
NO.10
ON
1 2 3 4
NO.12
ON
1 2 3 4
NO.5
ON
1 2 3 4
NO.7
ON
1234
NO.6
ON
1 2 3 4
NO.8
ON
1 2 3 4
NO.13
ON
1 2 3 4
NO.15
ON
1234
NO.14
ON
1 2 3 4
NO.16
ON
1 2 3 4
Connect the LED Cable on to the waterblock.
© 2023 Thermaltake Technology Co., Ltd. All Rights Reserved. www.thermaltake.com
MB SYNC Installation Guide
1. To use Motherboard RGB Software, please only
connect Cable O to the water block
2. Please power off the PC and check the Positive
and Negative ends on the connector before
connecting the cable to the mainboard.
Connecting the wrong end can damage the product.
C
C
C
CA
A
A
AU
U
U
UT
T
T
TI
I
I
IO
O
O
ON
N
N
N
CA UT ION
1 2
O
O
K
N
J
J
N
Set the DIP switch on the back side of the controller
to assign the number of the controller
Connect the controller cable onto the motherboard
(USB 2.0 9 pin) and controller.
If you want to connect two or more controllers,
you can sync the controllers with the bridge connector.
Connect the power cable to the 4pin Molex
connecter and controller.
123 45
K
L
L
M M
Connect the Waterblock onto the controller.
Product specificaties
| Merk: | Thermaltake |
| Categorie: | Hardwarekoeling |
| Model: | Pacific V-RTX 4090 Plus |
