Pagina 1/2

This product is intended for installation only by expert users. Please consult with a qualified technician for

installation. Improper installation may result in damage to your equipment.

1. Please carefully read the manual before beginning the installation process !

2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000.

3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack

and fail ! Do not clean it using alcohol either !

Pacific

RL120

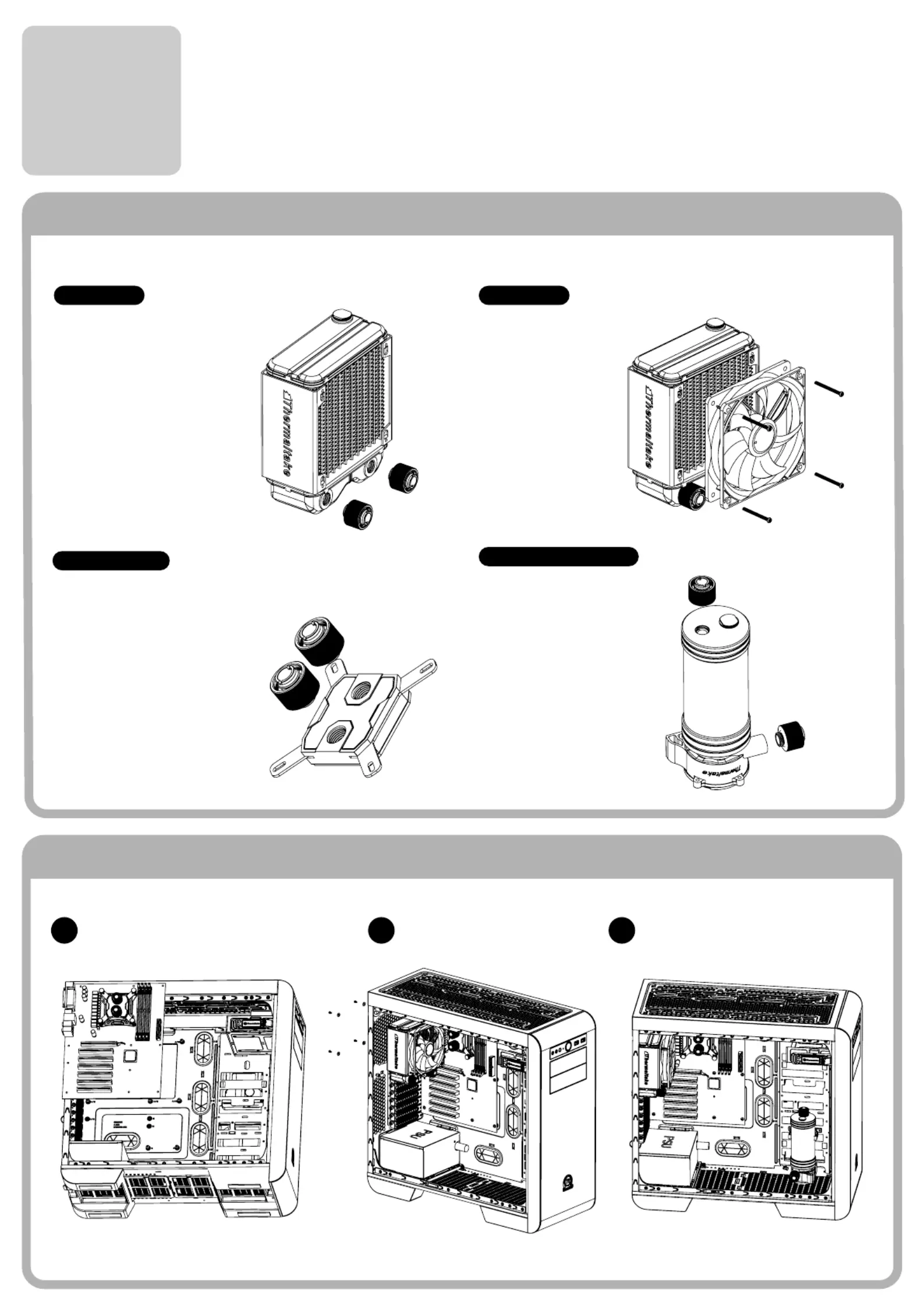

Before Installation

Water Cooling Kit

Cautions: Make sure there's enough space when you start set up the LCS product

To ensure a clean loop,

flush and rinse your radiators

and water blocks with

distilled water before using.

Make sure the fittings are

screwed securely when

placing them onto

the radiator.

Attach the fans to the radiator

Attach fittings onto the pump

and reservoir

Attach the fittings to the inlet and

outlet of the waterblock.

Attach the waterblock onto the

motherboard by referring to the

enclosed manual.

Radiators Case Fan

Pump and Reservoir

Water Blocks

Installation Walkthrough (Example: Core V51)

Place the motherboard into the case. Position the radiator. Attach the pump and reservoir into

the chosen locations.

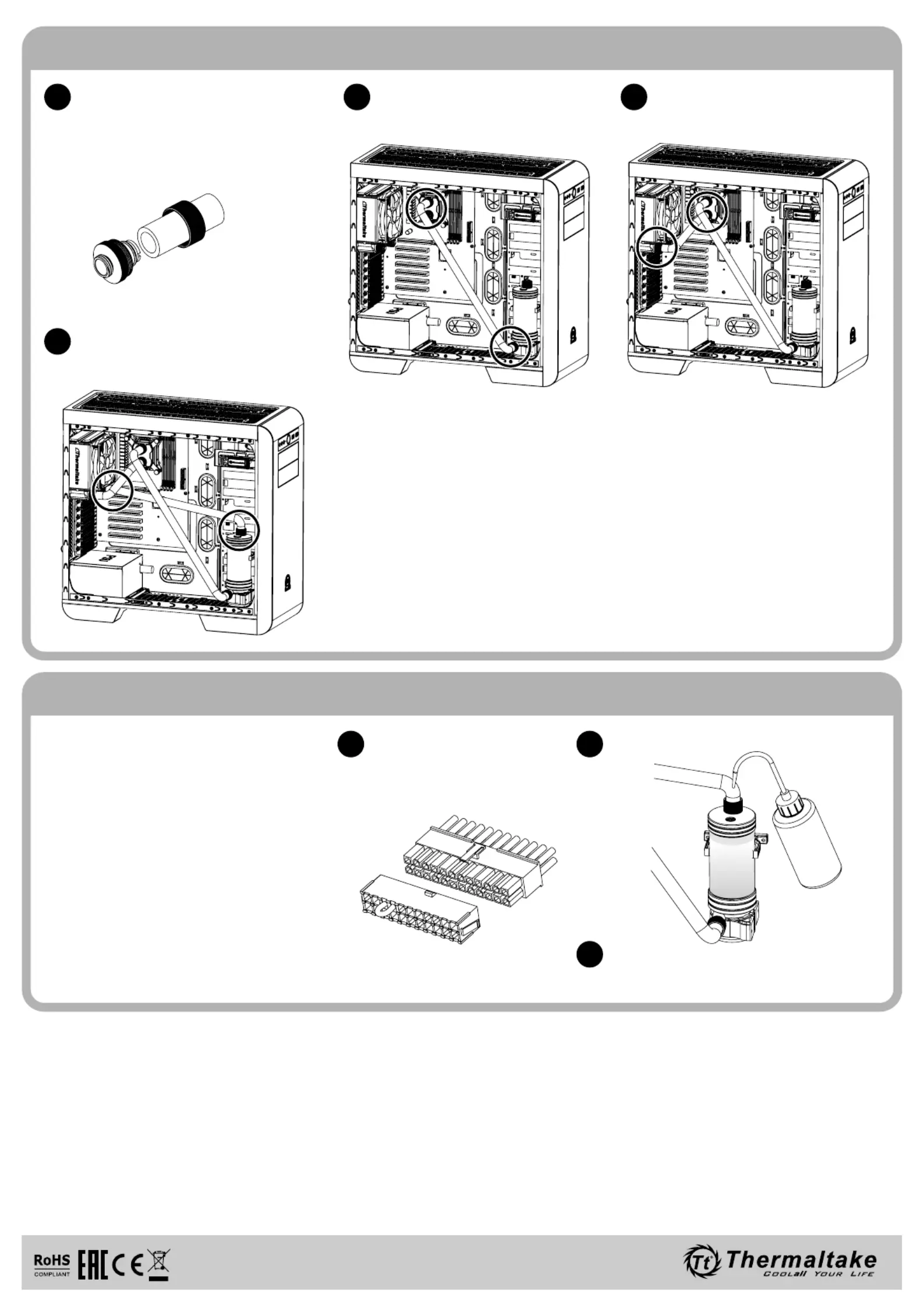

Cutting and Attaching the Tubing

Take out the cap from the fittings and place

the cap of the compression fitting over th e

tubing. Push the end of the tubing over the

barb; make sure the tu bing is a tight fit.

Slide the cap over the fitting and rotate it

clockwise until the tubing is sealed in place.

Connect the tubing and check all the

fittings are sealed. The loop orde r:

Pump Outlet > Water block

Connect the tubing and check all the

fittings are sealed. The loop orde r:

water black > radiator

Connect the tubing and check all the

fittings are sealed. The loop orde r:

radiator > Reservoir Inlet

Filling the System

Cautions:

1. Before filling the system, please make

sure that each fitting as well as unused

ports are completely sealed.

2. If there is any case of leaking,

immediately turn off the power and

clean the leak

3. If there's any related electronic parts

stained on liquid coolant, make sure to

completely clean and dry the

components. And then make sure they

all work well.

After switching off the po wer supply,

connect the PSU powe r cord and

product cables.

Use the refill bottle to fill coolant into the reservoir

Place your PSU outside of the case and attach it to

the pumps 4pin molex connector, turn on the power

of PSU and ma ke the rest of the system fills up.

Thermaltake recommends the following steps to be taken after completing your water loop setup

1. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance

while preventing the entire cooling system – copper, brass, nickel, aluminum, and steel – from corrosion.

2. Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.

3. DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately

4. Fill the reservoir to the top as it will prevent air from going into the pump

5. If necessary tilt the system slightly from side to side to bleed the air out of the loop.

6. Place some paper towels under fittings and joining points to test for leaks.

7. Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop.

Product specificaties

Merk:	Thermaltake
Categorie:	Hardwarekoeling
Model:	Pacific RL120
Kleur van het product:	Meerkleurig
Gewicht:	5800 g
Aantal ventilatoren:	1 ventilator(en)
Compatibiliteit:	Intel LGA 2011/1366/1155/1156/1150/775\nAMD FM2/FM1/AM3+/AM3/AM2+/AM2
Ventilator diameter:	120 mm
Coolant capaciteit:	1 l
