Dia®
Model Numbers Specification
353GB-12 (18, 24, 36, 42)
ADA Grab Bar Series
Operation & Maintenance Manual
☐353GB-12 12" Grab Bar for ADA Applications
☐353GB-18 18" Grab Bar for ADA Applications
☐353GB-24 24" Grab Bar for ADA Applications
☐353GB-36 36" Grab Bar for ADA Applications
☐353GB-42 42" Grab Bar for ADA Applications

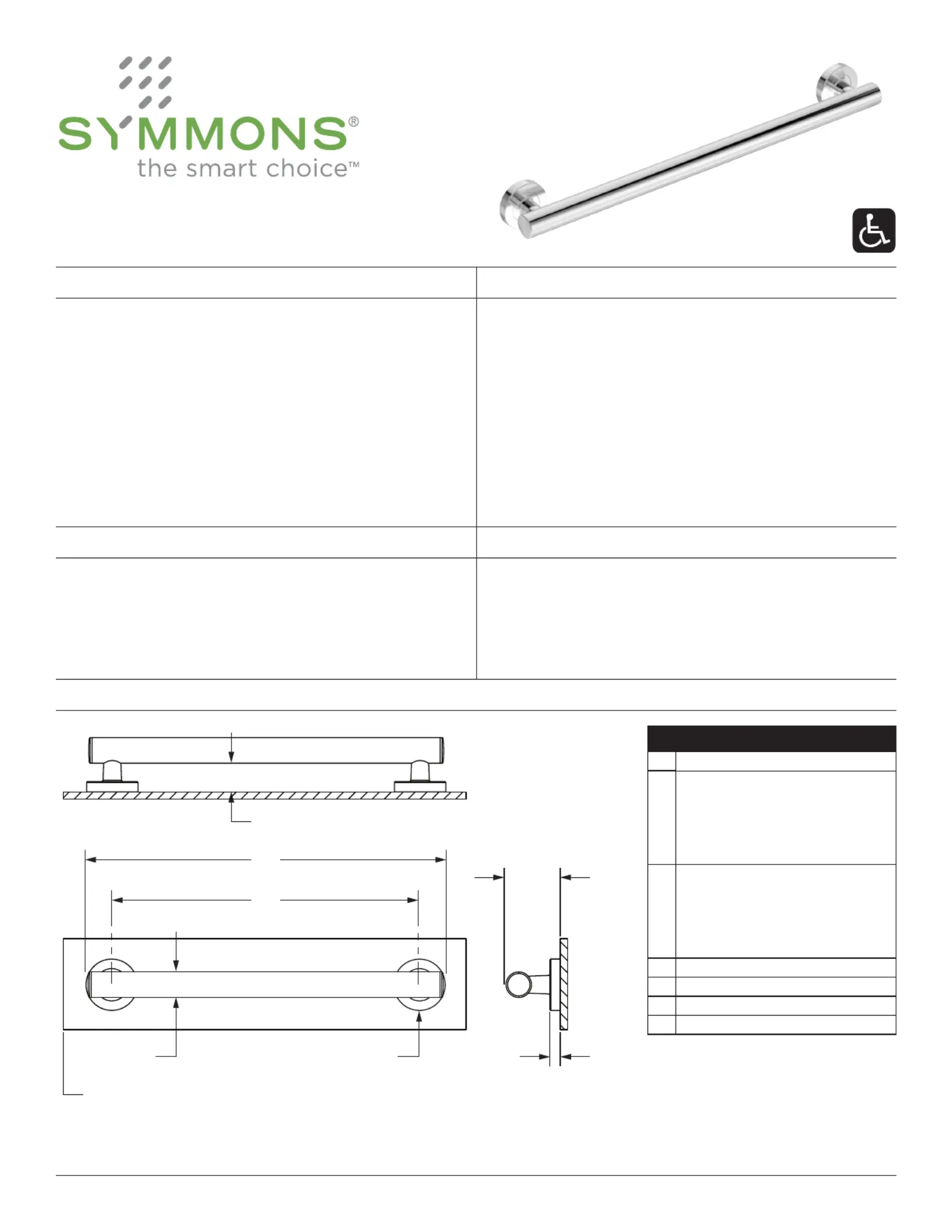

Dimensions
Measurements
A 1-1/2", 38 mm
B
15", 381 mm (353GB-12)
21", 533 mm (353GB-18)
27", 686 mm (353GB-24)
39", 991 mm (353GB-36)
45", 1143 mm (353GB-42)
C
12", 305 mm (353GB-12)
18", 457 mm (353GB-18)
24", 610 mm (353GB-24)
36", 914 mm (353GB-36)
42", 1067 mm (353GB-42)
D Ø 1-1/2", 38 mm
E (2x) Ø 3-1/16", 78 mm
F 3-1/16", 78 mm
G 1/2", 13 mm
Note: Dimensions subject to change without notice.
BB
DD GG
FF
FINISHED WALLFINISHED WALL
AA
CC
EE
Finish Options
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Warranty
Note: Append appropriate -sufx to model number.
☐-STN Satin Nickel finish
• Supports up to 250 lbs.
• 1-1/2" bar diameter
• 3" ange diameter
• Bar extends 1-1/2" from wall
• Concealed mounting for a clean look
• Meets WW-P-541/8B Federal Specication for
Manufacturing
• Meets ADA load requirements when properly installed
• Stainless steel construction
• Grab bar compatible with WingIts stainless steel grab
bar fasteners (p/n GBW40) for drywall applications
2

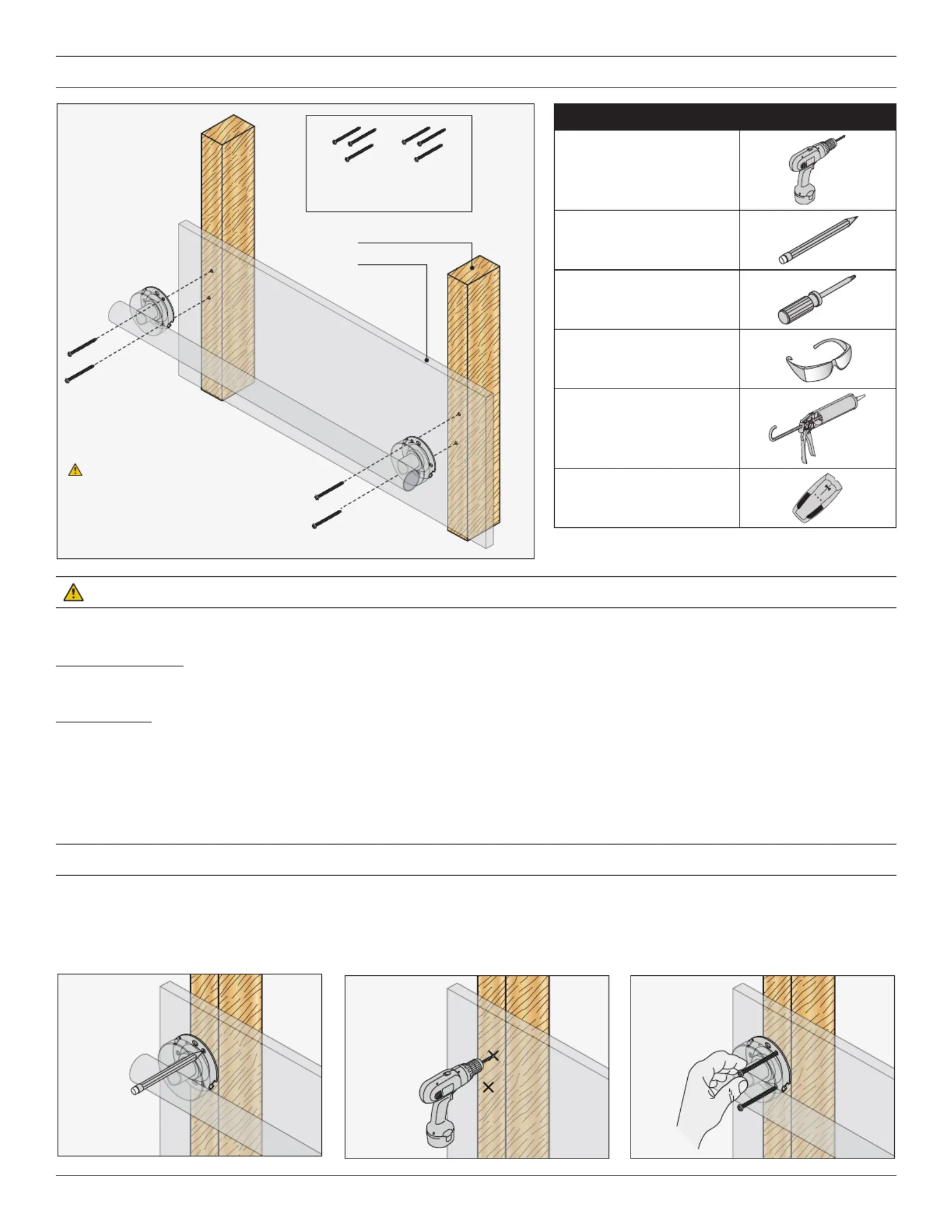

Parts Breakdown
WALL STUD
Grab Bar must be
secured with at least
two (2) of the three (3)
screws at each end on
the inner side of anges.
(6) WOOD SCREWS
#10 x 2-1/2"
WALL
IMPORTANT NOTES FOR PROPER INSTALLATION
Installation (Wall & Wall Studs)
1) Place Grab Bar at desired position.
Remove covers from bar anges and
mark drill hole locations with pencil at
each end on inner side of anges.
2) Remove Grab Bar from wall. Use
drill with 7/64" drill bit to drill holes
into wall and wall studs at the
marked positions.
3) Align mounting holes on Grab Bar
with drill holes. Insert wood screws
into pilot holes for wall and wall
studs. Hand tighten wood screws.
Tools Required for Installation
Drill:
• 7/64" Drill Bit for Wall
• 1/4" Carbide Tip Drill
Bit for Ceramic Tile
Pencil
Phillips Head
Screwdriver
Safety Glasses
Silicone
Stud Finder
DO NOT install this product without rst reading and understanding the instructions. If you are unable to understand
these warnings and instructions, contact professional or technical personnel for assistance - otherwise injury may occur.
Grab Bar Location
• For proper mounting heights and location consult with your state and local code ofcial having jurisdiction over the
installation.
Solid Support
• Grab Bar ends must be mounted with both end positions over a wall stud. A stud nder can be used to locate wall
studs. Contractor is responsible for installing Grab Bar to wall studs as instructed.
• Secure through wall board or tile to the wall stud so as to hold a minimum of 250 pounds of force.
• At least two (2) of the three (3) wood screws provided must be used on each end of the Grab Bar, top and bottom, to
properly secure. Standard size wall stud limits using more than two (2) wood screws.
• If using a drill to install wood screws, a drill bit extension must be used to avoid damaging the Grab Bar.
Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621■ ■ ■ ■
Copyright © 2017 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3239 REV 0 072817■ ■ ■ ■
Installation (Wall & Wall Studs) Cont.
4) Tighten all wood screws using a
phillips head screwdriver, securing
Grab Bar to wall.
5) Place mounting covers over bar
anges so they sit ush with wall.
Turn mounting covers to secure.
1
2
Troubleshooting Chart
Problem Cause Solution
Finish is spotting. Elements in water supply may cause
water staining on nish.
Clean nished trim area with a soft
cloth using mild soap and water or a
non-abrasive cleaner and then quickly
rinse with water.
For California Residents
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
6) Apply a bead of silicone around the
perimeter of the mounting covers to
prevent water from bleeding through
the mounting holes and potentially
damaging the wall and wall studs.
Installation (Ceramic Tile)
1) Use drill with 1/4" carbide tip drill bit
to drill holes into ceramic tile at the
marked positions to prevent damage
to the tiles.
2) Use drill with 7/64" drill bit to drill
pilot holes into wall studs through
ceramic tile.
3) Follow steps 3, 4, 5 and 6 for
wall and wall studs to complete
installation of Grab Bar onto ceramic
tile.
