COMPACT HANDGUN LIGHT
XC1-C
USER MANUAL
Revision C 7-2022
71-01-1128
XC1-C
18300 MT. BALDY CIRCLE
FOUNTAIN VALLEY, CA 92708-6122
WWW.SUREFIRE.COM
Patent: 9,551,550
THE SUREFIRE NO-HASSLE GUARANTEE
We’ll do what it takes to keep your SureFire gear running smoothly.
SureFire warrants that if you — our customer — purchase one
of our products, and we determine that it is defective in material
and/or workmanship during your lifetime, we will repair or replace
it — no hassle!
Our warranty does not cover consumables or normal wear-and-tear
— things like batteries draining, headbands and headpads wearing
out, ink cartridges running out, and switches wearing out — or
damage resulting from abuse, alterations, unauthorized repairs, or
use contrary to SureFire’s user manuals.
Should you need a replacement product, SureFire reserves the
right to replace an obsolete product with a current production,
like model. In the event that any issue with a SureFire product is
not covered under this warranty SureFire can arrange to have the
product repaired for a reasonable fee.
STANDARD DISCLAIMER
Except as specified above or prohibited by applicable law: all express
or implied conditions and warranties, including, without limitation,
any implied warranty or condition of merchantability or fitness for
a particular purpose, or accuracy of any informational content, are
hereby excluded and disclaimed by SureFire; and in no event will
SureFire be liable for any special, direct, indirect, consequential,
incidental or punitive damages howsoever arising and regardless
of the theory of liability, even if advised of the possibility of such
damages. Products, prices, availability, specifications, and offers
are subject to change or cancellation at any time without notice.
WARRANTY CLAIMS
For claims, contact Customer Service at 714-545-9444 to obtain a
Return Merchandise Authorization number (RMA#). Then package
the unit carefully and send to (no CODs):
SureFire, LLC.
Repairs Department, RMA#____
17680 Newhope Street, Suite B
Fountain Valley, CA 92708
SureFire will pay any reasonable shipping costs to return the unit to you.
XC1-C
OUTPUT 300 lumens
RUNTIME 45 minutes
PEAK BEAM INTENSITY 1,064 candela
DISTANCE 65 meters
CONSTRUCTION Aluminum
FINISH Hard Anodized (MIL-A-8625 Type III, Class 2)
WEIGHT (w/battery) 2.2 ounces / 63 g
LENGTH 2.52 inches / 6.4 cm
BEZEL DIAMETER 0.375 inches / 0.95 cm
BATTERY AAA NiMh Rechargeable
SWITCHING Ambidextrous momentary/constant
All performance claims tested to ANSI/NEMA FL1-2019 Standard.
SPECIFICATIONS
MAINTENANCE
Use a clean, dry cloth to wipe off body and window.
For additional tips on maintaining your SureFire illumination tool,
visit www.surefire.com/faqs-maintenance.
ACCESSORIES
SureFire makes a full line of accessories for most of its
illumination tools. For a complete listing,
visit www.surefire.com/partsaccessories.
KIT CONTENTS:
• XC1-C WeaponLight (Crossmember #1 installed)
• AAA Battery (Rechargeable)
• Spare Crossmembers
• hex wrench for Rail Adjustment Bolt3/32-inch
LIGHT OPERATION
The XC1-C is designed to allow support-hand activation in both
momentary-on and constant-on modes when firing right- or
left-handed.
TOGGLE SWITCHING
Momentary-on activation: Press and hold either toggle switch
for more than a tenth of a second or as long as needed to
momentarily activate the XC1-C. Release to turn off (Figure 4).
Constant On Activation with Slide Switch: Press from left to
right for constant on activation. Press from right to left to turn
light off (figure 4).
NOTE: The light will not activate when either toggle switch is pushed
upward or side-to-side. This intentional design feature minimizes
unintended activation when drawing or holstering.

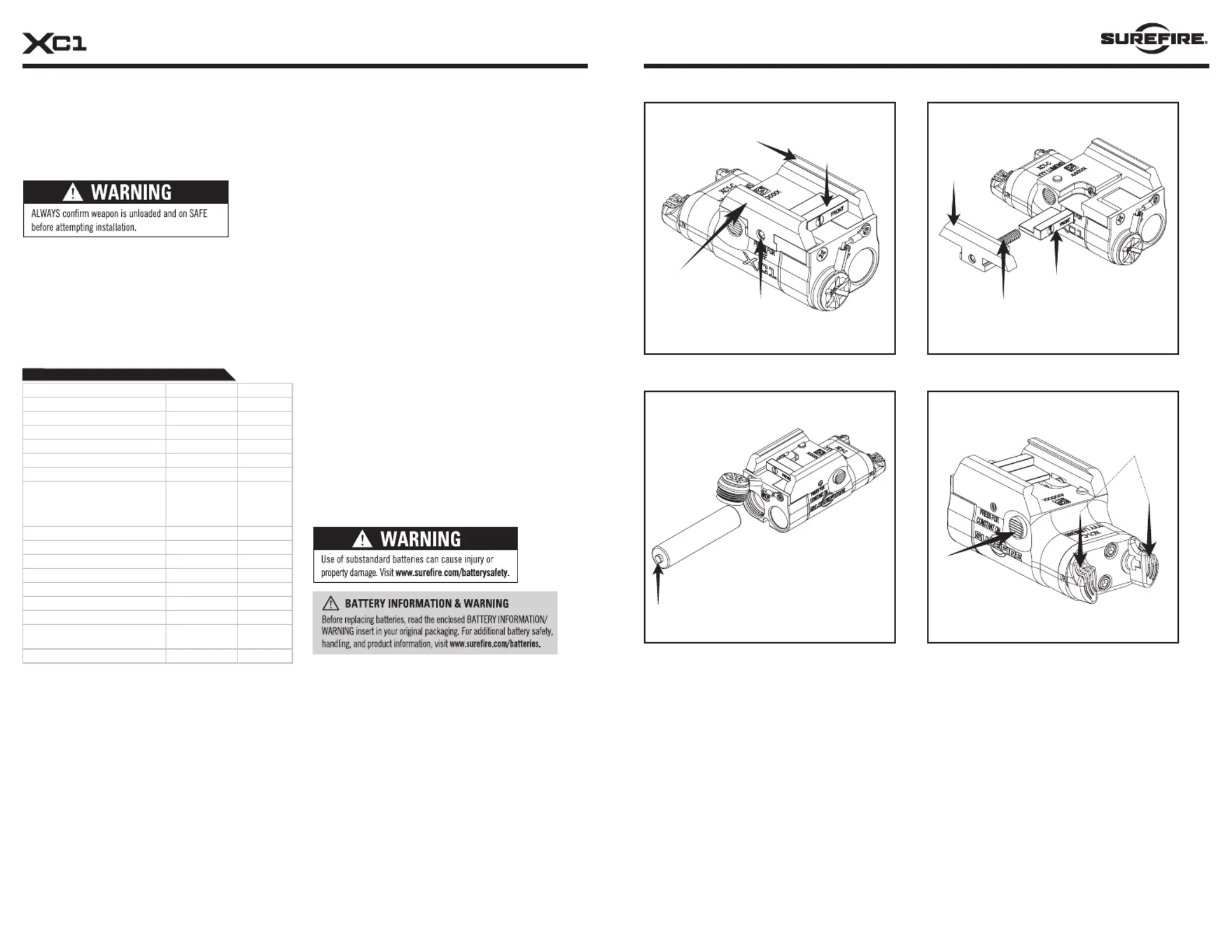

1. Loosen Rail Adjustment Bolt by turning counterclockwise to adjust
Rail Guide to the open position (Figure 1).
2. Align Fixed Rail with weapon’s accessory rail and hinge XC1-C over
the cross slot of host weapon.
3. Mate Crossmember with slot in weapon’s accessory rail.
4. Using a torque wrench and a 3/32-inch bit, tighten to 8 in-lb
onto a polymer pistol rail and to 8-9 in-lb on a metal pistol rail.
Do NOT overtighten! The Rail Adjustment Bolt will break if
excessive force is applied with a tool.
NOTE: If a torque wrench is not available, use a flat head screw driver
and hand tighten with light pressure until the screw stops rotating.
The XC1-C comes with five different Crossmembers (#1 comes installed)
which are designed to fit a variety of weapon accessory rails. Refer to the
chart below to find the appropriate Crossmember for your weapon.
FIGURE 4
FIGURE 1
CROSSMEMBER
RAIL GUIDE
FIXED
RAIL GUIDE
RAIL
ADJUSTMENT BOLT
RAIL
ADJUSTMENT BOLT
POSITIVE TERMINAL
FACING FORWARD
PRESS FOR
CONSTANT-ON
FIGURE 3
FIGURE 2
PUSH DOWN FOR
MOMENTARY-ON;
QUICK TAP FOR
CONSTANT-ON
BATTERY REPLACEMENT
Confirm that your firearm is unloaded. Do not place hands in front of
muzzle when replacing and installing the battery in your XC1-C.
1. Remove the battery cap by turning any of starred slots counterclockwise
with coin or flathead/slot screwdriver (Figure 3).
2. Remove spent AAA battery and replace with a fully charged AAA battery.
NOTE: The supplied battery is rechargeable. Do not discard. AAA NiMH
batteries are recommended for optimum output and runtime. AAA
lithium batteries can also be used but runtime will be reduced. Do not
use alkaline batteries.
3. Ensure the positive battery terminal is facing toward the battery cap
and then tighten the battery cap.
CHOOSING THE APPROPRIATE
CROSSMEMBER FOR YOUR WEAPON
XC1-C MOUNTING
CHANGING THE CROSSMEMBER
(THE XC1-C MUST BE DETACHED FROM HOST WEAPON):
RAIL
GUIDE
CROSSMEMBER
PISTOL AND CROSSMEMBER COMPATIBILITY CHART:
FIREARM CROSSMEMBER # PART #
Beretta 90TWO 5 25248-41
Beretta APX 1 25248-1
Beretta PX4 Storm Sub-Compact 2 25248-11
Berreta 92/96 A1 3 25248-21
CZ P-07, P-10, P01, SP01, Shadow 2 3 25248-21
FN FNS-40, Five-Seven, 509 & FNX 3 25248-21
Glock Gen 3: 17, 19, 20, 21SF, 22, 23, 24, 29SF,
30SF, 31, 32, 34, 35, 36, 37, 38,
Glock Gen 4: 17, 19, 20, 21, 22, 23, 29, 30,
31, 32, 34, 35, 40, 41
1 25248-1
Glock Gen 5: 17, 19, 22, 23, 34, 45 3 25248-21
Heckler & Koch VP9 3 25248-21
Kimber: 1911 Custom 3 25248-21
Ruger SR-9 1 25248-1
SIG SAUER P226, P228, P229 4 25248-31
SIG SAUER P320 Carry & Full Size 5 25248-41
SIG SAUER P320 Compact, 1911 GSR 3 25248-21
Smith and Wesson M&P,
TSW (with riveted Rail), 99 2 25248-11
Springfield Armory XD 1 25248-1
1. Remove XC1-C from host weapon.
2. Use the included 3/32-inch hex wrench to rotate the Rail Adjustment
bolt counter-clock wise until the movable Rail Guide becomes
detached and set it aside.
3. Slide the installed Crossmember off of the XC1-C body (Figure 2).
Store for later use.
4. Slide the desired Crossmember into the XC1-C body ensuring the front
of the Crossmember faces forward.
5. Position the movable Rail Guide on the XC1-C body and thread the Rail
Adjustment Bolt into the movable Rail Guide.
6. Follow XC1-C MOUNTING instructions to attach XC1-C to host weapon.
