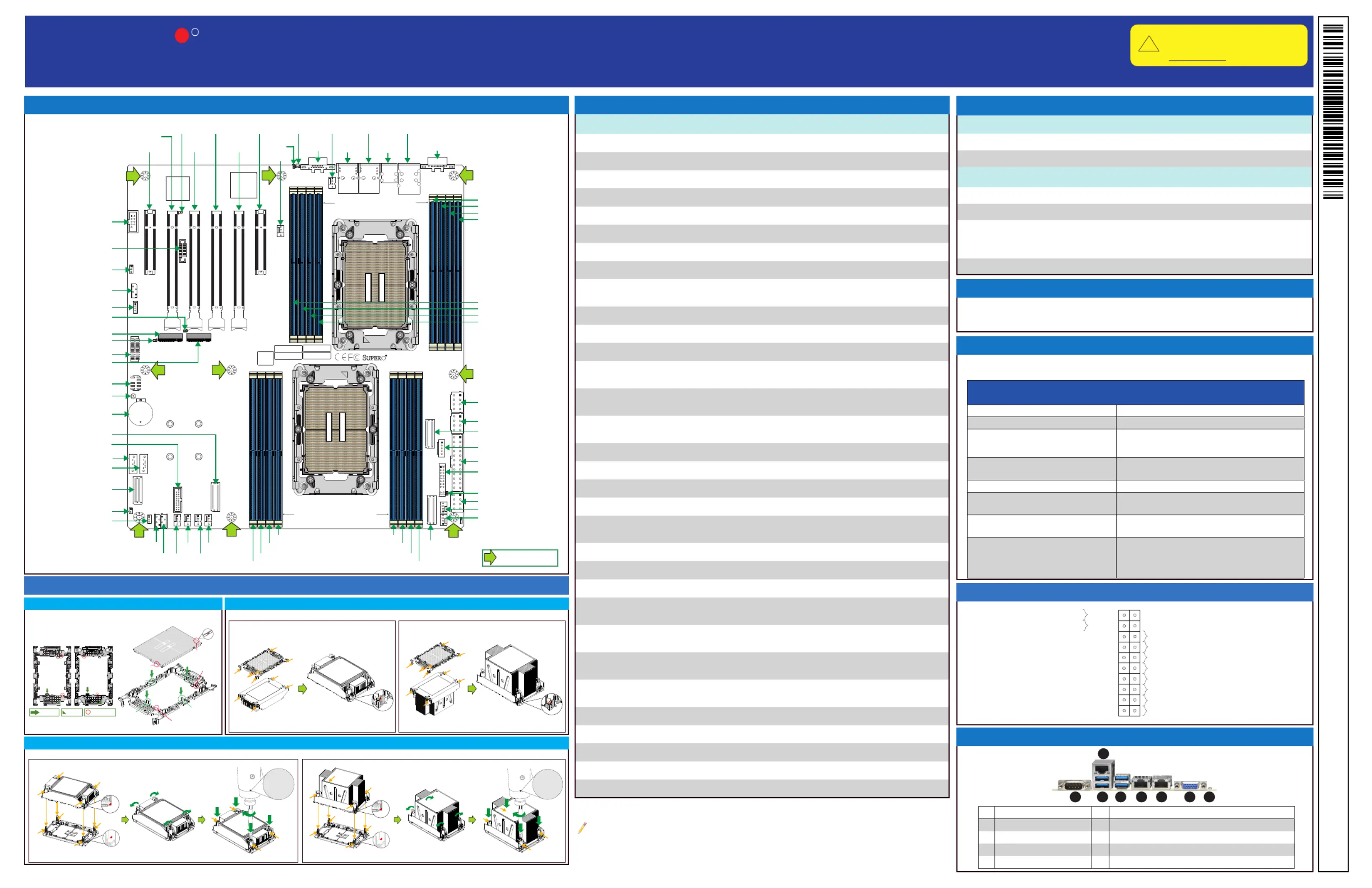

SUPERMICR R
© 2024 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Supermicro's written
consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.
P cackage ontents
X14DBI/X14DBI-t
Q R g R . uIck efeRence uIDe ev 1.00
• One Supermicro Motherboard
• One I/O Shield (MCP-260-00042-3N)
• Two SATA Cables (CBL-0044L)
• One Quick Reference Guide (MNL-2691-QRG)
• Two E2A Carriers for SP XCC Processors (SKT-1543H-0000-FXC)
• Two E2B Carriers for SP HCC/LCC (SKT-1544H-0000-FXC)Processors
MNL-2691-QRG-100
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
contact nfoRmatIon I
• Manuals: https://www.supermicro.com/support/manuals
• https://www.supermicro.com/wdl/driverDrivers & Utilities:
• Safety: https://www.supermicro.com/about/policies/safety_information.cfm
• Website: www.supermicro.com
• General Information: marketing@supermicro.com
• Technical Support: support@supermicro.com
• Phone: +1 (408) 503-8000, Fax: +1 (408) 503-8008
F or your system to work properly please download appropriate,
drivers images user s manual From the links below/ / ' :
LED Description Status
LED4, LED7
M.2 LEDs (for M.2-C1, M.2-C2)
Blinking Green: Device Working
LED6 Unit Identiîš¿er (UID) LED Solid Blue: Unit Identiîš¿ed
LEDBMC BMC Heartbeat LED
Blinking Green: BMC Normal (Active),
Solid Green: (During BMC Reset or
during a Cold Reboot)
LEDPWR Onboard Power LED Solid Green: Power On
Jumper Description Default Setting
JBT1 CMOS Clear Open (Normal)
JPL1 LAN1, LAN2 Enable/Disable Pins 1-2 (Enabled)
Connector Description
BT1 Onboard CMOS Battery
BMC_LAN Dedicated BMC LAN Port
COM1 Rear COM Port
COM2 Front Accessible COM Port Header
FAN1–FAN6, FANA, FANB CPU/System Fan Headers
JBPNI2C1 Backplane SMBus Header
JF1 Front Control Panel Header
JFP2 Front Accessible VGA Connection Header
JIPMB1 4-pin BMC External I2C Header (for Inlet Temperature
Sensor)
JL1 Chassis Intrusion Header
JNCSI1 NC-SI (Network Controller Sideband Interface) Connector
JNVI2C1 NVMe SMBus I2C Header with hot-plug support
JPCIE1 (SLOT1),
JPCIE6 (SLOT6)
PCIe 5.0 p1-x8 Slots (SLOT1: supported by CPU1, SLOT6:
supported by CPU2)
JPCIE2 (SLOT2),
JPCIE4 (SLOT4) PCIe 5.0 p1-x16 Slots supported by CPU1
JPCIE3 (SLOT3),
JPCIE5 (SLOT5) PCIe 5.0 p1-x16 Slots supported by CPU2
JPI2C1 Power System Management Bus (SMBus) I
2C Header
JPWR1, JPWR2, JPWR4 8-pin Power Connectors
JPWR3 24-pin ATX Power Connector
JRK1 Intel VROC Key Header for NVMe RAID support
JS1 (SATA2–9) SlimSAS p1-x8 Connector with support of eight SATA 3.0
connections
JSTBY1 5 V Standby Power Header
JTPM1 Trusted Platform Module/Port 80 Header
JUIDB1 Unit Identiîš¿er (UID) Switch / BMC Reset Button
LAN1, LAN2 1 GbE LAN Ports (for X14DBI), 10 GbE LAN Ports (for
X14DBI-T)
M.2-C1, M.2-C2 PCIe 5.0 p1-x4 NVMe M.2 Slots supported by CPU1 (with
support of M-Key 2280 and 22110 form factors)
P1_NVME0/1, P1_NVME2/3 MCIO PCIe 5.0 p1-x8 Connectors supported by CPU1, each
with support of two NVMe connections
P2_NVME4/5 MCIO PCIe 5.0 p1-x8 Connector supported by CPU2, with
support of two NVMe connections
SATA0, SATA1 SATA 3.0 Ports with support of RAID 0/1
USB0/1 (3.0) Rear USB 3.0 Ports (5 Gbps, Type-A)
USB2/3 (3.0) Rear USB 3.0 Ports (5 Gbps, Type-A)
USB4/5 (3.0) USB 3.0 Header with support of two USB connections
VGA Rear VGA Port
2. Creating Processor Heatsink Module (PHM)
Memory Support
Motherboard Layout and Features
CPU Support
This motherboard supports dual Intel® Xeon® 6700-series processors with E-cores
(in Socket E2 LGA 4710) with three UPIs (24 GT/s max.) and a thermal design power
(TDP) up to 350 W.
Supports up to 2 TB of RDIMM DDR5 ECC memory with speeds of up to 6400 MT/s (1DPC)
and MCR/MRDIMM memory with speeds of up to 8000 MT/s in 16 DIMM slots.
CPU/Heatsink Installation
1U Heatsink
Carrier Bottom View
1U Heatsink 2U Heatsink
2U Heatsink
= Cutout = CPU Key= Pin 1
SP XCC
E2A Carrier
SP HCC/LCC
E2B Carrier
Front Control Panel
No. Description No. Description
1. 5.COM Port (COM1) LAN1 (1 GbE for X14DBI, 10 GbE for X14DBI-T)
2. 6.Dedicated BMC LAN LAN2 (1 GbE for X14DBI, 10 GbE for X14DBI-T)
3. 7.USB0/1 (3.0) VGA Port
4. 8.USB2/3 (3.0) UID/BMC Reset Switch
Rear I/O Ports
DDR5 Memory Population Table for Intel Xeon 6700-series processors
with E-cores (2 Processors and 16 DIMMs, 1DPC)
1 Processor DIMM Counts Memory Population Sequence (1DPC)
1 Processor and 1 DIMM P1-DIMMA1
1 Processor and 4 DIMMs
P1-DIMMA1 / P1-DIMMC1 / P1-DIMME1 / P1-DIMMG1
or
P1-DIMMB1 / P1-DIMMD1 / P1-DIMMH1 / P1-DIMMF1
1 Processor and 8 DIMMs P1-DIMMA1 / P1-DIMMB1 / P1-DIMMC1 / P1-DIMMD1
P1-DIMME1 / P1-DIMMF1 / P1-DIMMG1 / P1-DIMMH1
2 Processor DIMM Counts (Recommended)
Memory Population Sequence (1DPC)
2 Processors and 8 DIMMs P1-DIMMA1 / P1-DIMMC1 / P1-DIMME1 / P1-DIMMG1
P2-DIMMA1 / P2-DIMMC1 / P2-DIMME1 / P2-DIMMG1
2 Processors and 8 DIMMs
P1-DIMMB1 / P1-DIMMD1 / P1-DIMMF1 / P1-DIMMH1
P2-DIMMB1 / P2-DIMMD1 / P2-DIMMF1 / P2-DIMMH1
2 Processors and 16 DIMMs
P1-DIMMA1 / P1-DIMMB1 / P1-DIMMC1 / P1-DIMMD1
P1-DIMME1 / P1-DIMMF1 / P1-DIMMG1 / P1-DIMMH1
P2-DIMMA1 / P2-DIMMB1 / P2-DIMMC1 / P2-DIMMD1
P2-DIMME1 / P2-DIMMF1 / P2-DIMMG1 / P2-DIMMH1
876543
2
1
Jumpers and LED Indicators
3. Installing the PHM to the CPU Socket
1. CPU Carrier Assembly
Note 1: Refer to Chapter 2 of the user's manual for CPU/Heatsink and memory Installation instructions.
Please also visit our website at www.supermicro.com for CPU/Memory support updates.
Note 2: All graphics shown in this quick reference guide (QRG) are for illustration only. Your components
may or may not look the same as the graphics shown in this QRG.
= mounting hole
Connectors
3
4
5
6
7
8
9
1
0
1
in-lbf
8.0
0.904
N-m
D
B
A
C
a
c
b
d
C
D
B
pin 1
A
a
c
b
d
C
D
B
pin 1
A
3
4
5
6
7
8
9
1
0
1
1
D
B
A
C
in-lbf
8.0
0.904
N-m
D
B
A
C
d
b
a
c
D
B
A
C
d
b
a
c
1
2
3
4
B
A
b
a
Processor Key
Processor Key Processor Key
Latch
Latch
Latch
Latch
SAN MAC
BIOS LICENSE
BAR CODE
REV:1.01
IPMI CODE
DESIGNED IN USA
MAC CODE
X14DBI
JS1
JFP2
JBPNI2C1
LED4
LED6
(UID-LED)
LEDBMC
FAN5
FAN6
FAN3
JNCSI1
FAN4
BT1
JPWR3
JF1
JUIDB1
(UID-SW)
JPWR1
JPL1
FANA
FANB
JPWR2
JNVI2C1
JPWR4
JSTBY1
JL1
JIPMB1
LEDPWR
JRK1
JTPM1
FAN1
FAN2
M.2-C1 (NVME ONLY)
JPI2C1
SATA1
JBT1
SATA2~9
SATA0
P1_NVME2/3
P1_NVME0/1
P2_NVME4/5
LAN2 LAN1
USB2/3 (3.0)
BMC_LAN
USB0/1 (3.0)
COM1
USB4/5 (3.0)
COM2
VGA
M.2-C2 (NVME ONLY)
P2 SLOT6 PCIe 5.0 X16 (JPCIE6)
P2 SLOT5 PCIe 5.0 X16 (JPCIE5)
P1 SLOT4 PCIe 5.0 X16 (JPCIE4)
P2 SLOT3 PCIe 5.0 X16 (JPCIE3)
P1 SLOT2 PCIe 5.0 X16 (JPCIE2)
P1 SLOT1 PC e 5.0 X8 (JPCIE1)
P1-DIMMH1
P1-DIMMG1
P1-DIMMF1
P1-DIMME1
CPU1
P1-DIMMA1
P1-DIMMB1
P1-DIMMC1
P1-DIMMD1
CPU2
P2-DIMMB1
P2-DIMMD1
P2-DIMMC1
P2-DIMMA1
P2-DIMMG1
P2-DIMME1
P2-DIMMF1
P2-DIMMH1
LAN
CTRL
BMC
LED6
JFP2
JBPNI2C1
LED7
LED4
LEDBMC FAN5
FAN6
FAN3
JNCSI1
FAN4
BT1
JPCIE3
JPCIE4
JPCIE5
JPCIE6
JPWR3
JPCIE2 JUIDB1
JPWR1
JPCIE1
JPL1
FANA
FANB
JPWR2
JPI2C1
JNVI2C1
JPWR4
JSTBY1
JL1
JIPMB1
LEDPWR
JF1
JRK1
JTPM1
FAN1
FAN2
M.2-C1
SATA1
JBT1
JS1(SATA2–9)
SATA0
P1_NVME2/3
P1_NVME0/1
P2_NVME4/5
LAN2
LAN1
USB2/3
(3.0)
BMC_LAN
USB0/1
(3.0)
COM1
USB4/5 (3.0)
COM2
VGA
M.2-C2
P1-DIMMH1
P1-DIMMG1
P1-DIMMF1
P1-DIMME1
P1-DIMMD1
P1-DIMMC1
P1-DIMMB1
P1-DIMMA1
P2-DIMME1
P2-DIMMF1
P2-DIMMG1
P2-DIMMH1
P2-DIMMD1
P2-DIMMC1
P2-DIMMB1
P2-DIMMA1
Power Button
UID LED
NIC1 Active L
ED
Reset Button
HDD LED
PWR LED
R
eset
PWR
UID SW
3.3 V Stby
GND
19
X
GND
X
3.3 V Stby
20
1 2
GND
Power Fail LED
NIC2 Active L
ED
NMI
3.3 V
3.3 V
OH/Fan Fail LED
