Pagina 1/3

HARDWARE MANUAL & INSTALL GUIDE

SoundTube Entertainment

13720 W. 109th St.

Lenexa, KS 66215

Phone: 913.663.5600

Fax: 913.663.3200

Toll Free: 855.663.5600

www.soundtube.com

SAFETY INSTRUCTIONS 2

OPERATING INSTRUCTIONS & CONTROLS 3

RACK MOUNTING 4

Rev 4.23.2024

DSM-16

Power

OFF

DS 16M-

1. Read Instructions - All the safety and operating instructions should be read

before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained

for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions

should be adhered to.

4. Follow Instructions - All operating and other instructions should be followed.

5. Water and Moisture - The appliance should not be used near water - for

example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement,

or near a swimming pool, etc.

6. Carts and Stands - The appliance should be used only with a cart or stand that

is recommended by the manufacturer.

PORTABLE CART WARNING

7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or

ceiling only as recommended by the manufacturer.

[SAFETY INSTRUCTIONS] 8. Ventilation - The appliance should be situated so that its location or position

does not interfere with its proper ventilation. For example, the appliance should not

be situated on a bed, sofa, rug, or similar surface that may block the ventilation

openings; or placed in a built-in installation, such as a bookcase or cabinet that

9. Heat - The appliance should be situated away from heat sources such as

radiators, stoves, or other appliances that produce heat.

10. Power Source - The appliance should be connected to a power supply only

of the type described in the operating instructions or as marked on the appliance.

11. Power Cord Protection - Power supply cords should be routed so that they

are not likely to be walked on or pinched by items placed up or against them,

paying particular attention to cords at plugs, convenience receptacles, and the

point where they exit from the appliance.

12. Cleaning - The appliance should be cleaned only as recommended by the

manufacturer.

13. Nonuse Periods - The power cord of the appliance should be unplugged from

the outlet when left unused for a long period of time.

14. Object and Liquid Entry - Care should be taken so that neither objects fall

nor liquids spill into the inside of the appliance.

15. Damage Requiring Service

service personnel when:

a. the power supply cord or the plug has been damaged,

b. objects have fallen onto or liquid has been spilled into the appliance,

c. the appliance has been exposed to rain,

d. the appliance does not appear to operate normally or exhibits a marked change

in performance, or

e. the appliance has been dropped or the cabinet damaged.

16. Servicing - The user should not attempt to service the appliance beyond

those means described in the operating instructions. All other servicing should be

17. Grounding or Polarization - Precautions should be taken so that the

grounding or polarization means of an appliance is not defeated.

Explanation of aphical SymbolsGr

equilateral triangle, is intended to alert you to the presence

of un-insulated “dangerous voltage: within the product’s

a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert you to the presence of important operating

and maintenance (servicing) instructions in the literature

accompanying the appliance.

APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR USAGE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT,

INSERT FULLY.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS

LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRESE ET POUSSER

JUSQU AU FOND.

CAUTION: To reduce the risk of electric shock, do not remove cover (or back).

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

[ ]SAFETY NOTICES

1. This product has a networked standby function ONLY (less than 7.00 W). It does NOT have a normal standby function.

2. This product is considered a HiNA (High Network Availability) product.

3. This product supports PoE power (50 V DC).

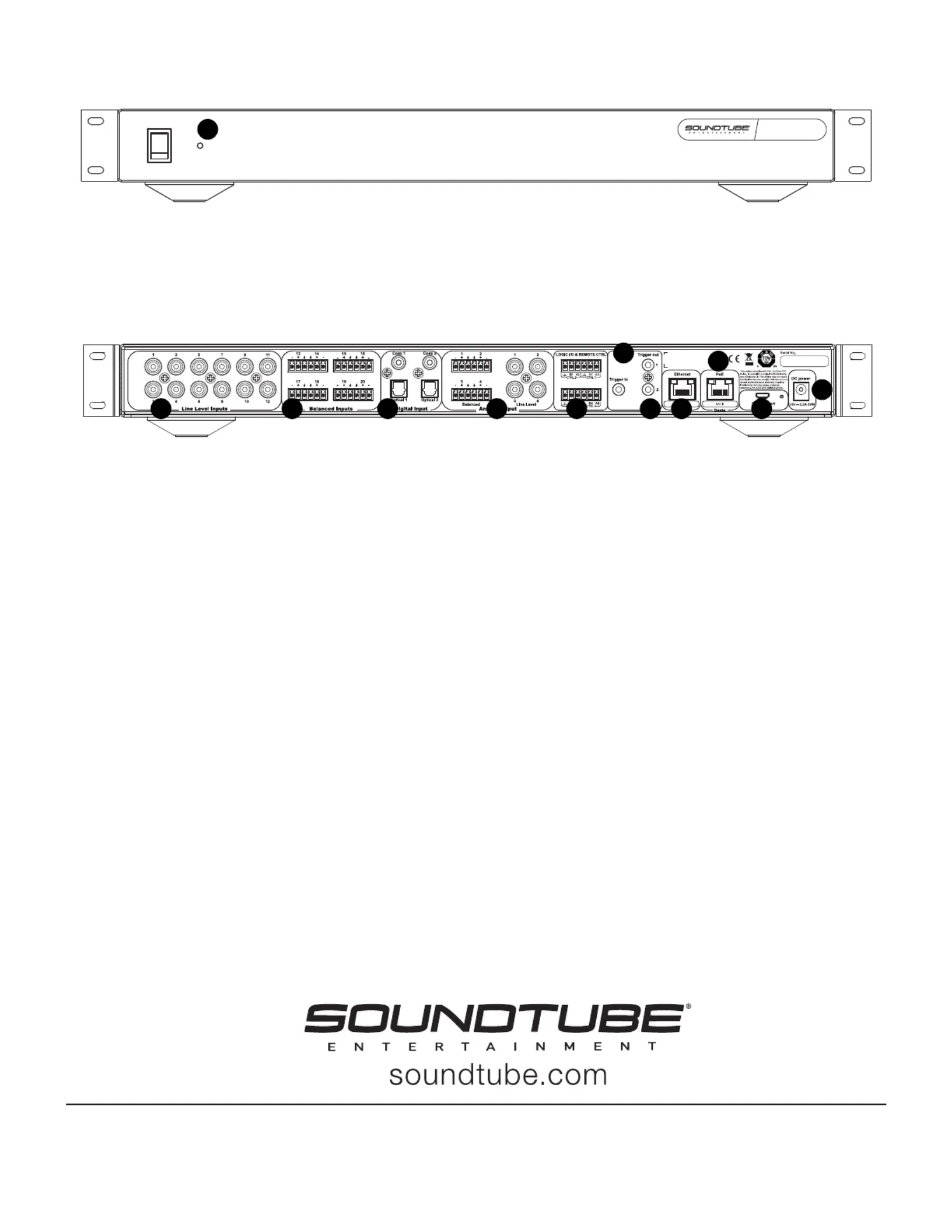

[OPERATING IN RUCTIONS AND CO ROLS] BACK PANELST NT

Power

OFF

1. POWER: The power LED on the front panel indicates the device status.

[OPERATING IN RUCTIONS AND CO ROLS] FRONT PANELST NT

1 2 3 4 5

7 8 10

1. LINE LEVEL INPUTS: These connectors are for unbalanced

line-level inputs and accept standard RCA audio interconnect cables.

2. BALANCED INPUTS: These connectors are for balanced

line-level inputs and accept bare wire input connections via Phoenix

connector blocks.

3. DIGITAL INPUTS: These connectors are for digital audio inputs

and accept coaxial or optical input connections.

4. ANALOG OUTPUTS: These connectors are for line-level analog

audio outputs and accept bare wire connections via Phoenix

connector blocks or standard RCA audio interconnect cables.

5. LOGIC I/O & REMOTE CTRL: These connectors are for Logic

Input/Output connections and Remote Control and accept bare wire

connections via Phoenix connector blocks.

6. TRIGGER IN: This connection is for a Remote Trigger input and

accepts a 3.5mm auxiliary cable.

7. TRIGGER OUT: These connections are for a Remote Trigger

output and accept 3.5mm auxiliary cables.

8. ETHERNET: This connection is for an Ethernet connection to a

network device and accepts RJ45-connector ethernet cable.

9. PRIMARY/POE: This connection is for a Dante/PoE connection

to a Dante network and accepts RJ45-connector ethernet cable.

10. SERVICE PORT: This connection is used for service

by the manufacturer.

11. DC POWER: This port is for an optional 12V DC power supply.

[RACK M NTING]OU

The DSM-16 is supplied with rack mounting adapters for the convenience of installing the amplier in standard 19” equipment racks.

The DSM-16 occupies one (1) standard rack unit position. The supplied adapters are easily attached to the left and right side of the DSM-16

chassis with the supplied screws. Depending on the application it may be necessary to remove the rubber isolation feet.

DS 16M-
