Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Speaker brackets
Mounting screws
Corner-mount bracket
Note: Speaker ships separately.
Security screw
Box contents: Corner-mount kit
1 Corner-mount bracket
2 Speaker brackets
8 Fasteners (1/2 inch wood screws)
1 Security screw
For wiring instructions, consult SM1001p installation instructions.
Alternate optional accessory is a surface mount bracket (AC-SM1001p-S).
© 2010 SoundTube Entertainment, Inc. All rights reserved. PN SM1001p-C Rev 07.13.10
4. For a safety cable
attachment, screw the
forged eyebolt into the
1/4-20 insert on the back of
the speaker and attach
included safety cable from
forged eyebolt to a secure
mounting point on the
structure. Installer to supply
fasteners to structure.
6. Slide speaker onto
pre-mounted bracket.
1. Unpack subwoofer and
unscrew 4 feet. Remove
screws from rubber plugs
and replace screws to fill
holes.
5. Run wires through hole
in top or bottom of bracket.
Connect wires and set gain
and filters as described in
the SM1001p installation
instructions.
2. Choose a secure corner
and mount bracket with
tabs pointing up. Corner
mount bracket must be
mounted at least 3 inches
below ceiling, beam or other
top structure. Bracket
accepts up to 1/4 inch lag
bolts (installer supplies
fasteners). Be sure
mounting tabs point up.
3. Mount speaker brackets
to back of speaker with tabs
down. Use included 1/2
inch wood screws.
7. Install security screw. 8. Done!

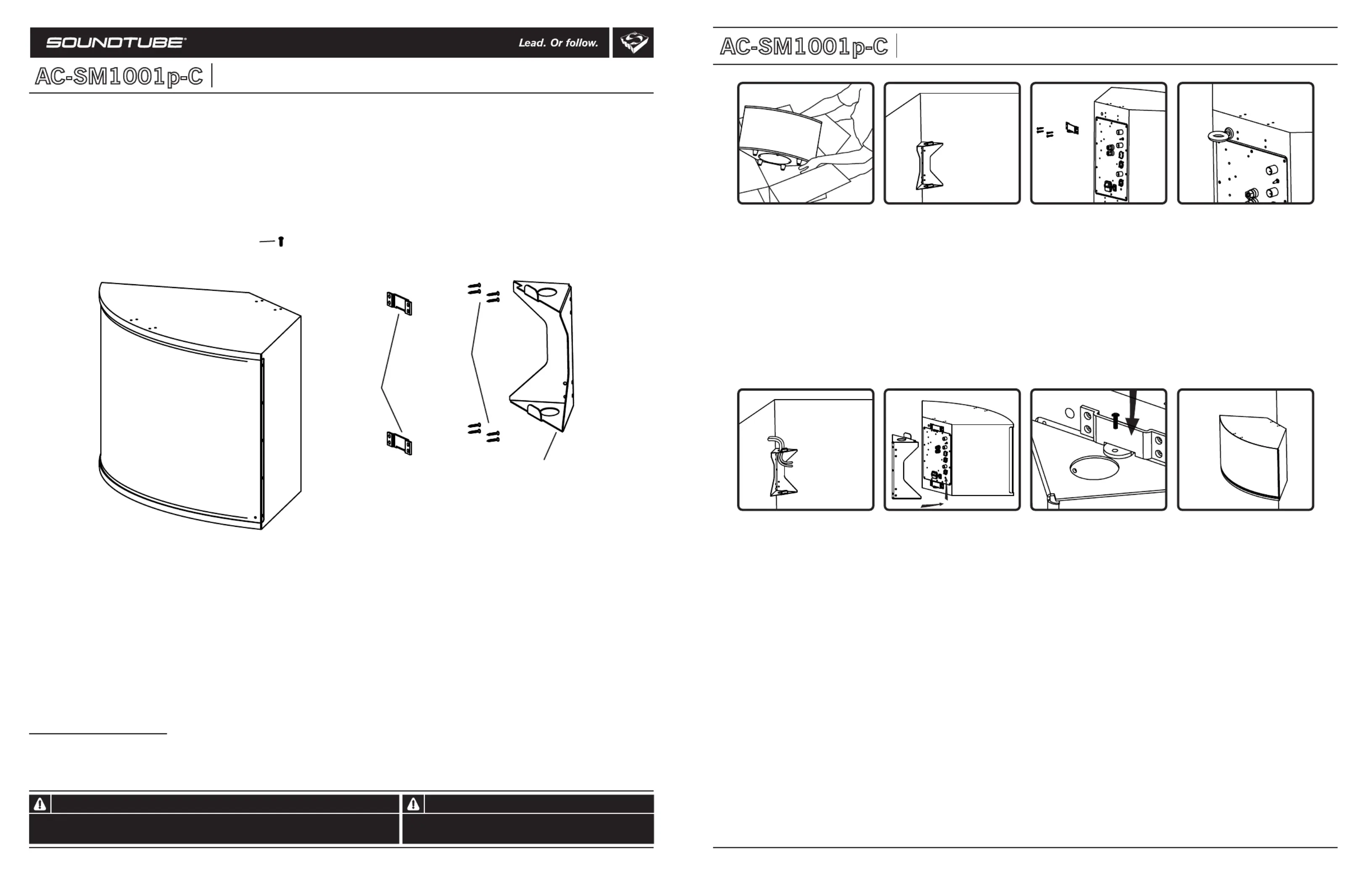

AC-SM1001p-C Corner-mount Installation For:
SM1001p Powered Subwoofer
1.435.647.9555
| | 800.647.TUBE
www.soundtube.com
Install Instructions For:
SM1001p Powered Subwoofer Corner Mount Bracket
AC-SM1001p-C
