Pagina 1/13

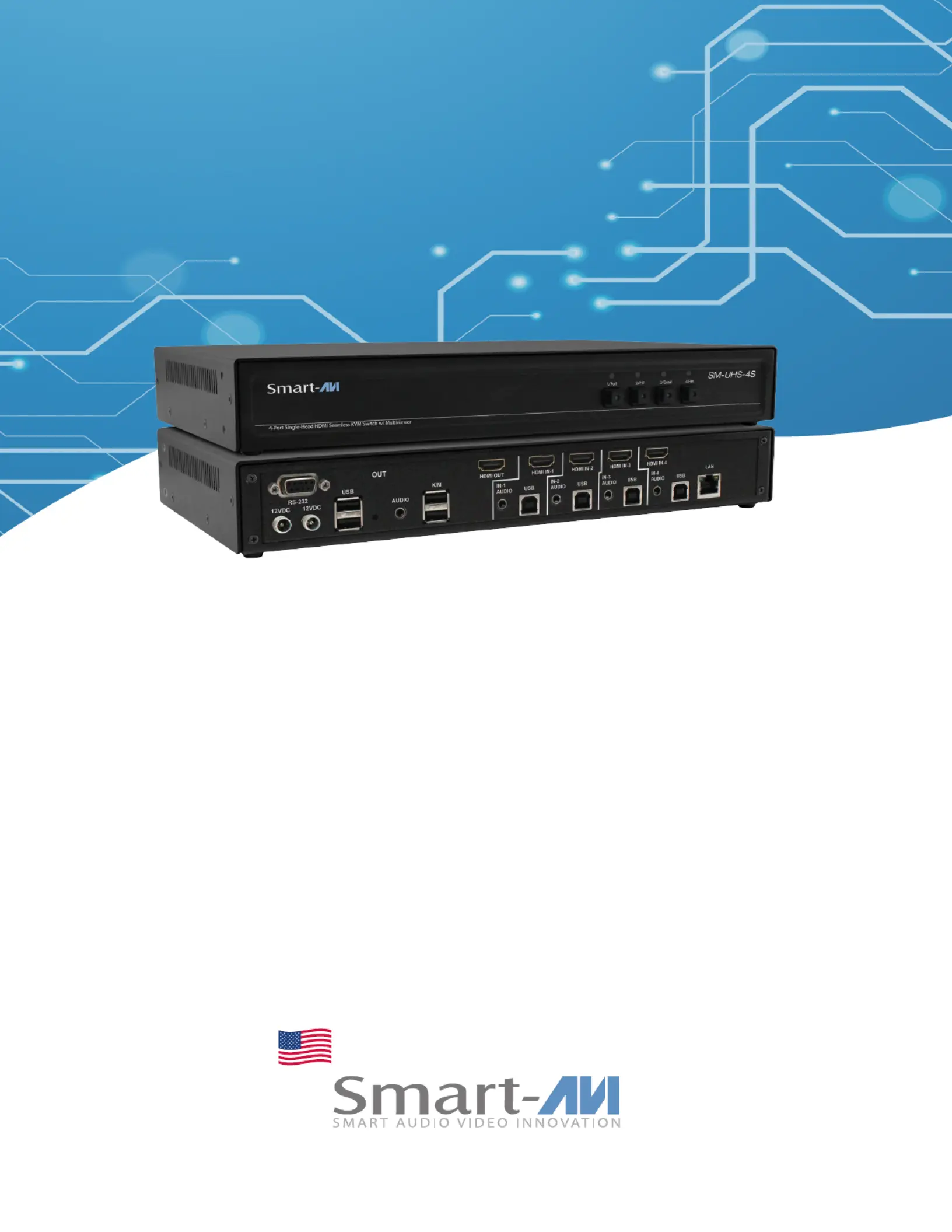

SM-UHS-4S
4-Port Single-Head HDMI Seamless
KVM Switch w/ Multiviewer
USER MANUAL
Designed and Manufactured in the USA
(888) 994-7427
www.smartavi.com
4-Port Single-Head HDMI Seamless KVM Switch w/ Multiviewer 2
OVERVIEW
TECHNICAL SPECIFICATIONS____________________________________________________________________________
WHAT’S IN THE BOX?_____________________________________________________________________________________
FRONT AND BACK________________________________________________________________________________________
INSTALLATION_____________________________________________________________________________________________
SYSTEM OPERATION_____________________________________________________________________________________
TROUBLESHOOTING_____________________________________________________________________________________
TECHNICAL SUPPORT____________________________________________________________________________________
LIMITED WARRANTY STATEMENT______________________________________________________________________
3
4
4
5
6
11
11
12
4-Port Single-Head HDMI Seamless KVM Switch w/ Multiviewer 3
Technical Specifications
VIDEO
Format HDMI
Host Interface (4) HDMI 19-pin (female)
User Console Interface (1) HDMI 19-pin (female)
Max Resolution 3480 x 2 160 @ 60 Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 10 ft
Output Cable Length Up to 10 ft
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface (4) USB Type B
Output Interface (2) USB 1.1 Type A for KM Devices;
(2) USB 2.0 Type A Transparent
AUDIO
Input Interface
(4) 3.5mm stereo audio / (4) HDMI2.0
Output Interface
(1) 3.5mm stereo audio / (1) HDMI2.0
CONTROL
Front Panel Push Buttons with LED Indicators
RS-232 DB9 Female - 115200 N,8,1, No ow control
Hot Keys Via Keyboard
Mouse Mouse Roaming in Quad Mode
Web GUI Via LAN
OTHER
Power Adapter External 100-240 VAC/ 12VDC2A @ 24W
Dimensions 12.57” W x 1.76” H x 6.69” D
Weight 4.2 lbs
Approvals UL, CE, ROHS Compliant
Operating Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
