MADE IN USA
MXWALL-UHD
Installation
Manual
1 Introduction..............................................................................................................
2 Front Panel Control.................................................................................................
3 Rear Panel.................................................................................................................
4 RS232 Control..........................................................................................................
4.1 RS232 Connector....................................................................................................
5 MXWALL-UHD User Guide ..................................................................................
5.1 Connecting with the Web Page..........................................................
5.1.1 Connecting with the Web Page: Video Matrix...............
5.1.2 Connecting with the Web Page: TV Wall.........................
5.1.3 Connecting with the Web Page: Configuration.............
5.2 Connecting with the Software............................................................
5.2.1 Connecting with the Software: Account Creation and
Modification..........................................................................
5.2.2 Connecting with the Software: Ethernet Connection..
5.2.3 Connecting with the Software: RS232 Connection......
5.3 Using MXWALL-UHD...........................................................................
5.4 Navigating MXWALL-UHD..................................................................
6 Electrical parameters..............................................................................................
7 Package Contents...................................................................................................
 ξ˜ξ˜œξ˜›ξ˜ξ˜œ
2
2
3
4
4
5
5
6
6
7
8
8
8
9
9
10
13
14
2
MXWALL-UHD is a high-performance seamless UHD matrix switcher with 8x HDMI inputs and 8x
HDMI outputs. Audio extract or insert can also be enabled on this device. IR matrix routing on this
video matrix is followed with video routing. MXWALL-UHD support one or more video wall with
RS232 command
MXWALL-UHD key features support:
β€’ HDMI 2.0/HDCP 2.2
β€’ Seamless switching
β€’ Video Wall Configurations
β€’ IR matrix
β€’ HDMI audio extract
β€’ External LR audio insert on HDMI stream
β€’ EDID management
β€’ HDMI video output resolution up to 3840x2160@60
β€’ Front panel, RS232, and TCP/IP (LAN 10M/100M) control

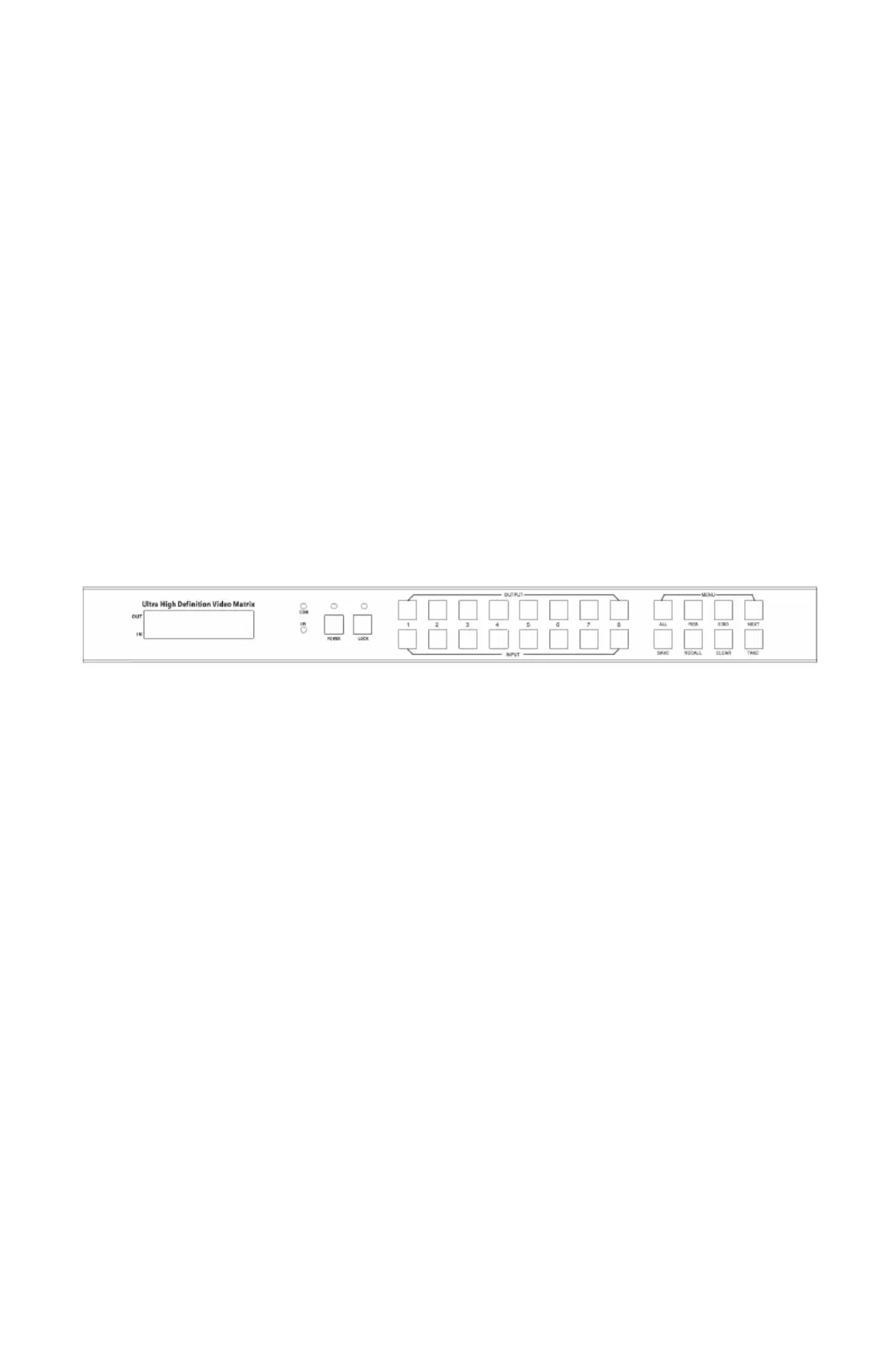

ξ˜šξ˜™ξ˜˜ ξ˜ξ˜œξ˜— ξ˜žξ˜–ξ˜•ξ˜Ÿξ˜œξ˜˜ 
β€’ Press buttons OUTPUT n + INPUT m + TAKE in this order to switch matrix input n and output m.
β€’ Press button POWER and hold for 5 seconds, this will put the matrix into standby mode.
Press button POWER and hold for 1 second to power on the matrix
β€’ Press button LOCK to lock or unlock front buttons. When locked, the LOCK LED will light up.
β€’ Press buttons ALL + INPUT m + TAKE in this order to switch all of the outputs to the specified
input m.
β€’ Press button SAVE + OUTPUT n + TAKE in this order to save the current β€œscene” as scene n.
The matrix can save up to 8 total scenes.
β€’ Press button RECALL + OUTPUT n + TAKE to load saved scene n.
β€’ Press button RES + OUTPUT n + NEXT + TAKE, to change output resolution of OUTPUT n
Resolution options:
AUTO:
3840x2160@60, 3840x2160@50, 3840x2160@30, 3840x2160@25,
1920x1200@60,1920x1080@60, 1920x1080@50, 1600x1200@60,
1400x1050@60, 1366x768@60,1360x768@60,1280x1024@60,
1280x768@60,1280x720@60, 1280x720@50, 1024x768@60
When select AUTO resolution, the output port will set the output resolution according to the
displayer prefer timing/resolution;
β€’ Press buttons EDID + INPUT m + NEXT + TAKE, change the EDID mode of port INPUT m
EDID option:
3840x2160@60, 3840x2160@30, 1920x1200@60, 1920x1080@60, 1280x1024@60,
1280x720@60, 1024x768@60
ξ˜”ξ˜™ξ˜“ξ˜— ξ˜žξ˜ξ˜œξ˜™ξ˜’ξ˜‘ξ˜ξ˜›ξ˜ξ˜™ξ˜Ÿξ˜žξ˜ξ˜œξ˜—ξ˜žξ˜
