Pagina 1/14

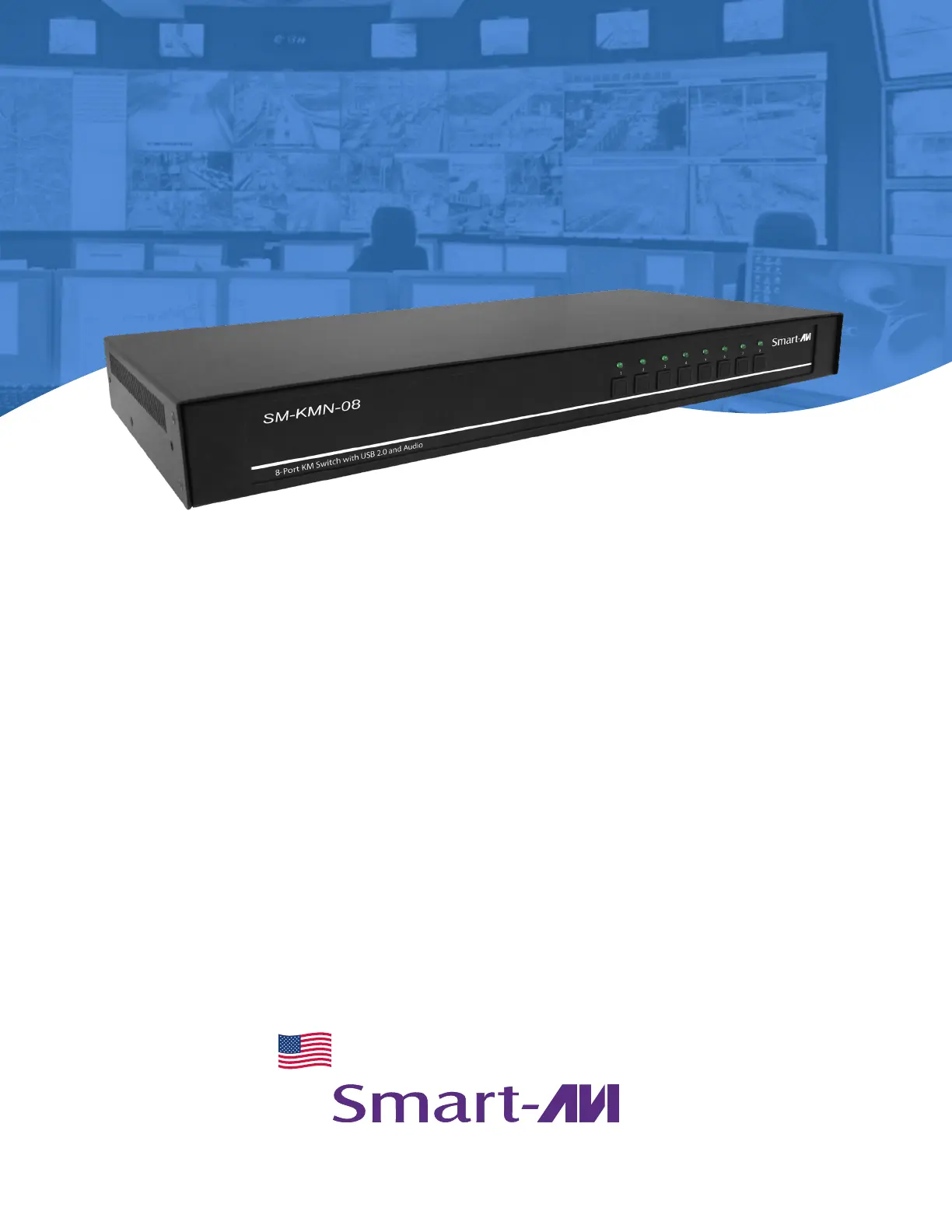

SM-KMN-08
8-Port KM Switch with AUDIO AND USB 2.0
USER MANUAL
Designed and Manufactured in the USA
1-888-994-7427
www.smartavi.com
8-Port KM Switch with USB 2.0 Support and Audio 2
OVERVIEW
TECHNICAL SPECIFICATIONS_________________________________________________________________
WHAT’S IN THE BOX?_________________________________________________________________________
FRONT AND BACK___________________________________________________________________________
INSTALLATION_______________________________________________________________________________
INITIAL SETUP________________________________________________________________________________
SCROLL WHEEL KM SWITCHING______________________________________________________________
HOTKEY COMMANDS________________________________________________________________________
DISPLAY TOPOLOGY CONFIGURATION_______________________________________________________
LIMIT INPUT PORTS CONFIGURATION________________________________________________________
SYSTEM OPERATION_________________________________________________________________________
FRONT PANEL CONTROL_____________________________________________________________________
HOTKEY AND RS232 SERIAL CONTROL_______________________________________________________
CUSTOM HOTKEY TRIGGERS_________________________________________________________________
LED’S BEHAVIOR______________________________________________________________________________
TROUBLESHOOTING_________________________________________________________________________
TECHNICAL SUPPORT________________________________________________________________________
LIMITED WARRANTY STATEMENT____________________________________________________________
3
4
4
5
6
6
6
7
8
9
9
9
10
10
11
11
12
8-Port KM Switch with USB 2.0 Support and Audio 3
Technical Specifications
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface (8) USB Type B
Output Interface (2) USB 1.1 Type A for KM Devices;
(2) USB 2.0 Type A Transparent
AUDIO
Input Interface (8) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
CONTROL
Front Panel Push Buîš‚ons with LED Indicators
RS-232 DB9 Female - 115200 N,8,1, No î™™ow control
Hot Keys Via Keyboard
OSD Via KM arrow keys
OTHER
Power Adapter External 100-240 VAC/ 12VDC2A @ 24W
Dimensions 17” W x 1.76” H x 8.69” D
Weight 6.3 lbs
Approvals UL, CE, ROHS Compliant
Operang Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
Humidity 5 to 90% (No Condensaîľžon)
Emulaîľžon Keyboard and Mouse
