VLC
1
INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 (UK: 0800-056-2853). We’re ready to help!
Scan for easy install video
http://san.us/1082
2
Para Español ver página 22
Drywall
with steel
studs?
Unsure?
Drywall
with wood
studs?
Solid concrete
or concrete
block?
Call Customer Service: 1-800-359-5520 (UK: 0800-056-2853)
Perfect! Perfect!
CAUTION:
DO NOT install
into drywall alone
Steel stud kit required (not included)
Does your TV
(including accessories)
weigh MORE than?
150 lbs.
(68 kg) 130 lbs.
(59 kg)
For walls
with
steel
studs.
For walls with
wood studs,
solid concrete
or concrete
block.
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS PLEASE READ ENTIRE MANUAL PRIOR TO USE
No
Perfect!
Yes
This mount is NOT compatible. Visit Sanus.com or call
1-800-359-5520 (UK: 0800-056-2853) to nd a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
Do you have
all the tools
needed?

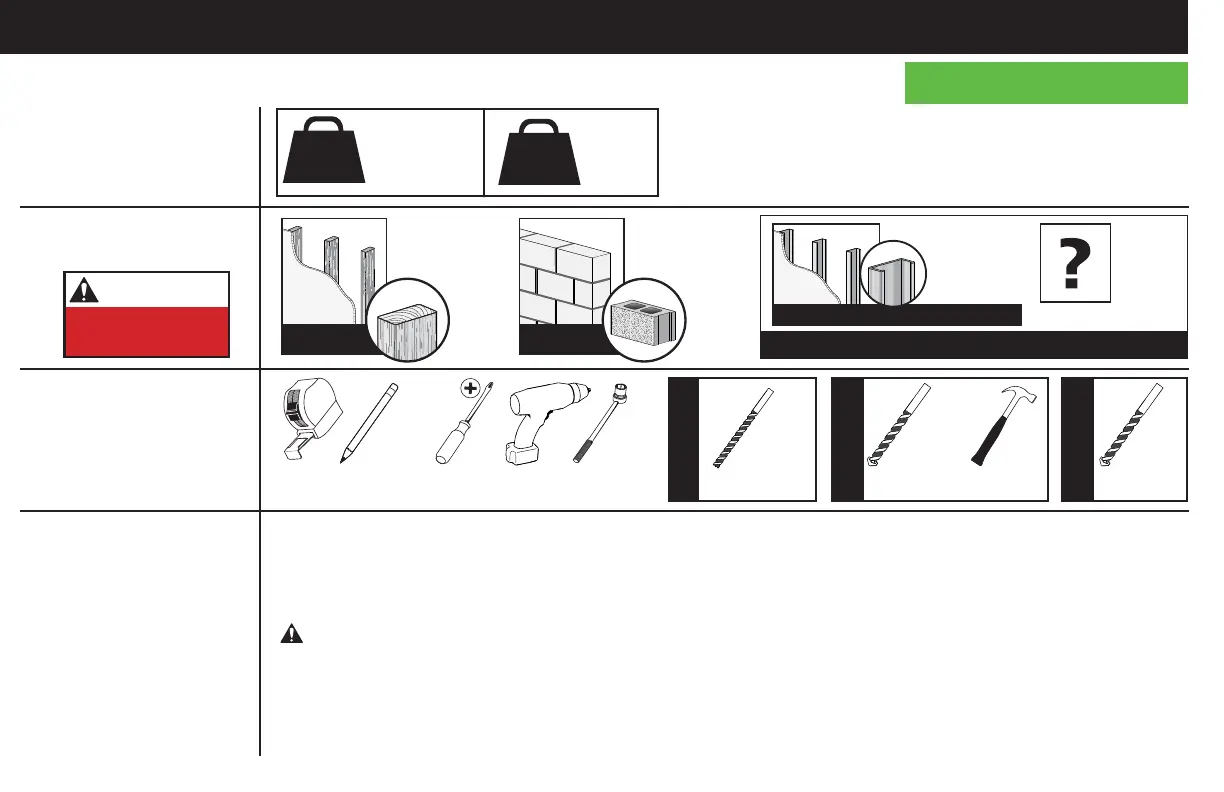

Before getting started, lets make sure this mount is perfect for you!
1
2
3
4
What is your
wall made of?
CAUTION: Avoid potential personal injuries and property damage!
This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls
DO NOT install into drywall alone.
The wall must be capable of supporting ve times the weight of the TV and mount combined.
Do not use this product for any purpose not explicitly speci ed by manufacturer.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Ready to
begin?
Wood Stud Install
Concrete Install
Steel Stud Install
Pencil Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit Drill Bit
3/8 in.
(10 mm)
Concrete
1/2 in.
(13 mm)
Steel
3
15.75
400.0
23.62
600.0
16.97
431.0
15.75
400.0
25.37
644.5
7.00
177.8
.33
8.4 16.00
406.4
24.00
609.6
17.72
450.0
8.00
203.2
8.86
225.0
23.62
600.0
12.00
304.8
11.81
300.0
26.30
668.0
5.55
141.0
9.50
241.3
30.00
762.0
2.68
68.0
2.31
58.8
1" POST INSTALLATION
HEIGHT ADJUSTMENT
1
1
TV INTERFACE
WALL PLATE
WALL PLATE OPENING
TOP VIEW - DEPTH
SIDE VIEW - HEIGHT ADJUSTMENT
SWIVEL RANGE
3-D
Dimensions (in. [mm])


Product specificaties

Merk: Sanus
Categorie: Niet gecategoriseerd
Model: VLC1
Kleur van het product: Zwart
Gewicht: 5030 g
Breedte: 762 mm
Diepte: 681 mm
Hoogte: 508 mm
Gewicht verpakking: 6800 g
Breedte verpakking: 469.9 mm
Diepte verpakking: 829.8 mm
Hoogte verpakking: 92.7 mm
Materiaal behuizing: Metaal
In hoogte verstelbaar: Ja
Montage gereedschap: Ja
Montagewijze: Muur
Maximale gewichtscapaciteit: 68 kg
Paneelmontage-interface: - mm
Horizontaal draaibaar: -10 - 10 °
Inclusief schroeven: Ja
Aantal displays ondersteund: 1
Maximale schermgrootte: 88 "
Minimale schermgrootte: 40 "
Hoogte verstelbaarheidsbereik: - mm
