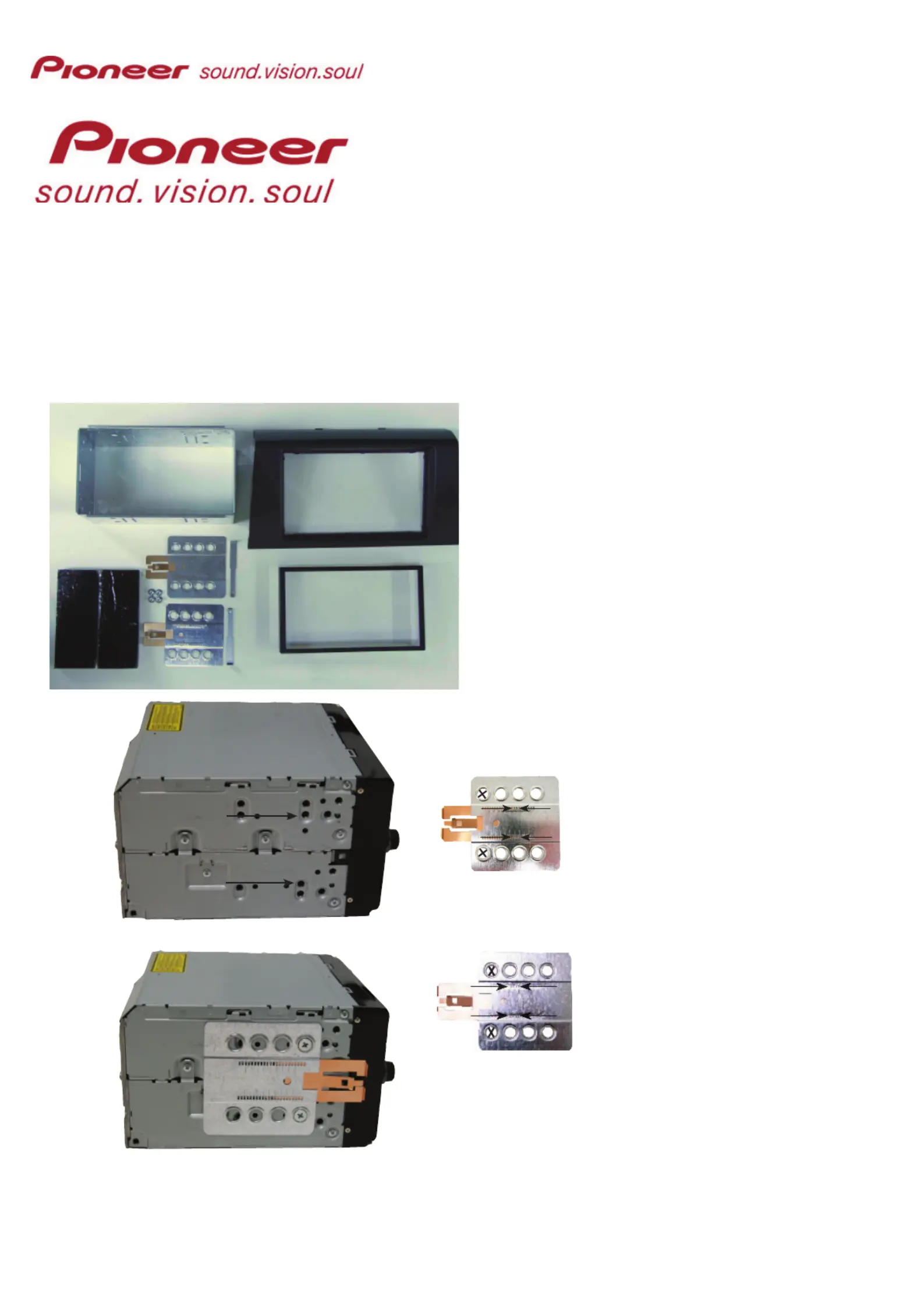

Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Replacement frame
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Cushion
Installation manual for:
Opel various models
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 12 & 14 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 10 & 12 marked with an arrow
Measured from left to right.
2-DIN 12.301232-01/
12.301232-18
Remove the original radio unit using
Philips radio keys at the location of the
arrows.
Place the replacement panel and the
2-Din met bracket.
Remove the original radio bracket. This is
tighten by a screw at the location of the
arrow. ( The screw might be at a other
location in other models)
Connect all of the needed wiring harnesses and check the connections carefully.
1 2
3

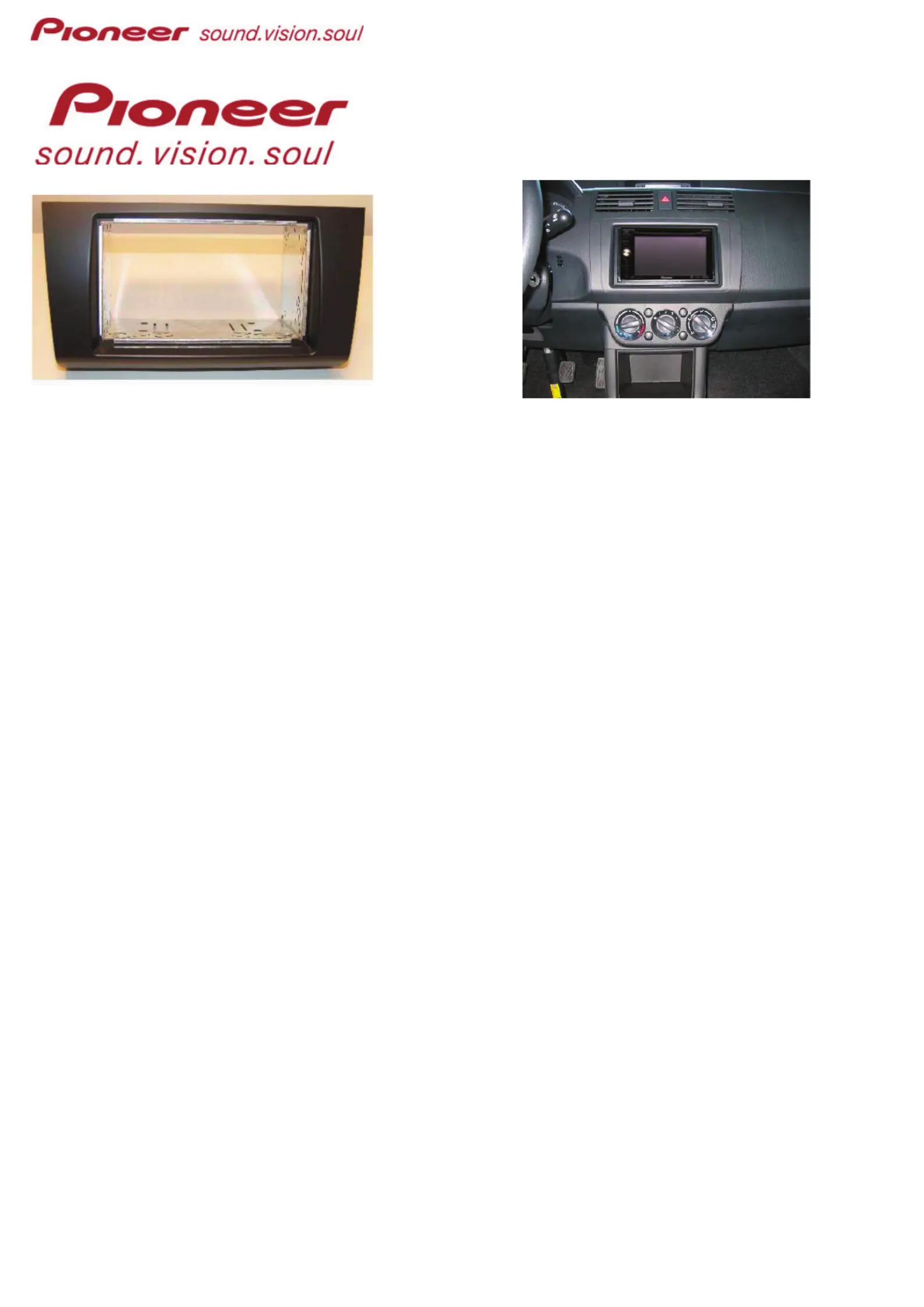

Place the head unit and radio trim.
4
Opel Agila 2004 --> Black 12.301232-13
Opel Agila/ Corsa /Astra--> 2004 Black 12.301232-01
Opel Antara 2007 --> Black 12.301232-18
Opel Astra 2004 --> Antracite 12.301232-05
Opel Astra 2004 --> Black 12.301232-06
Opel Astra 2004 --> Silver 12.301232-04
Opel Astra 2006 --> Beige 12.301232-17
Opel Corsa 2006 --> Beige 12.301232-14
Opel Corsa 2006 --> Silver 12.301232-15
Opel Corsa 2006 --> Black 12.301232-16
Opel Corsa C/Corsa C Combi 2003 --> Silver 12.301232-03
Opel Meriva/ Tigra 2003 --> Silver 12.301232-03
Opel Vectra C+CW/ Signum 2005 --> Silver 12.301232-07
Opel Vectra C+CW/ Signum 2005 --> Antracite12.301232-08
Opel Vectra C+CW/ Signum 2005 --> Black 12.301232-09
Opel Vectra/ Signum 2003 --> 2005 Antracite12.301232-02
Opel Vivaro/ Vectra --> 2003 Black 12.301232-01
Opel Zafi ra 2005 --> Silver 12.301232-10
Opel Zafi ra 2005 --> Antracite12.301232-11
Opel Zafi ra 2005 --> Black 12.301232-12
