2-DIN 12.301214-11

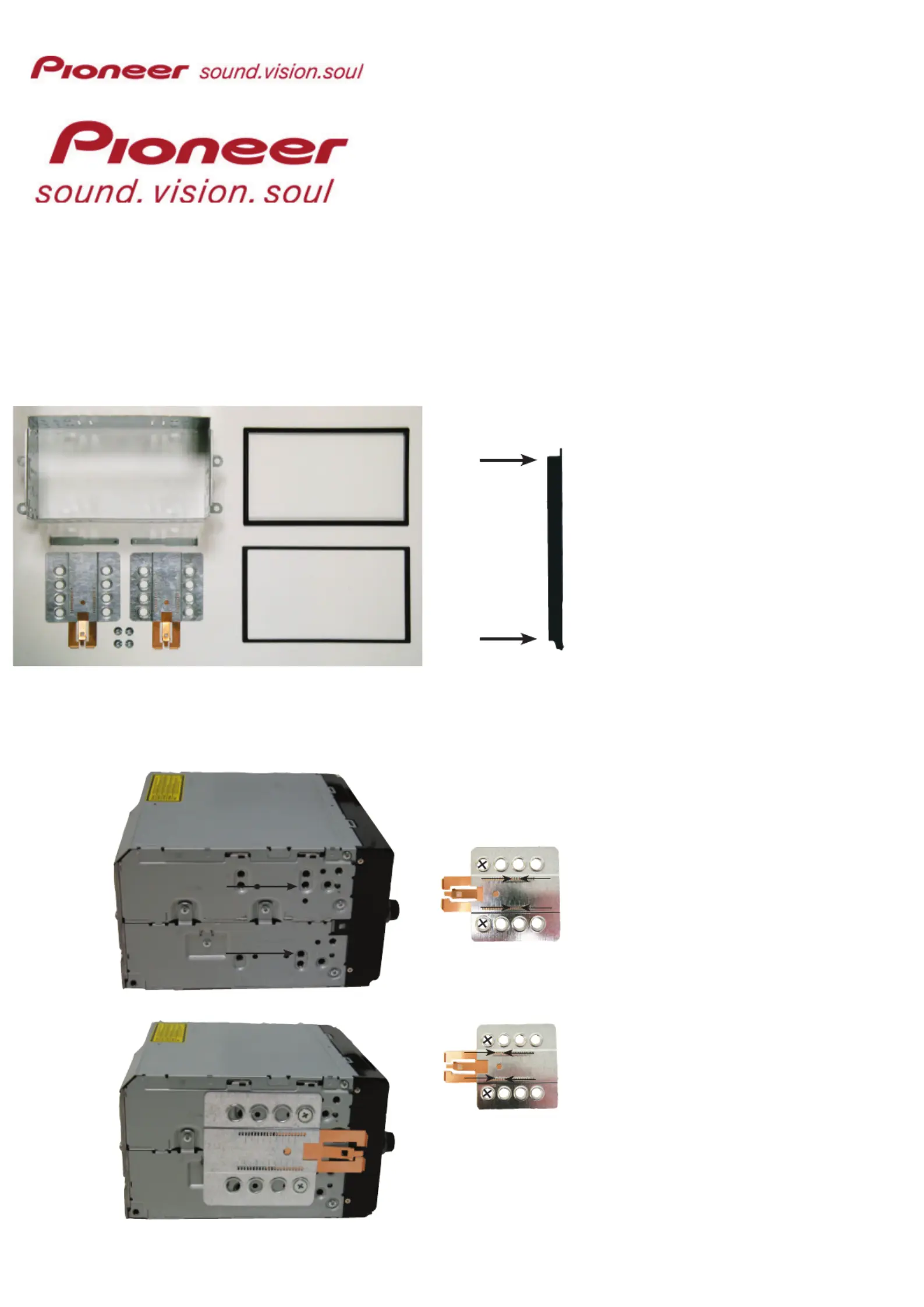

Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Radio trim compatible for D3 (thick trim)
* 1X Radio trim compatible for HD1BT (thin trim)
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Radio removal keys
Installation manual for:
Nissan Qashqai 2007 -->
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 7 & 9 marked with an arrow
Measured from left to right.
Front
Front
2-DIN 12.301214-11

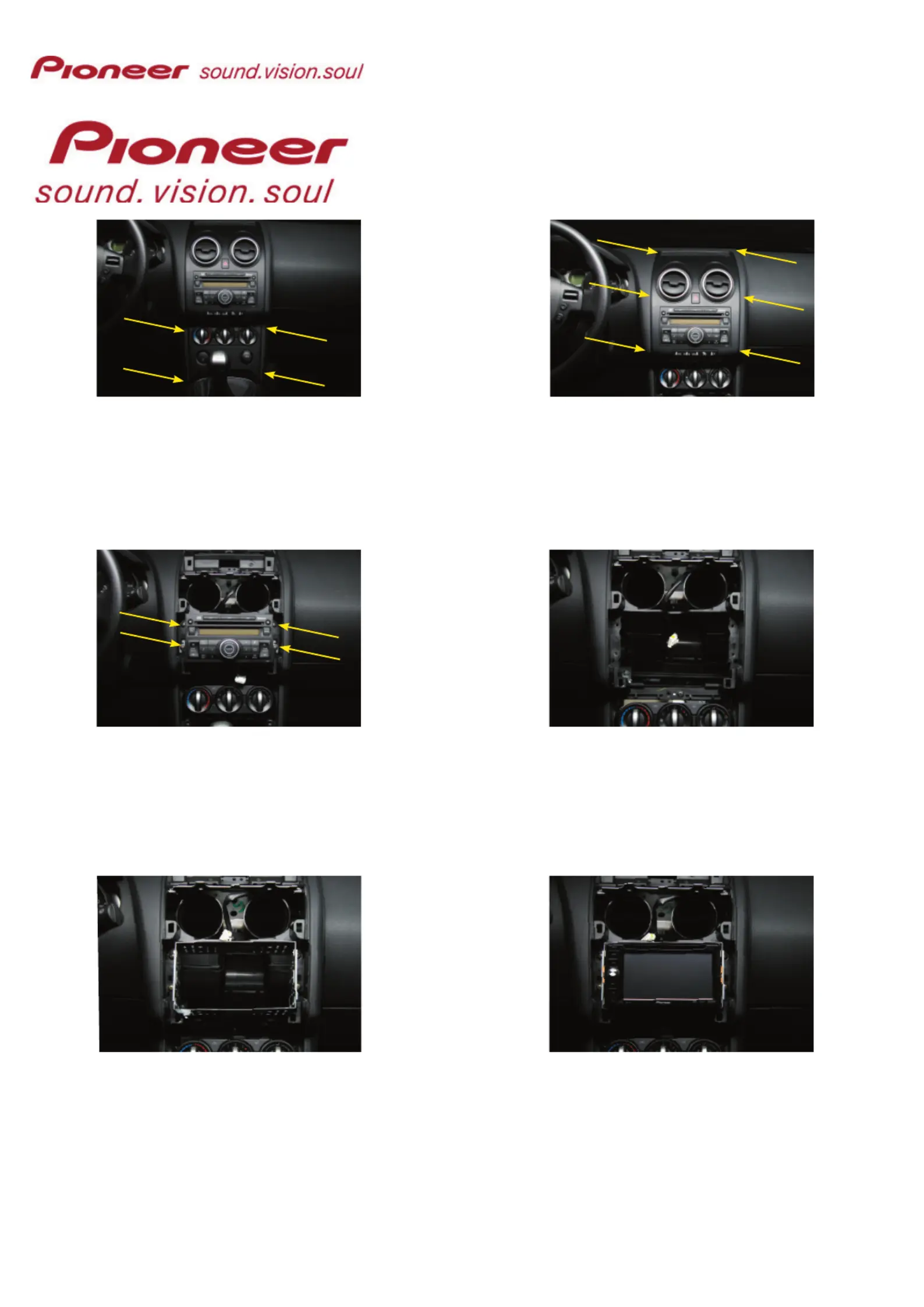

Remove the dashboard panel at the loca-
tion of the arrows.
Remove the four screws at the location of
the arrows. Remove the radio.
Remove the dashboard panel at the loca-
tion of the arrows.
Connect all of the needed wiring harnesses and check the connections carefully.
1 2
3 4
Place the 2-Din metal bracket.
5
Place the headunit.
6
2-DIN 12.301214-11

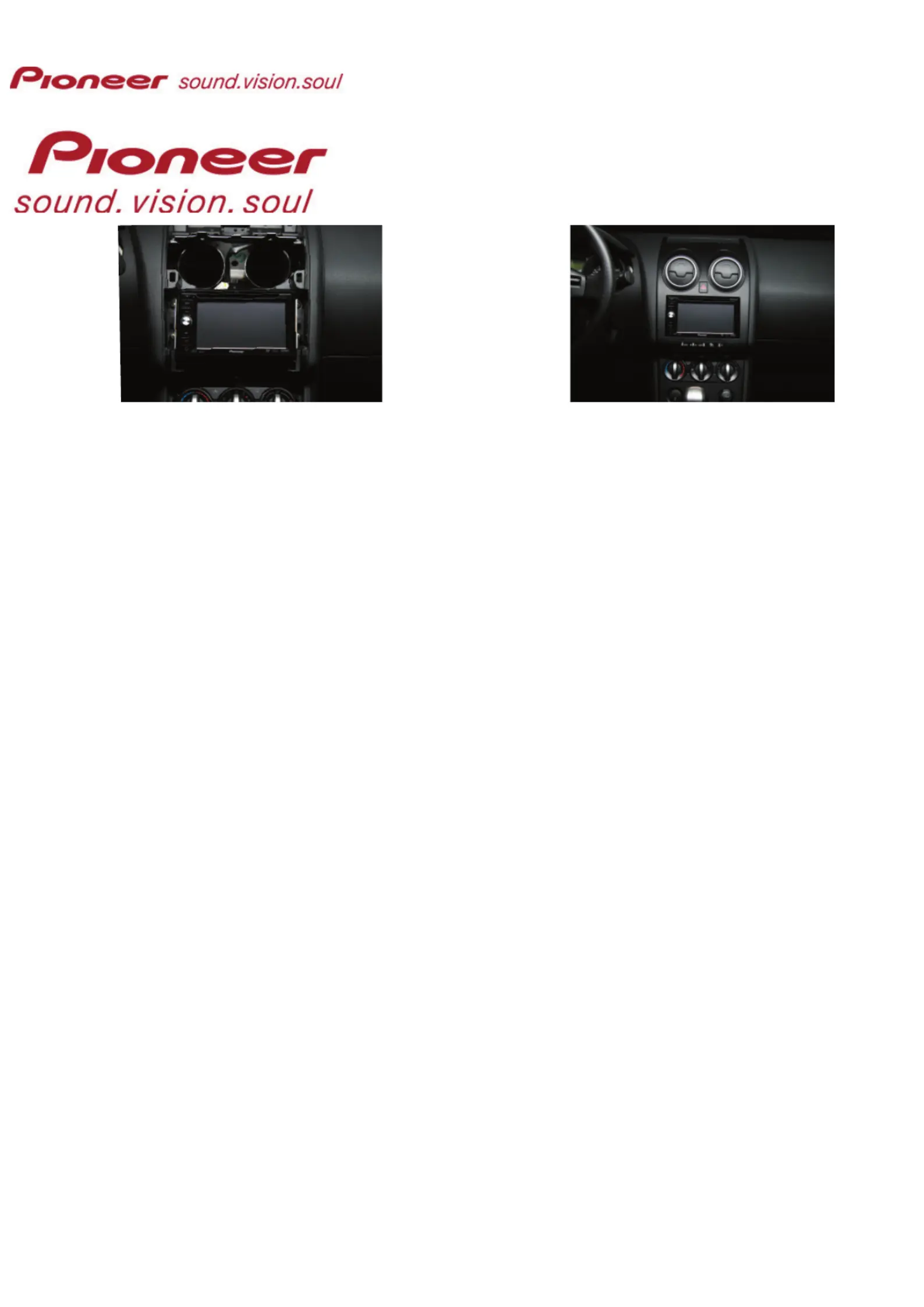

Place the radio trim.
7
Replace all dashboard panels.
8
