HEAT GUN

2000W

ORIGINAL INSTRUCTIONS

SPECIFICATIONS

Power: 2000W

Input: 220-240V~50Hz

Air temperature / ﬂow: 450°C - 250L/min (Setting 1)

600°C - 500L/min (Setting 2)

Protection Class: II

Weight: 0.88kg

STANDARD EQUIPMENT

Heat Gun

Nozzles x 4

DESCRIPTION OF SYMBOLS

• Ensure that the ON/OFF switch is set to “0” (OFF) before you insert the plug into the socket.

• The nozzle reaches temperatures of up to 600°C. Fire hazard! Wear protective gloves

and eye wear. The nozzle should not be touched during operation.

• Allow the hot air pistol to completely cool before putting away.

• Never expose the unit to rain or moisture. Store the unit in a dry place.

• Do not leave the unit unattended. Keep out of reach of children.

• Never direct the air ow at people or animals. Do not use the unit to dry clothing or

hair. Do not use the hot air blower as a hair dryer.

• Do not use the unit near easily ammable or explosive substances or gasses.

• Never block the hot air ow by plugging or covering the air ow exit.

• Use only original accessory and replacement parts from the manufacturer.

• Do not wear loose clothing or jewelry. Wear slipresistant shoes and wear a hair net for long

hair. During operation maintain a secure footing.

• Never use the unit in wet surroundings or in areas with high humidity (bathroom, sauna, etc.).

• Check your work area for easily ammable substances and materials before using the hot air

pistol. Never carry the hot air pistol by the power supply cord.

• Only use extension cords with a minimum cross section area of 1.5mm

2 .

• Repairs (for example power supply cord replacement) should be performed only by a

qualied electrician.

• Do not use chemical paint removers or solvents at the same time as the hot air pistol.

• Clean the nozzle when soiled.

• Be sure that the openings for air entry and exit are always clean and free of dirt.

• Hazardous or poisonous gasses can be freed when removing paint. Be sure to provide

adequate ventilation while working indoors.

• Never point the hot air directly at windows or other glass surfaces.

• This equipment is not designed to be used by people (including children) with limited

physical, sensory or mental capacities or those with no experience and/or knowledge unless

they are supervised by a person who is responsible for their safety or they have received

instructions from such a person in how to use the equipment safely. Children must always be

supervised in order to ensure that they do not play with the equipment.

• Fires can be caused if the appliance is not handled carefully and correctly.

• Take care when using the appliance near inammable substances. Do not aim the pistol at

the same point for a long time.

• Do not use in explosive atmospheres.

• Warmth may be carried to inammable materials which are concealed.

• After use, let the appliance cool on the stand before it is put away.

• Do not leave the appliance unsupervised when it is in operation.

ozito-diy.co.uk

Scrapers x 2

ELECTRICAL SAFETY

HEAT GUN SAFETY WARNINGS

WARRANTY

OZITO UK Champion’s Business Park, Unit 10, 1st Floor, Arrowe Brook Road, Upton, Wirral, Merseyside, CH49 0AB 0418

All of our products undergo strict quality checks to ensure that they reach

you in perfect condition. In the unlikely event that your device develops a

fault, please contact our service department at the address shown on this

guarantee card. You can also contact us by telephone using the customer

service number shown. Please note the following terms under which

guarantee claims can be made:

1. These warranty terms regulate additional warranty services, which the

manufacturer mentioned below promises to buyers of its new products

in addition to their statutory guarantee claims are not affected by this

guarantee. Our guarantee is free of charge to you.

2. The warranty services only covers defects due to material or

manufacturing faults on a product which you have bought from the

manufacturer mentioned below are limited to either the rectication of said

defects on the product or the replacement of the product, whichever we

prefer.

Please note that our devices are not designed for use in commercial, trade

or professional applications. A guarantee contract will not be created if the

device has been used by commercial, trade or industrial business or has

been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly

instructions or due to incorrect installation, a failure to follow the operating

instructions (for example connecting it to an incorrect mains voltage or

current type) or a failure to follow the maintenance and safety instructions

or by exposing the device to abnormal environmental conditions or by lack

of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example

overloading the device or the use or unapproved tools or accessories),

ingress of foreign bodies into the device (such as sand, stones or dust,

transport damage), the use of force or damage caused by external forces

(for example by dropping it).

- Damage to the device or parts of the device caused by normal or natural

wear or tear or by normal use of the device.

4. Your Product is guaranteed for a period of 36 months from the original

date of purchase and is intended for DIY (Do It Yourself) use only. Lithium

Ion batteries and chargers are covered by a 12 month warranty. Warranty

excludes consumable parts. Guarantee claims should be submitted

before the end of the guarantee period within two weeks of the defect

being noticed. No guarantee claims will be accepted after the end of the

guarantee period. The original guarantee period remains applicable to the

device even if repairs are carried out or parts are replaced. In such cases,

the work performed or parts tted will not result in an extension of the

guarantee period, and no new guarantee will become active for the work

performed or parts tted. This also applies if an on-site service is used.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST

RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR

Please refer to the restrictions of this warranty concerning wearing parts,

consumables and missing parts as set out in the service information in

these operating instructions.

CUSTOMER SERVICE HELPLINE

GB: 0151 294 4488

IRL: 1850 882711

Ozito-diy.co.uk

WARNING! When using mains-powered tools, basic safety precautions, including the

following, should always be followed to reduce risk of re, electric shock, personal injury and

material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before

operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical

to the mains data.

This tool is double insulated therefore no earth wire is required.

This tool is recommended for the use with a residual current device with a rated residual current of 30mA or less.

If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available

through the service organization.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The

insulation system is for added protection against injury resulting from a possible electrical insulation failure within

the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the

extension lead for signs of damage, w ear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not

suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric

shock.

HGN-2000U

Art.-No.: 30.001.79 I.-No.: 11017

Danger! Read the operating instructions to reduce the risk of

inquiry.

The nozzle outlet must be kept a minimum distance of 7 cm

from the workpiece you are working on or the accumulating

air may cause damage to the equipment.

Double insulated / Protection class II

7 cm

MAINTENANCE TROUBLESHOOTING

SPARE PARTS

Spare parts can be ordered from the Special Orders

Desk at your local Bunnings Warehouse or Homebase

store.

For further information, or any parts visit

www.ozito-diy.co.uk or contact Ozito Customer Service:

Great Britain: 0151 294 4488

Ireland: 1850 882711

E-mail: info@ozito-diy.co.uk

SERVICE INFORMATION

Please note that the following parts of this product are subject to normal

or natural wear and that the following parts are therefore also required

for use as consumables.

* Not necessarily included in the scope of delivery!

Category Example

Wear parts*

Consumables* Nozzles

Missing parts

Problem Cause Solution

The does not heat up No supply voltage Check the supply

voltage, the power

plug and the socket-

outlet.

The heat gun is

melting or burning the

material

Heat setting too high or

distance between the

nozzle and material is

too short

Use the low

temperature setting

and increase the

distance from the

material.

WARNING! ENSURE THE TOOL IS DISCONNECTED

AND ALLOWED TO COOL DOWN BEFORE

PERFORMING ANY MAINTENANCE.

• Keep the ventilation vents of the heat gun clean at all times, if possible, prevent

foreign matter from entering the vents.

• After each use, blow air through the heat gun housing to ensure it is free from all

dust particles which may build up. Build up of dust particles may cause the heat

gun to overheat and fail.

• If the enclosure of the heat gun requires cleaning, do not use solvents but a

moist soft cloth only. Never let any liquid get inside the heat gun; never immerse

any part of the heat gun into a liquid.

DECLARATION OF CONFORMITY

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric

and electronic equipment and its implementation in national laws, old

electric power tools have to be separated from other waste and disposed

of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the

owner of the electrical equipment must make sure that the equipment is

properly disposed of if p1-he no longer wants to keep the equipment. The old

equipment can be returned to a suitable collection point that will dispose

of the equipment in accordance with the national recycling and waste

disposal regulations. This does not apply to any accessories or aids

without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of

documentation and papers accompanying products is permitted only with

the express consent of the iSC GmbH.

Subject to technical changes

GENERAL POWER TOOL SAFETY WARNINGS

Yang/Product-ManagementWeichselgartner/General-Manager

explains the following conformity according to EU directives and norms for

the following product

Heat Gun HGN-2000U (Ozito)

2014/29/EU

2005/32/EC_2009/125/EC

X 2014/35/EU

2006/28/EC

X 2014/30/EU

2014/32/EU

2014/53/EC

2014/68/EU

90/396/EC_2009/142/EC

89/686/EC_96/58/EC

X 2011/65/EU

2006/42/EC

Annex IV

Noti ed Body:

Noti ed Body No.:

Reg. No.:

2000/14/EC_2005/88/EC

Annex V

Annex VI

Noise: measured L

WA = dB (A); guaranteed L

WA = dB (A)

P = KW; L/Ø = cm

Noti ed Body:

2012/46/EU

Emission No.:

Standard references: EN 60335-1; EN 60335-2-45; EN 62233;

EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Landau/Isar, den 11.04.2018

First CE: 18 Archive-File/Record: NAPR018137

Art.-No.: 30.001.79 I.-No.: 11017 Alex KurzDocuments registrar:

Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar

ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar

CAUTION: Read all safety regulations and instructions. Any failures made in following the

safety regulations and instructions may result in an electric shock, re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

The term “electric tool” used in the safety instructions refers to electric tools operated from the mains power

supply (with a power cable) and to battery operated electric tools (without a power cable).

1. Workplace safety

a) Keep your work area clean and well illuminated. Untidy or unlit work areas can result

in accidents.

b) Do not operate the electric tool in an environment where there is a risk of explosions and where

there are inammable liquids, gases or dust. Electric tools produce sparks which could set the dust or

vapours alight.

c) Keep the electric tool out of the reach of children and other persons. If there is a distraction, you may

lose control of the appliance.

2. Electrical safety

a) The connector plug from this electric tool must t into the socket. The plug should never be altered

in any way. Never use adapter plugs together with earthed electric tools. Unaltered plugs and correct

sockets reduce the risk of an electric shock.

b) Avoid bodily contact with earthed surfaces such as pipes, heating, ovens and fridges. The risk of

electric shock is increased if your body is earthed.

c) Keep the tool out of the rain and away from moisture. The ingress of water into an electric tool

increases the risk of an electric shock.

d) Do not use the cable to carry the electric tool, to hang it up or to pull it out of the socket. Keep

the cable away from heat, oil, sharp edges and moving parts of the appliance. Damaged or entangled

cables increase the risk of an electric shock.

e) If you are working outdoors with an electric tool, only use extension cables which are designed

specically for this purpose. Using specially designed outdoor extension cables, the risk of electric shock

is reduced.

f) If operation of the electric tool in a damp environment can not be avoided, use a earthleakage

circuit-breaker. The earth-leakage circuit-breaker reduces the risk of an electric shock.

3. Safety of persons

a) Be careful, watch what you are doing and use an electric tool sensibly. Do not use the tool if you

are tired or under the inuence of drugs, alcohol or medication. A moment of inattention when using the

electric tool can result in serious injuries.

b) Wear personal protection equipment and always wear safety goggles. Wearing personal protection

(such as dust masks, non-slip safety shoes, safety helmet or ear protection, depending upon the type and

use of the electric tool) reduces the risk of injury.

c) Make sure that the appliance cannot start up accidentally. Ensure that the electric tool is switched

off before you connect it to the power supply and/or insert the battery, or pick up or carry the tool. If

your nger is on the switch whilst carrying the electric tool or if you connect the appliance to the mains when

it is switched on, this can lead to accidents.

d) Remove keys and wrenches before switching on the electric tool. A tool or key which comes into

contact with rotating parts of the appliance can lead to injuries.

e) Avoid abnormal working postures. Make sure you stand squarely and keep your balance at all

times. In this way, you can control the electric tool better in unexpected circumstances.

f) Wear suitable work clothes. Do not wear loose clothing or jewellery. Keep hair, clothes and gloves

away from moving parts. Loose clothing, jewellery or long hair can get trapped in moving parts.

g) If vacuuming devices and draining devices can be tted, make sure that these are correctly

attached and correctly used. The use of a dust extraction system can reduce the danger posed by dust.

4. Usage and treatment of the electric tool

a) Do not overload the appliance. Use the correct tool for your work. You will be able to work better and

more safely within the given performance boundaries.

b) Do not use an electric tool with a defective switch. An electric tool that cannot be switched on or off is

dangerous and must be repaired.

c) Pull the plug out of the socket and/or remove the battery before making any adjustments to the

appliance, changing accessories or put the appliance down. This safety measure prevents starting the

electric tool unintentionally.

d) Keep unused electric tools out of the reach of children. Do not allow people who are not familiar

with the appliance or who have not read these instructions to use the appliance. Electric tools are

dangerous if they are used by inexperienced people.

e) Clean your electric tool carefully. Check whether moving parts are functioning properly and not

jamming, whether parts are broken or damaged enough that the functioning of this electric tool is

affected. Have damaged parts repaired before using the appliance. Many accidents are caused by badly

maintained electric tools.

f) Keep your cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges will

jam less and are easier to control.

g) Make sure to use electric tools, accessories, attachments, etc. in accordance with these

instructions. Take the conditions in your work area and the job in hand into account. Using electric

tools for any purpose other than the one for which they are intended can lead to dangerous situations.

5. Service

a) Have your electric tool repaired only by trained personnel using only genuine spare parts. This will

ensure that your electric tool remains safe to use.

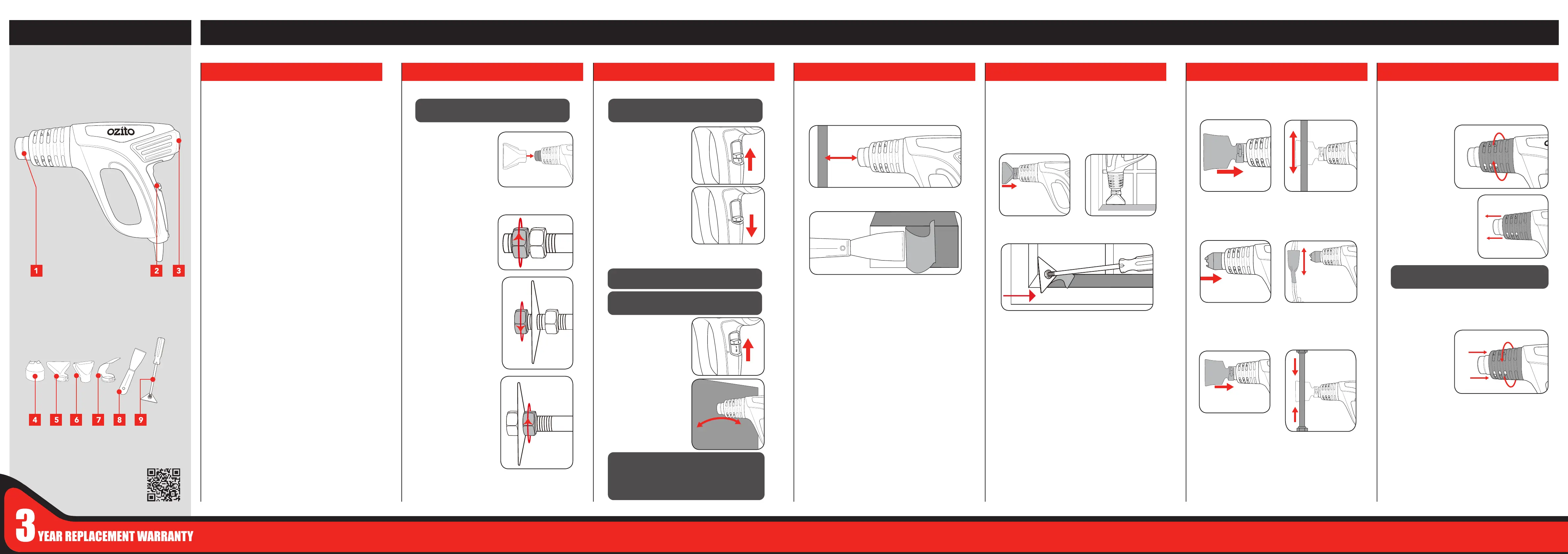

ONLINE MANUAL

Scan this QR Code with your

mobile device to take you to

the online manual.

KNOW YOUR PRODUCT OPERATION

1 Heating Element

2 On/Off Switch with 2

Settings

3 Flat Base Stand

4 Cone Nozzle

5 Glass Protector Nozzle

6 Fish Tail Nozzle

7 Reector Nozzle

8 Scraper

9 Corner Scraper

1. BEFORE USE 2. ASSEMBLY 3. CONTROLS AND OPERATION 4.

APPLICATIONS

5. APPLICATIONS CONT.

1. Push the open end of the

nozzle onto the heat gun.

1. Slide the on/off switch up

one position for fan setting

1 or up two positions for

fan setting 2.

1. Position nozzle 10cm from surface. Work the heat gun from side

to side until the paint blisters.

2. Use the scraper to remove the softened paint.

1. Fit the reector nozzle and

rest the heat gun on its stand.

2. Heat the tubing evenly by

moving from side to side.

2. Point the heat gun to the

work surface, then turn on

by selecting a fan setting.

1. Select the appropriate

heat setting.

1. Unscrew and remove the

rst nut on the scraper

handle.

WARNING: THIS TOOL IS DESIGNED FOR INDOOR USE

ONLY. USING THIS TOOL FOR PROLONGED PERIODS

MAY CAUSE IT TO OVERHEAT AND MALFUNCTION. TO

ENSURE THE TOOL DOES NOT OVERHEAT, FREQUENT

BREAKS ARE SUGGESTED TO ALLOW THE TOLL TO

COOL DOWN.

ACCESSORIES

SETUP & PREPARATION

On/Off Mode Switch

Fitting Nozzles

Scraper

2. Place the scraper blade

onto the handle and then

replace and tighten the rst

nut.

3. Tighten the second nut

until the scraper blade is

rmly secured between the

two nuts.

Paint Removal / Dissolving Adhesives

2. Lower switch to “0” to

turn off.

Note: Do not keep the heat gun pointed at one place or overheat

the paint as this may burn the paint, making it more difcult to

remove.

Paint Removal on Windows

1. Fit the glass protector

nozzle.

2. Heat the surface until the

paint blisters.

2. Remove paint with the corner scraper.

Shaping Plastic Tubing

Shrink Fitting

1. Fit the cone nozzle. 2. Cover the workpiece with a

heat-shrinkable sleeve and

heat evenly.

Defrosting Water Pipes

1. Fit the reector nozzle. 2. Heat frozen area inwards,

from the edge to the centre.

10cm

HEAT GUN

3. Keep the heat gun

consistently moving to

avoid having it pointed at

the one place for more

than 5 seconds.

Operating The Heat Gun

CAUTION: THE TOOL IS RECOMMENDED FOR USE WITH

A RESIDUAL CURRENT DEVICE WITH A RATED RESIDUAL

CURRENT OF 30mA OR LESS.

WARNING: ALLOW THE DEVICE TO COOL DOWN

BEFORE YOU CHANGE THE NOZZLE.

NOTE: ENSURE THE HEAT GUN IS IN THE OFF POSITION

‘0’ BEFORE CONNECTING TO A POWER SUPPLY

NOTICE: AFTER YOU USE THE EQUIPMENT FOR THE

FIRST TIME, SOME SMOKE MAY ESCAPE FROM IT. THIS

IS NORMAL.

Items Supplied

Please check that the article is complete as specied in the scope

of delivery. If parts are missing, please contact our service center or

the sales outlet where you made your purchase at the latest within

5 working days after purchasing the product and upon presentation

of a valid bill of purchase. Also, refer to the warranty table in the

service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.

• Remove the packaging material and any packaging and/or

transportation braces (if available).

• Check to see if all items are supplied.

• Inspect the equipment and accessories for transport damage.

• If possible, please keep the packaging until the end of the

guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let

children play with plastic bags, foils or small parts. There is a

danger of swallowing or suffocating!

Proper Use

The heat gun is designed for heating shrink-t hoses, for removing

paint and for welding and shaping plastics.

The equipment is to be used only for its prescribed purpose. Any

other use is deemed to be a case of misuse. The user / operator

and not the manufacturer will be liable for any damage or injuries of

any kind caused as a result of this.

Please note that our equipment has not been designed for use in

commercial, trade or industrial applications. Our warranty will be

voided if the machine is used in commercial, trade or industrial

businesses or for equivalent purposes.

HGN-2000U

6. APPLICATIONS CONT. 7. HOOD REMOVAL

It is possible to remove the hood at the front of the heat gun to

allow you to work in conned areas.

Removing the Front Hood

Attaching the Front Hood

2. Remove the hood from the

front of the heat gun.

1. Unlock the front

hood by rotating it

anti-clockwise.

1. Insert the hood over

the front nozzle and

then lock the into

position by rotating

clockwise.

HAZARD! NOTE THAT THERE IS AN INCREASED RISK OF

FIRE AND BURNS.

Product specificaties

Merk:	Ozito
Categorie:	Niet gecategoriseerd
Model:	WPHGK-2000U

Heb je hulp nodig?

Als je hulp nodig hebt met Ozito WPHGK-2000U stel dan hieronder een vraag en andere gebruikers zullen je antwoorden

Uw naam*

Jouw email*

Schrijf hier uw vraag

Handleiding Niet gecategoriseerd Ozito

Ozito PXLEK-1840 Handleiding

2 November 2024

Ozito PXPPS-1820 Handleiding

8 April 2024

Ozito PXNGS-218 Handleiding

8 April 2024

Ozito PXHTBK-2518 Handleiding

8 April 2024

Ozito PSR-5732U Handleiding

16 Maart 2024

Ozito PXCLMLTC-418U Handleiding

16 Maart 2024

Ozito PXWBS-200U Handleiding

16 Maart 2024

Ozito PXDDK-301U Handleiding

16 Maart 2024

Ozito PXCPPS-018U Handleiding

16 Maart 2024

Ozito WPHGK-2000U Handleiding

16 Maart 2024

Handleiding Niet gecategoriseerd

Nieuwste handleidingen voor Niet gecategoriseerd

Cherry SmartTerminal ST-2100 Handleiding

24 November 2024

GoGEN DRZAKTILTM Handleiding

24 November 2024

GolfBuddy GB LASER 1 Handleiding

24 November 2024

GoGEN DRZAKOLEDFM Handleiding

24 November 2024

Cambridge Alva Duo Handleiding

24 November 2024

GoGEN DRZAKTILTXL Handleiding

24 November 2024

GoGEN DRZAKOLEDTM Handleiding

24 November 2024

GoGEN DRZAKSBM Handleiding

24 November 2024

GoGEN DRZAKTILTL Handleiding

24 November 2024

GoGEN DRZAKSBL Handleiding

24 November 2024
