MetroVac DataVac ED-500-ESDV Handleiding

MetroVac Stofzuiger DataVac ED-500-ESDV

Lees hieronder de 📖 handleiding in het Nederlandse voor MetroVac DataVac ED-500-ESDV (4 pagina's) in de categorie Stofzuiger. Deze handleiding was nuttig voor 4 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld

Download PDF
Pagina 1/4
DATAVAC ELECTRIC DUSTER SERIES
ALL MODELS ARE: Sturdy All Steel Baked Enamel Finish; Motor: .75 Peak HP Motor; 4.0 Amps; 500
Watts; 12 Ft. 2 Conductor.
Different models and what they come with:

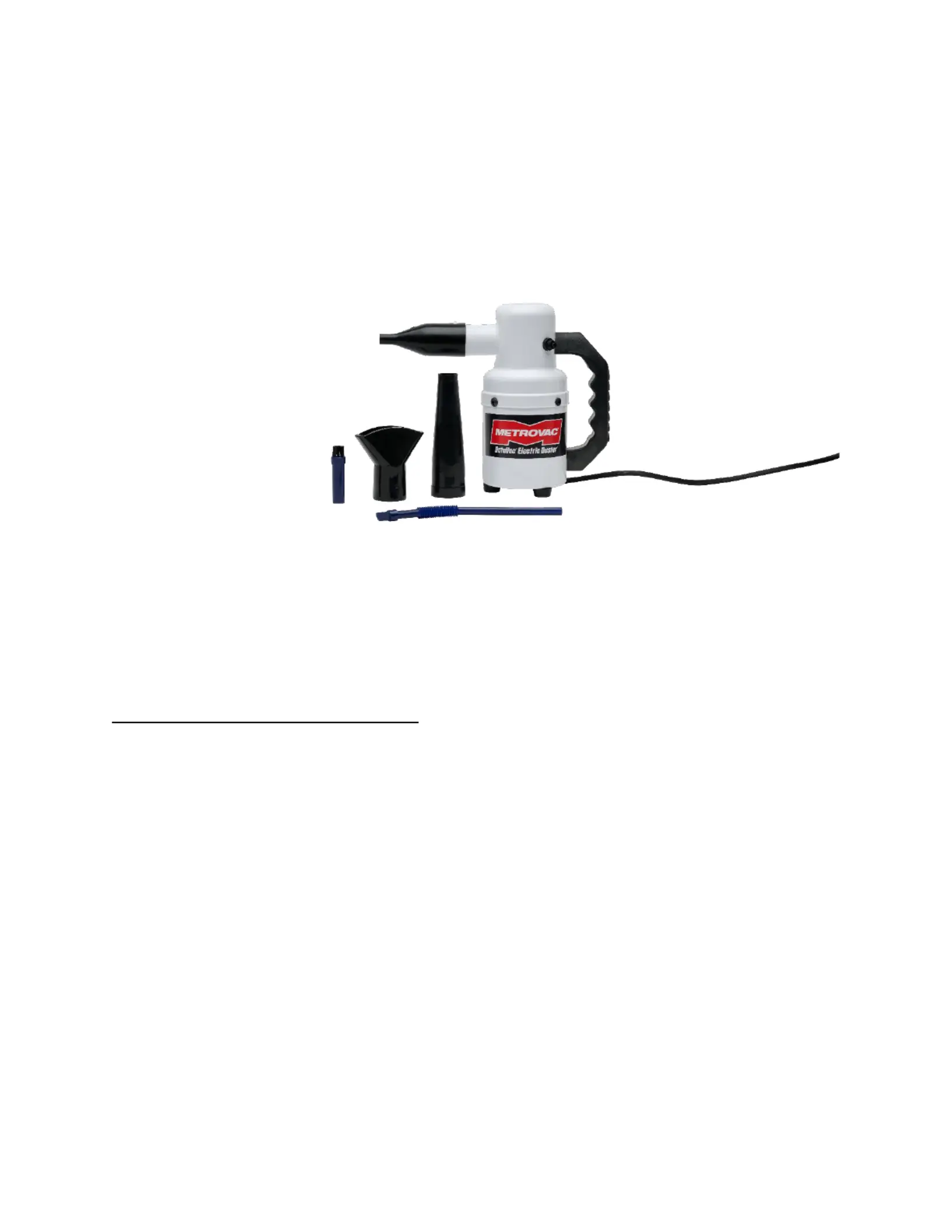

ED-500 (117-117308) / ED-500P (117-117599 plain carton): 1 speed; Air Flare7/8” Air Concentrator, , 4
Piece Micro Cleaning Tool Kit. (Model shown.)
ED-500PV (117-582434): Variable Speed; Air Flare 4 Piece Micro Cleaning Tool Kit. 7/8” Air Concentrator, ,
ED SD- -E500 (117-117506): ESD Safe: 1 Speed; Black Anti-Static, ESD Safe Attachments Include: Crevice
Tool, Dust Brush, 4 Piece Micro Tool Kit, & Grounded Wrist Strap.
ED- -ESDV (117-582427): ESD Safe: 500 Variable Speed; Black Anti-Static, ESD Safe Attachments
Include: Crevice Tool, Dust Brush, 4 Piece Micro Tool Kit, & Grounded Wrist Strap.
INSTRUCTIONS (Instructions are general for all ED Models. Some of the below information may not
pertain to your specific model. Check list above for parts and accessories that go with your particular
machine):
IMPORTANT SAFETY INSTRUCTIONS - READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE
• Plug the power unit into a standard wall outlet.
• Attach the Blower Nozzle, or the Air Flare onto the Blower Port by depressing the Push Button and
with a clockwise turning motion, firmly push on the adaptor.
• For finite cleaning, attach the Micro Cleaning Tool Kit Adaptor, then the Flex Neck Extension
Wand.
o You can then attach the Micro Dusting Brush, or the Micro Crevice Tool.
• One Speed: Pressing the On/Off Switch will turn the unit on and off.
• Variable Speed: Turn the dial clockwise for on / counterclockwise for off.
o It is normal for the unit to get warm to the touch if used with attachments for an extended
length of time.
CAUTION: If your machine has suction but does not clean when the hose is attached, remove the
hose from the suction end and place it on the blower end. Blow out the hose, it may be clogged.
ADDITIONAL PARTS FOR PURCHASE (the below items are available for purchase on our website
www.MetroVac.com; use the provided product # in the search):
• Foam Filter MVC 49ED – – –3
• Micro Tool Kit MCT 4 Blue – – – (Non ESD)
• “Snap ” For Crevice Tool – –- Onbrush MVC 227 (Non ESD)
• Air Concentrator MVC 196AA – – (Non ESD)
• “AirFlare” Utility Nozzle – – MVC 195AB (Non ESD)
• ESD Safe Micro Tool Kit MVC 211E – – – (ESD Only )
• ESD - Safe Dust Brush MVC 206CA – – (ESD Only)
• Techni Stat Grounding Wrist Strap MVC-236A – – (ESD Only)
• Anti-Static ESD Safe Crevice Tool MVC 189A – – – (ESD Only)
• Push Button Switch MVC – –7A (One Speed)
• 110 46C-120 Volt Variable Switch MVC– – –OHM (Variable speed models Only )
• Handle MVC– –50
• 18/2 12’ Cord – – MVC 271A
• Motor MVC 301 – –
• Hoses:
o 3’ Flexible Hose – – MVC 178A (Non ESD)
o 6’ Standard Flexible Hose – – MVC 202A (Non ESD)
o “ESD” Safe 3’ 6’ Stretch Hose – –- - MVC 235 (ESD Only)
WARRANTY:
This machine carries a Three Year Limited* Warranty.
The Three-Year Warranty includes the unit and the motor.*
There is also a on Parts, Switches, and Cords. One Year Warranty*
This warranty covers any defects in materials or workmanship, including installation, with the exceptions
stated below:
• *MetroVac will repair or replace any defective or malfunctioning part* at no charge. If the machine
is not repairable, it will be replaced.
• *Mechanical alterations made to the machine will void the warranty.
• *Warranty does not cover carbon brushes, carbon brush wear, filters, or general maintenance.
• *The warranty does not cover physical damage made to the machine from tampering with or
attempting to take the appliance apart, improper electrical connections, or water damage.
*Customer is responsible for shipping charges to and from our facility.
***Even if the product is beyond the warranty period, we suggest you send the unit back to our
factory for expert repairs and maintenance at reasonable rates. Please click the following link to
access our Repairs and Maintenance form***
WARNING: To reduce the risk of fire, electric shock, or injury Do not leave appliance when plugged
in. Unplug from outlet when not in use and before servicing.
• Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use it with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into the openings. Do not use with any opening blocked; keep free of dust,
lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not use without dustbag and/or filters in place.
• Turn off controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.
• To avoid electric shock, do not use it on wet surfaces, do not expose to rain; store indoors.
• To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than
the other). This plug will fit into an outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do
not change the plug in any way.
• For a grounded appliance: "Connect to a properly grounded outlet only. See Grounding
Instructions."

Product specificaties

Merk: MetroVac
Categorie: Stofzuiger
Model: DataVac ED-500-ESDV
