Pagina 1/2
4-1/4"
110mm
6-3/16"
156mm
6-7/16"
163mm
4-3/8"
110mm
8-15/16"
226mm
6-11/16"
169mm
9-3/8"
237mm
3-1/16"
77mm
7/8"
21mm
3-11/16"
92mm
R E F E R E N C E
9633i
9633cf
9633gr
Declaration of Conformity
We,Harman Consumer Group,Inc.
2,route de Tours
72500 Château du Loir
France
declare in own responsibility that the products described in this owner’s
manual are in compliance with technical standards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Klaus Lebherz
Harman Consumer Group,Inc.
Château du Loir,France 1/09
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6" x 9" 3-Way NO GRILLE GRILLE ONLY for 6" x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling, RMS: 100W 100W
Power Handling, Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf”version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product,please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6"x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf”version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product,please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6"x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf”version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6"x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf”version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6"x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf”version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6"x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf”version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
9633i 9633cf
BL (T-m) 4.30 4.30
DCR (ohms) 2.30 2.30
Mms (g) 21.70 21.70
Sd (sq cm) 236.4 236.4
Cms (μm/N) 442 442
Vas (l) 34.69 34.69
Fs (Hz) 51.4 51.4
Qes 0.87 0.87
Qms 6.34 6.34
Qt 0.77 0.77
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6"x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i” version; they are optional for the “cf” version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6" x 9" 3-Way NO GRILLE GRILLE ONLY for 6" x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i” version; they are optional for the “cf” version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6" x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf”version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6" x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf”version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6" x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf”version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6"x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf” version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6"x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf” version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
SPECIFICATIONS
9633i 9633cf 9633gr
Type: 6" x 9" 3-Way 6"x 9" 3-Way NO GRILLE GRILLE ONLY for 6" x 9"
Impedance: 2 Ohms 2 Ohms
Power Handling,RMS: 100W 100W
Power Handling,Peak: 300W 300W
Frequency Response: 46Hz – 30kHz 46Hz – 30kHz
Sensitivity (2.83V, 1m): 94dB 94dB
Grilles are included with the “i”version; they are optional for the “cf” version (use Reference model 9633gr).
WARRANTY:
Reference Series speakers are warranted against defects.The duration of the
speaker’s warranty depends on the laws in the country in which it was purchased.Your local Infinity car
audio retailer can help you determine the length of your warranty.To register your product, please visit us
at www.infinitysystems.com.
Designed and engineered in the USA. Conception et design aux É.U.A.
A valid serial number is required for warranty coverage.Un numéro de série valable est exigé pour la couverture de la garantie.
Features, specifications and appearance are subject to change without notice.
Les dispositifs,les caractéristiques et l’aspect sont sujets au changement sans communication préalable.
Harman International, Consumer Division, 8500 Balboa Boulevard, Northridge, CA 91329 USA
www.infinitysystems.com
© 2009 Harman International Industries, Incorporated.All rights reserved.Tous droits réservés.s Part No. REF9633OM1/09
Infinity is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries.
Infinity est une marque commerciale de Harman International Industries, Incorporated, déposée aux États-Unis et/ou dans d’autres pays.

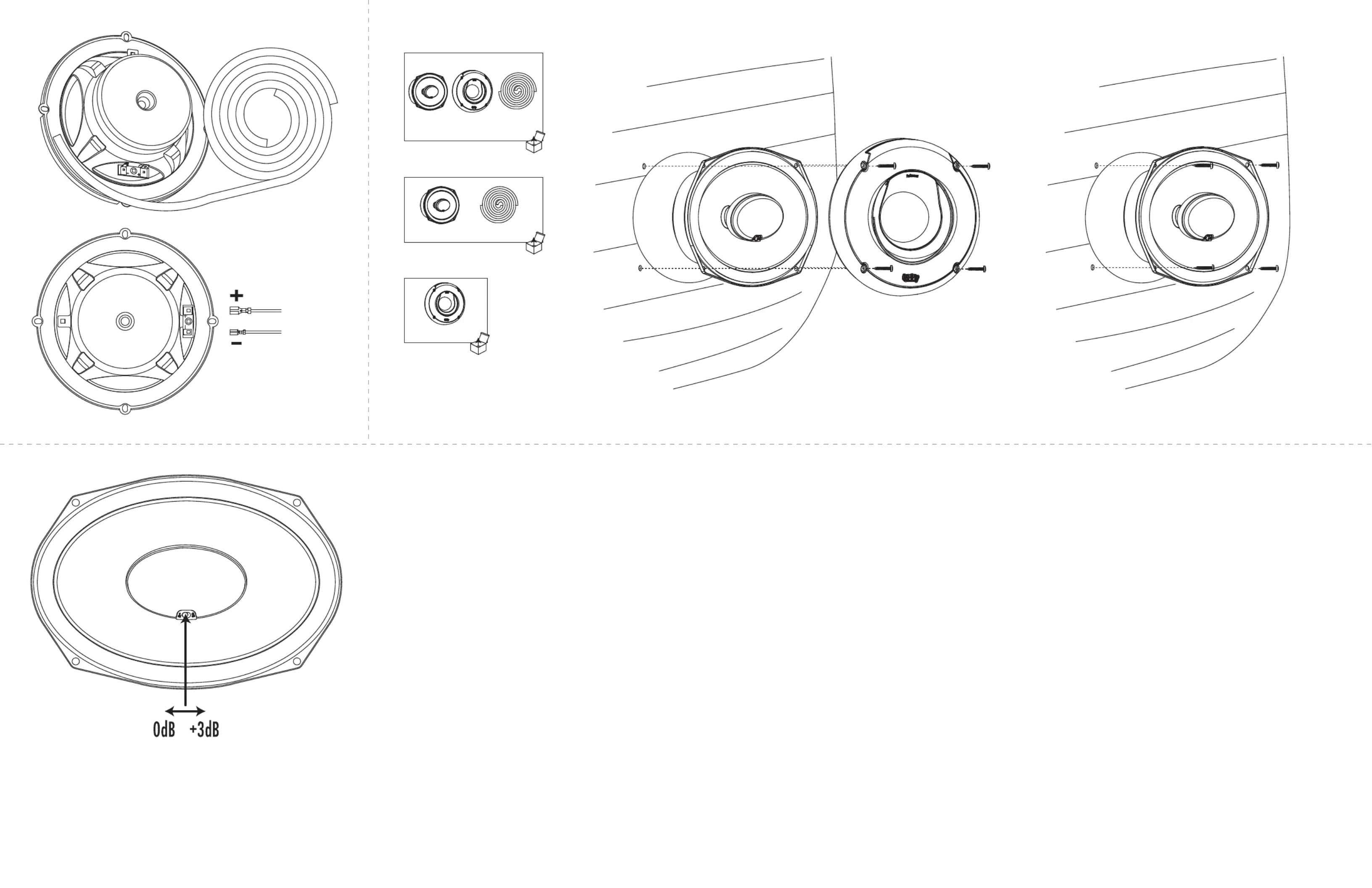

2x
9633gr
2x
2x 1x
9633i
1x
2x
9633cf
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position),by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
Product specificaties
| Merk: | Infinity |
| Categorie: | Autospeaker |
| Model: | Reference 9633i |
Heb je hulp nodig?
Als je hulp nodig hebt met Infinity Reference 9633i stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Autospeaker Infinity
26 November 2024
26 November 2024
26 November 2024
26 November 2024
26 November 2024
26 November 2024
26 November 2024
26 November 2024
26 November 2024
26 November 2024
Handleiding Autospeaker
- Autospeaker Philips
- Autospeaker Sony
- Autospeaker JVC
- Autospeaker JBL
- Autospeaker Kenwood
- Autospeaker Pioneer
- Autospeaker Alpine
- Autospeaker Auna
- Autospeaker Autotek
- Autospeaker Axton
- Autospeaker Blaupunkt
- Autospeaker Boss
- Autospeaker DLS
- Autospeaker Dnt
- Autospeaker Emphaser
- Autospeaker ESX
- Autospeaker Focal
- Autospeaker Fusion
- Autospeaker Hertz
- Autospeaker Hifonics
- Autospeaker Ices
- Autospeaker Kicker
- Autospeaker Lanzar
- Autospeaker Mac Audio
- Autospeaker Magnat
- Autospeaker Marquant
- Autospeaker Mr Handsfree
- Autospeaker Mtx Audio
- Autospeaker Pyle
- Autospeaker Renegade
- Autospeaker Renkforce
- Autospeaker Rockford Fosgate
- Autospeaker Soundstream
- Autospeaker JL Audio
- Autospeaker Clatronic
- Autospeaker Caliber
- Autospeaker Exibel
- Autospeaker Clarion
- Autospeaker Crunch
- Autospeaker Metra
- Autospeaker AudioControl
- Autospeaker Deaf Bonce
- Autospeaker Aquatic AV
- Autospeaker Planet Audio
- Autospeaker SoundMAX
- Autospeaker Memphis Audio
- Autospeaker Sinustec
- Autospeaker Sinus Live
- Autospeaker Audiotec Fischer
Nieuwste handleidingen voor Autospeaker
13 December 2024
13 December 2024
13 December 2024
13 December 2024
13 December 2024
13 December 2024
13 December 2024
13 December 2024
13 December 2024
25 November 2024
