CAR AUDIO
Reference 6513cs
Automotive Component Speaker System
Owner’s Manual
Installation Guide
®
Infinity Systems, Inc.
80 Crossways Park West
Woodbury, NY 11797, USA
(516) 496-3400 • FAX (516) 496-4868
www.infinitysystems.com
• For faithful music reproduction, use only high-quality
components with this speaker system.
• A common cause of speaker failure is trying to get
more out of your amplifier than it is able to deliver.
We suggest using a high-quality amplifier with power
rating of at least 100 watts-per-channel into 4 ohms.
• All wires must be secure and protected against dam-
age from folding seats, door jambs, etc. Use rubber
grommets when passing wires through holes in metal,
and allow “service loops” where needed. NEVER run
cables outside the vehicle, since exposure to the ele-
ments will corrode their insulation.
• Do not use the chassis of your vehicle as a speaker
ground connection.
• Do not operate the vehicle until you are certain that
all amplifiers, woofers, etc. are secure in the event of a
sudden stop or jolt.
• Only use the enclosed passive crossover network.
Modifying or bypassing the network may cause dam-
age to your components and is not covered under the
terms of your warranty.
P A NRECAUTIONS ND OTES
• Turn off all audio system and other electrical devices
before you start. As an extra precaution, disconnect the
(–) negative lead from your vehicle’s battery.
• Protect the speaker components by keeping them in
their packages until final installation. This will keep
the magnets in these components from attracting
metal clips and filings.
• When moving a speaker component, always rest each
component so that the cone or dome is facing up.
• Never use force to install any speaker component.
• At the installation sites, locate and make a note of all
fuel lines, hydraulic brake lines, and electrical wiring.
Use extreme caution when cutting or drilling in and
around these areas.
• Check clearances on both sides of a planned mounting
surface before drilling any holes or installing any
screws. Remember that the enclosed screws can extend
up to an inch behind the surface.
• Before drilling or cutting holes, use a utility knife to
remove unwanted fabric or vinyl. This will help keep
the material from snagging in a drill bit or hole saw.
• Always wear protective eyewear when using power or
conventional tools.
R
EFERENCE
6513
CS
A
UTOMOTIVE
C
OMPONENT
S
PEAKER
S
YSTEM
CAR AUDIO
2
INTRODUCTION
Thank you for choosing one of the finest 3-way component
systems available for car audio, the Infinity Reference
6513cs. This complete speaker system features:
• Two 165 mm (61⁄2") woofers and two 102 mm (4")
midrange drivers with TLH™ cones for high
internal damping and resistance to temperature
and humidity extremes
• Two 19 mm (3⁄4") soft-dome tweeters with surface- and
flush-mount kits provide high power-handling and
extended sonic accuracy
• One stereo passive crossover network with individual
user-selectable output levels for woofers, tweeters,
and midrange drivers
• Flexible system configurations with connections for up
to three stereo amplifiers
• Attractive black-molded speaker grilles to complement
your vehicle’s interior
• Heavy-duty stamped steel speaker frames and use of
“high-tech” materials ensure rugged construction and
consistent reliability
This Infinity product is made with our ongoing dedication
to create the best consumer audio products possible. As a
result, you can expect your Reference 6513cs to provide
you with many years of listening enjoyment.
IMPORTANT
Before you start your installation, please read the fol-
lowing instructions to achieve maximum product per-
formance. Although this installation guide explains
how to install the Reference 6513cs in a general sense,
it does not show the exact installation methods for
your particular vehicle. Installation of automotive
stereo components requires extensive experience in
dealing with a variety of mechanical and electrical
procedures. If you do not feel you have the experience,
do not attempt the installation yourself, but instead
ask your Authorized Infinity Car Audio Dealer about
professional installation options.
O
WNER
’
S
M
ANUAL
A
ND
I
NSTALLATION
G
UIDE
3
P Y ILANNING OUR NSTALLATION
Carefully read and understand the following instructions
before you attempt any installation procedures. Plan for
adequate time and the possibility of overnight storage of
your vehicle, since it may take more than one day to com-
plete an installation. Unpack and examine the components.
Verify that your package includes the following:
• Two 165 mm (61⁄2") woofers with grilles and grille trays
• Two 102 mm (4") midrange drivers with grilles and
grille trays
• Two 19 mm (3⁄4") soft-dome tweeters with surface-mount
plates, flush-mount kits, and attached color-keyed wires
• One integrated stereo passive crossover network
• Mounting templates for all speaker components
• Complete mounting hardware, including hook-up wire
As you survey your vehicle, keep the following installation
sequence in mind:
1. Studying the system applications shown in Figures 1
through 3, including application notes on page 5
2. Choosing locations for the speaker components (see
Speaker Placement)
3. Selecting a crossover location that will make use of the
color-keyed wires and attached terminals
4. Installing the crossover and running speaker wires to
the amplifier(s)
5. Installing the speaker components and connecting
speaker wires
6. Testing the audio system and finishing the installation
S AYSTEM PPLICATIONS
The Infinity Reference 6513cs can be configured for use with
one to three amplifiers, as shown in Figures 1 through 3.
After studying the illustrations, read the application notes
on page 5 for specific wiring details.
– + MID
REFERENCE STANDARD AUTOMOTIVE
Component System Crossover Network
TO LEFT
MIDRANGE
TO LEFT
TWEETER
TO RIGHT
TWEETER
TO RIGHT
MIDRANGE
+ +++
LO HI– – LO HIMID HI LOMID HI LO– –
TO RIGHT
WOOFER
+
HI LO –
TO LEFT
WOOFER
+
HILO–
FROM LEFT AMPLIFIERSFROM RIGHT AMPLIFIERS
+ –
WOOFER
+ –
MIDRANGE
+ –
EMIT TWEETER
+ – + – + –
EMIT TWEETERMIDRANGEWOOFER
–
+
HI
To RIGHT
6x9" Woofer
–
HI +
To LEFT
4" Midrange
– + HI –
To RIGHT
4" Midrange
To LEFT
Tweeter
–
To RIGHT
Tweeter
+ HI
+ MID
– ++ –
+
–
+
–
To LEFT
6x9" Woofer
GRN/WHT GRNGRNLEFT
RIGHT
GRN/BLK
RED BLK BLK RED
BLU
BLU/BLK
BLU
BLU/WHT
GRY/
BLK
GRY
GRY/
WHT
GRYRED
RED/
BLK
RED
RED/
WHT
Connect Pigtail
Jumpers As Shown
Amplifier

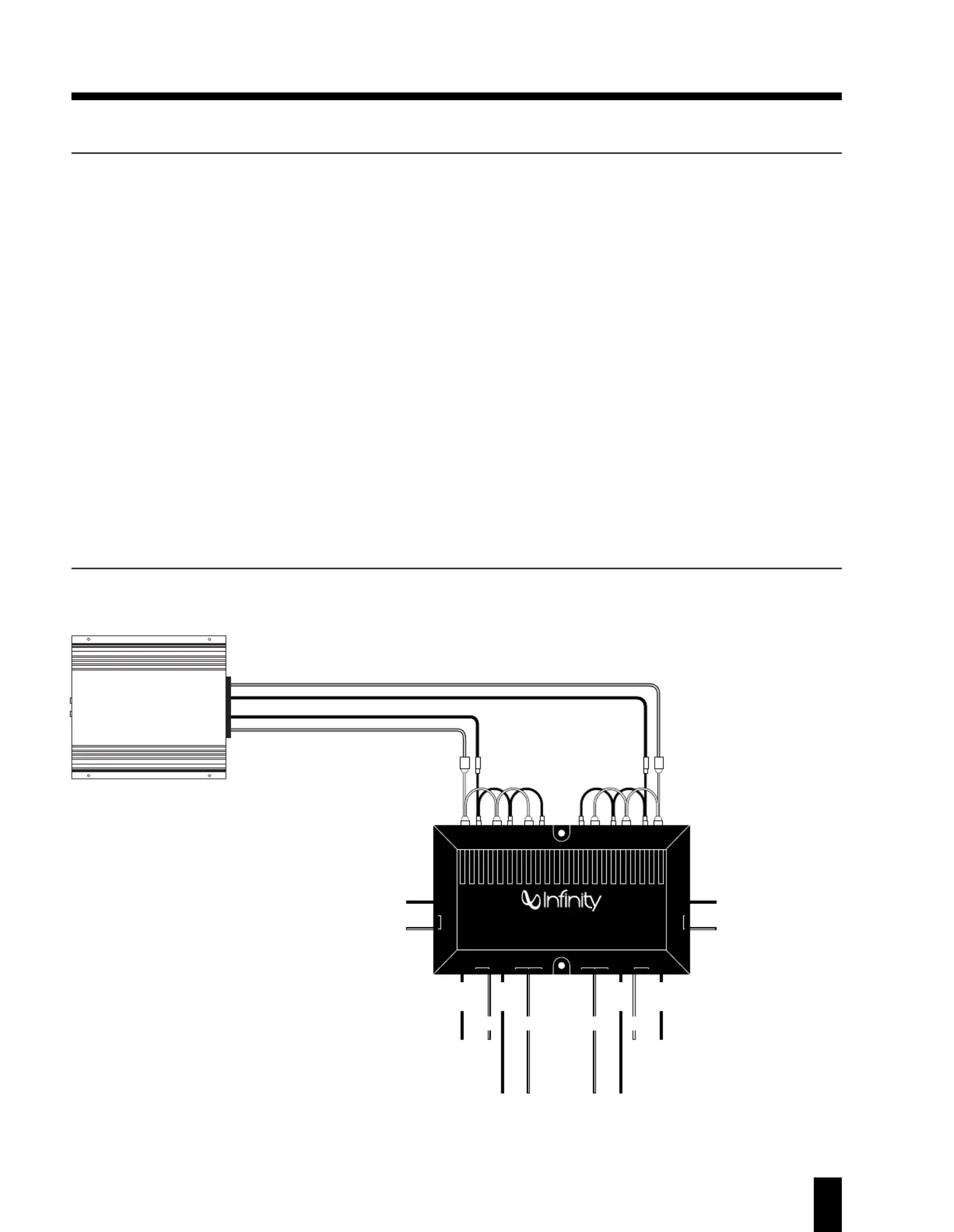

Figure 1. This application
shows connections for a
Reference 6513cs system and one
stereo amplifier.
