Pagina 1/4
reference series
505cs,605cs
& 105t
Thank you for purchasing Infinity’s Reference Series
automotive loudspeaker components. We’ve organized this manual
to make your installation as simple and trouble-free as possible.
Please read it thoroughly before proceeding. Remember to keep
your sales receipt with this manual in a safe place so both are
available for future reference.
instructions
¤¤
Reference
- 2 -
IMPORTANT: Installation of automotive stereo
components can require extensive experience
with a variety of mechanical and electrical
procedures. Although these instructions explain
how to install Reference Series speakers in a
general sense, they do not show the exact
installation methods for your particular vehicle.
If you do not feel you have the experience, do not
attempt the installation yourself, but instead ask
your authorized Infinity car-audio dealer about
professional installation options.
WARNING: Playing loud music in an automobile
can permanently damage your hearing, as well as
hinder your ability to hear traffic. The maximum
volume levels achievable with Infinity speakers,
combined with high power amplification, may
exceed safe levels for extended listening. We
recommend using low volume levels when
driving. Infinity accepts no liability for hearing
loss, bodily injury, or property damage as a result
of use or misuse of this product.
INSTALLATION ARNINGS ANDW TIPS
•Always wear protective eyewear when using
any tools.
•Turn off all audio systems and other electrical
devices before you start. Disconnect the (–)
negative lead from your vehicle’s battery.
•Keep speakers in their package until final
installation. When moving a speaker, always
rest it with the cone or dome facing up. Never
use force to install any speaker.
•Check clearances on both sides of a planned
mounting surface before drilling any holes or
installing any screws. Remember that the
screws can extend behind the surface.
•At the installation sites, locate and make a note
of all fuel lines, hydraulic brake lines, vacuum
lines, and electrical wiring. Use extreme caution
when cutting or drilling in and around these
areas.
CAUTION: In some cars, fuel tanks may be
located directly beneath the rear deck. Check
for adequate speaker basket clearance before
considering this location!
•Before drilling or cutting holes, use a utility
knife to remove unwanted fabric or vinyl, to
keep material from snagging in a drill bit or
saw.
•For door installations, check the clearance with
the windows throughout the range of the
window’s travel, and verify that a mounted
speaker will not interfere with the window
crank or power window mechanism.
•If mounting speakers elsewhere, check for
clearance around rear deck torsion bars, glove
box, or other structural elements.
•Do not mount speakers where they will get wet.
INSTALLATION

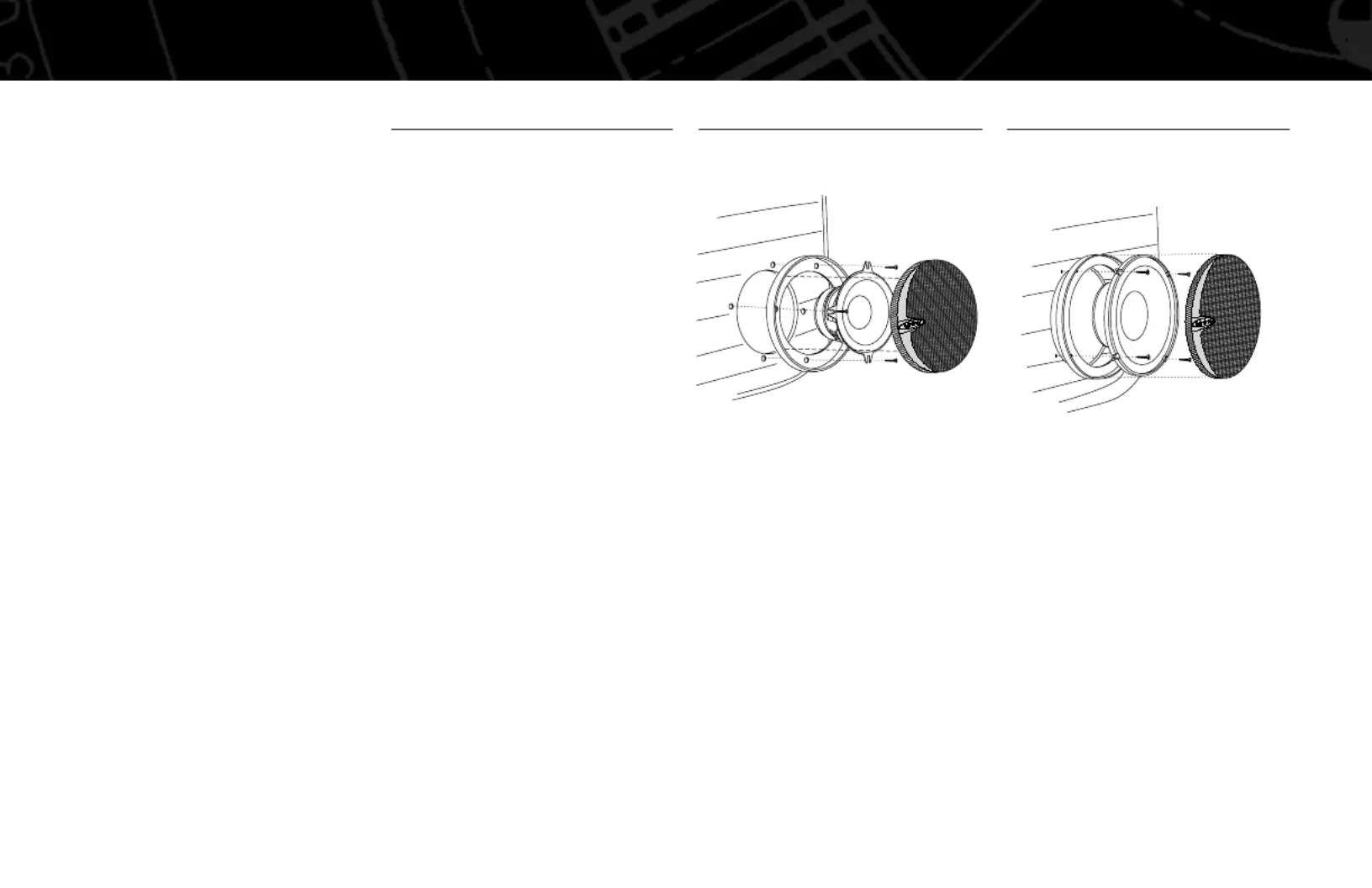

Figure 1.
Mounting the 505cs woofer.
INSTALLATION
Figure 2.
Mounting the 605cs woofer with the grille.
- 3 -

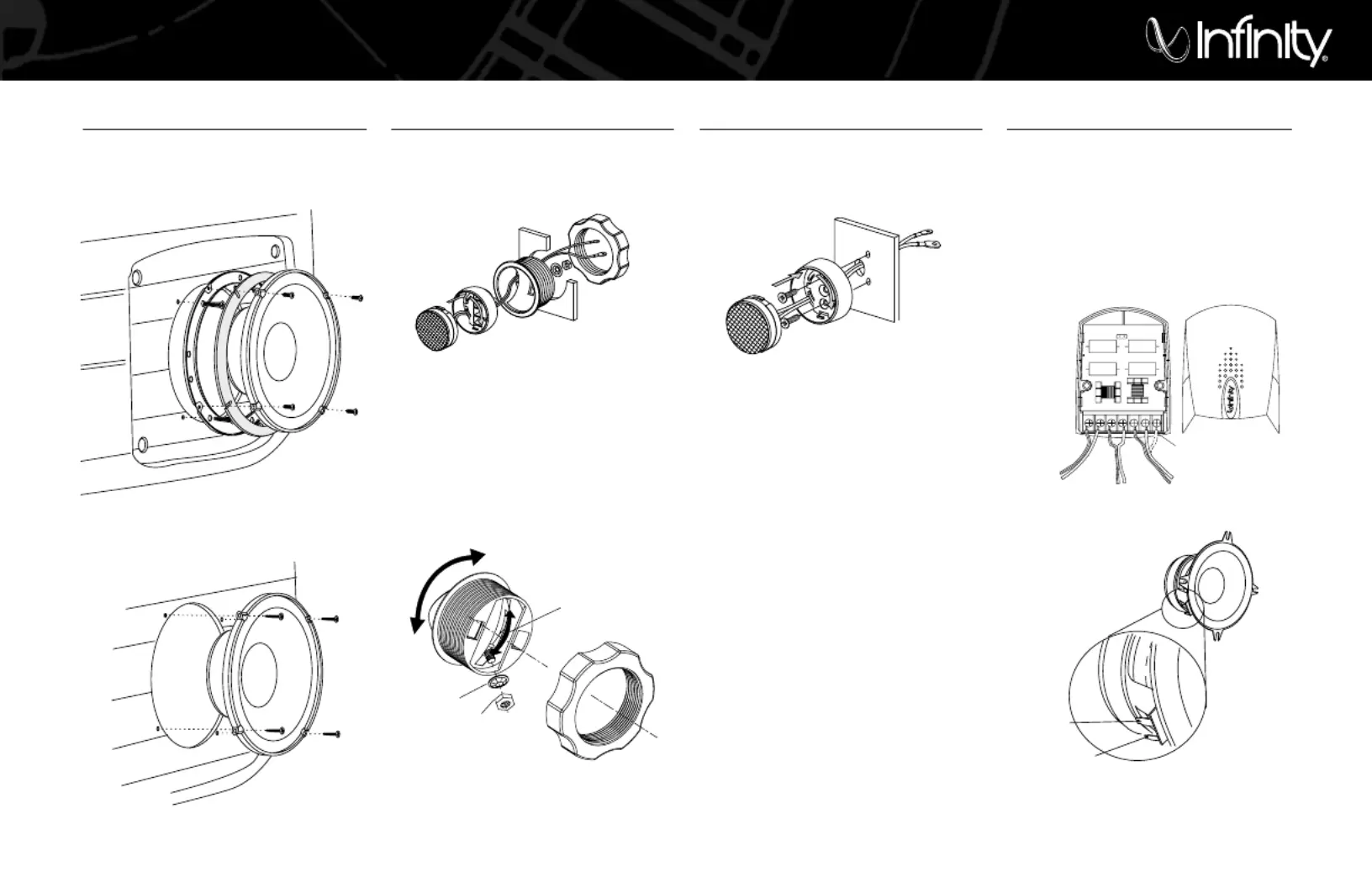

INSTALLATION
Figure 3.
Mounting the 605cs woofer in standard speaker
locations.
INSTALLATION
Figure 5A.
Mounting the tweeter using the I-Mount
â„¢
(pat. 5,859,917) flush-mounting kit.
Note: Aim the tweeter at the listening position by
sliding the stud in the groove on the back of the
tweeter cup and rotating the entire assembly in
the mounting surface. Lock the tweeter in place,
using the small retaining nut and the large plastic
mounting nut.
Figure 5B.
Figure 4.
Mounting the 605cs in 165mm speaker locations.
INSTALLATION
Figure 6.
Mounting the tweeter using the I-Mountâ„¢
surface-mounting kit.
INSTALLATION
Connect the speakers to the crossover and
the crossover to the amplifier, observing proper
polarity.
Note: If you have purchased the 105t as a separate
component, connect the tweeter with the in-line
crossover to the amplifier, observing the proper
polarity.
Figure 7A.
Figure 7B.
SLIDE UP OR DOWN
TO ADJUST TWEETER
ANGLE
ROTATE TO AIM
ANGLED TWEETER
TO LISTENER
TIGHTEN NUT AND
WASHER TO LOCK
THE ANGLE SETTINGS
1
2
3
SMALL LUG
IS NEGATIVE ( )–
BIG LUG IS
POSITIVE (+)
TO AMPLIFIER
SPEAKER OUTPUTS TO MID-BASS TO TWEETER
CONNECT + WIRE HERE
TO REDUCE TWEETER
OUTPUT LEVEL
+
+
+ _
_
_
TWWFIN- + - + - + -3dB
p/s 050
2ohm
2ohm
0.15mH
0.22mH
5.4uF
6.8uF
1
2
–
+
1
2
