Declaration of Conformity

We, Harman Consumer Group International

2, route de Tours

72500 Château du Loir

France

declare in own responsibility that the products described in this owner’s manual

are in compliance with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001 Klaus Lebherz

Harman Consumer Group International

Château du Loir, France 10/06

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

This product is designed for mobile applications and is not intended for connection to the mains.

Infinity Systems • 2 route de Tours, 72500 Château du Loir, France • www.infinitysystems.com

Infinity is a trademark of Harman International Industries, Incorporated,

registered in the United States and/or other countries.

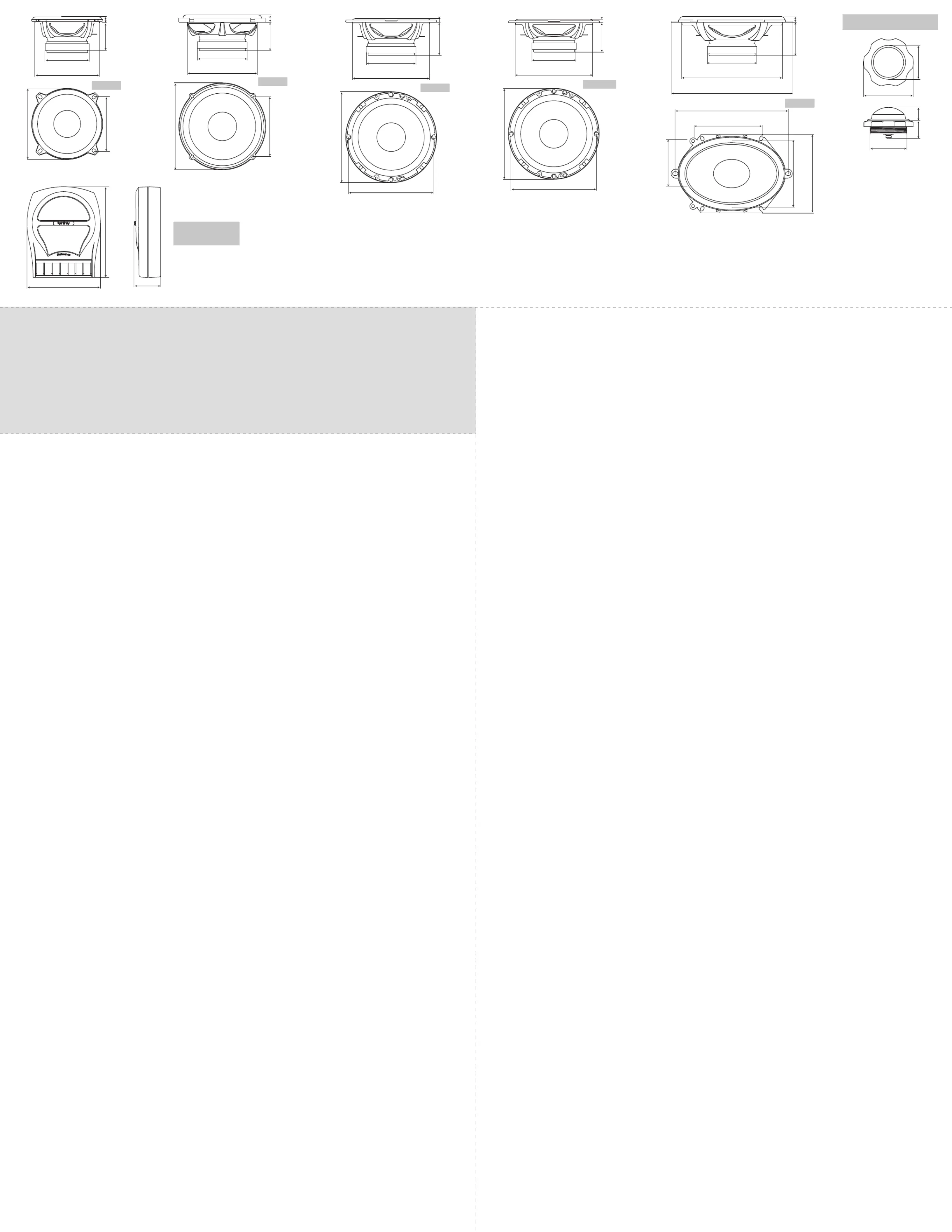

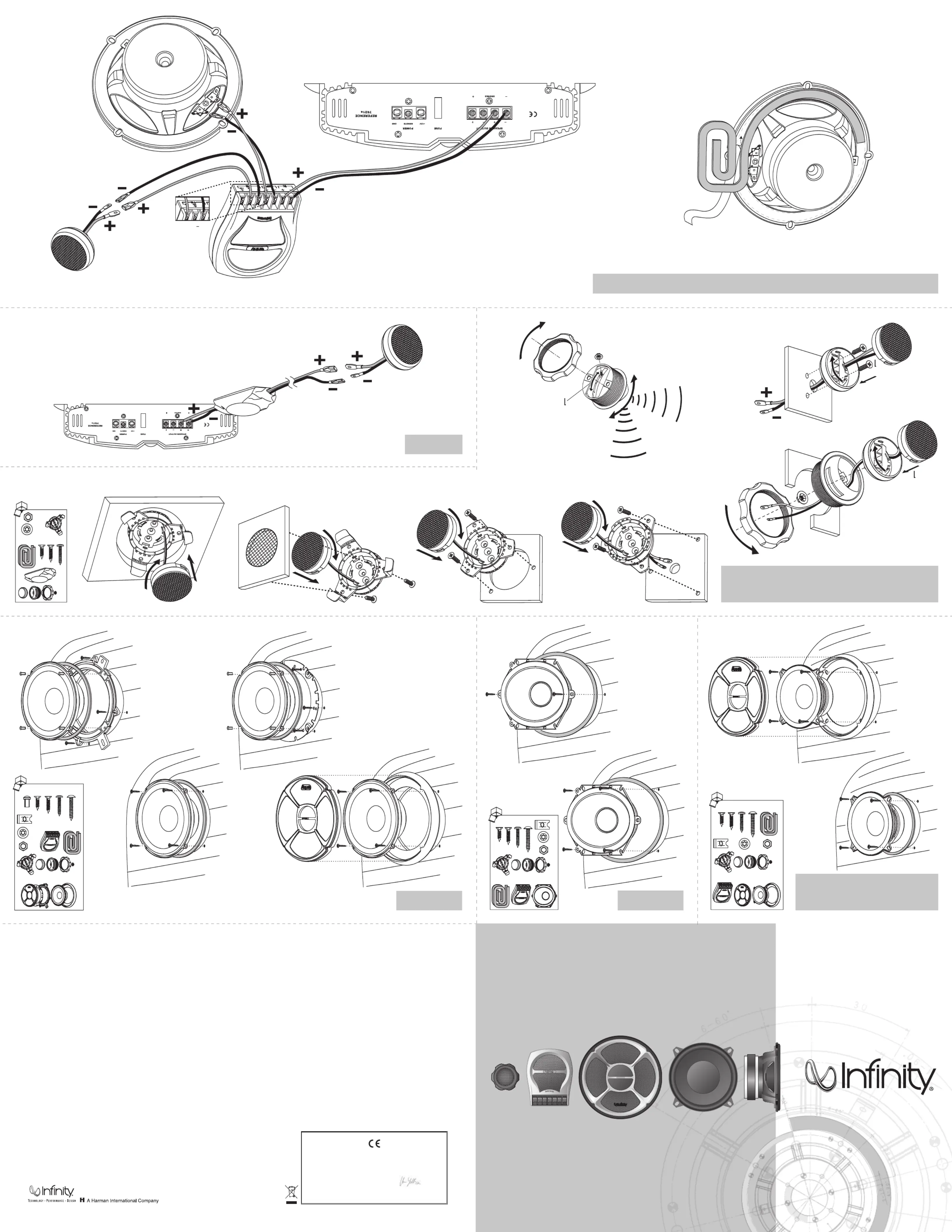

4-1/4"

107mm

8-1/16"

205mm

4-11/16"

118mm 5"

127mm

5-1/2"

140mm

6820cs

3-9/16"

90mm

7-1/4"

185mm

8-1/8"

207mm

2-3/8"

60mm

7/16"

10mm

3-7/8"

98mm

5-1/8"

129mm

3-3/16"

80mm

4-11/16"

120mm

2-1/4"

57mm

3/8"

8mm

5020cs

4-5/16"

109mm

1-5/16"

32mm

3-1/2"

89mm

11/16"

17mm

51mm

7/8"

22mm

2-3/8"

60mm

1-3/4"

45mm

1021t (5020cs,6020cs,

6520cs,6520scs,6820cs)

5020cs,6020cs,

6520cs,6520scs,

6820cs

4-3/8"

110mm

6-1/4"

159mm

3-9/16"

90mm

127mm

2-1/16"

52mm

1/2"

13mm

6020cs

6-1/8"

155mm

6-1/2"

166mm

3-9/16"

90mm

5-9/16"

142mm

2-3/8"

60mm

1/4"

7mm

6520cs 6520scs

6-1/8"

155mm

6-1/2"

166mm

3-3/16"

80mm

5-9/16"

142mm

2-1/8"

53mm

1/4"

7mm

SPECIFICATIONS

5020cs 6020cs 6520cs 6520scs 6820cs 1021t

Type: 5-1/4" 2-Way 6-1/2" 2-Way 165mm 2-Way 165mm Shallow- 6" x 8"/5" x 7" 2-Way 1" Component

Component System Component System Component System Mount 2-Way Component System Tweeter

Component System

Nominal Impedance: 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms

Power Handling, RMS: 75W 90W 90W 75W 90W 50W

Power Handling, Peak: 225W 270W 270W 225W 270W 150W

Frequency Response: 67Hz – 21kHz 53Hz – 21kHz 58Hz – 21kHz 58Hz – 21kHz 49Hz – 21kHz 2.5kHz – 51kHz

Sensitivity (2.83V, 1m): 92dB 93dB 93dB 93dB 93dB 93dB

GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker’s warranty depends on the laws in the country in which it was purchased.

Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

5020cs 6020cs 6520cs 6520scs 6820cs 1021t

Type: 5-1/4" 2-Way 6-1/2" 2-Way 165mm 2-Way 165mm Shallow- 6" x 8"/5" x 7" 2-Way 1" Component

Component System Component System Component System Mount 2-Way Component System Tweeter

Component System

Nominal Impedance: 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms

Power Handling, RMS: 75W 90W 90W 75W 90W 50W

Power Handling, Peak: 225W 270W 270W 225W 270W 150W

Frequency Response: 67Hz – 21kHz 53Hz – 21kHz 58Hz – 21kHz 58Hz – 21kHz 49Hz – 21kHz 2.5kHz – 51kHz

Sensitivity (2.83V, 1m): 92dB 93dB 93dB 93dB 93dB 93dB

GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker’s warranty depends on the laws in the country in which it was purchased.

Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

5020cs 6020cs 6520cs 6520scs 6820cs 1021t

Type: 5-1/4" 2-Way 6-1/2" 2-Way 165mm 2-Way 165mm Shallow- 6" x 8"/5" x 7" 2-Way 1" Component

Component System Component System Component System Mount 2-Way Component System Tweeter

Component System

Nominal Impedance: 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms

Power Handling, RMS: 75W 90W 90W 75W 90W 50W

Power Handling, Peak: 225W 270W 270W 225W 270W 150W

Frequency Response: 67Hz – 21kHz 53Hz – 21kHz 58Hz – 21kHz 58Hz – 21kHz 49Hz – 21kHz 2.5kHz – 51kHz

Sensitivity (2.83V, 1m): 92dB 93dB 93dB 93dB 93dB 93dB

GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker’s warranty depends on the laws in the country in which it was purchased.

Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

5020cs 6020cs 6520cs 6520scs 6820cs 1021t

Type: 5-1/4" 2-Way 6-1/2" 2-Way 165mm 2-Way 165mm Shallow- 6" x 8"/5" x 7" 2-Way 1" Component

Component System Component System Component System Mount 2-Way Component System Tweeter

Component System

Nominal Impedance: 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms

Power Handling, RMS: 75W 90W 90W 75W 90W 50W

Power Handling, Peak: 225W 270W 270W 225W 270W 150W

Frequency Response: 67Hz – 21kHz 53Hz – 21kHz 58Hz – 21kHz 58Hz – 21kHz 49Hz – 21kHz 2.5kHz – 51kHz

Sensitivity (2.83V, 1m): 92dB 93dB 93dB 93dB 93dB 93dB

GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker’s warranty depends on the laws in the country in which it was purchased.

Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

5020cs 6020cs 6520cs 6520scs 6820cs 1021t

Type: 5-1/4" 2-Way 6-1/2" 2-Way 165mm 2-Way 165mm Shallow- 6" x 8"/5" x 7" 2-Way 1" Component

Component System Component System Component System Mount 2-Way Component System Tweeter

Component System

Nominal Impedance: 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms

Power Handling, RMS: 75W 90W 90W 75W 90W 50W

Power Handling, Peak: 225W 270W 270W 225W 270W 150W

Frequency Response: 67Hz – 21kHz 53Hz – 21kHz 58Hz – 21kHz 58Hz – 21kHz 49Hz – 21kHz 2.5kHz – 51kHz

Sensitivity (2.83V, 1m): 92dB 93dB 93dB 93dB 93dB 93dB

GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker’s warranty depends on the laws in the country in which it was purchased.

Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

5020cs 6020cs 6520cs 6520scs 6820cs 1021t

Type: 5-1/4" 2-Way 6-1/2" 2-Way 165mm 2-Way 165mm Shallow- 6" x 8"/5" x 7" 2-Way 1" Component

Component System Component System Component System Mount 2-Way Component System Tweeter

Component System

Nominal Impedance: 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms

Power Handling, RMS: 75W 90W 90W 75W 90W 50W

Power Handling, Peak: 225W 270W 270W 225W 270W 150W

Frequency Response: 67Hz – 21kHz 53Hz – 21kHz 58Hz – 21kHz 58Hz – 21kHz 49Hz – 21kHz 2.5kHz – 51kHz

Sensitivity (2.83V, 1m): 92dB 93dB 93dB 93dB 93dB 93dB

GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker’s warranty depends on the laws in the country in which it was purchased.

Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

5020cs 6020cs 6520cs 6520scs 6820cs 1021t

Type: 5-1/4" 2-Way 6-1/2" 2-Way 165mm 2-Way 165mm Shallow- 6" x 8"/5" x 7" 2-Way 1" Component

Component System Component System Component System Mount 2-Way Component System Tweeter

Component System

Nominal Impedance: 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms 2.65 Ohms

Power Handling, RMS: 75W 90W 90W 75W 90W 50W

Power Handling, Peak: 225W 270W 270W 225W 270W 150W

Frequency Response: 67Hz – 21kHz 53Hz – 21kHz 58Hz – 21kHz 58Hz – 21kHz 49Hz – 21kHz 2.5kHz – 51kHz

Sensitivity (2.83V, 1m): 92dB 93dB 93dB 93dB 93dB 93dB

GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker’s warranty depends on the laws in the country in which it was purchased.

Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

5020cs 6020cs 6520cs 6520scs 6820cs 1021t

BL (T-m) 3.54 3.80 3.65 3.96 3.59

DCR (ohms) 2.27 2.13 2.30 2.50 2.12 2.30

Mms (g) 10.86 15.10 13.07 13.37 19.57

Sd (sq cm) 103.9 132.7 132.7 132.7 178.1

Cms (µm/N) 528 236 295 228 189

Vas (l) 8.00 5.84 7.30 5.64 8.42

Fs (Hz) 66.5 84.3 81.1 91.2 82.8

Qes 0.82 1.18 1.15 1.22 1.67
