IMPORTANT: Installation of automotive stereo
components can require extensive experience
with a variety of mechanical and electrical
procedures. Although these instructions
explain how to install Reference Series speakers
in a general sense, they do not show the exact
installation methods for your particular vehicle.
If you do not feel you have the experience, do
not attempt the installation yourself; instead, ask
your authorized Infinity car audio dealer about
professional installation options.
WARNING: Playing loud music in an automobile
can permanently damage your hearing, as well as
hinder your ability to hear traffic. The maximum
volume levels achievable with Infinity speakers,
combined with high power amplification, may
exceed safe levels for extended listening. We
recommend using low volume levels when
driving. Infinity accepts no liability for hearing
loss, bodily injury, or property damage as a result
of use or misuse of this product.
INSTALLATION ARNINGS ANDW TIPS
• Always wear protective eyewear when using
any tools.
• Turn off all audio components and other
electrical devices before you start. Disconnect
the (–) negative lead from your vehicle’s battery.
• Keep speakers in their package until final
installation. When moving a speaker, always
rest it with the cone or dome facing up. Never
use force to install any speaker.
• Check clearances on both sides of a planned
mounting surface before drilling any holes or
installing any screws. Remember that the
screws can extend behind the surface.
• At the installation sites, locate and make a
note of all fuel lines, hydraulic brake lines,
vacuum lines and electrical wiring. Use
extreme caution when cutting or drilling in
and around these areas.
CAUTION: In some cars, fuel tanks may be
located directly beneath the rear deck. Check
for adequate speaker basket clearance before
considering this location!
• Before drilling or cutting holes, use a utility
knife to remove unwanted fabric or vinyl,
to keep material from snagging in a drill bit
or saw.
• For door installations, check the clearance
with the windows throughout the range of the
window’s travel, and verify that a mounted
speaker will not interfere with the window
crank or power window mechanism.
• If mounting speakers elsewhere, check for
clearance around rear deck torsion bars, glove
box or other structural elements.
• Do not mount speakers where they will get wet.
INSTALLATION

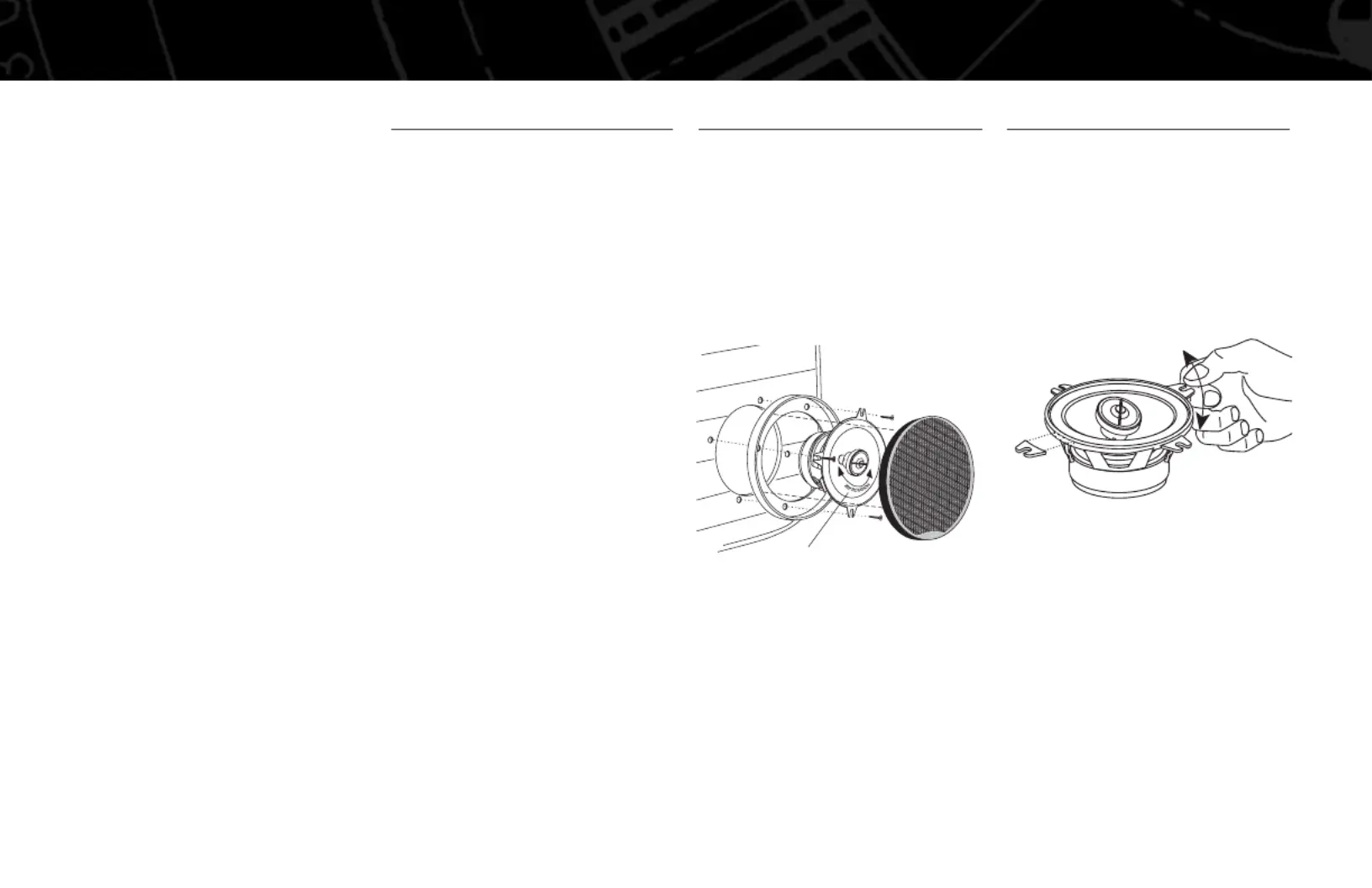

Figure 1.
Mounting the 4002i, 5002i, 9602i, 9603i, 3002cf
and 6802cf.
NOTE:The 3002cf and 6802cf speakers are
designed to be installed under factory grilles.
Consequently, no grilles are packaged with these
models.
NOTE: If you are mounting the 6802cf in a 6" x 8"
location, use the adapter provided.
INSTALLATION
Figure 2.
Modifying the 4002i to be installed in locations
requiring fewer than 4 mounting “ears”.
NOTE: Bend tab back and forth to detach it from
the speaker.
ROTATE TWEETER SO IT IS ANGLED
TOWARD THE LISTENER USING THE
UNIPIVOT“ (pat. 6,002,780) FEATURE
ON THE 5002i, 6002i, 9602i AND 6802cf
- 3 -

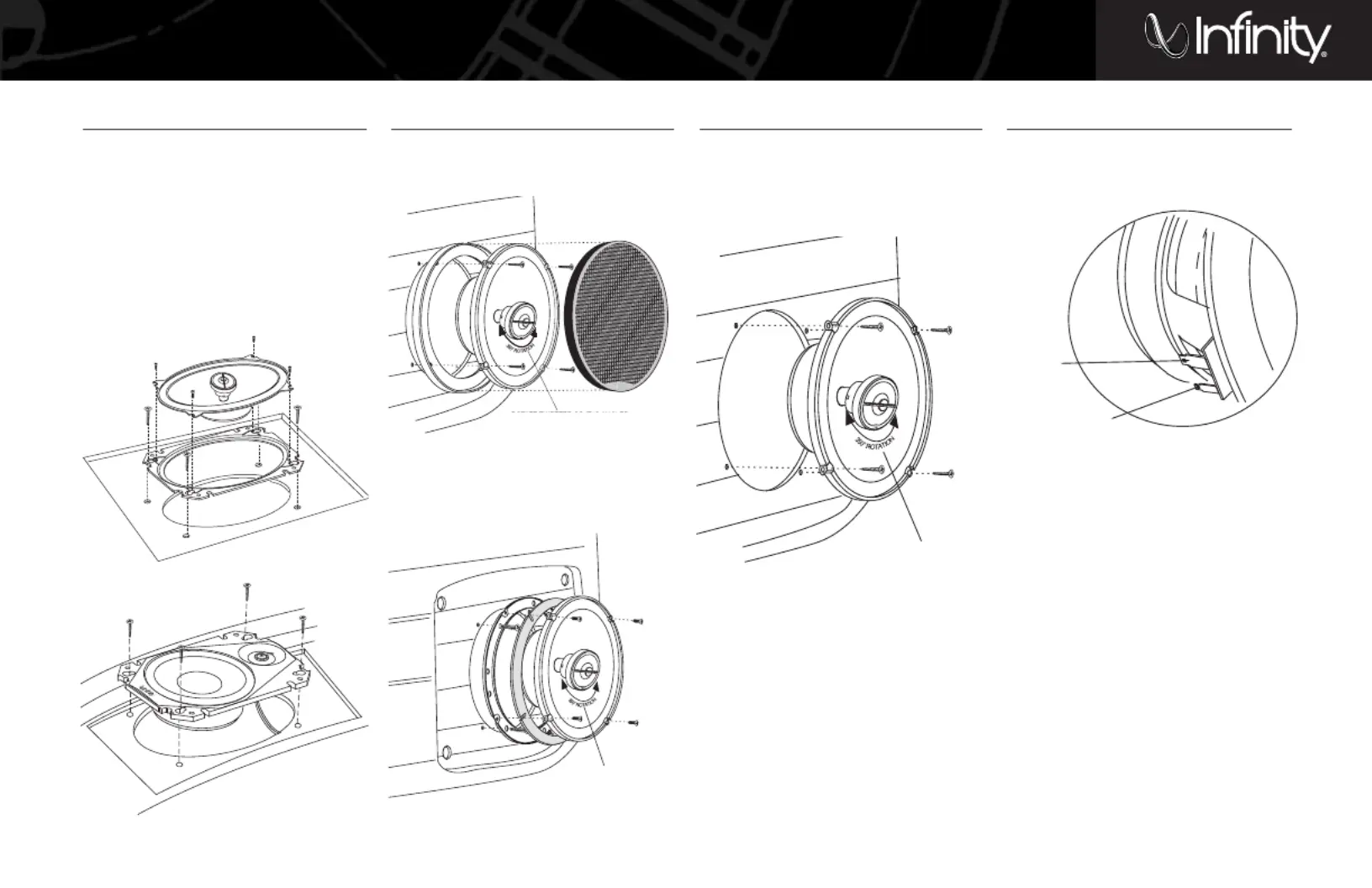

INSTALLATION
Figure 3.
Mounting the 6402cf and 6402cfp.
NOTE:The 6402cf and 6402cfp are designed to be
installed under factory grilles. Consequently, no
grilles are packaged with these models.
NOTE: If you are replacing a DIN (oval basket)
4" x 6" speaker with a 6402cf, remove the speaker
from the mounting bracket as shown in Figure 3.
INSTALLATION
Figure 4.
Mounting the 6002i with the grille.
INSTALLATION
Figure 6.
Mounting the 6002i in 165mm speaker locations.
CONNECTIONS
Figure 7.
Connect the speakers to the amplifier observing
proper polarity.
ROTATE TWEETER SO IT IS ANGLED
TOWARD THE LISTENER USING THE
"UNIPIVOT" FEATURE ON THE 5002i,
6002i, 9602i AND 6802cf
ROTATE TWEETER SO IT IS ANGLED
TOWARD THE LISTENER USING THE
"UNIPIVOT" FEATURE ON THE 5002i,
6002i, 9602i AND 6802cf
ROTATE TWEETER SO IT IS ANGLED
TOWARD THE LISTENER USING THE
"UNIPIVOT" FEATURE ON THE 5002i,
6002i, 9602i AND 6802cf
Figure 5.
Mounting the 6002i in standard speaker locations.
SMALL LUG
IS NEGATIVE (–)
BIG LUG IS
POSITIVE (+)
