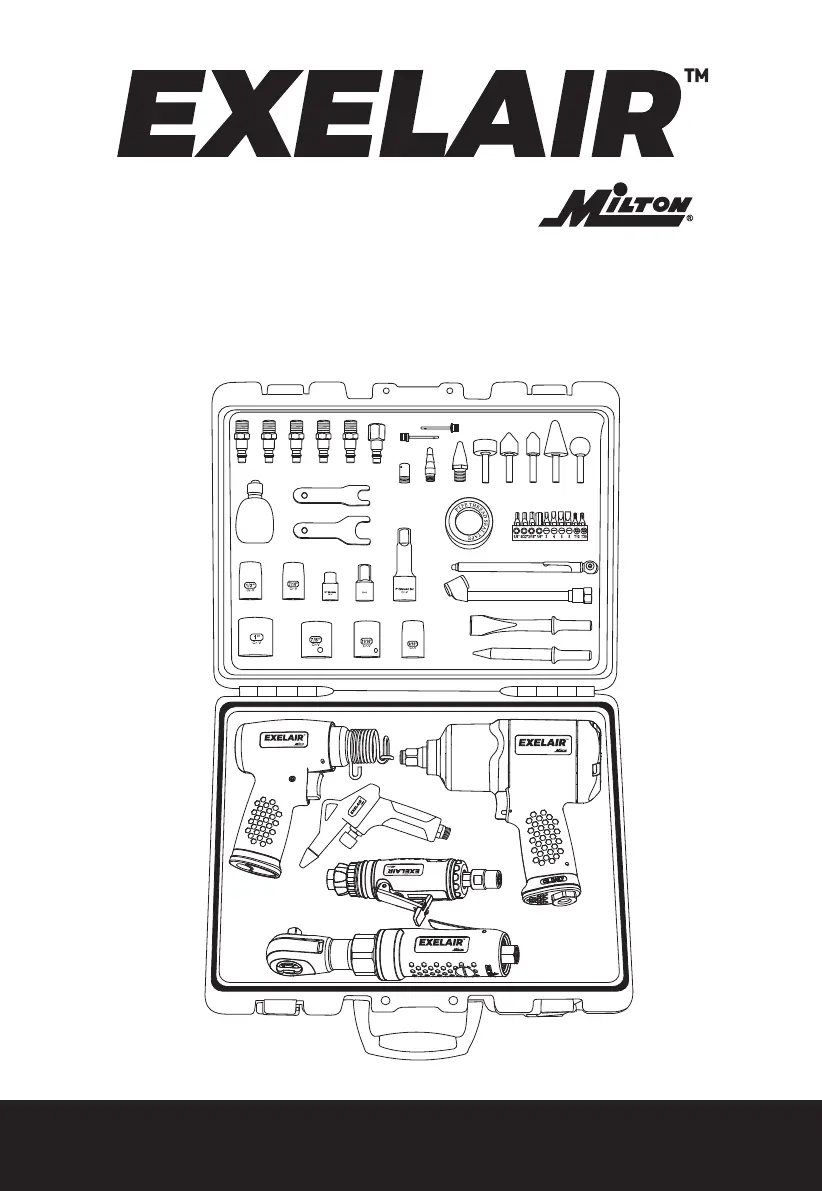

50-PIECE COMPOSITE AIR TOOL KIT
PLUGS
SPORT S
NEEDLES
SAFET Y
NOZ Z LE
T APERED
NOZ Z LE
RUBBER
NOZ Z LE GRINDING ST ONES
WRENCHES
OIL BOT T LE
T APE SEAL
50- PSI GAUGE
DUAL T IRE CHUCK
CHISELS
HAMMER
BLOW GUN
DIE GRINDER
IMPACT
RAT CHET
1/2” 7/16” BITS HOLDER 3/8” T O 1/2”
ADAPTOR
EXTENS ION BAR
1” 7/8” 11/16” 9/16”
BITS
OPERATOR’S MANUAL
EX5005CKIT
50-PIECE COMPOSITE AIR TOOL KIT
TABLE OF CONTENTS
GENERAL SAFETY RULES.........................................................................................2
AIR SUPPLY.................................................................................................................5
PRODUCT DESCRIPTION...........................................................................................7
TECHNICAL SPECIFICATIONS.................................................................................10
ASSEMBLY.................................................................................................................11
1/2" Air Impact Wrench...............................................................................11
3/8" Air Ratchet Wrench.............................................................................13
Air Hammer..................................................................................................14
1/4" Air Die Grinder.....................................................................................16
OPERATION...............................................................................................................19
1/2" Air Impact Wrench..............................................................................19
3/8" Air Ratchet Wrench.............................................................................20
Air Hammer..................................................................................................20
1/4" Air Die Grinder.....................................................................................21
TROUBLESHOOTING................................................................................................22
CARE AND MAINTENANCE......................................................................................22
EXPLODED DIAGRAMS AND PARTS LISTS...........................................................23
1/2" Air Impact Wrench...............................................................................23
3/8" Air Ratchet Wrench.............................................................................24
Air Hammer..................................................................................................25
1/4" Air Die Grinder.....................................................................................26
WARRANTY................................................................................................................27
50-PIECE COMPOSITE AIR TOOL KIT
GENERAL SAFETY RULES
WARNING!
● Improper operation or maintenance of this tool could result in
personal injury and/or property damage. Read and understand all
warnings and operation instructions before using this tool.
● When using this tool, these basic safety precautions should always
be followed to reduce the risk of personal injury and/or property
damage.
Workplace conditons
1. Always work in a clean, dry, well-ventilated area free of combustible materials.
Never operate the tool near flammable substances such as gasoline, naphtha,
cleaning solvent, etc.
2. Dress properly. Do not wear loose clothing. Tie up or cover long hair, remove any
jewelry, necklaces, etc., which might become caught by the tool.
3. Keep the work area well lit and free of clutter. Slips, trips and falls are major causes
of workplace injury. Be aware of excess air hose left in your walking way or on the
working surface.
4. Ensure that there are no electrical cables, gas pipes, etc., which can cause a
hazard if damaged by use of the tool.
5. Keep visitors a safe distance from the work area. Keep children away.
Use of air tools
1. Stay alert and use common sense. Watch what you are doing. Do not operate the
tool when you are tired or under the influence of alcohol, drugs or medication.
2. Do not overreach. Keep proper footing and balance at all times.
3. Always wear eye protectors which provides protection from flying particles from the
front and side when using the tool. Ear protectors should also be worn.
4. Never use oxygen, carbon dioxide, combustible gases or any other type of bottled
gases as a power source for this tool.
5. Always verify prior to using this tool that the air source has been adjusted to the
rated air pressure range. Never connect to an air source that is capable of exceed-
ing 200psi.
6. Do not connect the air supply hose to the tool with your finger on the trigger.
7. Do not exceed the maximum working pressure 90psi/6.3bar for the tool. Excessive
pressure will reduce the tool life and/or might cause a hazardous situation.
8. Never leave the operating tool unattended. Disconnect the air hose when the tool is
not in use.
9. Keep the air supply hose away from heat, oil and sharp edges.
10. Check the air supply hose for wear and/or leaks before each use. Make sure that
all connections are tight and secure.
11. Do not use the tool for any other than its intended use.
12. Do not carry out any alterations and/or modifications to the tool.
13. Always disconnect the tool from air supply before replacing any accessories,
performing any repair and maintenance, moving to another work area, or passing
the tool to another person.
2
