888-28-022-00 rev.A • 5/05
1 of 6
A
1
3
4
2x #8-32
M4 x 10mm
M4 x 10mm
75-100mm
8x
8x
8x
3/32"
8-32 x 5/16"
Neo-Flex Dual Display
Wall Mount
User's Guide
USA 1-800-888-8458
Europe +31 (0)33-45 45 600
2
1
1/2"
1/2"
1/8"
set screw
set screw
1x 2x 1x
1x
2x 8x
8x
2x 4x

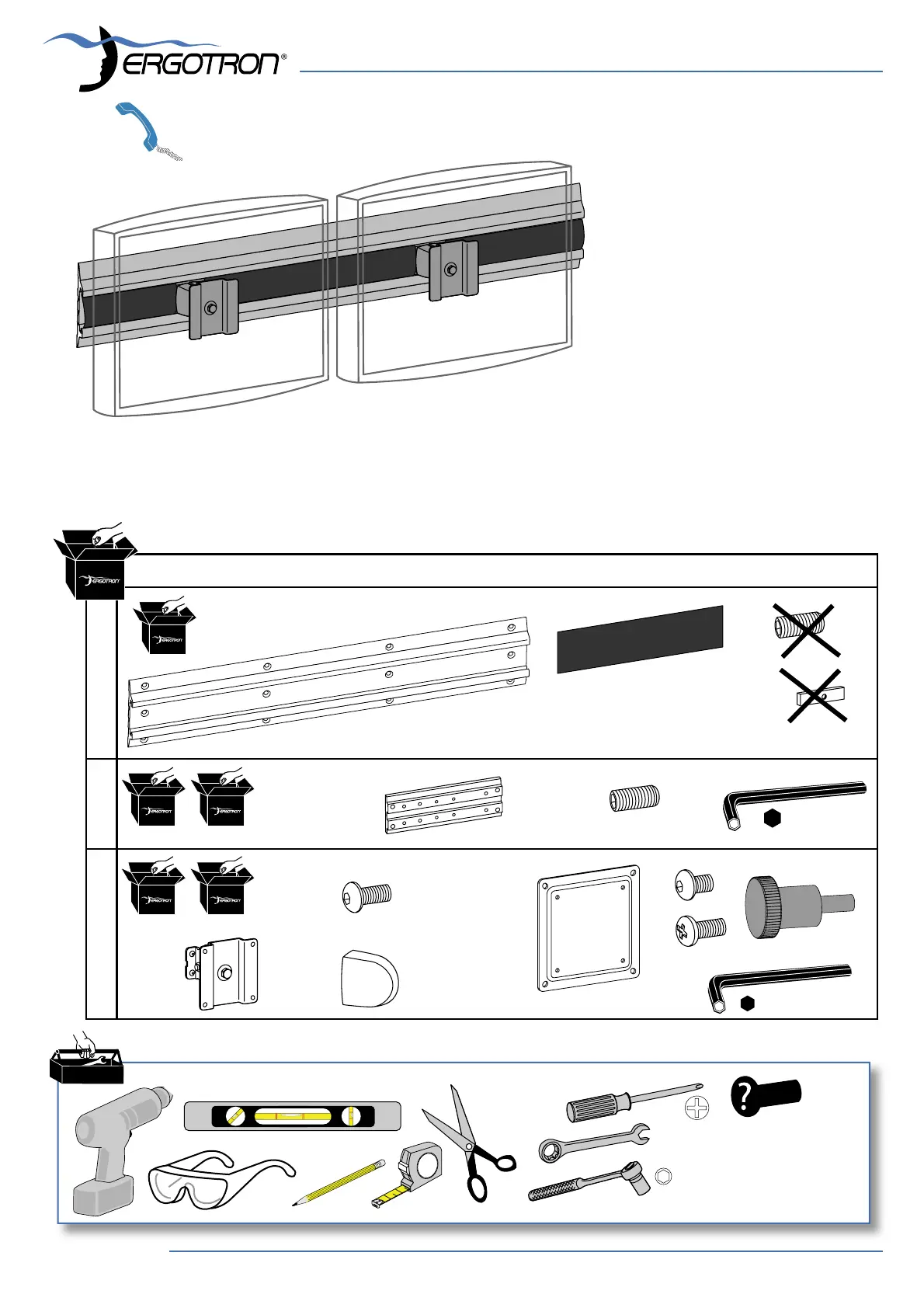

IMPORTANT: Use This User's Guide!
This product is made up of several individual products. Use this User's guide for
this installation and discard the instructions that come in the individual boxes.
Customer supplied
wall fasteners
appropriate to
your wall
888-28-022-00 rev.A • 5/05
2 of 6
1 Determine Ergonomic Mounting Height
2 Attach to Wall
Use the appropriate Ergotron hardware kit (sold seperately) or your own hardware to mount the Track to the wall. You may
use all or some of the mounting holes depending on your application - see WARNING below.
WARNING:
Ensure that the wall structure is capable of supporting four times the total weight of mounted equipment. Mounting to
wall surfaces that do not meet this criteria may result in an unstable, unsafe condition which could lead to personal injury
and/or property damage. Consult a construction professional if you have any doubt about what this means in regard to
your particular application.
a
Ø 1/2"
(13 mm)
b
Wall Anchor Hardware (sold separately)
If, after consulting with appropriate local engineering, architectural, or construction personnel it is determined that wall anchor
hardware should be used, refer to the following instructions.
1. Use a 1/2" (13mm) drill bit to drill holes.
2. Push anchor plate into hole.
3. Pull loop back so plate opens fl at against inside surface of wall.
4. Push collar into hole.
5. Snap off loop.
1 2 3 4 5
Ergotron hardware kit or customer supplied
wall fasteners appropriate to your wall
888-28-022-00 rev.A • 5/05
3 of 6
c
h
MM
h
MM
h
MM
h
MM
h
MM
h
MM
h
MM
h
MM
h
MM
3 Attach Pivots to Brackets
a b
c d e
3/32"
1/2"
1/2"
1/2"
1/2"
4x
set screw
8-32 x 5/16"
4x
Ergotron hardware kit or customer supplied
wall fasteners appropriate to your wall
Product specificaties
Merk: | Ergotron |
Categorie: | Flat panel steun |
Model: | Neo-Flex |
Kleur van het product: | Zwart |
Gewicht verpakking: | 10900 g |
Montage gereedschap: | Ja |
Montagewijze: | Plafond |
Afmetingen verpakking (BxDxH): | 620 x 530 x 100 mm |
Maximale gewichtscapaciteit: | 56.7 kg |
Paneelmontage-interface: | 200 x 100,200 x 200,280 x 150,300 x 100,300 x 200,300 x 300,360 x 304,400 x 200,400 x 300,400 x 400,400 x 600,420 x 240,420 x 410,500 x 350,540 x 360,600 x 200,600 x 400 mm |
Veiligheid: | RoHS |
Draaihoek: | 90 ° |
Pan bereik: | 0 - 24 ° |
Montage interface compatibiliteit (min): | 200 x 100 mm |
Montage interface compatibiliteit (max): | 600 x 400 mm |
Aantal displays ondersteund: | 1 |
Bereik kantelhoek: | 0 - 25 ° |
Maximale schermgrootte: | 65 " |
Code geharmoniseerd systeem (HS): | 85299097 |
Minimale schermgrootte: | 32 " |
