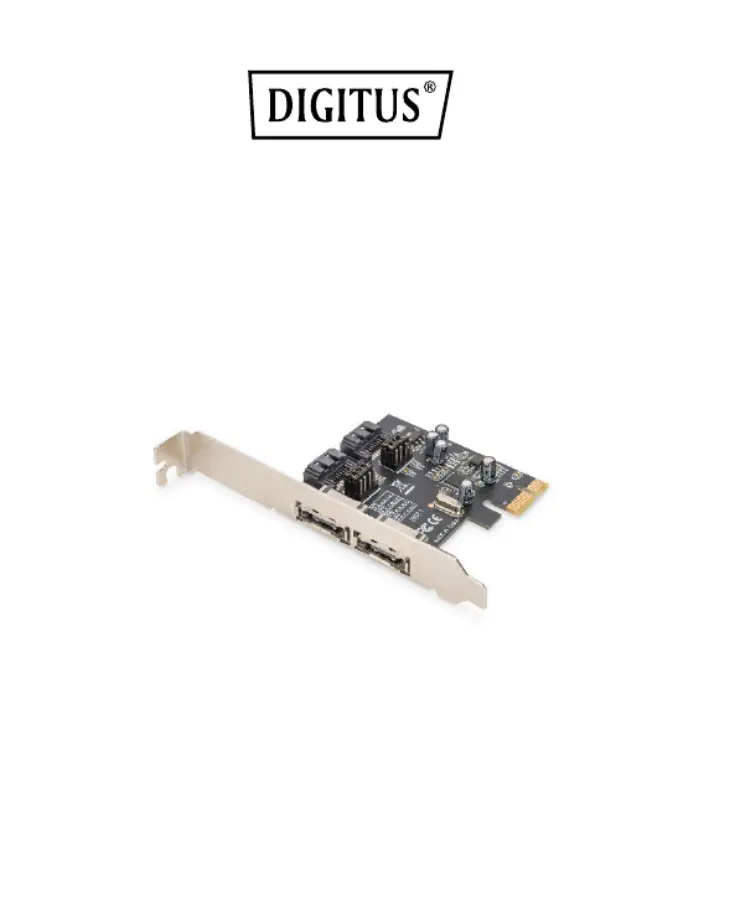

SATA III PCI Express Card,

2- port

Quick Installation Guide

DS-30105

1. Introduction

The DIGITUS PCI Express SATA Card expands the PC with 2 internal or

2 external SATA ports. Various devices can be connected to this card,

such as SSDs, hard disks, DVD drives and more. This card enables the

use of the latest and fastest hard disks with 6 Gbit/s and also offers

backwards compatibility with older SATA drives with 1.5 Gbit/s or

3 Gbit/s. In addition, PCI Express 2.0 doubles the range of the existing

PCI express bus for a faster data transmission rate. Each PCI Express 2.0

lane offers a capacity of up to 500 MB/s.

2. Feature

1. 2- Port SATA 6.0 Gb/s

2. 1 x PCI Express Rev. 2.0

3. Four independent serial ATA channels for simultaneous

connection of one serial ATA device on each channel

4. Supports Native Command Queueing (NCQ)

5. Supports ECRC and Advanced Error Reporting

6. Supports: Windows XP /Vista /Server 2003 /Server 2008,

Windows 7, Windows 8, Windows 8.1,

Windows 10 (32 / 64bit), Linux

3. Content Package

 PCI Express Card

 Low- profile bracket

 QIG

4. Hardware Description

There are four SATA ports available on the SATA 6G e CardPCI ,

2 internally SATA connectors and 2 eSATA connectors externally .

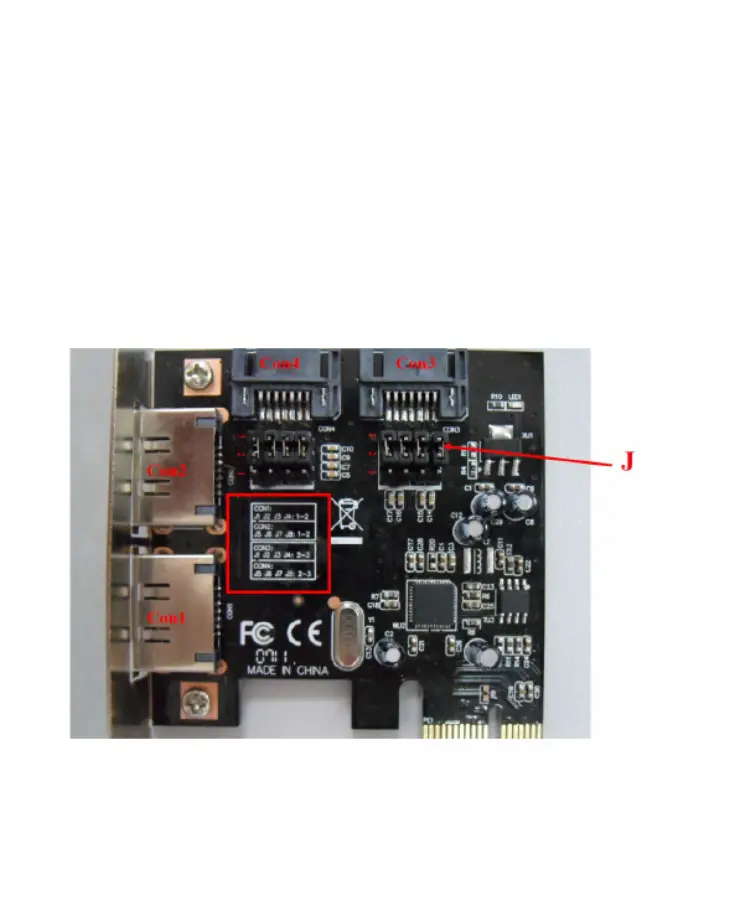

Based on the image below, the respective ports have been name Conl1

through Con4. Con3 Con4 are & internal SATA ports, while Con1 and

Con2 are external SATA ports . By changing the j mper setting on the u

SATA 6G PCle Card circuit board, you will be able to utilize two of the

ports simultaneously wish to use, by . Please designate which ports you

adjusting jumper setting according to the chart below. By default,

Con3 & 4 are working.
