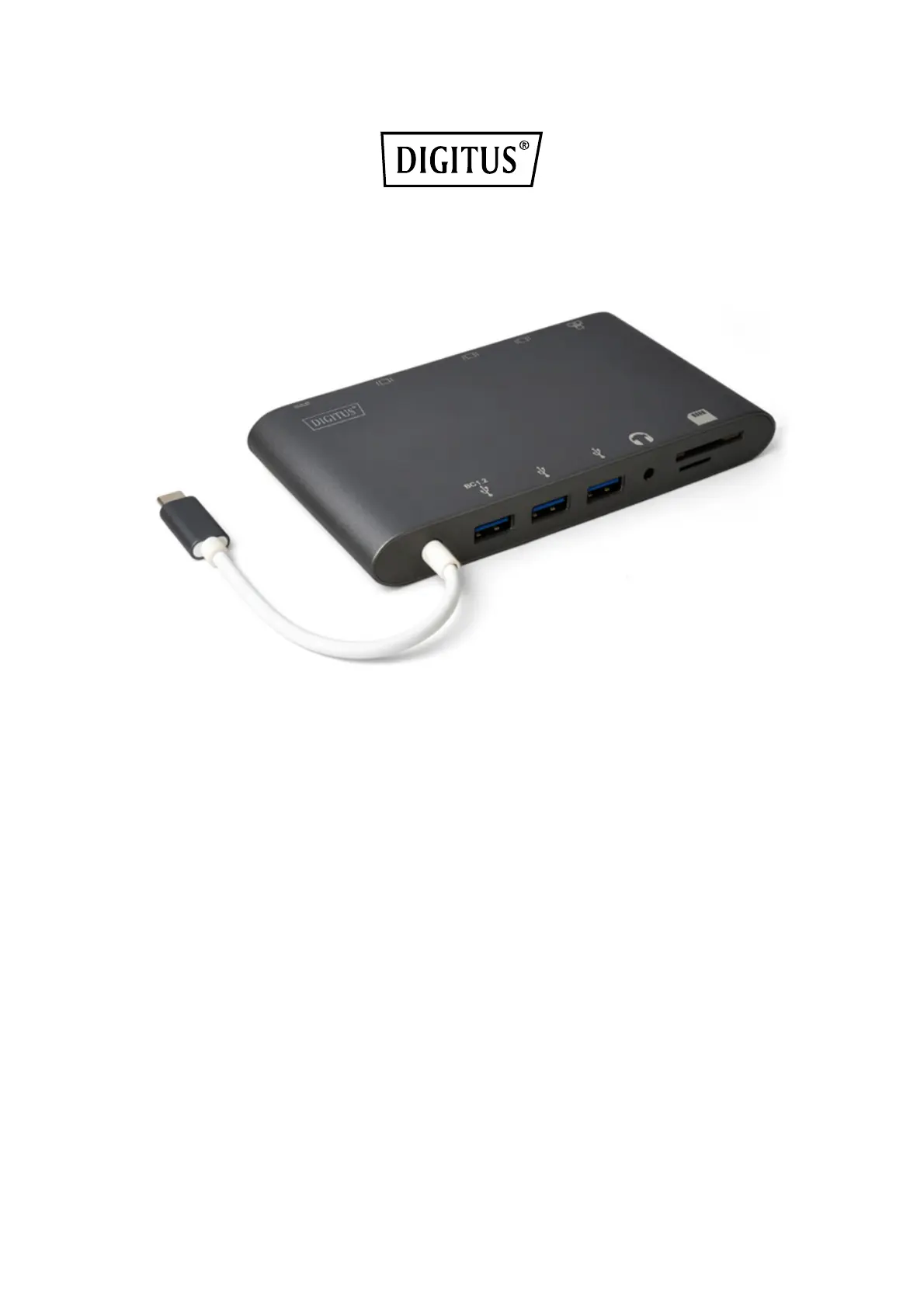

Universal Docking Station, USB Type C

Manual

DA-70861

1. INTRODUCTION

The fully functional universal docking station, USB type C from Digitus offers you

everything to create a fully equipped workspace. It offers three video interfaces

(HDMI, MiniDP and VGA), where two monitors can be operated at the same time.

Thus, the best possible supported resolution is achieved: Brilliant UHD (4K2K/30Hz).

In addition, it offers three USB 3.0 ports, where one port (5V/1.5A) also provides a

charging function for mobile devices. The USB interfaces are supplemented by a

USB-C with power delivery (PD) functionality. Two card readers are also built in

(MicroSD, SDHC, SDXC/MMC). Your notebook can also be connected to your network

via cable over the Gigabit Ethernet port. We top everything off with a stereo audio

port. Extend your notebook to 11 additional ports using only one USB-C port - with

the multifunctional Universal Docking Station USB Type C.

This Type-C docking offers integrated solution for power, data and video. It allows

you to connect Type-C host PC to VGA, HDMI, Mini DisplayPort displays for video

transmission, to USB-A devices for data transmission. It also helps the host PC to get

access to Ethernet through RJ45 port. Besides, the SD/MMC and Micro SD card slot

helps to read the information of the external memory in the host PC and the USB-C

female port can charge for the host computer.

2. FEATURES

 Support USB-C input

 Support HDMI Female, Mini DisplayPort Female, VGA Female, USB-C Female,

USB 3.0 Female, Gigabit Ethernet, Stereo, SD Card, Micro DS Card, USB-C

interface

 Support HDMI resolution up to 4kx2k@30Hz

 Support Mini DisplayPort resolution up to 4kx2k@30Hz

 Support VGA resolution up to 1920x1200@60Hz

 The total output of the 3 USB-A is 10W(5V@2A), 1 port supports BC 1.2, with

max 7.5W (5V@1.5A), the other two ports share max 5W (5V@1A)

 Support 10/100/1000Mbps bandwidth

 Stereo port supports both microphone and headphone

 USB-C female charging port for USB-C notebooks/ultrabooks

 Multiple USB-C interfaces support plug and play, hot swap

 Support SD/SDHC/SDXC

 Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed

max 90Mbps)

 Support MultiMediaCard (MMC) specification

 Support Micro SD/SDHC/SDXC (up to 128 GB)

 Supports: Mac OS 10.10.2 and above, Google Chrome, Windows: Windows 7 to

Windows 10,

3. PACKAGE CONTENT

Before attempting to use this unit, please check the packaging and make sure the

following items are contained in the shipping carton:

 1 x Main unit: Universal Docking Station, USB Type C

 1 x User Manual

4. SPECIFICATIONS

Input/Output Connector

Input USB-C Male x1

Output HDMI Female p3-x1

Mini DP Female p3-x1

VGA Female p3-x1

USB-C Female p3-x1

USB 3.0 Female p3-x3

RJ45 X1

Stereo p3-x1

SD card slot p3-x1

Micro SD card slot p3-x1

USB-C Female p3-x1 for charging

Environmental

Operating Temperature 0°C to +45°C

Operating Humidity 10% to 90 % RH (no condensation)

Storage Temperature -10°C to +70°C

Storage Humidity 10% to 90 % RH (no condensation)

Power Supply

USB-C PD Charging Port 60W (20V/3A)

USB-A Port X3 Total output: 10W (5V@2A)

One port supports max 7.5W (5V@1.5A)

Other two ports share max 5W (5V@1A)

Regulatory Approvals

Certifications FCC, CE

Accessory Adapter

User Manual 10 languages

Chipset VL100: PD controller

VL813/RTL8153/NS1081C/SSS1629/STDP4320/

PS8339B/ANX9833

Product specificaties

Merk:	Digitus
Categorie:	Niet gecategoriseerd
Model:	DA-70875
Kleur van het product:	Grijs
Gewicht:	250 g
Breedte:	135 mm
Diepte:	75 mm
Hoogte:	17 mm
Gewicht verpakking:	326.667 g
Breedte verpakking:	140 mm
Diepte verpakking:	170 mm
Gebruikershandleiding:	Ja
Materiaal behuizing:	Aluminium
Connectiviteitstechnologie:	Bedraad
Ethernet LAN:	Ja
Maximum resolutie:	4096 x 2160 Pixels
Type stroombron:	USB
Geïntegreerde geheugenkaartlezer:	Ja
Compatibele geheugenkaarten:	MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC
Land van herkomst:	China
Code UK-handelstarief:	84718000
VGA (D-Sub)poort(en):	1
Aantal HDMI-poorten:	1
Microfoon, line-in ingang:	Nee
Aantal Ethernet LAN (RJ-45)-poorten:	1
HD type:	4K Ultra HD
Resolutie (maximum digitaal):	4096 x 2160 Pixels
Ethernet LAN, data-overdrachtsnelheden:	10,100,1000 Mbit/s
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A:	3
Combo koptelefoon/microfoon port:	Ja
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C:	1
Hostinterface:	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Mini DisplayPort kwantiteit:	1
USB Power Delivery tot max.:	60 W
Aantal displays ondersteund:	2
Code geharmoniseerd systeem (HS):	84733020
Verpakkingsvolume:	595 cm³
