ENGLISH

CBU-ASD

Bluetooth control unit for LED drivers

Warning!

Hazardous voltages. Risk of electric

shock or re. Only qualied profession-

als should make the connections. Discon-

nect the mains power supply and verify

its absence prior to installation.

www.casambi.com

230 VAC

Information in this document is subject to change.

CBU-ASD User Guide v2.0 ENG

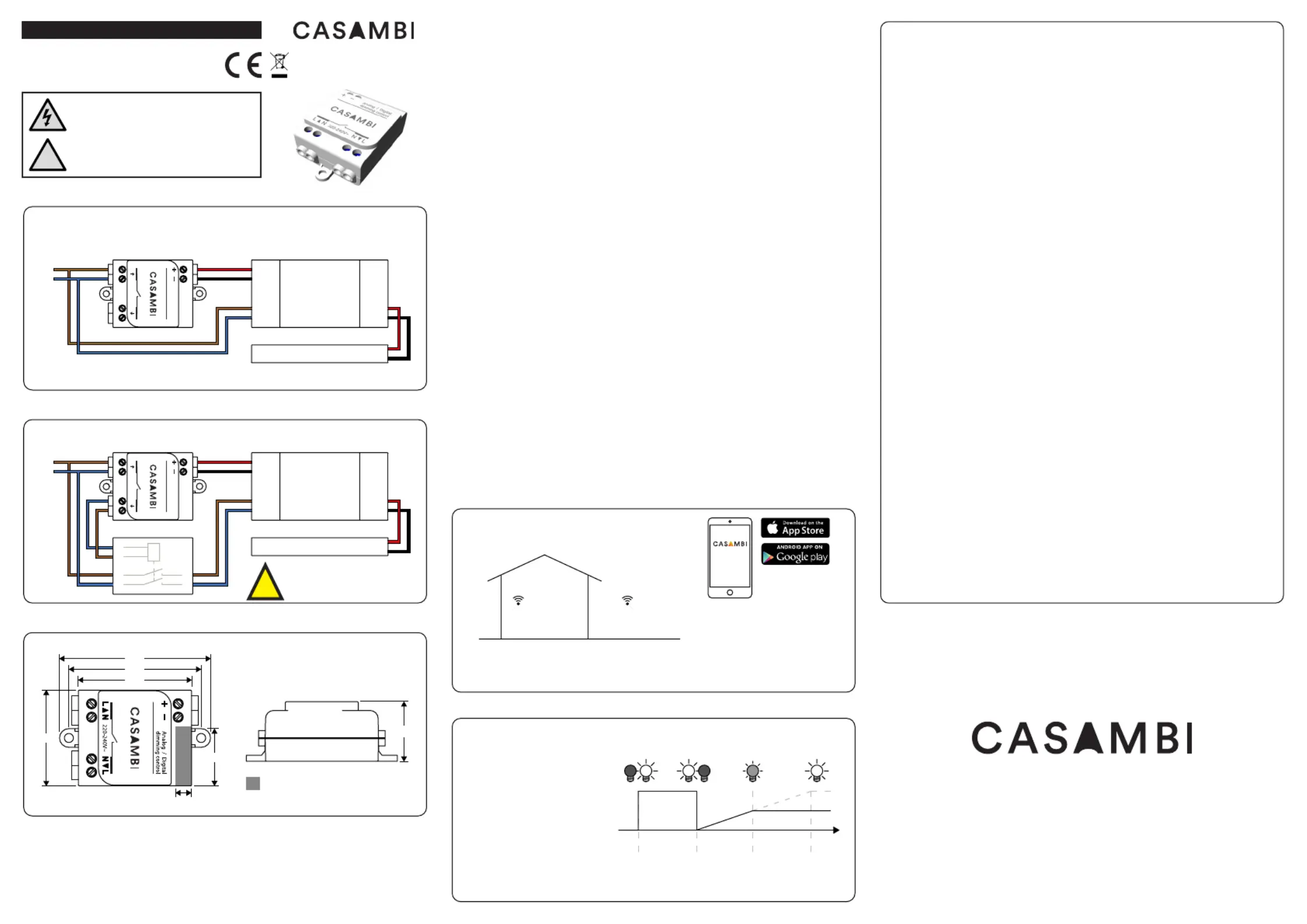

Wiring diagram, directly powered DALI or 0-10V drivers

Dimensions

Description

CBU-ASD is a wireless control unit for LED and halogen drivers with 0-10V, 1-10V or DALI

dimming interface. CBU-ASD is available with either analog 0-10V (and 1-10V) or digital

Standalone DALI control interface.

With Standalone DALI output, CBU-ASD acts both as a controller and as a power supply

making it possible to connect directly to an LED driver with DALI interface without the need

for an external DALI power supply. This so called Standalone DALI makes it possible to

implement multi-channel lighting systems with adjustable color (RGB and RGBW) or color

temperature (CCT), while keeping the wiring and number of components at their minimum.

CBU-ASD does not comply with IEC 60929 and therefore is not designed to be connected to

an existing DALI network. The module can be used only in a closed system, i.e. as a part of

a lighting system which is not connected to an external DALI network.

CBU-ASD is controlled wirelessly with Casambi smartphone and tablet applications using

Bluetooth 4.0 protocol. The Casambi app can be downloaded free of charge from Apple App

Store and Google Play Store.

Devices form automatically a secure wireless mesh network so that a large number of x-

tures can be controlled from any point. No external gateway module is needed. CBU-ASD

can be controlled also from a standard on/o wall switches.

Range

Casambi uses mesh network technology so each

CBU-ASD acts also as a repeater. Longer ranges can

be achieved by using multiple Casambi units.

Compatible devices:

iPhone 4S or later

iPad 3 or later

iPod Touch 5th gen or later

Android 4.4 KitKat or later devices

produced after 2013 with full BT

4.0 support

50 m 1)

Up to

30 m 1)

1) Range is highly dependant on the surrounding and obstacles, such as walls and building materials.

Dimming without app

1. Turn lights on from a wall switch.

2. Quickly ick the wall switch o (max.

1 sec.) and back on. The light level

starts to increase gradually.

3. Flick the switch again at desired dim

level. The selected level is saved

automatically.

4. If the second ick is not done within

8 sec. the light intensity reaches its

maximum level.

5. Flicking the switch can also be

used to switch between predened

scenes.

ON FLICK

(<1 sec.)

FLICK

(<1 sec.)

8 sec.

from

1st ick

time

Input

Voltage range: 220-240 VAC

Frequency: 50 Hz

Max. mains current: 0,6 A

Mains Output

Output relay: SSR on phase line

Voltage range: 220-240 VAC

Frequency: 50 Hz

0-10V Output

Voltage range: 0-10 VDC

Maximum number of drivers connected: 1 pc

DALI Output

Voltage range: 9-12 VDC

Maximum number of drivers connected: 1 pc

Radio transceiver

Operating frequencies: 2,4...2,483 Ghz

Maximum output power: +4 dBm

Operating conditions

Ambient temperature, ta: -20...+50°C (Iout 0 A)

-20...+40°C (Iout 0,6 A)

Max. case temperature, tc: +70 °C

Storage temperature: -25...+75 °C

Max. relative humidity: 0...80%, non-cond.

Connectors

Wire range, solid & stranded: 0,75-1,5 mm2

14-22 AWG

Wire strip length: 6-7 mm

Tightening torque: 0,4 Nm/4 Kgf.cm/2,6 Lb-In

Mechanical data

Dimensions: 56,5 x 35,8 x 22,3 mm

Weight: 48 g

Degree of protection: IP20 (indoor use only)

Protection class: Built-in Class II

Technical data

Installation

Make sure that the mains voltage is switched o when making any connections. Use 0,75-

1,5 mm2 solid or stranded conductor electrical wires. Strip the wire 6-7 mm from the end.

Insert the wires to the corresponding holes and tighten the connector screw. Make sure

to connect the input and outputs correctly. Mains input connector is marked with letters

L and N with an arrow pointing inwards, while the mains output connector is marked with

letters L and N with an arrow pointing outwards. The low voltage output is marked with +

and - symbols.

If you install CBU-ASD into a heat sensitive environment (i.e. inside a luminaire or in a ceiling

outlet box above a luminaire), make sure that the ambient temperature does not exceed the

specied maximum value.

Lighting control

for the Modern World

Suitable for drivers that can be switched o via control interface

DALI2)/

0-10V

230 VAC

Note 1.

DA/+

DA/-

LED driver

LED module

Wiring diagram, 1-10V drivers powered through external relay

Suitable for drivers that cannot be switched o via control interface

230 VAC

230 VAC 1-10V

LED driver

LED module

External relay

Warning!

Risk of re. Do not connect

CBU-ASD mains output directly

to LED driver mains input

Note 1. CBU-ASD is a built-in class II device. Use double insulated wires or an external mounting box if the

device is not mounted inside another insulated device.

Note 2. CBU-ASD and its DALI interface do not meet the requirements of IEC 60929. Connect only directly

to a DALI controllable LED driver. Not to be connected to an existing DALI network. Connect only one LED

driver (DALI or 0/1-10V driver) to one CBU-ASD.

220-240V~

max. 0.6A

Analog / D igital

dimming control

L N N L 220-240V~

max. 0.6A

Analog / D igital

dimming control

L N N L

Casambi Technologies Oy

Bertel Jungin aukio 1 E, 02600 Espoo, Finland

Disposal Instructions

In line with EU Directive 2002/96/EC for waste electrical and electronic equipment (WEEE),

this electrical product must not be disposed of as unsorted municipal waste.

Please dispose of this product by returning it to the point of sale or to your local municipal

collection point for recycling.

56,5

49,5

42,4

35,8

Mounting hole diameter:

2 x 3,5 mm

Antenna location

22,3

max. 0.6A
